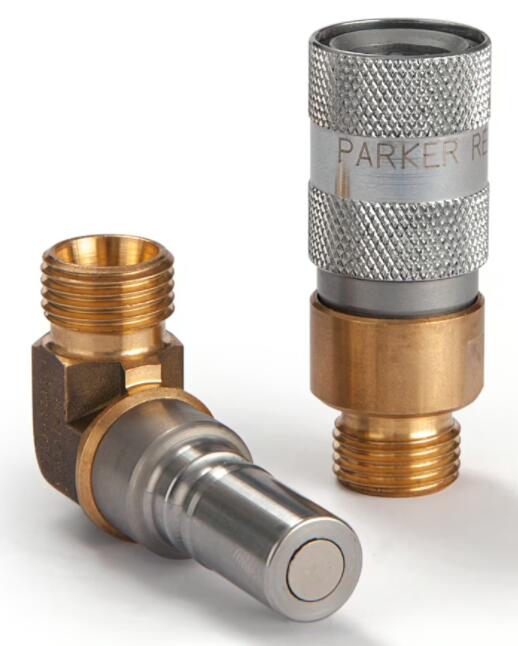

Push-to-Connect Dry Break Quick Coupling - Series NSP



干式断路黄铜或不锈钢快速接头系统,公称直径为 6、9 或 12,适用于高达 60 bar 的热管理应用。 派克的按压式快速连接接头系列NSP是带有平面阀的干式接头。紧凑的设计使其适用于狭小的空间。NSP系列是一种单手操作的联轴器系统。NSP系列可与水和导热油一起使用。 Parker's Push to connect Quick Connect Coupling Series NSP are dry break couplings with flat face valves. The compact design makes it suitable for reduced spaces. The series NSP is a coupling system with single-hand operation. Series NSP can be used either with water and heat transfer oils. Dry break brass or stainless steel quick coupling system with nominal diameter 6, 9 or 12 for thermal management applications up to 60 bar.





市场:
- 成型机械- 电子冷却- 发电和转换

特点/优点:- 低压降
- 连接/断开时无溢出- 冷却
应用的特殊设计- 按压连接功能

- 出色的抗振动和机械 应力

应用


- 电子元件
冷却 - 水和冷却液管路



Markets:
- Molding machinery
- Electronic cooling
- Power generation and conversion

Features/Benefits:
- Low pressure drop
- No spillage during connection / disconnection
- Specific design for cooling applications
- Push-to-Connect function
- Excellent resistance to vibrations and mechanical stresses

Applications:
- Cooling of electronic components
- Water and coolant lines



Technical Specifications

Diameter: 6 nom
Product Type: Coupling
Valve Included: Yes
Version: Flat-sealing
Connection Thread Size: na, 16 mm
Length: 55,8 mm
Hex Size: 21 mm
Outside Diameter: 22 mm
Materials of Construction: Brass/Stainless Steel
Seal Material: FKM
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: 200 °C
Maximum Operating Pressure: 60 bar
Application: Thermal Management
Hose Inside Diameter: na
Connection Type: Male Thread - metric





Products
Connection Type
NSP-251-16MCL Male Thread - metric
NSP-251-C16MCL Male Thread - metric - 90° Elbow
NSP-251-4MBE Male Thread - BSPP
NSP-251-4FB Female Thread - BSPP
NSP-251-6PL Hose Barb
NSP-251-6HB-RD Hose Barb
NSP-251-6MO-BU Male ORB
NSP-251-6MO-RD Male ORB
NSP-252-6HB-BU Hose Barb
NSP-252-6MO-BU Male ORB
NSP-252-6MO-RD Male ORB





Products Connection Type
NSP-251-16MCL Male Thread - metric
NSP-251-C16MCL Male Thread - metric - 90° Elbow
NSP-251-4MBE Male Thread - BSPP
NSP-251-4FB Female Thread - BSPP
NSP-251-6PL Hose Barb
NSP-251-6HB-RD Hose Barb
NSP-251-6MO-BU Male ORB
NSP-251-6MO-RD Male ORB
NSP-252-6HB-BU Hose Barb
NSP-252-6MO-BU Male ORB
NSP-252-6MO-RD Male ORB
