Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

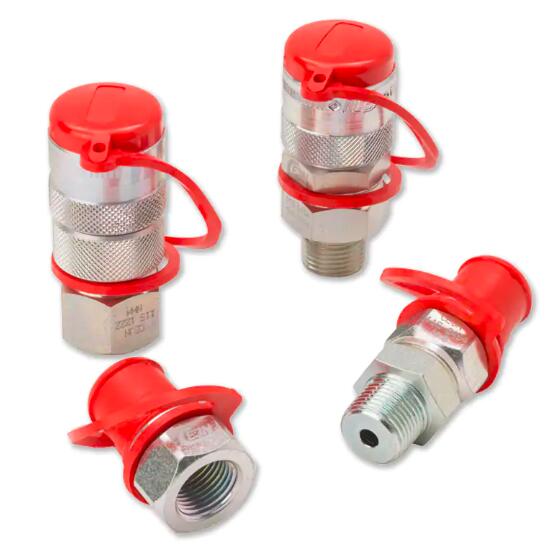

Ultra High Pressure Hydraulic Quick Coupling - C Series
C系列超高压液压快换过渡接头

派克的C系列快换过渡接头有NPT, BSP以及"高压"螺纹等连接形式可供选择，工作压力范围从14,500 psi到29,000psi. Parker's C Series Quick Couplings are available with NPT, BSP and "High Pressure" thread styles with working pressures ranging from 14,500 psi to 29,000 psi.

派克的C系列快换接头采用无溢流阀芯，清洁、安全、性能稳定，且可在连接时产生较小的夹气量；在发货时标配防尘盖，以预防接头受到损伤或被流体污染。同时，该快换接头有多种螺纹连接形式可供选择（NPT, BSP 和高压螺纹等），工作压力范围从14,500 psi 至 29000 psi。此快换的应用范围包括液压工具、救援设备、水压测试设备和BOP防井喷装置等。 Parker's C Series Quick Couplings provide non-drip valving for clean, safe, trouble-free performance and minimal air inclusion. Protective dust caps are included to prevent damage and fluid contamination. These quick couplings are available in a variety of thread styles (NPT, BSP and "High Pressure") with working pressures ranging from 14,500 psi to 29,000 psi. Applications include hydraulic tools and rescue equipment, hydrostatic testing and Blow-out Preventers.

Ultra High Pressure Hydraulic Quick Coupling - C Series

市场Markets:
- High pressure hydraulics
- Oil & Gas
- 高压设备
- 油/气

特点/优势Features / Benefits:
- Quick couplings offer ease of connection to high pressure hoses and fixed ports
- Built-in safety locking device to prevent accidental disconnect
- Protective dust caps are included to prevent damage and fluid contamination in disconnected position
- Rugged design and construction for long life in demanding applications
- 快换带过渡接头，可方便与高压软管和固定油口连接
- 内置式安全锁装置，可预防意外断开
- 标配防尘盖，也可预防断开时接头受到损伤或被流体污染
- 坚固耐用的结构设计，可保障恶劣环境下的使用寿命

应用Applications:
- Hydraulic tools and rescue equipment
- Hydrostatic testing
- Blow-out Preventers
- 液压工具和救援设备
- 水压测试设备
- BOP防井喷装置

Technical Specifications

Ultra High Pressure Hydraulic Quick Coupling - C Series型号
