Parker Quick Couplings快速接头

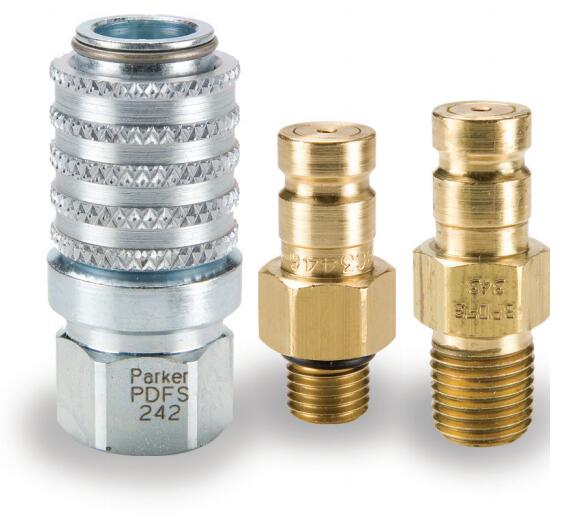

Diagnostic Fluid Sampling, Test Port Quick Couplings, Brass Test Point Connectors and Steel Couplers – PDFS / BPDFS
测压点快换接头

设计诊断测试取样接头的目的是为了能够快速的得到目标流体的样品。 Diagnostic fluid sampling test port quick couplings are designed to provide an easy access point for obtaining fluid samples.

设计诊断测试取样接头的目的是为了能够快速的得到目标流体的样品。该接头安装在测试点上，可减少因为取样而造成的经常性的停机或者切断管路。同时也减少了新的污染物进入系统。 These diagnostic fluid sampling products are designed to provide an easy access point for obtaining fluid samples. A permanently mounted test point eliminates the need to shut down or break lines when taking samples and reduces the chances of contamination.

流体分析，对发动机以及液压系统来说都是非常重要的，因为它能够监视过滤系统的失效问题或者内部元件的其它问题。过早的发现这些问题能够降低并且减少一些不必要的维修，以及不在计划内的维护工作，甚至是生产线的停机。流体取样的阳接头应该安装在低压或者是回油管路中。为了使监测更加的精确，原则上来说，取样应该是经常性的从同一个点来进行。 Fluid analysis is crucial in both engines and hydraulic systems as it can reveal problems with filtration and other internal components. Early detection can prevent costly repairs, unscheduled maintenance and production downtime. Fluid sampling nipples should be installed in either low pressure or return lines. For the most accurate monitoring, fluid samples should be consistantly taken from the same location.

取样探针的型号是 PDFS-PROBE。 Fluid Sampling probe is part number PDFS-PROBE.

Diagnostic Fluid Sampling, Test Port Quick Couplings, Brass Test Point Connectors and Steel Couplers – PDFS / BPDFS

技术参数Technical Characteristics:
- Size: 1/8"
- Rated Pressure: 500 psi
- Materials: Steel, Brass
- Port Ends: Female NPTF, Male NPTF, Male ORB
- Seal Material: Fluorcarbon
- 尺寸范围：1/8"
- 压力范围：500 psi
- 材料：碳钢，黄铜
- 尾端连接：NPTF内螺纹，NPTF外螺纹，ORB外螺纹
- 密封材料：氟橡胶

市场Markets:
- Industrial
- Construction
- Mobile Equipment
- Testing
- Maintenance and Repair, MRO
- 工业
- 建筑
- 移动设备
- 测试
- 维护和保养，MRO

特点/优势Features/Benefits:
- Provides an easy access point for obtaining fluid samples
- Coupler is steel and nipples are brass with Fluorocarbon seals
- Fluid analysis can provide valuable diagnostic information and prevent costly repairs and unscheduled downtime
- 能够为流体取样提供方便的取样点
- 阴接头材料：碳钢，阳接头材料：黄铜，密封圈材料：氟橡胶
- 流体分析能够提供有价值的诊断信息，并且减少不必要的维修，以及意外的停机

应用Applications:
- Mobile equipment engines
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization
- 工程机械的发动机
- 冷却系统
- 工业液压系统
- 流体或空气系统的维护和故障排除
- 系统性能优化

Technical Specifications

Diagnostic Fluid Sampling, Test Port Quick Couplings, Brass Test Point Connectors and Steel Couplers – PDFS / BPDFS 型号
