Agricultural Tractor Clamp Kits with Pioneer Lever Actuated Quick Couplers and Dust Cover Housing - 9500 Series Clamp Kits
农业拖拉机用内置组合模块，带Pioneer手柄调节快换接头和防尘外罩 - 9500系列组合模块

Pioneer农机用快换接头 - 内置组合模块带自动防尘外罩，含两个优质、可带压连接的9250系列手柄调节快换接头。该模块的供货形式包括部分装配好或者完全装配好、可直接安装使用这两种形式。 Pioneer agricultural quick coupler - clamp kits with automatic dust cover includes two premium, connect under pressure, 9250 lever actuated couplers. Kits are available partially assembled or fully assembled, ready for installation.

Agricultural Tractor Clamp Kits with Pioneer Lever Actuated Quick Couplers and Dust Cover Housing - 9500 Series Clamp Kits

Pioneer 9500系列农机用内置组合快换模块包含两个9250系列优质且可带压连接的快换接头、组合模块装置以及防尘外罩。该模块的供货形式包括部分组装或者预装配可直接安装使用这两种形式。 Pioneer 9500 Series agricultural clamp kits include two 9250 premium connect under pressure couplers, clamp and dust protection. Kits are available partially assembled or preassembled and ready for use.

派克的9200系列是双截止、手柄调节、可带压连接的快换接头，可与8010系列阳接头（IS0 5675标准，Pioneer全球通用型阳接头）配合连接使用。该快换接头允许在阴接头和阳接头单向或者双向带压的应用下完成与零压力一样的连接和断开，同时，其手柄操作装置还可以将阴阳接头阀芯锁定在开启或者关闭的位置。“关闭”流量即意味着将阴接头的阀芯闭合，此时可非常简单地连接和断开快换接头。当手柄装置将阀芯锁定在“开启”位置时，以防流量回流，且不会受液压流量冲击的影响。当快换意外断开或者脱离时，阀芯会自动关闭。
换及防尘外罩均有颜色作为标识，可以很简单地区分压力管路和回油管路。 Parker's 9200 Series are double shut-off, lever activated, connect under pressure quick couplings that connect with 8010 Series Nipples (IS0 5675, Pioneer universal male tips). The coupler allows zero pressure connection and disconnection while either or both the coupler or nipple are under pressure. A lever operated cam locks both coupler and nipple valves in the open or closed position. "Closed" the flow is shut off at the coupler, allowing easy connect and disconnect. Valves in the "Open" position are locked in place, preventing flow checking and are unaffected by hydraulic surges. Valves will automatically close if the coupling is accidentally disconnected or in the case of a breakaway.
Couplers and dust covers are color coded to easily identify raise and lower lines.

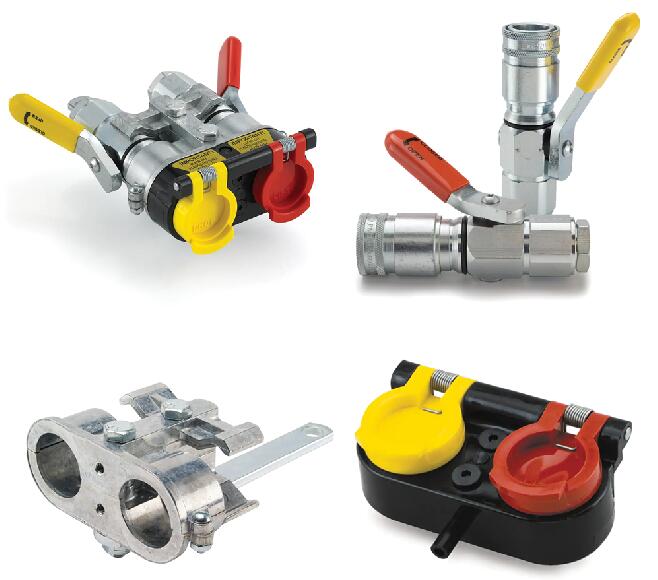

Pioneer 9500系列内置组合模块包含：
- (1) 9250手柄调节快换 - 右手方向，红色手柄
- (1) 9250手柄调节快换 - 左手方向，黄色手柄
- (1) 9006-4组合模块装置
- (1) 9507-4-1H自动防尘外罩
Pioneer 9500 Series Clamp Kit contents:
- (1) 9250 lever actuated coupler - right hand orientation, red grip
- (1) 9250 lever actuated coupler - left hand orientation, yellow grip
- (1) 9006-4 clamp assembly
- (1) 9507-4-1H automatic dust cover assembly

市场Markets:
- Agriculture
- Mobile Farm Equipment
- 农用机械
- 行走农田设备

特点/优势Features/Benefits:
- Clamp has steel mounting bar with heavy duty die cast yoke to securely hold the couplers
- Dust protection housing has color coded covers that automatically close when couplers are disconnected, to keep dirt from easily entering the coupler socket
- Connect and disconnect couplers with minimal effort while lines are under pressure
- Lever locks valves in open position to be unaffected by pressure surges and prevent flow checking
- Lever locks valves in closed position to enable easy connection and disconnection while lines are under pressure
- Right and left handed lever orientation with color coded grips help to easily identify raise and lower lines
- Coupling will disconnect and valves will automatically close in the case of a breakaway
- Globally connects with Pioneer universal male tips (nipples) complying to ISO 5675 (not included in Kit)
- 组合模块采用碳钢固定杆及重载压铸本体支架，安全地固定住快换接头
- 防尘外罩的盖子带颜色标识以区分管路，且可在快换断开后自动闭合，以防灰尘轻易地进入管路系统
- 即使在管路带压的情况下，该快换也可以很小的装配力完成连接和断开。
- 手柄操作装置将阀芯锁定在“开启”位置时，以防流量回流，且不会受液压流量冲击的影响。
- 手柄操作装置将阀芯锁定在“关闭”位置时，意味着将阴接头的阀芯闭合，即使在带压情况下也可以非常简单地连接和断开快换接头。
- 右手指向和左手指向的手柄带颜色标识，可以很简单地区分压力管路和回油管路。
- 当管路受到一定拉力时，快换会自动断开，且阀芯会自动关闭。
- 可与符合ISO 5675标准的Pioneer全球通用型阳接头配合连接使用（不包含在模块里）

应用Applications:
- Tractors and mobile equipment attachments
- Agricultural attachments requiring breakaway
- NOT recommended for use with gaseous or compressible media
- 拖拉机和行走设备属具
- 农用机械属具等需要拉断装置的应用
-不推荐用于气体或者可压缩的介质

Technical Specifications
