Parker Quick Couplings快速接头

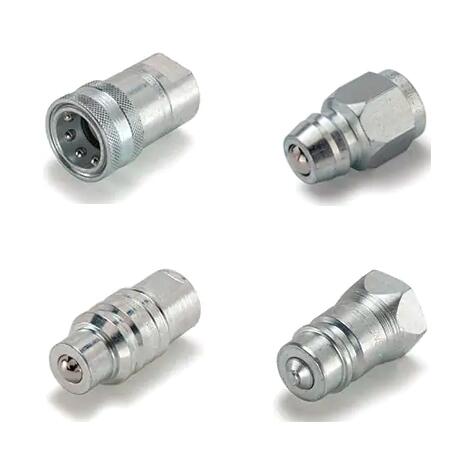

Agricultural Quick Coupling Interchange to OEM Brand Tractor Connections - Pioneer OEM Interchange Couplers and Male Tips
Pioneer OEM用互换型阴接头与阳接头 - 农机快换接头，可与OEM品牌拖拉机连接互换
Pioneer系列能与农机OEM用快换接头进行互换连接，可以为售后市场的阴接头与阳接头提供OEM类型拖拉机的连接。有广泛的互换类型进行选择。
Pioneer agricultural OEM quick coupling interchange products provide aftermarket couplers and nipples to connect with specific OEM style tractor and implement connectors. Wide selection of interchange styles.
Pioneer农机产品系列可为行业提供稳定和严格的售后OEM替换。阴接头与阳接头可与特定OEM品牌快换类型进行连接。农机用阳接头与阴接头本体替换类型包括： Allis Chalmers, J I Case, 福特, 约翰迪尔, 国际收割机公司(CNH),以及Massey - Ferguson.
Pioneer agricultural products provide the most reliable and exacting aftermarket OEM interchanges in the industry. Couplers and nipples connect with specific OEM brand quick coupling styles. Agricultural male tip and female body interchange styles include: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson.
Agricultural Quick Coupling Interchange to OEM Brand Tractor Connections - Pioneer OEM Interchange Couplers and Male Tips
技术特点Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Interchange Styles: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson
- 本体尺寸范围： 1/2英寸
- 材质： 碳钢
- 互换类型： Allis Chalmers, J I Case, 福特, 约翰迪尔, 国际收割机公司(CNH),以及Massey - Ferguson
市场Markets:
- Agriculture
- Aftermarket replacement, maintenance and repair
- 农业
- 售后更换，维护和修理
特点/优势Features/Benefits:
- Wide range of coupling styles to interchange with major farm equipment brand implement male tips and female coupler bodies
- Male tips have hardened locking ball grooves to resist wear and provide protection from Brinelling
- Positive valve stop prevents flow checking for smooth performance
- 提供了宽泛的产品范围与主流农机品牌设备的阳接头与阳接头进行互换
- 阳接头的锁紧沟槽经硬化处理，能够提供更好的耐磨性能以及保护轴承
- 单向阀防止逆流，以获得平稳的性能
应用Applications:
- Tractor attachments / implements
- Agricultural farm equipment
- Hydraulic Loaders
- Ag/mobile attachments
- 拖拉机属具/工具
- 农业农具设备
- 液压装载机
- 农机/工程机械属具
Technical Specifications
| Media: |
Hydraulic |
| Maximum Operating Pressure: |
207 bar, 3000 psi |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Materials of Construction: |
Steel |
| Application: |
Hydraulic, Ag Equipment |
| Coupling Half: |
Coupler, Nipple |
| Valve Type: |
Poppet, Ball |
| Vacuum Pressure Rating: |
No |
| Body Size: |
1/2 inch |
| Thread Size: |
Female NPTF, Female ORB |
| Connection Thread Size: |
1/2 (14 NPTF), 3/4 (16 UNF), 7/8 (14 UNF) inch |
| Brand: |
Pioneer |
Agricultural Quick Coupling Interchange to OEM Brand Tractor Connections - Pioneer OEM Interchange Couplers and Male Tips 型号
| Part |
Coupling Half |
Competitor Part Number |
Function |
| 4056-15 |
Coupler - Female Socket |
John Deere (old style) coupler AR47331 and (new style) coupler RE15361 |
Connects with John Deere AR30210 and Pioneer 5060-4 male tips |
| 4056-4 |
Coupler - Female Socket |
John Deere (old style) coupler AR47331 |
Connects with John Deere AR30210 and Pioneer 5060-4 male tips |
| 4057-4 |
Coupler - Female Socket |
International Harvester coupler 544788R1 |
Connects with International Harvester 544787R1 and Pioneer 5070-4 male tips |
| 5060-15 |
Nipple - Male Tip |
John Deere male tip (new style) AR93819 and (old style) AR30210 |
Connects with John Deere AR47331 sleeve type couplers |
| 5060-4 |
Nipple - Male Tip |
John Deere male tip RE-11447 |
Connects with John Deere AR47331 sleeve type couplers |
| 5070-16 |
Nipple - Male Tip |
International Harvester male tip 544787R91 |
Connects with International Harvester 544788R1 and Pioneer 4057-4 couplers |
| 5070-4 |
Nipple - Male Tip |
International Harvester male tip 1272770 |
Connects with International Harvester 544788R1 and Pioneer 4057-4 couplers |
| 5077-16 |
Nipple - Male Tip |
International Harvester male tip 395149R1 |
Connects with International Harvester 395150-R1 (old style) couplers |
| 5077-4 |
Nipple - Male Tip |
International Harvester male tip 395151R1 |
Connects with International Harvester 395150-R1 (old style) couplers |
| 5080-4 |
Nipple - Male Tip |
J I Case (old style) male tip A160884 |
Connects with J I Case A28542 coupler |
| DR10008 |
Nipple - Male Tip |
John Deere male tip AR94522 |
Connects with John Deere couplers manufactured to accept ISO 5675 male tips |
| Pioneer 8010-15 |
Nipple - Male Tip |
Massey Ferguson male tip 1026700M91 |
Compatible with couplers manufactured to accept ISO 5675 male tips |
| Pioneer 8010-15P |
Nipple - Male Tip |
John Deere male tip AR94522 |
Compatible with John Deere couplers manufactured to accept ISO 5675 male tips |
| Pioneer 8010-4 |
Nipple - Male Tip |
Massey Ferguson male tip 242678M91 |
Compatible with couplers manufactured to accept ISO 5675 male tips |
| Pioneer 8010-4P |
Nipple - Male Tip |
Ford male tip D-3NN-B964A |
Compatible with couplers manufactured to accept ISO 5675 male tips |
|
