Parker Quick Couplings快速接头
Pioneer Breakaway Clamps for 1/2" Body Size Agricultural Quick Couplings with Push - Pull / Double Acting Sleeves
Pioneer拉断模块，可与本体尺寸为1/2"，且带推拉式双向作用套筒的农用快换接头配合使用

Pioneer拉断模块，可与带推拉式双向作用套筒的农用快换接头配合使用，在管路受到一定拉力时快换会自动断开。 Pioneer Clamps for Agricultural Quick Couplings are designed to be used with push-pull type sleeves to allow the couplings to disconnect in a breakaway situation.

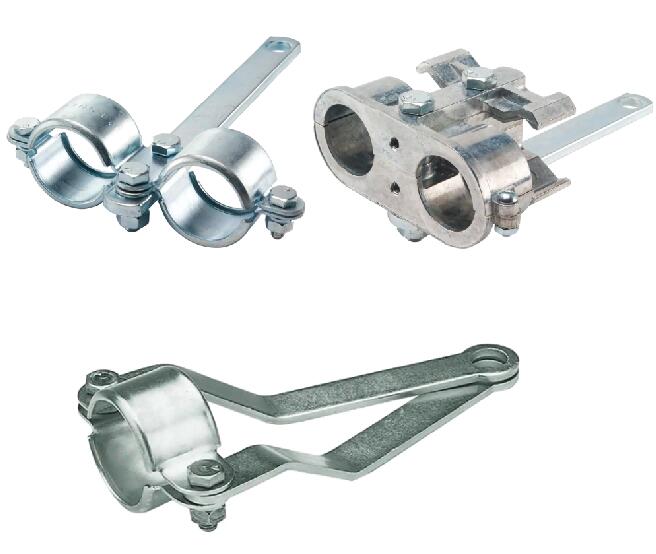

Pioneer Breakaway Clamps for 1/2" Body Size Agricultural Quick Couplings with Push - Pull / Double Acting Sleeves

Pioneer拉断模块，可与本体尺寸为1/2"，且带1 1/2"外径的推拉式双向作用套筒的农用快换接头配合使用。当阴接头本体安全正确地安装在模块中时，在管路受到一定拉力时，推拉式双向作用套筒会允许阴接头和阳接头自动断开。此功能减少了损失，如软管断裂，或者大量介质洒出等。该模块供货范围包括单通道或者双通道形式。 Pioneer Breakaway Clamps are designed to be used with 1/2" body size agricultural quick couplings that have 1 1/2" diameter push-pull type sleeves. When the coupler female bodies are securely and properly installed in the clamp, the push-pull sleeve will allow the coupler and male tip to disconnect in a breakaway situation. This can help to avoid costly damage such as broken hose and mass fluid spillage. Single and double clamp styles are available.

Single Breakaway Clamp 5001-4 is compatible with these series Pioneer couplers:
- 4200, 8200
Double Breakaway Clamp 5006-4 is compatible with these series Pioneer couplers:
- 4200, 8200, 8450
Double Breakaway Clamp 9006-4 is compatible with 9250 Pioneer lever couplers
单通道拉断模块5001-4适用于以下Pioneer快换阴接头系列：
- 4200, 8200
通道拉断模块5006-4适用于以下Pioneer快换阴接头系列：
- 4200, 8200, 8450
通道拉断模块9006-4适用于9250系列Pioneer手柄快换阴接头

市场Markets:
- Agriculture
- Mobile Farm Equipment
- 农用机械
- 行走农田设备

特点/优势Features/Benefits:
- When properly installed in the clamp, the coupling will disconnect and valves will automatically close in the case of a breakaway
- Pioneer Breakaway Clamps are compatible with 1/2" body size Pioneer agricultural couplers that have 1 1/2" diameter push-pull / double acting sleeves
- 当阴接头本体安全正确地安装在模块中时，在管路受到一定拉力时，推拉式双向作用套筒会允许阴接头和阳接头自动断开，且阀芯会自动关闭。
- Pioneer拉断模块可与本体尺寸为1/2"，且带1 1/2"外径的推拉式双向作用套筒的Pioneer农用快换接头配合使用。

应用Applications:
- Tractors and mobile equipment attachments
- Agricultural attachments requiring breakaway
- 拖拉机和行走设备属具
- 农用机械属具等需要拉断装置的应用

Technical Specifications

Pioneer Breakaway Clamps for 1/2" Body Size Agricultural Quick Couplings with Push - Pull / Double Acting Sleeves 型号
