Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

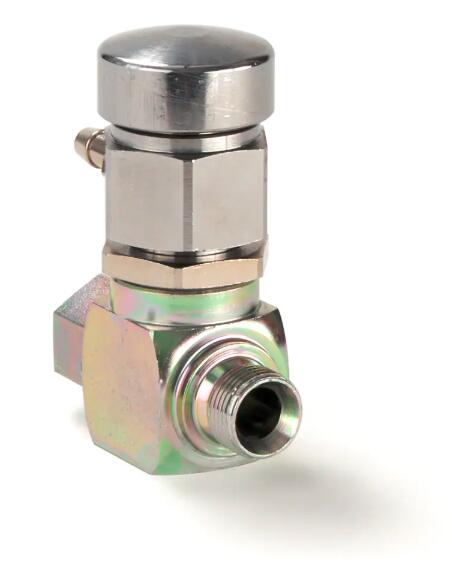

Hydraulic Accessories, Pressure Relief Valve
泄压接头，液压类附件

该系列泄压接头用于中压应用场合，压力可达250 bar。本体材料：黄铜/碳钢。 Pressure Relief Valve for medium pressure applications up to 250 bar. Available made of brass/steel.

派克泄压接头用于液压系统中，通常用于快换连接的管路回路中。当液压站与快换接头之间的回路中产生一定的背压时，这时候如果光靠机械力进行阴接头与阳接头连接时，是非常困难的，因此需要用到派克泄压接头来释放背压。该系列泄压接头可直接安装在主回路的进油回路上，因此无论是硬管管路还是软管回路都可以快速连接阴接头或者阳接头，系统的压力就可以释放。 Parker's Pressure Relief Valve is produced for hydraulic systems where in line quick connect couplings are used. The system pressure built up between the hydraulic unit and the coupling would not allow mechanical coupling. The Pressure Relief Valve can be mounted directly in the main inflow line so that all downstream pipe or hose lines where quick connect couplings or plugs are installed at the ends can be depressurised.

Hydraulic Accessories, Pressure Relief Valve

市场Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction
- 农机设备
- 汽车工业
- 石油以及天然气
- 过程控制
- 发电
- 轨道交通
- 市政设施
- 安防
- 工业液压
- 机械工具
- 物料搬运
- 建筑机械

特征/优势Features/Benefits:
- Valve to easily depressurize the hydraulic system
- Easy assembly in existing system thanks to the female/male thread on the block
- 使用泄压接头，可以轻松地释放系统压力
- 可以直接安装在阀块上的内螺纹/外螺纹，轻松地接入现有系统

应用Applications:
Depressurization of hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Presses
液压系统泄压，包括行走机械以及工业液压系统应用
- 拖拉机
- 卡车
- 装载机
- 军用车辆
- 压铸机

Technical Specifications

Hydraulic Accessories, Pressure Relief Valve 型号
