Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

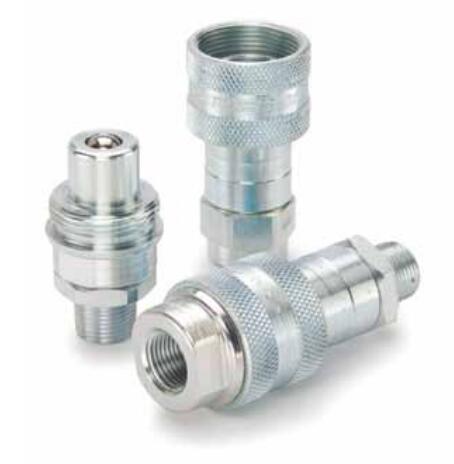

Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Nipples
3000 系列阳接头 - 用于手动液压工具，螺纹连接形式，可替换，高压型快换，承压可达 10,000 psi

派克高压型、螺纹连接快换阴接头和阳接头，是液压手动工具需要快速与液压管路连接及断开的选择。 Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.

3000 系列阳接头承压（液压）可达 10,000 psi,，与 3000 系列配合使用连接。这些高压快换接头使用坚固的螺纹连接，通过手动方式将螺纹连接在一起，打开球阀，使其成功连接。经久耐用的阴接头端面密封材料是聚氨酯。 3000 Series Nipples (hydraulic) 10,000 psi, connect with 3000 Series Couplers. These rugged thread to connect, high pressure quick couplings are manually threaded together to open the ball valves and make the connection. The durable coupler interface seal is polyurethane.

Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Nipples

技术特点Technical Characteristics:
- Sizes: 1/4” & 3/8”
- Material: Steel
- Port Ends: Female NPTF, Male NPTF
- Seal: Polyurethane
- 本体尺寸：1/4” & 3/8”
- 材料：碳钢
- 尾端连接：NPTF内螺纹，NPTF外螺纹
- 密封材料：聚氨酯

市场Markets:
- Rescue Equipment
- Construction
- 救援设备
- 建筑

特点/优势Features/Benefits:
- Rugged and secure threaded connection interchanges with similar hand tool couplings
- Hard chrome alloy ball valves
- Polyurethane seal resists against high pressure extrusion
- Positive valve stop prevents flow checking for a smooth performance
- 结构坚固，使用螺纹实现连接安全，可与类似的手动工具快换接头进行互换
- 硬铬合金球阀
- 聚氨酯密封可耐高压挤压
- 有效的阀芯阻断设计能够进行流量截断作用，性能表现平稳

应用Applications:
- High pressure rescue tools
- Hydraulic rams
- Portable hydraulic hand tools
- Crimping equipment
- 高压救援工具;
- 液压油缸
- 便携式手动液压工具
- 扣压设备

Technical Specifications

Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Nipples 型号
