Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

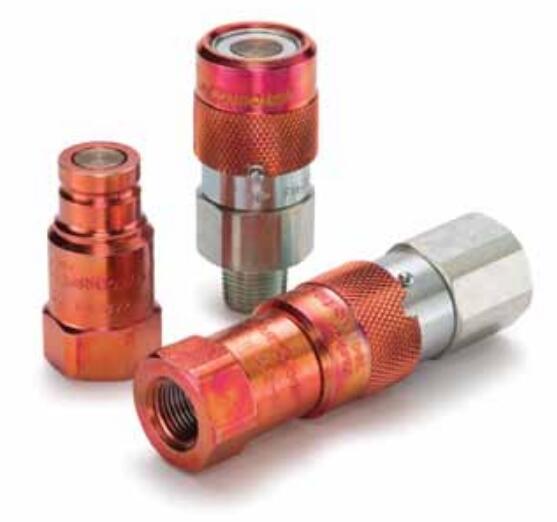

HTMA (ISO 16028) High Pressure Non-Spill, Flush Face Quick Coupling with Sleeve Lock (hydraulic) 10,000 psi - FH Series Couplers
FH系列阴接头 - 高压无溢流快换，平齐端面带套筒锁，承压 10,000 psi，符合HTMA (ISO 16028)标准结构

派克无溢流型阳接头和阴接头是液压应用的选择。在这些应用中，流体管路需要便捷的连接和断开，且要求溢流量和夹气量小。 Parker's high pressure non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

H 系列快换阴接头，承压（液压）可达10,000 psi,能够符合液压工具制造协会 (HTMA) 标准要求，并且能与FH系列阳接头配合连接。派克 FH 系列是高压无溢流型快换，因此不能与低压快换接头配合连接。红色表面能够使得这些快换接头容易作为高压快换 (10,000 psi) 作为识别。阴接头有套筒锁功能，减少意外断开的情况。快换阴接头与阳接头目前可供尺寸仅 3/8" H Series Couplers (hydraulic) 10,000 psi, meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA) standards, and connect only with FH Series Nipples. Parker's FH Series are high pressure non-spill quick couplings that will not connect with lower pressure quick couplings. The red color makes these couplings easy to identify as high pressure (10,000 psi). The coupler sleeve lock feature guards against accidental disconnection. Couplers and nipples are available in 3/8" size only.

HTMA (ISO 16028) High Pressure Non-Spill, Flush Face Quick Coupling with Sleeve Lock (hydraulic) 10,000 psi - FH Series Couplers

技术特点Technical Characteristics:
- Size: 3/8"
- Material: Steel
- Port Ends: Female NPTF, Female BSPP
- Seal Options: Nitrile, EPR, Fluorocarbon
- 尺寸：3/8"
- 材料：碳钢
- 尾端连接：NPTF 内螺纹，BSPP 内螺纹
- 密封可选：丁腈橡胶，EPR，氟橡胶

市场Markets:
- Rescue
- Industrial
- Construction
- Utility
- 救援设备
- 工业设备
- 建筑机械
- 设施

特点/优势Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- Meets HTMA (ISO 16028) standards but will NOT connect with lower pressure flush face couplings
- Red color finish makes it easy to visually identify as a high pressure connection
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Sleeve lock guards against accidental disconnection
- 推动式连接实现单手简单连接
- 符合 HTMA (ISO 16028) 标准结构，但是禁止与低压平齐端面快换接头连接
- 红色表面能够使得这些快换接头容易作为高压连接进行识别。
- 无溢流阀使管路断开时流体损失更小，从而降低了环境污染以及减少了因溢流而引起的安全隐患。
- 平齐端面阀芯使得管路进行连接时进入到系统的空气更小，以免系统内元件的加速磨损。
- 套筒安全锁功能减少意外断开。

应用Applications:
- Hydraulic crimpers, cutters, benders, clamps, wedges
- Rescue equipment
- High pressure test equipment
- High pressure hydraulic equipment
- 液压扣压机，切割机，弯管机，夹具，楔形
- 急救设备
- 高压测试设备
- 高压液压设备

Technical Specifications

HTMA (ISO 16028) High Pressure Non-Spill, Flush Face Quick Coupling with Sleeve Lock (hydraulic) 10,000 psi - FH Series Couplers 型号
