Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

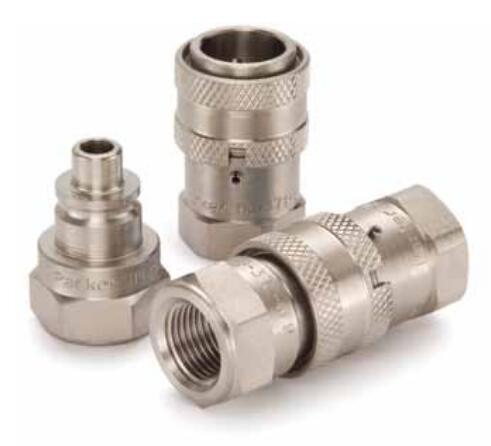

High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi - HO Series Nipples
HO 系列快换阳接头 - 高压型，不带阀，碳钢材料，带安全锁，承压（液压）可达15,000 psi

派克高压高流量系列快换接头，是高压液压系统应用的理想选择。在这些应用中，流体管路需要便捷的连接和断开，且要求大流量以及低压降损失。 Parker's high pressure and high flow quick couplers are ideal for use with high pressure hydraulic applications where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

HO 系列快换阳接头，承压（液压）可达 15,000 psi ，能与 HO 系列阴接头配合连接。 HO Series Nipples (hydraulic) up to 15,000 psi connect with HO Series Couplers.

派克 HO 系列是高压，碳钢，高流量的快换接头，使用手动套筒。该系列阴接头以及阳接头是不带阀结构，是直通型，全流量形式。化学镀镍提高了耐腐蚀性能表现，套筒锁保护能够防意外断开的情况发生。
Parker's HO Series are high pressure, steel, high flow quick couplings with manual sleeves. Couplers and nipples are unvalved, resulting in straight through, unrestricted flow. Electroless nickel plating provides corrosion resistance and sleeve lock guards against accidental disconnection.

High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi - HO Series Nipples

技术参数Technical Characteristics:
- Sizes: 1/4”, 3/8"", 1/2”
- Material: Steel with electroless nickel plating
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- 尺寸范围：1/4”, 3/8"", 1/2”
- 材料：碳钢，化学镀镍
- 油口连接：NPTF 内螺纹
- 密封选择：丁腈橡胶，乙丙橡胶，氟橡胶，氯丁橡胶

市场Markets:
- Pulp and paper
- Oil and gas
- Testing
- 纸浆和造纸
- 石油和天然气
- 测试

特点/优势Features/Benefits:
- Sleeve lock guards against accidental disconnection
- Straight through, unvalved design provides full flow with minimal pressure drop
- Electroless nickel plating adds corrosion resistance
- 套筒锁可防意外断开
- 直通型，不带阀设计提供全流量以及很小压降的损失
- 化学镀镍增加了耐腐蚀性

应用Applications:
- Paper and pulp processing
- Refinery systems
- Testing systems
- 纸和纸浆加工
- 精炼系统
- 测试系统

Technical Specifications

High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi - HO Series Nipples 型号
