Parker Quick Couplings快速接头

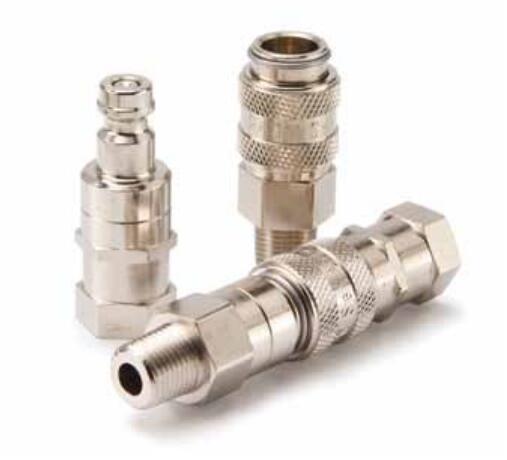

Miniature Size, Valved, Brass, Push to Connect Quick Couplings (fluid) up to 250 psi - DM Series Nipples
DM 系列阳接头，小型尺寸，带阀结构，黄铜材料，推动式连接，承压（液压）可达250 psi

派克双截止类型，小型快换阴接头及阳接头能够耐腐蚀影响，可用于小型，低压流体管路的应用，可实现管路快速简单地连接以及断开。 Parker's double shut off, miniature quick couplers and nipples are corrosion resistant for applications where small, low pressure fluid lines require fast and easy connection and disconnection.

DM 系列阳接头承压（液压）可达250 psi，能与DM系列阴接头配合连接。 DM Series Nipples (fluid) up to 250 psi connect with DM Series Couplers.

派克DM 系列是双截止型式，防腐性能好的小型快换接头。能够提供小尺寸的推动式连接形式。该系列快换接头的阴接头以及阳接头目前可供尺寸：1/8"，压力可达250 psi。 Parker's DM Series are double shut-off, corrosion resistant miniature quick couplings. They offer push to connect operation in a small size. Couplers and nipples are available in 1/8" size only with a pressure rating of 250 psi.

Miniature Size, Valved, Brass, Push to Connect Quick Couplings (fluid) up to 250 psi - DM Series Nipples

技术特点Technical Characteristics:
- Sizes: 1/8”
- Materials: Nickel Plated Brass
- Port Ends: Female NPTF, Male NPTF
- Seal: Fluorocarbon
- 尺寸范围：1/8"
- 材料：铜镀镍
- 尾端连接形式：NPTF 内螺纹，NPTF 外螺纹
- 密封：氟橡胶

市场Markets:
- Medical device
- Semiconductor
- 医疗设备
- 半导体

特点/优势Features/Benefits:
- Brass bodies are nickel plated to increase corrosion resistance and chemical compatibility
- Fluorocarbon seals are compatible with many fluids
- Easy push to connect operation
- Compact size
- 黄铜本体使用镀镍处理，增加了其防腐性能及化学兼容性
- 氟橡胶可与多种介质进行兼容
- 简单的推动式连接
- 紧凑型设计

应用Applications:
- Dental equipment
- Lubrication lines
- Fluid transfer
- Coolant lines

Technical Specifications

Miniature Size, Valved, Brass, Push to Connect Quick Couplings (fluid) up to 250 psi - DM Series Nipples 型号
