Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头
Pioneer Universal Agricultural Male Tip (1/2”), ISO 5675, Ball / Poppet / Connect Under Pressure - 8010 Series Nipples
8010系列快换阳接头 - Pioneer通用型农业快换阳接头（1/2”，ISO 5675，球阀/锥阀/可在压力下连接

Pioneer 8010系列阳接头是农机行业的标准阳接头形式，为农业服务开发，拥有超过65年的应用经验。 Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.

8010系列阳接头承压（液压）可达3000 psi，与本体尺寸为1/2"的以下系列阴接头可配合使用：4000系列，4200系列，5000系列，8200系列，9200系列，并且可与其他符合ISO 5675标准的阳接头进行互换使用。派克8010系列阳接头有球阀，锥阀以及带压力释放器（可在背压下进行连接）几种阀芯形式可选择。 这些形式的接头都符合农机行业通用阳接头结构设计标准，我们通常称为Pioneer系列阳接头。 8010 Series Nipples (hydraulic) 3000 psi, connect with 1/2 "" size 4000, 4200, 5000, 8200, 9200,Series Couplers and are interchangeable with other products complying with ISO 5675 requirements. Parker's 8010 Nipples are available with a ball valve, poppet valve, or pressure relieving (connect under pressure) valve. They are the universal standard male tip of the agricultural industry, commonly referred to as the Pioneer tip.

技术参数Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Valve Options: Ball, Poppet, Pressure Relieving Poppet (DC)
- Port Ends: Female NPTF, Female ORB, Female BSPP
- Seal Options on poppet valves: Nitrile, EPR, Fluorocarbon, Neoprene
- 本体尺寸：1/2”
- 可选材料：碳钢
- 阀芯形式：球阀，锥阀，带压力释放器的锥阀（DC）
- 尾端连接形式：NPTF内螺纹，ORB内螺纹，BSPP内螺纹 - 锥阀的密封可选，丁腈橡胶，EPR，氟橡胶，氯丁橡胶

市场Markets:
- Agriculture
- Industrial
- Construction
- 农机设备
- 工业液压
- 建筑机械

特点/优势Features/Benefits:
- Globally interchanges with any other nipples or tips conforming to ISO 5675
- Valve option styles include ball, poppet, and connect under pressure (DC) poppet
- Hardened locking ball groove resists wear for increased durability and protection from Brinelling
- Shielded valve and positive valve stop prevents flow checking for smooth performance
- DC valve version allows connection under system pressure on the coupler side and residual pressure (up to 3000 psi) on the nipple side
- 可与符合ISO 5675标准的其他快换接头进行互换
- 阀芯类型可选项包括，球阀形式，锥阀形式，以及在背压下连接的锥阀形式（DC）。
- 锁紧钢珠经过硬化处理，从而增加了其耐磨性能，提升了耐久性能的表现，以及防磨损。
- 隔离阀以及截流阀能够防止流体逆流，从而稳定了性能表现
- 背压释放阀能够在阴接头端承受系统压力或者阳接头端承受背压（可高达3000 psi）的情况下连接

应用Applications:
- Tractor attachments
- Agricultural farm equipment
- Hydraulic Loaders
- Add-on hydraulic circuits
- Hydraulic tools
- Ag/mobile attachments
- 拖拉机属具
- 农机设备
- 液压装载机
- 液压回路增加元件
- 液压工具
- 农机/工程机械属具

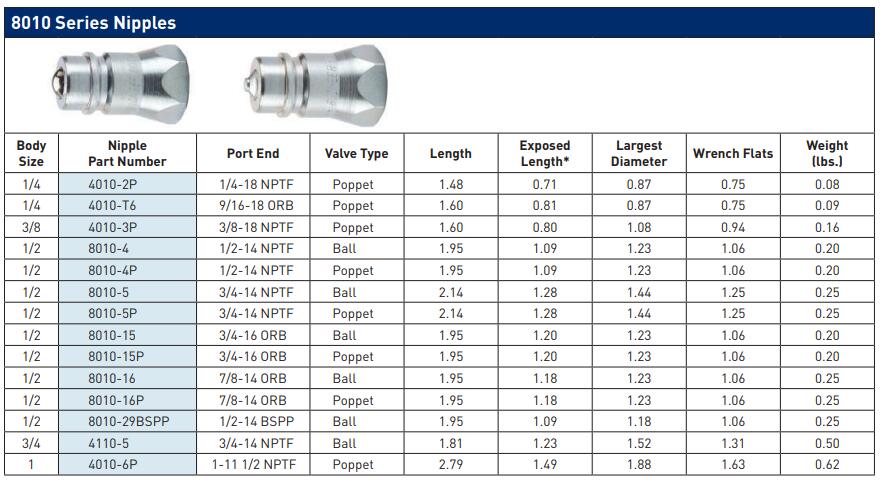

Technical Specifications

Pioneer Universal Agricultural Male Tip (1/2”), ISO 5675, Ball / Poppet / Connect Under Pressure - 8010 Series Nipples 型号
