Parker Quick Couplings快速接头

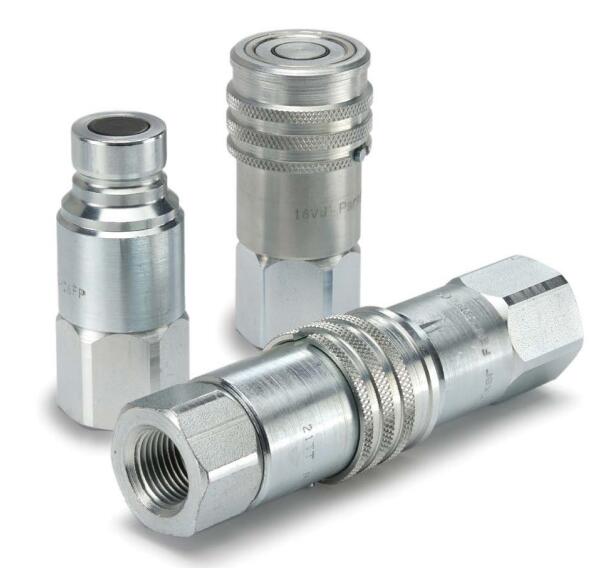

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) - FEM/FEC Series Nipples
FEM/FEC系列阳接头 - 符合HTMA (ISO 16028)标准，平齐端面设计，无溢流型快换接头，能在压力下

派克无溢流型阳接头和阴接头是液压应用的理想选择。在这些应用中，流体管路需要便捷的连接和断开，且要求溢流量和夹气量小。 Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

FEM以及FEC系列阳接头耐压（液压）可达4568 psi，符合并超过了液压工具制造商协会（HTMA - ISO 16028）的标准，能与FEM系列阴接头进行配合连接。FEC 系列阳接头是为了符合在压力下进行连接的应用而设计的，适合用于因热膨胀效应引起背压的应用中。 FEM and FEC Series Nipples (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards, and connect with FEM Series Couplers. FEC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion.

派克FEM 系列是双截止形式，无溢流型快换接头，在管路需要连接或者断开时，有效降低溢流量或者夹气量,并且可与其他制造商的符合HTMA - ISO 16028标准的快换进行互换。FEM系列阴接头以及阳接头可选尺寸范围广，并且有各种外螺纹及内螺纹的接头尾端连接形式可选，能够符合各种不同应用的需求，压力可达4568psi。 Parker's FEM Series are double shut off, non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM Couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) - FEM/FEC Series Nipples

技术特点Technical Characteristics:
- FEM Sizes: 1/4” – 1”
- FEC (Connect Under Pressure) Sizes: 1/2", 5/8", 3/4"
- Materials: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon
- FEM 系列本体尺寸范围：1/4” – 1”
- FEC（在压力下连接）尺寸范围：1/2", 5/8", 3/4"
- 材料：碳钢
- 尾端连接形式：NPSF内螺纹，ORB内螺纹，扩口式隔板外螺纹，端面密封隔板式外螺纹
- 密封可选：丁腈橡胶/聚氨酯，EPR,氟橡胶

市场Markets:
- Industrial
- Construction
- Utility
- Agriculture
- 工业液压
- 建筑机械
- 公共设施
- 农机设备

特点/优势Features/Benefits:
- All sizes are globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Male bulkhead fitting ends for panel or plate mounting options
- FEC nipples provide the ability to connect under residual pressure caused by thermal expansion.
- 不同尺寸都可与符合HTMA (ISO 16028)标准的其他快换接头进行互换
- 当断开连接时，无溢流形式阀芯能够有效减少流体损失，降低对环境的污染破坏，大大减少因溢流而带来的安全隐患
- 当进行连接时，无溢流的阀芯能够有效减少空气进入到系统，防止系统元件的加速磨损
- 隔板外螺纹形式的接头适合于平板或者平板安装形式
- FEC系列阳接头能够在因热膨胀效应而引起背压的应用下安装

应用Applications:
- Skid loader attachments
- Hydraulic tools
- Constuction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines - Contact QCD for a brass, FEM style drain port nipple that is recommended for use by the Technology and Maintenance Council of the American Trucking Association, TMC Recommended Practice 353
- 滑移装载机属具
- 液压工具
- 建筑机械属具
- 工业液压管路
- 农机设备
- 冷却水回路以及排水回路- 联系QCD事业部咨询黄铜的FEM形式的排水阳接头，美国卡车协会技术和维护委员会推荐使用，TMC推荐用于353实践

Technical Specifications

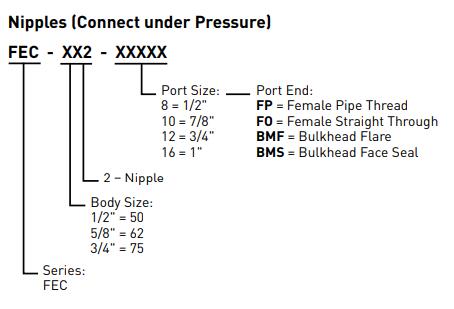

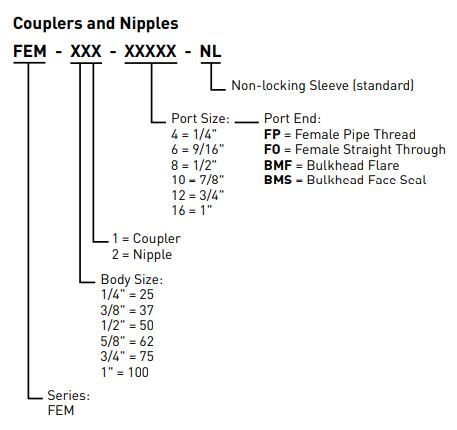

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) - FEM/FEC Series Nipples 型号
