Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

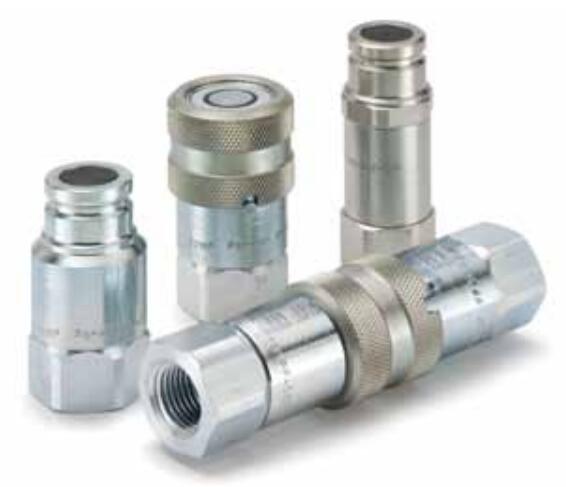

HTMA (ISO 16028, 3/8”)Non-Spill, Flush Face Quick Coupling, Connect Under Pressure (hyd) up to 5000 psi - FF/FC Series Nipples
FF/FC系列快换阳接头,HTMA (ISO 16028, 3/8”),无溢流型,平齐端面快换接头,可在压力下连接,承压5000psi

派克无溢流型快换阴接头和阳接头是用于流体管路需要快速方便进行连接或者断开应用的理想选择,能保证小溢流量和夹气量。 Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion





FF 以及 FC系列快换阳接头承压(液压)可达5000 psi,符合液压工具制造商协会 (HTMA - ISO 16028) 的标准尺寸为3/8英寸,可与FF系列阴接头进行配合连接。 FF and FC Series Nipples (hydraulic) up to 5000 psi, meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards in the 3/8" size, and connect with FF Series Couplers.

Parker's FF Series are double shut, off non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting.

FC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion. FF Couplers and nipples are available in a range of sizes to be versatile for use in applications with pressures up to 5000 psi.





HTMA (ISO 16028, 3/8”)Non-Spill, Flush Face Quick Coupling, Connect Under Pressure (hyd) up to 5000 psi - FF/FC Series Nipples



Technical Characteristics:
- FF Sizes: 1/4” – 1”
- FC (Connect Under Pressure) Sizes: 3/8", 1/2" & 3/4"
- Material: Steel
- Port Ends: Female NPSF, Female NPTF, Female BSPP, Female UNF
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon

Markets:
- Industrial
- Construction
- Utility
- Agriculture

Features/Benefits:
- 3/8" size is globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.

Applications:
- Hydraulic tools
- Construction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines





Technical Specifications

Body Size: 1/4, 3/8, 1/2, 3/4, 1 inch
Application: Hydraulic, non-spill, connect under pressure, Hydraulic, Non-spill, Hydraulic, Non-spill, connect under pressure
Maximum Operating Pressure: Up to 5000 psi, Up to 345 bar
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread
Interchange Type: HTMA
Materials of Construction: Steel
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Valve Type: Non-spill
Flow Rate: 3 to 50 Gal/min
Seal Material: Nitrile, Polyurethane and Nitrile
Media: Hydraulic
Coupling Half: Nipple
Minimum Operating Temperature: -40 °F
Plating Type: Zinc with clear trivalent chromate





HTMA (ISO 16028, 3/8”)Non-Spill, Flush Face Quick Coupling, Connect Under Pressure (hyd) up to 5000 psi - FF/FC Series Nipples 型号

Part Maximum Working Pressure (psi) Body Size (inch) Valve Style Connection Thread Size (inch) Thread Style Connection Type Industry Standards
FC-372-6FP 3000 3/8 Connect under pressure, non-spill 3/8 - 18 Female NPSF HTMA
FC-372-8FO 3000 3/8 Connect under pressure, non-spill 3/4 - 16 Female UNF HTMA
FC-372-8FP 3000 3/8 Connect under pressure, non-spill 1/2 - 14 Female NPSF HTMA
FC-502-10FO 3000 1/2 Connect under pressure, non-spill 7/8 - 14 Female UNF na
FC-502-8FP 3000 1/2 Connect under pressure, non-spill 1/2 - 14 Female NPSF na
FC-752-12FO 1500 3/4 Connect under pressure, non-spill 1 1/16 - 12 Female UNF na
FC-752-12FP 1500 3/4 Connect under pressure, non-spill 3/4 - 14 Female NPSF na
FF-1002-16FO 3000 1 Non-spill 1 5/16 - 12 Female UNF na
FF-1002-16FP 3000 1 Non-spill 1 - 11 1/2 Female NPSF na
FF-252-4FP 5000 1/4 Non-spill 1/4 - 18 Female NPSF na
FF-252-4MP 5000 1/4 Non-spill 1/4 - 18 Male NPTF na
FF-252-6FO 5000 1/4 Non-spill 9/16 - 18 Female UNF na
FF-372-6FB 3000 3/8 Non-spill G3/8 Female BSPP HTMA
FF-372-6FP 3000 3/8 Non-spill 3/8 - 18 Female NPSF HTMA
FF-372-8FB 3000 3/8 Non-spill G1/2 Female BSPP HTMA
FF-372-8FO 3000 3/8 Non-spill 3/4 - 16 Female UNF HTMA
FF-372-8FP 3000 3/8 Non-spill 1/2 - 14 Female NPSF HTMA
FF-502-10FO 3000 1/2 Non-spill 7/8 - 14 Female UNF na
FF-502-8FP 3000 1/2 Non-spill 1/2 - 14 Female NPSF na
FF-752-12FO 3000 3/4 Non-spill 1 1/16 - 12 Female UNF na
FF-752-12FP 3000 3/4 Non-spill 3/4 - 14 Female NPSF na
