Parker Quick Couplings快速接头

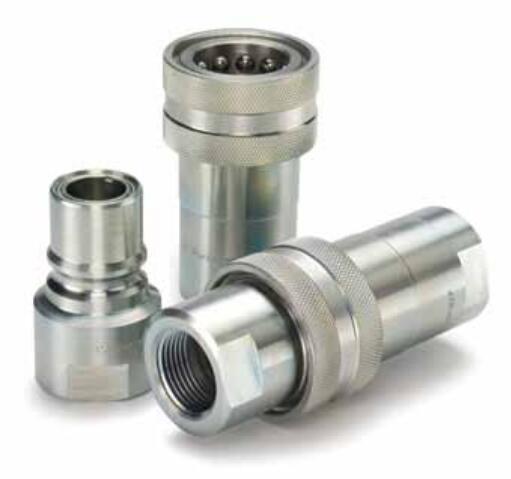

High Pressure, High Flow, 1” and 1-1/2” Size Steel Quick Couplings (hydraulic) 5000 psi - HP Series Nipples
HP系列快换阳接头 - 高压,高流量,1” 和 1-1/2”,碳钢材料,承压(液压)可达5000 psi
派克高压液压快换阳接头以及阴接头,为那些需要经常快速简便地进行管路连接或者断开的应用提供了方案。Parker's high pressure quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.
HP系列阳接头承压(液压)可达5000 psi,能与HP系列阴接头进行配合连接。
HP Series Nipples (hydraulic) 5000 psi connect with HP Series Couplers.
派克HP系列为双截止类型,使用手动套筒,阀芯形式是锥阀。阴接头的碳钢套筒以及阳接头的本体都经过热处理,能够承受压力峰值的冲击。接头尾端连接形式,包括管内螺纹,ORB直螺纹形式。
Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
High Pressure, High Flow, 1” and 1-1/2” Size Steel Quick Couplings (hydraulic) 5000 psi - HP Series Nipples
技术参数Technical Characteristics:
- Sizes: 1” and 1-1/2””
- Material: Steel
- Port Ends: Female NPSF, Female ORB, Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- 尺寸: 1” 和 1-1/2”
- 材料:碳钢
- 油口尾端连接形式:NPSF内螺纹, ORB内螺纹, NPTF内螺纹
- 密封可选:丁腈橡胶,EPR,氟橡胶,氯丁橡胶
市场Markets:
- Industrial
- Construction
- Mobile Equipment
- 工业
- 建筑机械
- 工程机械
特点/优势Features/Benefits:
- Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
- High flow with minimal pressure drop
- 阴接头的碳钢套筒以及阳接头的本体都经过热处理,能够承受压力峰值的冲击
- 高流量,低压降
应用Applications:
- Industrial hydraulic lines
- Construction mobile equipment
- 工业液压管路
- 工程机械设备
Technical Specifications
Body Size: |
1, 1 1/2 inch, 1 | 1 1/2 inch |
Maximum Operating Pressure: |
5000 psi, 345 bar |
Application: |
Hydraulic, general purpose |
Brand: |
Parker |
Fitting Connection Type: |
Female Thread |
Materials of Construction: |
Steel |
Maximum Operating Temperature: |
121 °C, 250 °F |
Vacuum Pressure Rating: |
No |
Flow Rate: |
Up to 100 Gal/min |
Seal Material: |
Nitrile |
Media: |
Hydraulic |
Coupling Half: |
Nipple |
Minimum Operating Temperature: |
-40 °F |
Valve Type: |
Poppet |
Thread Size: |
Female |
Connection Type: |
NPSF | ORB | NPTF |
Plating Type: |
Zinc with clear trivalent chromate |
High Pressure, High Flow, 1” and 1-1/2” Size Steel Quick Couplings (hydraulic) 5000 psi - HP Series Nipples 型号
|
