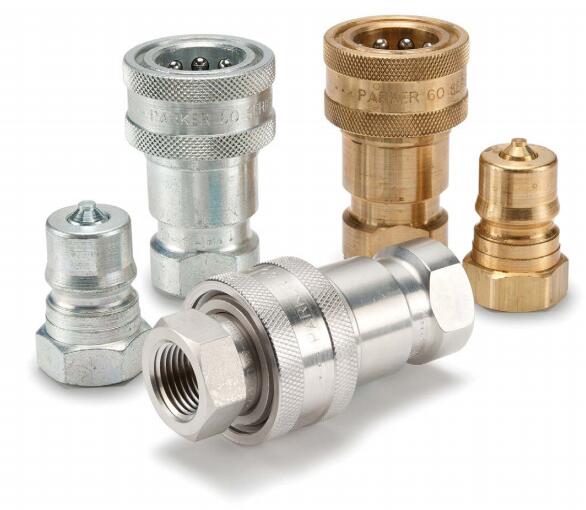

Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头
SO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Couplers
60系列快换阴接头 - 多功能快换,符合ISO7241-B标准,承压(液压,流体,气体,蒸汽)可达5000 psi
派克的通用气动,空气快换阴接头和阳接头适用于需要快速和方便的连接和断开的低压空气或者流体管路等各种应用。
Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.
60 系列快换阴接头承压(液压油,流体,气体,蒸汽)可达 5000 psi,可与符合ISO 7241-B 标准的 60系列阳接头配合连接。 派克60 系列阀芯结构是双截止型,并且可与气体符合ISO7241-B 标准的快换进行互换。 60 Series Couplers (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 series B, 60 Series Nipples. Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series B.
这些通用型快换接头有多种材料以及全尺寸范围可供货,包括高温蒸汽。派克的60系列作为一款多用途型产品,适用于各种应用,承压能力可达5000 psi。
These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 psi.
用于蒸汽的快换阴接头是全铜接头,并使用双密封圈形式,锁紧钢珠材料为不锈钢。密封材料是三元乙丙橡胶,3/8" 的套筒上有滚花设计,方便带手套时进行操作。 Steam version couplers are brass with double interface O-rings and stainless steel locking balls. Seal material is Ethylene Propylene and the 3/8" size has a grip-ring sleeve for easy operation when wearing gloves.
ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Couplers
技术参数Technical Characteristics:
- Sizes: 1/8” – 2-1/2”
- Materials: Steel, Brass, 302 Stainless Steel, 316 Stainless Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- Coupler options include: Sleeve Lock, Valve Actuator, Steam compatibility
- 尺寸范围:1/8” – 2-1/2”
- 材料:碳钢,黄铜,302 不锈钢,316 不锈钢
- 尾端连接:NPTF 内螺纹,ORB 内螺纹
- 密封可选:丁腈橡胶,EPR,氟橡胶,氯丁橡胶
- 阴接头可选项:套筒锁,阀门执行器,蒸汽兼容性
市场Markets:
- Industrial
- Construction
- Chemical Processing
- Commercial Cleaning
- Agriculture
- 工业液压
- 建筑机械
- 化工过程
- 商业清洗
- 农机设备
特点/优势Features/Benefits:
- Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B
- Multi-purpose coupling, widely used in varied applications
- Steel couplers have a hardened sleeve for strength and durability
- Metal valve stop prevents flow checking to provide steady performance
- Steam version couplers have Ethylene Propylene seals to withstand high temperatures and the 3/8" has a grip-ring sleeve for easy operation when wearing gloves
- Brass couplers have double O-rings for redundant sealing and stainless steel locking balls for corrosion resistance
- 316 Stainless steel couplers have Fluorocarbon seals for chemical compatibility
- Optional coupler sleeve lock helps to prevent accidental disconnection
- 可与全球范围内符合ISO7241-B 标准的其他制造商的快换接头进行互换
- 多用途快换接头,广泛应用于各种应用
- 碳钢快换阴接头的套筒使用硬化处理,有较好的强度及耐久性表现
- 金属材料的阀门能够阻止流量逆流,从而使系统表现更加稳定
- 蒸汽型快换阴接头使用三元乙丙橡胶进行密封,可以承受高温,并且3/8" 的快换的套筒使用滚花处理,可以方便在带手套的时候进行操作
- 黄铜快换接头使用双密封形式进行有效的密封,并使用不锈钢的锁紧钢珠能够进行有效地防腐
- 316 不锈钢快换阴接头使用氟橡胶密封,能够有效提高化学兼容性
- 快换阴接头可选配套筒锁,能阻止意外的断开
应用Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- High pressure fluid transfer
- High temperature fluid transfer
- Mobile equipment
- Cleaning equipment
- Dry cleaning
- Steam systems
- 工业液压管路
- 食品和化学品处理
- 水和冷却液管路
- 高压流体输送
- 高温流体输送
- 移动设备
- 清洁设备
- 干洗
- 蒸汽系统
Technical Specifications
Body Size: |
1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/2, 2 1/2 inch |
Maximum Operating Pressure: |
Up to 5000 psi, Up to 345 bar |
Application: |
Hydraulic, general purpose, vacuum to medium pressure |
Brand: |
Parker |
Coupling Half: |
Coupler |
Fitting Connection Type: |
Female Thread |
Specifications Met: |
ISO 7241-1, series B |
Interchange Type: |
ISO 7241-1 Series B |
Materials of Construction: |
Steel, Brass, Stainless steel |
Maximum Operating Temperature: |
Up to 204 °C, Up to 400 °F |
Media: |
Hydraulic |
Seal Material: |
Nitrile, EPR, Fluorocarbon |
Vacuum Pressure Rating: |
Yes |
Valve Type: |
Poppet |
ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Couplers 型号
Part |
Maximum Working Pressure (psi) |
Application |
Body Size (inch) |
Body Material |
Connection Type |
Seal Material |
Locking Sleeve |
BH1-60 |
3000 |
General Purpose |
1/8 |
Brass |
NPTF |
Nitrile |
na |
BH1-60W |
3000 |
General Purpose |
1/8 |
Brass |
NPTF |
Ethylene propylene |
na |
BH1-60Y |
3000 |
General Purpose |
1/8 |
Brass |
NPTF |
Fluorocarbon |
na |
BH12-60L |
1500 |
General Purpose |
1 1/2 |
Brass |
NPTF |
Nitrile |
na |
BH12-60N |
1500 |
General Purpose |
1 1/2 |
Brass |
NPTF |
Nitrile |
na |
BH2-60 |
3700 |
General Purpose |
1/4 |
Brass |
NPTF |
Nitrile |
na |
BH2-60-SL |
3700 |
General Purpose |
1/4 |
Brass |
NPTF |
Nitrile |
Yes |
BH2-60-STM |
3700 |
Steam |
1/4 |
Brass |
NPTF |
Ethylene propylene |
na |
BH2-60W |
3700 |
General Purpose |
1/4 |
Brass |
NPTF |
Ethylene propylene |
na |
BH2-60Y |
3700 |
General Purpose |
1/4 |
Brass |
NPTF |
Fluorocarbon |
na |
BH2016-60 |
1200 |
General Purpose |
2 1/2 |
Brass |
NPTF |
Nitrile |
na |
BH3-60 |
2700 |
General Purpose |
3/8 |
Brass |
NPTF |
Nitrile |
na |
BH3-60W |
2700 |
General Purpose |
3/8 |
Brass |
NPTF |
Ethylene propylene |
na |
BH3-60Y |
2700 |
General Purpose |
3/8 |
Brass |
NPTF |
Fluorocarbon |
na |
BH4-60 |
3500 |
General Purpose |
1/2 |
Brass |
NPTF |
Nitrile |
na |
BH4-60-STM |
3500 |
Steam |
1/2 |
Brass |
NPTF |
Ethylene propylene |
na |
BH4-60W |
3500 |
General Purpose |
1/2 |
Brass |
NPTF |
Ethylene propylene |
na |
BH4-60Y |
3500 |
General Purpose |
1/2 |
Brass |
NPTF |
Fluorocarbon |
na |
BH6-60 |
2200 |
General Purpose |
3/4 |
Brass |
NPTF |
Nitrile |
na |
BH6-60-STM |
2200 |
Steam |
3/4 |
Brass |
NPTF |
Ethylene propylene |
na |
BH6-60W |
2200 |
General Purpose |
3/4 |
Brass |
NPTF |
Ethylene propylene |
na |
BH6-60Y |
2200 |
General Purpose |
3/4 |
Brass |
NPTF |
Fluorocarbon |
na |
BH8-60 |
1500 |
General Purpose |
1 |
Brass |
NPTF |
Nitrile |
na |
BH8-60-STM |
1500 |
Steam |
1 |
Brass |
NPTF |
Ethylene propylene |
na |
BH8-60W |
1500 |
General Purpose |
1 |
Brass |
NPTF |
Ethylene propylene |
na |
BH8-60Y |
1500 |
General Purpose |
1 |
Brass |
NPTF |
Fluorocarbon |
na |
H1-62 |
5000 |
General Purpose |
1/8 |
Steel |
NPTF |
Nitrile |
na |
H1-62-T4 |
5000 |
General Purpose |
1/8 |
Steel |
ORB |
Nitrile |
na |
H1-62W |
5000 |
General Purpose |
1/8 |
Steel |
NPTF |
Ethylene propylene |
na |
H1-62Y |
5000 |
General Purpose |
1/8 |
Steel |
NPTF |
Fluorocarbon |
na |
H12-62-T20 |
1500 |
General Purpose |
1 1/2 |
Steel |
ORB |
Nitrile |
na |
H12-62-T24 |
1500 |
General Purpose |
1 1/2 |
Steel |
ORB |
Nitrile |
na |
H12-62L |
1500 |
General Purpose |
1 1/2 |
Steel |
NPTF |
Nitrile |
na |
H12-62N |
1500 |
General Purpose |
1 1/2 |
Steel |
NPTF |
Nitrile |
na |
H2-62 |
5000 |
General Purpose |
1/4 |
Steel |
NPTF |
Nitrile |
na |
H2-62-407 |
5000 |
Pydraul 10E compatible |
1/4 |
Steel |
ORB |
Ethylene propylene |
na |
H2-62-T6 |
5000 |
General Purpose |
1/4 |
Steel |
ORB |
Nitrile |
na |
H2-62-T6SL |
5000 |
General Purpose |
1/4 |
Steel |
ORB |
Nitrile |
Yes |
H2-62W |
5000 |
General Purpose |
1/4 |
Steel |
NPTF |
Ethylene propylene |
na |
H2-62W-T6 |
5000 |
General Purpose |
1/4 |
Steel |
ORB |
Ethylene propylene |
na |
H2-62Y |
5000 |
General Purpose |
1/4 |
Steel |
NPTF |
Fluorocarbon |
na |
H2016-62 |
1500 |
General Purpose |
2 1/2 |
Steel |
NPTF |
Nitrile |
na |
H2020-62 |
1500 |
General Purpose |
2 1/2 |
Steel |
NPTF |
Nitrile |
na |
H2024-62 |
1500 |
General Purpose |
2 1/2 |
Steel |
NPTF |
Nitrile |
na |
H3-62 |
4000 |
General Purpose |
3/8 |
Steel |
NPTF |
Nitrile |
na |
H3-62-T8 |
4000 |
General Purpose |
3/8 |
Steel |
ORB |
Nitrile |
na |
H3-62W |
4000 |
General Purpose |
3/8 |
Steel |
NPTF |
Ethylene propylene |
na |
H3-62Y |
4000 |
General Purpose |
3/8 |
Steel |
NPTF |
Fluorocarbon |
na |
H3-68 |
4000 |
Steam |
3/8 |
Brass |
NPTF |
Ethylene propylene |
na |
H4-62 |
4000 |
General Purpose |
1/2 |
Steel |
NPTF |
Nitrile |
na |
H4-62-T10 |
4000 |
General Purpose |
1/2 |
Steel |
ORB |
Nitrile |
na |
H4-62W |
4000 |
General Purpose |
1/2 |
Steel |
NPTF |
Ethylene propylene |
na |
H4-62Y |
4000 |
General Purpose |
1/2 |
Steel |
NPTF |
Fluorocarbon |
na |
H6-62 |
2500 |
General Purpose |
3/4 |
Steel |
NPTF |
Nitrile |
na |
H6-62-T12 |
2500 |
General Purpose |
3/4 |
Steel |
ORB |
Nitrile |
na |
H6-62W |
2500 |
General Purpose |
3/4 |
Steel |
NPTF |
Ethylene propylene |
na |
H6-62Y |
2500 |
General Purpose |
3/4 |
Steel |
NPTF |
Fluorocarbon |
na |
H8-62 |
2000 |
General Purpose |
1 |
Steel |
NPTF |
Nitrile |
na |
H8-62-T16 |
2000 |
General Purpose |
1 |
Steel |
ORB |
Nitrile |
na |
H8-62Y |
2000 |
General Purpose |
1 |
Steel |
NPTF |
Fluorocarbon |
na |
SH1-62 |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
NPTF |
Nitrile |
na |
SH1-62-T4 |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
ORB |
Nitrile |
na |
SH1-62W |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
SH1-62Y |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
SH12-62L |
1500 |
General Purpose |
1 1/2 |
303 Stainless steel |
NPTF |
Nitrile |
na |
SH12-62N |
1500 |
General Purpose |
1 1/2 |
303 Stainless steel |
NPTF |
Nitrile |
na |
SH2-62 |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
NPTF |
Nitrile |
na |
SH2-62-SL |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
NPTF |
Nitrile |
Yes |
SH2-62-T6 |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
ORB |
Nitrile |
na |
SH2-62W |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
SH2-62Y |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
SH3-62 |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
NPTF |
Nitrile |
na |
SH3-62-T8 |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
ORB |
Nitrile |
na |
SH3-62W |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
SH3-62Y |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
SH4-62 |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
NPTF |
Nitrile |
na |
SH4-62-T10 |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
ORB |
Nitrile |
na |
SH4-62W |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
SH4-62Y |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
SH6-62 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
NPTF |
Nitrile |
na |
SH6-62-T12 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
ORB |
Nitrile |
na |
SH6-62W |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
SH6-62W-T12 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
ORB |
Ethylene propylene |
na |
SH6-62Y |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
SH8-62 |
3000 |
General Purpose |
1 |
303 Stainless steel |
NPTF |
Nitrile |
na |
SH8-62-T16 |
3000 |
General Purpose |
1 |
303 Stainless steel |
ORB |
Nitrile |
na |
SH8-62W |
3000 |
General Purpose |
1 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
SH8-62Y |
3000 |
General Purpose |
1 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH1-62Y |
5000 |
General Purpose |
1/8 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH12-62NY |
1500 |
General Purpose |
1 1/2 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH2-62 |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
NPTF |
Nitrile |
na |
SSH2-62W |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
NPTF |
Ethylene propylene |
na |
SSH2-62Y |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH2-62Y-T6 |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
SSH2016-62Y |
1500 |
General Purpose |
2 1/2 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH3-62 |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
NPTF |
Nitrile |
na |
SSH3-62W |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
NPTF |
Ethylene propylene |
na |
SSH3-62Y |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH3-62Y-T8 |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
SSH4-62 |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
NPTF |
Nitrile |
na |
SSH4-62W |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
NPTF |
Ethylene propylene |
na |
SSH4-62Y |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH4-62Y-T10 |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
SSH6-62 |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
NPTF |
Nitrile |
na |
SSH6-62W |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
NPTF |
Ethylene propylene |
na |
SSH6-62Y |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH6-62Y-T12 |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
SSH8-62Y |
3000 |
General Purpose |
1 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
SSH8-62Y-T16 |
3000 |
General Purpose |
1 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
|
