Parker Quick Couplings快速接头

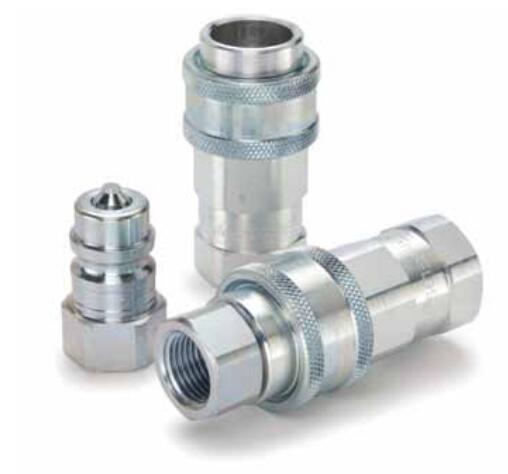

High Pressure, Steel Quick Couplings with Female NPTF, BSPP, ORB Ports (hydraulic) up to 6000 psi - SM Series Couplers
SM 系列阴接头 - 高压型快换,碳钢材料, 尾端连接形式有NPTF, BSPP, ORB 油口，承压 (液压) 可达 6000 psi

派克的一般用途快换阴接头以及阳接头是用于需要经常快速简便地进行连接或者断开的液压管路的选择。 Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

SM 系列阴接头承压（液压）可达 6000 psi ，能与SM 系列阳接头配合连接。 SM Series Couplers (hydraulic) up to 6000 psi connect with SM Series Nipples.

派克SM 系列是双截止阀芯，设计使用手动套筒以及锥阀形式。内螺纹尾端连接形式包括：NPTF，O形圈密封，以及BSPP形式 Parker's SM Series are double shut-off quick couplings with manual sleeves and poppet valves. Female port end options include NPTF, O-ring Boss, and BSPP styles.

High Pressure, Steel Quick Couplings with Female NPTF, BSPP, ORB Ports (hydraulic) up to 6000 psi - SM Series Couplers

技术特点Technical Characteristics:
- Sizes: 1/4” – 3/4”
- Material: Steel
- Port Ends: Female NPTF, Female ORB, Female BSPP
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- Other Coupler options include: Sleeve Lock
- 本体尺寸范围：1/4” – 3/4”
- 材质：碳钢
- 尾端连接形式：NPTF 内螺纹，ORB 内螺纹，BSPP 内螺纹
- 密封选项：丁腈橡胶，EPR，碳氟化合物，氯丁橡胶
- 其他阴接头可选：套筒锁

市场Markets:
- Industrial
- Construction
- Agriculture
- 工业
- 建筑
- 农业

特点/优势Features/Benefits:
- Poppet valves have captive seals to minimize seal washout
- Standard end configurations include Female NPTF, Female ORB, Female BSPP
- 锥阀端使用嵌入式密封，以防密封圈被冲出
- 标准尾端连接形式：NPTF 内螺纹，ORB 内螺纹，BSPP 内螺纹

应用Applications:
- Industrial hydraulic lines
- Mobile equipment
- 工业液压管路
- 工程机械

Technical Specifications

High Pressure, Steel Quick Couplings with Female NPTF, BSPP, ORB Ports (hydraulic) up to 6000 psi - SM Series Couplers 型号
