Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

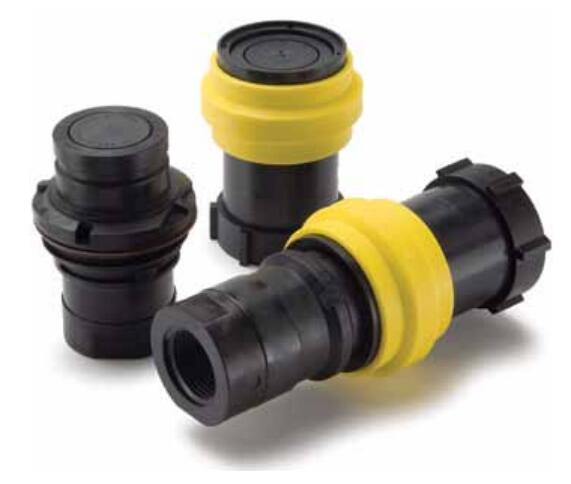

Non-Spill Chemical Transfer, Thermoplastic Quick Couplings, up to 100 psi - PF Series Nipples
PF系列快换阳接头 - 热塑型快换接头,无溢流型,用于化学流体的输送,承压可达100psi

派克无溢流型热塑快换阴接头以及阳接头,是低压应用下输送化学介质或水的选择。在这些应用中,流体管路需要便捷的连接和断开,且要求压降损失小。 Parker's non-spill thermoplastic quick couplers and nipples are ideal for transferring chemials or water in low pressure applications where fluid lines require fast and easy connection and disconnection, with minimal fluid loss.





PF 系列快换阳接头(热塑材料)与PF系列阴接头配合连接,承压可达100 psi。派克的PF系列是无溢流,推拉式连接的热塑型快换,能够有效减少断开后流体溢流损失的现象。这些快换接头是为低压封闭回路中传输或者分配化工介质以及流体而设计的,对环境的污染降到很低。可选订货选项有密封材料,弹簧材料,以及各种油箱安装形式。PF 无溢流系列快换接头可用于传输化学介质,腐蚀性的流体以及水,可用于散装储罐,可回收容器以及其他设备。 PF Series Nipples (thermoplastic) up to 100 psi connect with PF Series Couplers. Parker's PF Series are non-spill, push-to-connect thermoplastic couplings that virtually eliminate fluid loss upon disconnection. These quick couplings are designed for low pressure closed system transfer and dispensing of chemicals and fluids, with minimal environmental contamination. Available with optional seal and spring materials, as well as various tank mount options, PF Non-Spill Couplings can be used for transferring chemicals, corrosive fluids or water from bulk storage tanks, returnable containers, applicators and more.



Non-Spill Chemical Transfer, Thermoplastic Quick Couplings, up to 100 psi - PF Series Nipples





适用于以下Suitable for use with:
- Concentrated or diluted industrial chemicals
- Fertilizers
- Herbicides
- Insecticides
- Fungicides
- Pesticides
- 浓缩或稀释的工业化学品
- 肥料
- 除草剂
- 杀虫剂
- 杀真菌剂
- 农药



技术参数Technical Characteristics:
- Sizes: 1/2", 1" & 2"
- Body Material: Glass-filled Polypropylene
- Port Ends: Female NPT
- Seal Options: Fluorocarbon, Ethylene Propylene, Neoprene, Perfluoroelastomer
- Spring Options: 316 Stainless Steel, Hastelloy
- Other Nipple Options Include: Tank Mount options
- 本体尺寸:1/2", 1" & 2"
- 主体材料:玻璃填充聚丙烯
- 尾端螺纹:NPT 内螺纹
- 密封选项:氟碳橡胶,三元乙丙橡胶,氯丁橡胶,全氟橡胶
- 弹簧材料可选:316 不锈钢,哈氏合金
- 其他接头选项包括:油箱安装方式



市场Markets:
- Agriculture
- Industrial chemical handling
- Corrosive fluid handling
- 农业机械
- 工业化学品处理
- 腐蚀性流体处理



特点/优势Features/Benefits:
- Push-to-connect operation
- Corrosion resistant 316 stainless steel springs
- Fluorocarbon seals are compatible with many chemicals
- Non-spill valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines
- 1" size has non-wetted springs and tank mount options for bulk containers
- 推拉式连接操作
- 耐腐蚀316不锈钢弹簧
- 碳氟密封件与多种化学品介质兼容
- 无溢流阀在断开连接时有效减少流体损失、环境污染,以及溢流造成的安全隐患
- 当进行管路连接时,平齐端面的阀芯设计能够提高进入系统的空气更少
- 1" :对散装罐有非润湿的弹簧以及油箱安装方式可选



应用Applications:
- Intermediate Bulk Containers (IBCs)
- Chemical dispensing systems (herbicides, fertilizers, pesticides)
- Pulp and paper
- Sulfuric acid PH stabilization
- Closed system transfer
- Industrial chemical transfer
- Lawn and garden spray application equipment
- Water systems
- 中等散装容器(IBCs)
- 化学分配系统(除草剂,化肥,杀虫剂)
- 纸浆和纸
- PH稳定的硫酸
- 封闭系统传输
- 工业化学品输送
- 草坪和花园喷洒应用设备
- 水路系统



Technical Specifications

Maximum Operating Pressure: Up to 100 psi, 7 bar
Maximum Operating Temperature: 60 °C, 140 °F
Materials of Construction: Polypropylene
Application: Fluid and chemical transfer, Fluid and bulk chemical transfer
Brand: Parker
Vacuum Pressure Rating: No
Fitting Connection Type: various
Body Size: 1/2, 1, 2 inch
Flow Rate: Up to 50 Gal/min
Seal Material: Fluorocarbon
Media: Fluids and chemicals
Spring Material: 316 Stainless steel
Coupling Half: Nipple
Minimum Operating Temperature: 40 °F
Valve Type: Non-spill
Thread Size: Female
Connection Type: NPT
Maximum Spill Volume at Disconnection: Less than 9 ml





Non-Spill Chemical Transfer, Thermoplastic Quick Couplings, up to 100 psi - PF Series Nipples 型号

Part Connection Thread Size (inch) Tank Mount Connection
PF-1002-16FP 1 - 11 1/2 na
PF-1002-32MB 1 - 11 1/2 Modified buttress thread (male)
PF-1002-32MP 1 - 11 1/2 Modified NPS thread (male)
PF-2002-32FP 2 - 11 1/2 na
PF-502-8FP 1/2 - 14 na
