Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

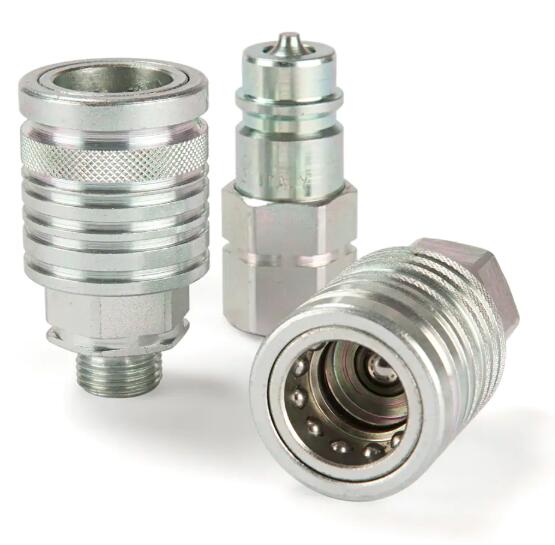

Hydraulic Quick Coupling with ISO A Profile, Series 2000
2000系列液压快换，符合ISO A标准结构

该系列快换接头本体尺寸范围从3/8"以及1/2"，用于中等压力场合，压力可达300bar。可与ISO7241-1-A标准结构快换进行互换。材料：碳钢。 Quick coupling with body size 3/8" or 1/2" for medium pressure applications up to 300 bar. Connectable with plugs according to ISO 7241-1 Series A Profile. Available made of steel.





派克2000系列液压快换接头符合ISO 7241-1-A标准的要求。该系列快换接头能与符合这个标准下的其他快换进行互换。该系列快换可用于模块化组装，有丰富的尾端形式可供选择（各类螺纹形式，如BSPP以及公制螺纹）。2000系列有两种阀芯形式可供选择：锥阀形式或者球阀形式。该系列快换接头可用于推拉式连接以及断开。 "Parker's Hydraulic Quick Coupling Series 2000 meets the requirements of ISO 7241-1 Series A. This series can be connected with other products complying with the same standard. It stands out for its modular construction with a broad choice of end configurations (variety of threads - BSPP and metric). Series 2000 is available with two valve options - Poppet valve or ball valve. This coupling system can be used in Push-Pull connection- / disconnection.





Hydraulic Quick Coupling with ISO A Profile, Series 2000





市场Markets:
- Agriculture
- Construction
- Material Handling
- 农业机械
- 建筑机械
- 物料搬运



优势Advantages:
- According to ISO 7241-1 Series A
- NBR seals and back-up ring in PTFE to withstand flow surges at high flow rates
- Double acting sleeve (Push-Pull)
- Ball or three-part poppet style valving with a molded shaped seal to prevent seal washout at high flow rates
- Chrome 6 free plating
- 10 locking balls to reduce brinneling effect
- 符合ISO 7241-1 A标准要求
- 密封材料为丁腈橡胶，挡圈材料为聚四氟乙烯，可以耐受高流量下的峰值冲击
- 双向套筒作用，推拉式
- 阀芯结构为球阀或者三片式锥阀，使用注塑成形的密封，可以有效降低高流量下的峰值冲击
- 无六价铬镀锌
- 使用10个钢珠进行锁紧，减少了轴承压痕效应



应用Applications:
- Agriculture and mobile equipment
- Construction equipment
- Material handling machines"
- 农业机械和工程机械
- 建筑机械
- 物料搬运



Technical Specifications

Minimum Operating Temperature: -25 °C
Length: 47 up to 85 mm
Application: Medium Pressure
Body Size: 3/8, 1/2 inch
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread
Specifications Met: ISO 7241-1 Series A
Interchange Type: ISO 7241-1 Series A
Maximum Operating Pressure: 3040, 3620, 4560 psi, 210, 250, 315 bar
Maximum Operating Temperature: 230 °F, 110 °C
Media: Hydraulic Fluids
Valve Type: Poppet
Hex Size: 22, 27, 36 mm
Outside Diameter: 17,3 up to 38 mm
Materials of Construction: Steel
Seal Material: NBR
Weight: 75 up to 380 g





Hydraulic Quick Coupling with ISO A Profile, Series 2000 型号

Part Body Size Type Version Connection Type Connection Thread Size (inch) Connection Thread Size (mm)
4014G0Z4-C 1/2 Plug Ball Valve Female thread DIN 3852 Form Y 1/2 NPT na
4014G4X4-C 1/2 Plug Ball Valve Female thread DIN 3852 Form Y 1/2 na
4054G0Z4-C 1/2 Coupling Ball Valve Female thread DIN 3852 Form Y 1/2 NPT na
4054G4X4-C 1/2 Coupling Ball Valve Female thread DIN 3852 Form Y 1/2 na
4V13D6X2-C 3/8 Plug Light Male thread 24° cone DIN 2353 na 14x1,5
4V13D6X3-C 3/8 Plug Light Male thread 24° cone DIN 2353 na 16x1,5
4V13D7X3-C 3/8 Plug Heavy Male thread 24° cone DIN 2353 na 18x1,5
4V13E6X3-C 3/8 Plug Light Male thread 24° cone DIN 2353 Bulkhead na 16x1,5
4V13F4B3-C 3/8 Plug na Male thread BSPP DIN 3852 Form B 3/8 na
4V13G4X3-C 3/8 Plug na Female thread DIN 3852 Form Y 3/8 na
4V14D6X2-C 1/2 Plug Light Male thread 24° cone DIN 2353 na 14x1,5
4V14D6X3-C 1/2 Plug Light Male thread 24° cone DIN 2353 na 16x1,5
4V14D6X4-C 1/2 Plug Light Male thread 24° cone DIN 2353 na 18x1,5
4V14D6X5-C 1/2 Plug Light Male thread 24° cone DIN 2353 na 22x1,5
4V14D6X6-C 1/2 Plug Light Male thread 24° cone DIN 2353 na 26x1,5
4V14D7X3-C 1/2 Plug Heavy Male thread 24° cone DIN 2353 na 18x1,5
4V14D7X6-C 1/2 Plug Heavy Male thread 24° cone DIN 2353 na 24x1,5
4V14E6X2-C 1/2 Plug Light Male thread 24° cone DIN 2353 Bulkhead na 14x1,5
4V14E6X3-C 1/2 Plug Light Male thread 24° cone DIN 2353 Bulkhead na 16x1,5
4V14E6X4-C 1/2 Plug Light Male thread 24° cone DIN 2353 Bulkhead na 18x1,5
4V14E6X5-C 1/2 Plug Light Male thread 24° cone DIN 2353 Bulkhead na 22x1,5
4V14E6X6-C 1/2 Plug Light Male thread 24° cone DIN 2353 Bulkhead na 26x1,5
4V14E7X3-C 1/2 Plug Heavy Male thread 24° cone DIN 2353 Bulkhead na 18x1,5
4V14E7X4-C 1/2 Plug Heavy Male thread 24° cone DIN 2353 Bulkhead na 20x1,5
4V14E7X6-C 1/2 Plug Heavy Male thread 24° cone DIN 2353 Bulkhead na 24x1,5
4V14F4B3-C 1/2 Plug na Male thread BSPP DIN 3852 Form B 3/8 na
4V14F4B4-C 1/2 Plug na Male thread BSPP DIN 3852 Form B 1/2 na
4V14G4X3-C 1/2 Plug na Female thread DIN 3852 Form Y 3/8 na
4V14G4X4-C 1/2 Plug na Female thread DIN 3852 Form Y 1/2 na
4V14G4X6-C 1/2 Plug na Female thread DIN 3852 Form Y 3/4 na
4V14G8X5-C 1/2 Plug na Female thread DIN 3852 Form Y na 18x1,5
4V14G8X6-C 1/2 Plug na Female thread DIN 3852 Form Y na 22x1,5
4V53D6X2-C 3/8 Coupling Light Male thread 24° cone DIN 2353 na 14x1,5
4V53D6X3-C 3/8 Coupling Light Male thread 24° cone DIN 2353 na 16x1,5
4V53D7X3-C 3/8 Coupling Heavy Male thread 24° cone DIN 2353 na 18x1,5
4V53E6X3-C 3/8 Coupling Light Male thread 24° cone DIN 2353 Bulkhead na 16x1,5
4V53F4B3-C 3/8 Coupling na Male thread BSPP DIN 3852 Form B 3/8 na
4V53G4X3-C 3/8 Coupling na Female thread DIN 3852 Form Y 3/8 na
4V54D6X2-C 1/2 Coupling Light Male thread 24° cone DIN 2353 na 14x1,5
4V54D6X3-C 1/2 Coupling Light Male thread 24° cone DIN 2353 na 16x1,5
4V54D6X4-C 1/2 Coupling Light Male thread 24° cone DIN 2353 na 18x1,5
4V54D6X5-C 1/2 Coupling Light Male thread 24° cone DIN 2353 na 22x1,5
4V54D6X6-C 1/2 Coupling Light Male thread 24° cone DIN 2353 na 26x1,5
4V54D7X3-C 1/2 Coupling Heavy Male thread 24° cone DIN 2353 na 18x1,5
4V54D7X6-C 1/2 Coupling Heavy Male thread 24° cone DIN 2353 na 24x1,5
4V54E6X2-C 1/2 Coupling Light Male thread 24° cone DIN 2353 Bulkhead na 14x1,5
4V54E6X3-C 1/2 Coupling Light Male thread 24° cone DIN 2353 Bulkhead na 16x1,5
4V54E6X4-C 1/2 Coupling Light Male thread 24° cone DIN 2353 Bulkhead na 18x1,5
4V54E6X5-C 1/2 Coupling Light Male thread 24° cone DIN 2353 Bulkhead na 22x1,5
4V54E6X6-C 1/2 Coupling Light Male thread 24° cone DIN 2353 Bulkhead na 26x1,5
4V54E7X3-C 1/2 Coupling Heavy Male thread 24° cone DIN 2353 Bulkhead na 18x1,5
4V54E7X4-C 1/2 Coupling Heavy Male thread 24° cone DIN 2353 Bulkhead na 20x1,5
4V54E7X6-C 1/2 Coupling Heavy Male thread 24° cone DIN 2353 Bulkhead na 24x1,5
4V54F4B3-C 1/2 Coupling na Male thread BSPP DIN 3852 Form B 3/8 na
4V54F4B4-C 1/2 Coupling na Male thread BSPP DIN 3852 Form B 1/2 na
4V54G4X3-C 1/2 Coupling na Female thread DIN 3852 Form Y 3/8 na
4V54G4X4-C 1/2 Coupling na Female thread DIN 3852 Form Y 1/2 na
4V54G4X6-C 1/2 Coupling na Female thread DIN 3852 Form Y 3/4 na
4V54G8X5-C 1/2 Coupling na Female thread DIN 3852 Form Y na 18x1,5
4V54G8X6-C 1/2 Coupling na Female thread DIN 3852 Form Y na 22x1,5
