Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

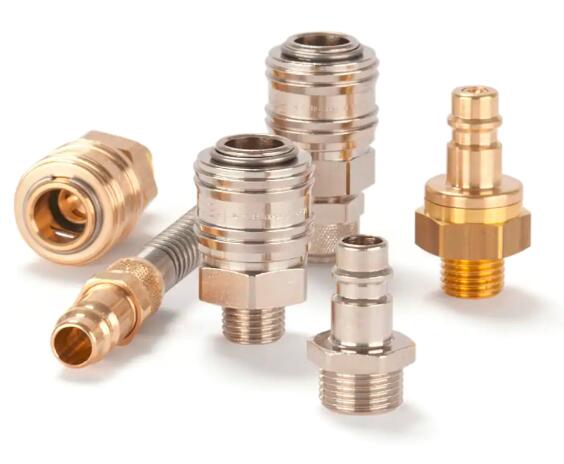

Basic Quick Coupling with European Profile, Series 26
26系列，基本型快换接头，符合欧洲标准结构

该系列快换接头属于基本型快换系列，公称通径是7.2mm，用于气动及流体输送应用，承压可达35 bar。该系列快换接头，符合欧洲工业标准结构，目前可供材料：黄铜或不锈钢。 Basic quick coupling system with nominal diameter 7.2 for pneumatic and fluid handling applications up to 35 bar. Coupling system with European standard industrial profile. Available made of brass or stainless steel.





派克的26系列是一款基本型快换接头，其连接系统是通用型黄铜快换连接，符合欧洲工业标准结构。该系列快换连接系统可进行单手操作，其阀芯形式也是标准类型，结构紧凑。套筒设计符合人体工程学，以防灰尘进入到阀芯内部。 Parker's Basic Quick Coupling Series 26 is an universal brass coupling with European standard industrial profile. It is a coupling system with single-hand operation and standard-valve as well as a small mass size. The ergonomic sleeve design prevents dirt on the valve body.

不锈钢的26系列阳接头，可以在25系列下面找到。 The right plug for series 26 made of stainless steel can be found under series 25.





Basic Quick Coupling with European Profile, Series 26



市场Markets:
- Machinery Construction
- Automotive
- Life Science
- Mobile Hydraulics
- Industrial
- Machine Tooling
- 机械工程
- 汽车
- 生命科学
- 移动液压
- 工业
- 机床模具

特点/优势Features/Benefits:
- Universal brass coupling with European Standard Profile
- Single-hand operation for easy and fast connection
- Lower connection/disconnection force compared to competitive products
- Rectus ?inventor“ of series 26
- 通用型黄铜快换连接，符合欧洲工业标准结构
- 单手操作，可用于方便快速地连接
- 与竞争对手产品比，低连接/断开力
- Rectus 26系列

应用Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
- 气动电动工具
- 装配线
- 空气压缩机
- 流体输送



Technical Specifications

Minimum Operating Temperature: -15 to -20 °C
Diameter: Nominal: 7.2 mm
Application: Pneumatic & Fluid Handling
Brand: Rectus
Fitting Connection Type: various
Interchange Type: Europe
Materials of Construction: Brass, Stainless Steel
Maximum Operating Pressure: 500 psi, 35 bar
Media: Gases, Pneumatic Media
Valve Type: High Flow Air, Poppet
Seal Material: NBR, FKM
Valve Included: Yes or No acc. to the version
Length: 30 up to 150 mm
Outside Diameter: 12 up to 28 mm
Maximum Operating Temperature: 212 to 392 °C
Flow Rate: 185 to 264 L/min



Basic Quick Coupling with European Profile, Series 26 型号

Part Type Version Connection Type Connection Thread Size (inch) Connection Thread Size (mm) Hose I.D. (mm) External Hex (mm) Material
26KAAD14MPN Coupling Single Shut-Off Male Thread - metric na 14x1,5 na 22 Brass nickel plated
26KAAD14MPX Coupling Single Shut-Off Male Thread - metric na 14x1,5 na 22 Brass
26KAAD16MPN Coupling Single Shut-Off Male Thread - metric na 16x1,5 na 22 Brass nickel plated
26KAAD16MPX Coupling Single Shut-Off Male Thread - metric na 16x1,5 na 22 Brass
26KAAD18MPN Coupling Single Shut-Off Male Thread - metric na 18x1,5 na 22 Brass nickel plated
26KAAD18MPX Coupling Single Shut-Off Male Thread - metric na 18x1,5 na 22 Brass
26KAAW10MPN Coupling Single Shut-Off Male Thread - parallel 1/8 na na 22 Brass nickel plated
26KAAW10MPX Coupling Single Shut-Off Male Thread - parallel 1/8 na na 22 Brass
26KAAW13MPN Coupling Single Shut-Off Male Thread - parallel 1/4 na na 22 Brass nickel plated
26KAAW13MPX Coupling Single Shut-Off Male Thread - parallel 1/4 na na 22 Brass
26KAAW13RVX Coupling Single Shut-Off Male Thread - parallel 1/4 na na 19 AISI 303
26KAAW17MPN Coupling Single Shut-Off Male Thread - parallel 3/8 na na 22 Brass nickel plated
26KAAW17MPX Coupling Single Shut-Off Male Thread - parallel 3/8 na na 22 Brass
26KAAW17RVX Coupling Single Shut-Off Male Thread - parallel 3/8 na na 19 AISI 303
26KAAW21MPN Coupling Single Shut-Off Male Thread - parallel 1/2 na na 22 Brass nickel plated
26KAAW21MPNS_09 Coupling Single Shut-Off Male Thread - parallel 1/2 na na 24 Brass nickel plated
26KAAW21MPX Coupling Single Shut-Off Male Thread - parallel 1/2 na na 22 Brass
26KAAW21MPXS_36 Coupling Single Shut-Off Male Thread - parallel 1/2 na na 24 Brass
26KAAW21RVX Coupling Single Shut-Off Male Thread - parallel 1/2 na na 24 AISI 303
26KAIM14MPN Coupling Single Shut-Off Female Thread - metric na 14x1,5 na 22 Brass nickel plated
26KAIM14MPX Coupling Single Shut-Off Female Thread - metric na 14x1,5 na 22 Brass
26KAIM16MPN Coupling Single Shut-Off Female Thread - metric na 16x1,5 na 22 Brass nickel plated
26KAIM16MPX Coupling Single Shut-Off Female Thread - metric na 16x1,5 na 22 Brass
26KAIM18MPN Coupling Single Shut-Off Female Thread - metric na 18x1,5 na 22 Brass nickel plated
26KAIM18MPX Coupling Single Shut-Off Female Thread - metric na 18x1,5 na 22 Brass
26KAIW13MPN Coupling Single Shut-Off Female Thread - parallel 1/4 na na 22 Brass nickel plated
26KAIW13MPX Coupling Single Shut-Off Female Thread - parallel 1/4 na na 22 Brass
26KAIW13RVX Coupling Single Shut-Off Female Thread - parallel 1/4 na na 19 AISI 303
26KAIW17MPN Coupling Single Shut-Off Female Thread - parallel 3/8 na na 22 Brass nickel plated
26KAIW17MPX Coupling Single Shut-Off Female Thread - parallel 3/8 na na 22 Brass
26KAIW17RVX Coupling Single Shut-Off Female Thread - parallel 3/8 na na 19 AISI 303
26KAIW21MPN Coupling Single Shut-Off Female Thread - parallel 1/2 na na 24 Brass nickel plated
26KAIW21MPX Coupling Single Shut-Off Female Thread - parallel 1/2 na na 24 Brass
26KAIW21RVX Coupling Single Shut-Off Female Thread - parallel 1/2 na na 24 AISI 303
26KAKK08MPN Coupling Single Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 21 Brass nickel plated
26KAKK08MPX Coupling Single Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 21 Brass
26KAKK10MPN Coupling Single Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 21 Brass nickel plated
26KAKK10MPX Coupling Single Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 21 Brass
26KAKK12MPN Coupling Single Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 21 Brass nickel plated
26KAKK12MPX Coupling Single Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 21 Brass
26KAKO06MPN Coupling Single Shut-Off with Plastic Hose Connection na na 4x6 21 Brass nickel plated
26KAKO06MPX Coupling Single Shut-Off with Plastic Hose Connection na na 4x6 21 Brass
26KAKO08MPN Coupling Single Shut-Off with Plastic Hose Connection na na 6x8 21 Brass nickel plated
26KAKO08MPX Coupling Single Shut-Off with Plastic Hose Connection na na 6x8 21 Brass
26KAKO10MPN Coupling Single Shut-Off with Plastic Hose Connection na na 8x10 21 Brass nickel plated
26KAKO10MPX Coupling Single Shut-Off with Plastic Hose Connection na na 8x10 21 Brass
26KAKO12MPN Coupling Single Shut-Off with Plastic Hose Connection na na 9x12 21 Brass nickel plated
26KAKO12MPX Coupling Single Shut-Off with Plastic Hose Connection na na 9x12 21 Brass
26KATF06MPN Coupling Single Shut-Off Hose Barb na na 6 21 Brass nickel plated
26KATF06MPX Coupling Single Shut-Off Hose Barb na na 6 21 Brass
26KATF06RVX Coupling Single Shut-Off Hose Barb na na 6 19 AISI 303
26KATF08MPN Coupling Single Shut-Off Hose Barb na na 8 21 Brass nickel plated
26KATF08MPX Coupling Single Shut-Off Hose Barb na na 8 21 Brass
26KATF08RVX Coupling Single Shut-Off Hose Barb na na 8 19 AISI 303
26KATF09MPN Coupling Single Shut-Off Hose Barb na na 9 21 Brass nickel plated
26KATF09MPX Coupling Single Shut-Off Hose Barb na na 9 21 Brass
26KATF09RVX Coupling Single Shut-Off Hose Barb na na 9 19 AISI 303
26KATF10MPN Coupling Single Shut-Off Hose Barb na na 10 21 Brass nickel plated
26KATF10MPX Coupling Single Shut-Off Hose Barb na na 10 21 Brass
26KATF10RVX Coupling Single Shut-Off Hose Barb na na 10 19 AISI 303
26KATF13MPN Coupling Single Shut-Off Hose Barb na na 13 21 Brass nickel plated
26KATF13MPX Coupling Single Shut-Off Hose Barb na na 13 21 Brass
26KATF13RVX Coupling Single Shut-Off Hose Barb na na 13 19 AISI 303
26KATP06MPN Coupling Single Shut-Off Hose Barb - for Parker plug-in hose na na 6 21 Brass nickel plated
26KATP06MPX Coupling Single Shut-Off Hose Barb - for Parker plug-in hose na na 6 21 Brass
26KATP10MPN Coupling Single Shut-Off Hose Barb - for Parker plug-in hose na na 10 21 Brass nickel plated
26KATP10MPX Coupling Single Shut-Off Hose Barb - for Parker plug-in hose na na 10 21 Brass
26KATP13MPN Coupling Single Shut-Off Hose Barb - for Parker plug-in hose na na 13 21 Brass nickel plated
26KATP13MPX Coupling Single Shut-Off Hose Barb - for Parker plug-in hose na na 13 21 Brass
26KATS06MPN Coupling Single Shut-Off Panel Mount with Hose Barb na na 6 21 Brass nickel plated
26KATS06MPX Coupling Single Shut-Off Panel Mount with Hose Barb na na 6 21 Brass
26KATS08MPN Coupling Single Shut-Off Panel Mount with Hose Barb na na 8 21 Brass nickel plated
26KATS08MPX Coupling Single Shut-Off Panel Mount with Hose Barb na na 8 21 Brass
26KATS10MPN Coupling Single Shut-Off Panel Mount with Hose Barb na na 10 21 Brass nickel plated
26KATS10MPX Coupling Single Shut-Off Panel Mount with Hose Barb na na 10 21 Brass
26KBAD16MPN Coupling Double Shut-Off Male Thread - metric na 16x1,5 na 22 Brass nickel plated
26KBAD16MPX Coupling Double Shut-Off Male Thread - metric na 16x1,5 na 22 Brass
26KBAD18MPN Coupling Double Shut-Off Male Thread - metric na 18x1,5 na 22 Brass nickel plated
26KBAD18MPX Coupling Double Shut-Off Male Thread - metric na 18x1,5 na 22 Brass
26KBAW10MPN Coupling Double Shut-Off Male Thread - parallel 1/8 na na 22 Brass nickel plated
26KBAW10MPX Coupling Double Shut-Off Male Thread - parallel 1/8 na na 22 Brass
26KBAW13MPN Coupling Double Shut-Off Male Thread - parallel 1/4 na na 22 Brass nickel plated
26KBAW13MPX Coupling Double Shut-Off Male Thread - parallel 1/4 na na 22 Brass
26KBAW17MPN Coupling Double Shut-Off Male Thread - parallel 3/8 na na 22 Brass nickel plated
26KBAW17MPX Coupling Double Shut-Off Male Thread - parallel 3/8 na na 22 Brass
26KBAW21MPN Coupling Double Shut-Off Male Thread - parallel 1/2 na na 24 Brass nickel plated
26KBAW21MPX Coupling Double Shut-Off Male Thread - parallel 1/2 na na 24 Brass
26KBIM16MPN Coupling Double Shut-Off Female Thread - metric na 16x1,5 na 22 Brass nickel plated
26KBIM16MPX Coupling Double Shut-Off Female Thread - metric na 16x1,5 na 22 Brass
26KBIM18MPN Coupling Double Shut-Off Female Thread - metric na 18x1,5 na 22 Brass nickel plated
26KBIM18MPX Coupling Double Shut-Off Female Thread - metric na 18x1,5 na 22 Brass
26KBIW13MPN Coupling Double Shut-Off Female Thread - parallel 1/4 na na 22 Brass nickel plated
26KBIW13MPX Coupling Double Shut-Off Female Thread - parallel 1/4 na na 22 Brass
26KBIW17MPN Coupling Double Shut-Off Female Thread - parallel 3/8 na na 22 Brass nickel plated
26KBIW17MPX Coupling Double Shut-Off Female Thread - parallel 3/8 na na 22 Brass
26KBIW21MPN Coupling Double Shut-Off Female Thread - parallel 1/2 na na 24 Brass nickel plated
26KBIW21MPX Coupling Double Shut-Off Female Thread - parallel 1/2 na na 24 Brass
26KBKK08MPN Coupling Double Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 21 Brass nickel plated
26KBKK08MPX Coupling Double Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 21 Brass
26KBKK10MPN Coupling Double Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 21 Brass nickel plated
26KBKK10MPX Coupling Double Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 21 Brass
26KBKK12MPN Coupling Double Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 21 Brass nickel plated
26KBKK12MPX Coupling Double Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 21 Brass
26KBKO08MPN Coupling Double Shut-Off with Plastic Hose Connection na na 6x8 21 Brass nickel plated
26KBKO08MPX Coupling Double Shut-Off with Plastic Hose Connection na na 6x8 21 Brass
26KBKO10MPN Coupling Double Shut-Off with Plastic Hose Connection na na 8x10 21 Brass nickel plated
26KBKO10MPX Coupling Double Shut-Off with Plastic Hose Connection na na 8x10 21 Brass
26KBKO12MPN Coupling Double Shut-Off with Plastic Hose Connection na na 9x12 21 Brass nickel plated
26KBKO12MPX Coupling Double Shut-Off with Plastic Hose Connection na na 9x12 21 Brass
26KBTF06MPN Coupling Double Shut-Off Hose Barb na na 6 21 Brass nickel plated
26KBTF06MPX Coupling Double Shut-Off Hose Barb na na 6 21 Brass
26KBTF08MPN Coupling Double Shut-Off Hose Barb na na 8 21 Brass nickel plated
26KBTF08MPX Coupling Double Shut-Off Hose Barb na na 8 21 Brass
26KBTF09MPN Coupling Double Shut-Off Hose Barb na na 9 21 Brass nickel plated
26KBTF09MPX Coupling Double Shut-Off Hose Barb na na 9 21 Brass
26KBTF10MPN Coupling Double Shut-Off Hose Barb na na 10 21 Brass nickel plated
26KBTF10MPX Coupling Double Shut-Off Hose Barb na na 10 21 Brass
26KBTF13MPN Coupling Double Shut-Off Hose Barb na na 13 21 Brass nickel plated
26KBTF13MPX Coupling Double Shut-Off Hose Barb na na 13 21 Brass
26KBTP06MPN Coupling Double Shut-Off Hose Barb - for Parker plug-in hose na na 6 21 Brass nickel plated
26KBTP06MPX Coupling Double Shut-Off Hose Barb - for Parker plug-in hose na na 6 21 Brass
26KBTP10MPN Coupling Double Shut-Off Hose Barb - for Parker plug-in hose na na 10 21 Brass nickel plated
26KBTP10MPX Coupling Double Shut-Off Hose Barb - for Parker plug-in hose na na 10 21 Brass
26KBTP13MPN Coupling Double Shut-Off Hose Barb - for Parker plug-in hose na na 13 21 Brass nickel plated
26KBTP13MPX Coupling Double Shut-Off Hose Barb - for Parker plug-in hose na na 13 21 Brass
26KBTS06MPN Coupling Double Shut-Off Panel Mount with Hose Barb na na 6 21 Brass nickel plated
26KBTS06MPX Coupling Double Shut-Off Panel Mount with Hose Barb na na 6 21 Brass
26KBTS08MPN Coupling Double Shut-Off Panel Mount with Hose Barb na na 8 21 Brass nickel plated
26KBTS08MPX Coupling Double Shut-Off Panel Mount with Hose Barb na na 8 21 Brass
26KBTS10MPN Coupling Double Shut-Off Panel Mount with Hose Barb na na 10 21 Brass nickel plated
26KBTS10MPX Coupling Double Shut-Off Panel Mount with Hose Barb na na 10 21 Brass
26SFAD14MXN Plug Single Shut-Off Male Thread - metric na 14x1,5 na 17 Brass nickel plated
26SFAD14MXX Plug Single Shut-Off Male Thread - metric na 14x1,5 na 17 Brass
26SFAD16MXN Plug Single Shut-Off Male Thread - metric na 16x1,5 na 19 Brass nickel plated
26SFAD16MXX Plug Single Shut-Off Male Thread - metric na 16x1,5 na 19 Brass
26SFAD18MXN Plug Single Shut-Off Male Thread - metric na 18x1,5 na 22 Brass nickel plated
26SFAD18MXX Plug Single Shut-Off Male Thread - metric na 18x1,5 na 22 Brass
26SFAW10MXN Plug Single Shut-Off Male Thread - parallel 1/8 na na 14 Brass nickel plated
26SFAW10MXX Plug Single Shut-Off Male Thread - parallel 1/8 na na 14 Brass
26SFAW13MXN Plug Single Shut-Off Male Thread - parallel 1/4 na na 17 Brass nickel plated
26SFAW13MXX Plug Single Shut-Off Male Thread - parallel 1/4 na na 17 Brass
26SFAW17MXN Plug Single Shut-Off Male Thread - parallel 3/8 na na 19 Brass nickel plated
26SFAW17MXX Plug Single Shut-Off Male Thread - parallel 3/8 na na 19 Brass
26SFAW21MXN Plug Single Shut-Off Male Thread - parallel 1/2 na na 24 Brass nickel plated
26SFAW21MXX Plug Single Shut-Off Male Thread - parallel 1/2 na na 24 Brass
26SFIM14MXN Plug Single Shut-Off Female Thread - metric na 14x1,5 na 17 Brass nickel plated
26SFIM14MXX Plug Single Shut-Off Female Thread - metric na 14x1,5 na 17 Brass
26SFIM16MXN Plug Single Shut-Off Female Thread - metric na 16x1,5 na 19 Brass nickel plated
26SFIM16MXX Plug Single Shut-Off Female Thread - metric na 16x1,5 na 19 Brass
26SFIM18MXN Plug Single Shut-Off Female Thread - metric na 18x1,5 na 22 Brass nickel plated
26SFIM18MXX Plug Single Shut-Off Female Thread - metric na 18x1,5 na 22 Brass
26SFIW10MXN Plug Single Shut-Off Female Thread - parallel 1/8 na na 14 Brass nickel plated
26SFIW10MXX Plug Single Shut-Off Female Thread - parallel 1/8 na na 14 Brass
26SFIW13MXN Plug Single Shut-Off Female Thread - parallel 1/4 na na 17 Brass nickel plated
26SFIW13MXX Plug Single Shut-Off Female Thread - parallel 1/4 na na 17 Brass
26SFIW17MXN Plug Single Shut-Off Female Thread - parallel 3/8 na na 19 Brass nickel plated
26SFIW17MXX Plug Single Shut-Off Female Thread - parallel 3/8 na na 19 Brass
26SFIW21MXN Plug Single Shut-Off Female Thread - parallel 1/2 na na 24 Brass nickel plated
26SFIW21MXX Plug Single Shut-Off Female Thread - parallel 1/2 na na 24 Brass
26SFKK06MXN Plug Single Shut-Off Plastic Hose Connection with Spring Guard na na 4x6 na Brass nickel plated
26SFKK06MXX Plug Single Shut-Off Plastic Hose Connection with Spring Guard na na 4x6 na Brass
26SFKK08MXN Plug Single Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 na Brass nickel plated
26SFKK08MXX Plug Single Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 na Brass
26SFKK10MXN Plug Single Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 17 Brass nickel plated
26SFKK10MXX Plug Single Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 17 Brass
26SFKK12MXN Plug Single Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 17 Brass nickel plated
26SFKK12MXX Plug Single Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 17 Brass
26SFKO06MXN Plug Single Shut-Off with Plastic Hose Connection na na 4x6 na Brass nickel plated
26SFKO06MXX Plug Single Shut-Off with Plastic Hose Connection na na 4x6 na Brass
26SFKO08MXN Plug Single Shut-Off with Plastic Hose Connection na na 6x8 na Brass nickel plated
26SFKO08MXX Plug Single Shut-Off with Plastic Hose Connection na na 6x8 na Brass
26SFKO10MXN Plug Single Shut-Off with Plastic Hose Connection na na 8x10 17 Brass nickel plated
26SFKO10MXX Plug Single Shut-Off with Plastic Hose Connection na na 8x10 17 Brass
26SFKO12MXN Plug Single Shut-Off with Plastic Hose Connection na na 9x12 17 Brass nickel plated
26SFKO12MXX Plug Single Shut-Off with Plastic Hose Connection na na 9x12 17 Brass
26SFTF04MXN Plug Single Shut-Off Hose Barb na na 4 na Brass nickel plated
26SFTF04MXX Plug Single Shut-Off Hose Barb na na 4 na Brass
26SFTF06MXN Plug Single Shut-Off Hose Barb na na 6 na Brass nickel plated
26SFTF06MXX Plug Single Shut-Off Hose Barb na na 6 na Brass
26SFTF08MXN Plug Single Shut-Off Hose Barb na na 8 na Brass nickel plated
26SFTF08MXX Plug Single Shut-Off Hose Barb na na 8 na Brass
26SFTF09MXN Plug Single Shut-Off Hose Barb na na 9 na Brass nickel plated
26SFTF09MXX Plug Single Shut-Off Hose Barb na na 9 na Brass
26SFTF10MXN Plug Single Shut-Off Hose Barb na na 10 na Brass nickel plated
26SFTF10MXX Plug Single Shut-Off Hose Barb na na 10 na Brass
26SFTF13MXN Plug Single Shut-Off Hose Barb na na 13 na Brass nickel plated
26SFTF13MXX Plug Single Shut-Off Hose Barb na na 13 na Brass
26SFTP06MXN Plug Single Shut-Off Hose Barb - for Parker plug-in hose na na 6 na Brass nickel plated
26SFTP06MXX Plug Single Shut-Off Hose Barb - for Parker plug-in hose na na 6 na Brass
26SFTP10MXN Plug Single Shut-Off Hose Barb - for Parker plug-in hose na na 10 na Brass nickel plated
26SFTP10MXX Plug Single Shut-Off Hose Barb - for Parker plug-in hose na na 10 na Brass
26SFTP13MXN Plug Single Shut-Off Hose Barb - for Parker plug-in hose na na 13 na Brass nickel plated
26SFTP13MXX Plug Single Shut-Off Hose Barb - for Parker plug-in hose na na 13 na Brass
26SFTS06MXN Plug Single Shut-Off Panel Mount with Hose Barb na na 6 14 Brass nickel plated
26SFTS06MXX Plug Single Shut-Off Panel Mount with Hose Barb na na 6 14 Brass
26SFTS08MXN Plug Single Shut-Off Panel Mount with Hose Barb na na 8 17 Brass nickel plated
26SFTS08MXX Plug Single Shut-Off Panel Mount with Hose Barb na na 8 17 Brass
26SFTS10MXN Plug Single Shut-Off Panel Mount with Hose Barb na na 10 17 Brass nickel plated
26SFTS10MXX Plug Single Shut-Off Panel Mount with Hose Barb na na 10 17 Brass
26SRTF06MXN Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 6 21 Brass nickel plated
26SRTF06MXX Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 6 21 Brass
26SRTF08MXN Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 8 21 Brass nickel plated
26SRTF08MXX Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 8 21 Brass
26SRTF09MXN Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 9 21 Brass nickel plated
26SRTF09MXX Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 9 21 Brass
26SRTF10MXN Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 10 21 Brass nickel plated
26SRTF10MXX Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 10 21 Brass
26SRTF13MXN Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 13 21 Brass nickel plated
26SRTF13MXX Plug Single Shut-Off Recoil Eliminator with Hose Barb na na 13 21 Brass








美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
