Parker Quick Couplings快速接头
Hydraulic Quick Coupling with Parker Profile, Series H
H系列液压快换，符合派克结构设计

该系列快换接头，本体尺寸范围为1/2英寸至1英寸，用于中等压力应用，承压高达320bar。该系列快换接头符合派克结构设计。 Quick coupling system with body sizes 1/2" up to 1" for medium pressure applications up to 320 bar. Coupling system with Parker Profile.

派克H系列液压快换是在标准液压快换上进一步设计，使用了新型材料，因此能够承受一些重载应用条件。快换本体使用碳钢材料，因此快换即使在受到相当大的侧向力和高脉冲时也能可以发挥其作用。H系列同时可定制带背压释放器形式，即能够在静压或者高达工作压力的背压下进行连接。额外的安全锁功能能够预防意外断开情况发生。 Parker's Hydraulic Quick Coupling Series H is a further development of the standard hydraulic coupling, with some new materials to stand up to heavy conditions. The body of the coupling is made of steel so that the coupling functions reliably even when subject to substantial lateral forces and high impulses. Series H is also available with pressure eliminator, i.e. connection is possible under static/residual pressure up to working pressure. An additional safety locking ring prevents unintentional disconnection.

与H系列配合连接的阳接头可在T系列下找到。 The right plug for series H can be found under series T.

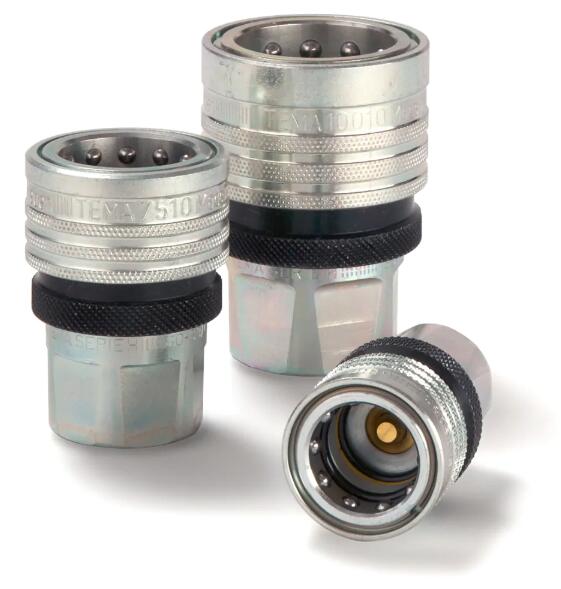

Hydraulic Quick Coupling with Parker Profile, Series H

市场Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction
- 农业
- 汽车
- 石油与天然气
- 过程控制
- 发电
- 运输
- 市政设施 - 国防
- 工业
- 机床模具
- 物料搬运
- 建筑

特点/优势Features/Benefits:
- Completely made of steel for heavy duty applications
- High flow rate – minimum pressure drop
- Twice as safe through double sealing in the plug
- Safety locking ring to prevent unintentional disconnection
- Maximum protection against corrosion
- Also available with pressure eliminator
- 全碳钢材料制造而成，用于重载应用
- 高流量
- 小压降
- 阳接头上使用双重密封可提供加倍安全
- 安全锁定环，预防意外断开
- 很好的防腐蚀保护
- 也可定制带背压释放器形式

应用Applications:
Easy connectiong / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Presses
- Molding machines
易于连接/断开液压系统，包括移动和工业应用
-拖拉机
- 卡车
- 轮式装载机
- 军用车辆
- 压力机
- 成型机

Technical Specifications

Hydraulic Quick Coupling with Parker Profile, Series H 型号
