Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

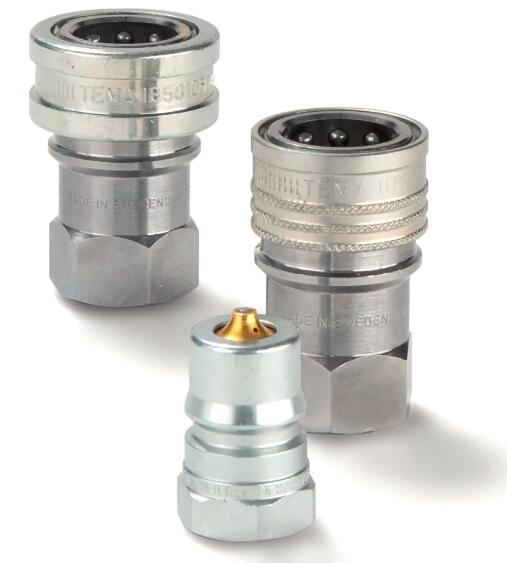

Hydraulic Quick Coupling with ISO B Profile, Series IB
IB系列，液压快换接头，符合ISO B结构设计

该系列快换接头，本体尺寸为1/4" 到 1"，用于中等压力的应用，承压可达400bar，该系列快换接头符合ISO 7241-1系列B标准结构。 Quick coupling system with body size 1/4" up to 1" for medium pressure applications up to 400 bar. Coupling system with ISO 7241-1 Series B profile.

派克IB系列液压快换接头的阳接头结构，符合ISO 7241-1-B标准结构，能够与其他系列的符合相同标准的快换进行互换。为了优化快换接头的性能表现以及提高其防腐能力，快换接头的本体使用黄铜材料，并且阳接头使用硬化的碳钢材料。IB系列可以同时定制带背压释放器的功能。因此能够在可高达工作压力的静压或者背压的情况下无障碍地进行连接。阴接头或者阳接头均可定制带背压释放器的功能。该系列快换接头，还可以定制重载的套筒，能够让快换接头，即使在严苛的环境应用中也有更优异的耐久的使用寿命表现。
Parker's Hydraulic Quick Coupling Series IB plug profiles are conform to IS0 Standard 7241-1 series B and are compatible with other series complying with the same standard. To optimize performance and corrosion resisitance the coupling is made of brass and the plug made of hardend steel. Series IB is available with pressure eliminator function, which allows for effortless connection with static and residual pressure, up to operating pressure. A pressure eliminator is available for plugs and couplings. The option with heavy duty sleeve gives a longer life time in very tough applications.

Hydraulic Quick Coupling with ISO B Profile, Series IB

市场Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction
- 农机设备
- 汽车
- 石油与天然气
- 过程控制
- 发电
- 交通运输
- 市政设施
- 安防设备
- 工业
- 机械工具
- 物料搬运
- 建筑机械

特点/优势Features/Benefits:
- Available with pressure eliminator to connect under residual pressure
- Available with heavy duty sleeve for longer life time in very tough applications
- Coupling made of brass to avoid corrosion
- 可定制背压释放器形式，能够在背压情况下进行连接
- 可定制重载型套筒，即使非常严苛的应用中，也有较好的耐久性的表现
- 黄铜材料的快换接头，能够耐腐蚀

应用Applications:
Easy connection / disconnectionin hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Presses
在液压系统中能够方便地进行管路连接/断开，适合用于工程机械及工业液压的应用
- 拖拉机
- 卡车
- 轮式装载机
- 军用车辆
- 压铸机

Technical Specifications

Hydraulic Quick Coupling with ISO B Profile, Series IB 型号
