Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

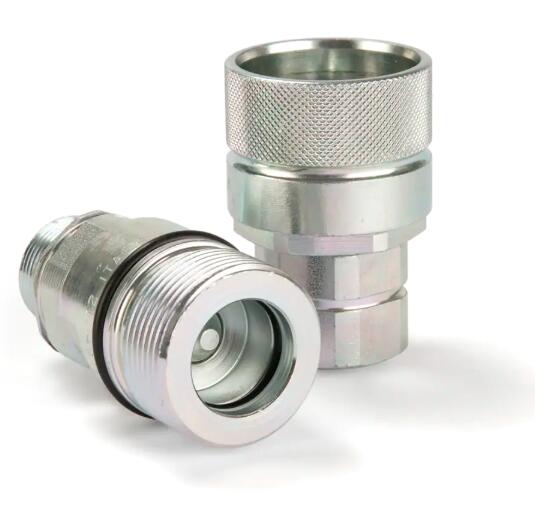

Screw-to-Connect Quick Coupling, Series QHPA
QHPA系列液压快换接头,螺纹连接形式

该系列快换接头本体尺寸为 3/8" 到 1",为螺纹连接形式快换,用于中压液压应用场合,耐压可达 450 bar。接头材料:碳钢 Screw-to-connect quick coupling system with body size 3/8" up to 1" for medium pressure up to 450 bar. Available made of steel.





派克 QHPA 系列液压快换,使用螺纹连接形式,适合于连接比较困难的应用场合。QHPA 系列结构坚固,可进行模块化安装,材料为碳钢,工作压力可达450 bar。 Parker's Screw-to-Connect Quick Coupling Series QHPA is suitable for difficult applications. Series QHPA is a rugged coupling system with a modular construction in steel and a working pressure up to 450 bar.



Screw-to-Connect Quick Coupling, Series QHPA





市场Markets:
- Agriculture
- Construction
- Material handling
- 农业机械
- 建筑机械
- 物料搬运



特点/优势Features/Benefits:
- Self-locking threads and external seal to prevent accidental disconnection - Screw-to-Connect Coupling
- NBR seals and back-up ring in PTFE to withstand pressure impulsions
- Connectable under pressure up to 50 bar
- High resistance to mechanical and hydraulic shocks and also withstand vibrations
- Sleeve mounted on the male tip to protect the sealing area
- Three-part poppet style valve with a molded shaped seal to prevent seal washout at high flow rates
- 自锁式螺纹以及外部密封圈,预防意外断开-螺纹连接形式快换接头
- 丁腈橡胶密封圈以及聚四氟乙烯挡圈,可以承受压力冲击
- 可在50 bar 以下的背压下进行连接
- 耐机械冲击以及液压冲击性能优异,并且可以承受振动冲击
- 套筒高于阳接头阀芯,可以保护密封面
- 阀芯是三件式的锥阀,并且使用注塑成形密封来保护,使得在高流量冲击下密封不被冲出



应用Applications:
- Agriculture and mobile equipment
- Rock hammers
- Forestry equipment
- Snow groomers
- Excavators
- 农业机械以及行走机械设备
- 岩石锤
- 林业设备
- 除雪机
- 挖掘机



Technical Specifications

Minimum Operating Temperature: -25 °C
Size: 2, 3, 6, 8
Application: Medium Pressure
Body Size: 3/8 - 1 inch
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread
Interchange Type: Parker Profile
Maximum Operating Pressure: 4350 - 6520 psi, 300 - 450 bar
Maximum Operating Temperature: 230 °F, 110 °C
Media: Hydraulic Fluids
Minimum Operating Temperature: -25 °C
Size: 2, 3, 6, 8
Application: Medium Pressure
Body Size: 3/8 - 1 inch
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread
Interchange Type: Parker Profile
Maximum Operating Pressure: 4350 - 6520 psi, 300 - 450 bar
Maximum Operating Temperature: 230 °F, 110 °C
Media: Hydraulic Fluids



Screw-to-Connect Quick Coupling, Series QHPA 型号

Part Body Size Type Connection Type Connection Thread Size (mm) Connection Thread Size (inch) Version
QHPA13-D6X2-C 3/8 Plug Male Thread 24° cone DIN 2353 14x1,5 na Light Series
QHPA13-D6X3-C 3/8 Plug Male Thread 24° cone DIN 2353 16x1,5 na Light Series
QHPA13-D7X3-C 3/8 Plug Male Thread 24° cone DIN 2353 18x1,5 na Heavy Series
QHPA13-D7X4-C 3/8 Plug Male Thread 24° cone DIN 2353 20x1,5 na Heavy Series
QHPA13-E6X2-C 3/8 Plug Male Thread 24° cone DIN 2353 Bulkhead 14x1,5 na Light Series
QHPA13-E6X3-C 3/8 Plug Male Thread 24° cone DIN 2353 Bulkhead 16x1,5 na Light Series
QHPA13-E7X4-C 3/8 Plug Male Thread 24° cone DIN 2353 Bulkhead 20x1,5 na Heavy Series
QHPA13-F4B3-C 3/8 Plug Male BSPP Thread DIN 3852 Form B na 3/8 na
QHPA13-G4X3-C 3/8 Plug Female BSPP Thread DIN 3852 Form Y na 3/8 na
QHPA14-D6X4-C 1/2 Plug Male Thread 24° cone DIN 2353 18x1,5 na Light Series
QHPA14-D6X5-C 1/2 Plug Male Thread 24° cone DIN 2353 22x1,5 na Light Series
QHPA14-D7X5-C 1/2 Plug Male Thread 24° cone DIN 2353 22x1,5 na Heavy Series
QHPA14-D7X6-C 1/2 Plug Male Thread 24° cone DIN 2353 24x1,5 na Heavy Series
QHPA14-E6X4-C 1/2 Plug Male Thread 24° cone DIN 2353 Bulkhead 18x1,5 na Light Series
QHPA14-E6X5-C 1/2 Plug Male Thread 24° cone DIN 2353 Bulkhead 22x1,5 na Light Series
QHPA14-E7X6-C 1/2 Plug Male Thread 24° cone DIN 2353 Bulkhead 24x1,5 na Heavy Series
QHPA14-F4B4-C 1/2 Plug Male BSPP Thread DIN 3852 Form B na 1/2 na
QHPA14-G4X4-C 1/2 Plug Female BSPP Thread DIN 3852 Form Y na 1/2 na
QHPA16-D6X6-C 3/4 Plug Male Thread 24° cone DIN 2353 26x1,5 na Light Series
QHPA16-D6X7-C 3/4 Plug Male Thread 24° cone DIN 2353 30x2 na Light Series
QHPA16-D7X7-C 3/4 Plug Male Thread 24° cone DIN 2353 30x2 na Heavy Series
QHPA16-D7X8-C 3/4 Plug Male Thread 24° cone DIN 2353 36x2 na Heavy Series
QHPA16-E6X6-C 3/4 Plug Male Thread 24° cone DIN 2353 Bulkhead 26x1,5 na Light Series
QHPA16-E7X7-C 3/4 Plug Male Thread 24° cone DIN 2353 Bulkhead 30x2 na Heavy Series
QHPA16-E7X8-C 3/4 Plug Male Thread 24° cone DIN 2353 Bulkhead 36x2 na Heavy Series
QHPA16-G4X6-C 3/4 Plug Female BSPP Thread DIN 3852 Form Y na 3/4 na
QHPA16-G4X8-C 3/4 Plug Female BSPP Thread DIN 3852 Form Y na 1 na
QHPA18-D7X9-C 1 Plug Male Thread 24° cone DIN 2353 42x2 na Heavy Series
QHPA18-E7X9-C 1 Plug Male Thread 24° cone DIN 2353 Bulkhead 42x2 na Heavy Series
QHPA53-D6X2-C 3/8 Coupling Male Thread 24° cone DIN 2353 14x1,5 na Light Series
QHPA53-D6X3-C 3/8 Coupling Male Thread 24° cone DIN 2353 16x1,5 na Light Series
QHPA53-D7X3-C 3/8 Coupling Male Thread 24° cone DIN 2353 18x1,5 na Heavy Series
QHPA53-D7X4-C 3/8 Coupling Male Thread 24° cone DIN 2353 20x1,5 na Heavy Series
QHPA53-E6X2-C 3/8 Coupling Male Thread 24° cone DIN 2353 Bulkhead 14x1,5 na Light Series
QHPA53-E6X3-C 3/8 Coupling Male Thread 24° cone DIN 2353 Bulkhead 16x1,5 na Light Series
QHPA53-E7X4-C 3/8 Coupling Male Thread 24° cone DIN 2353 Bulkhead 20x1,5 na Heavy Series
QHPA53-F4B3-C 3/8 Coupling Male BSPP Thread DIN 3852 Form B na 3/8 na
QHPA53-G4X3-C 3/8 Coupling Female BSPP Thread DIN 3852 Form Y na 3/8 na
QHPA54-D6X4-C 1/2 Coupling Male Thread 24° cone DIN 2353 18x1,5 na Light Series
QHPA54-D6X5-C 1/2 Coupling Male Thread 24° cone DIN 2353 22x1,5 na Light Series
QHPA54-D7X5-C 1/2 Coupling Male Thread 24° cone DIN 2353 22x1,5 na Heavy Series
QHPA54-D7X6-C 1/2 Coupling Male Thread 24° cone DIN 2353 24x1,5 na Heavy Series
QHPA54-E6X4-C 1/2 Coupling Male Thread 24° cone DIN 2353 Bulkhead 18x1,5 na Light Series
QHPA54-E6X5-C 1/2 Coupling Male Thread 24° cone DIN 2353 Bulkhead 22x1,5 na Light Series
QHPA54-E7X6-C 1/2 Coupling Male Thread 24° cone DIN 2353 Bulkhead 24x1,5 na Heavy Series
QHPA54-F4B4-C 1/2 Coupling Male BSPP Thread DIN 3852 Form B na 1/2 na
QHPA54-G4X4-C 1/2 Coupling Female BSPP Thread DIN 3852 Form Y na 1/2 na
QHPA56-D6X6-C 3/4 Coupling Male Thread 24° cone DIN 2353 26x1,5 na Light Series
QHPA56-D6X7-C 3/4 Coupling Male Thread 24° cone DIN 2353 30x2 na Light Series
QHPA56-D7X7-C 3/4 Coupling Male Thread 24° cone DIN 2353 30x2 na Heavy Series
QHPA56-D7X8-C 3/4 Coupling Male Thread 24° cone DIN 2353 36x2 na Heavy Series
QHPA56-E6X6-C 3/4 Coupling Male Thread 24° cone DIN 2353 Bulkhead 26x1,5 na Light Series
QHPA56-E7X7-C 3/4 Coupling Male Thread 24° cone DIN 2353 Bulkhead 30x2 na Heavy Series
QHPA56-E7X8-C 3/4 Coupling Male Thread 24° cone DIN 2353 Bulkhead 26x1,5 na Heavy Series
QHPA56-G4X6-C 3/4 Coupling Female BSPP Thread DIN 3852 Form Y na 3/4 na
QHPA56-G4X8-C 3/4 Coupling Female BSPP Thread DIN 3852 Form Y na 1 na
QHPA58-D7X9-C 1 Coupling Male Thread 24° cone DIN 2353 42x2 na Heavy Series
QHPA58-E7X9-C 1 Coupling Male Thread 24° cone DIN 2353 Bulkhead 42x2 na Heavy Series
