Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

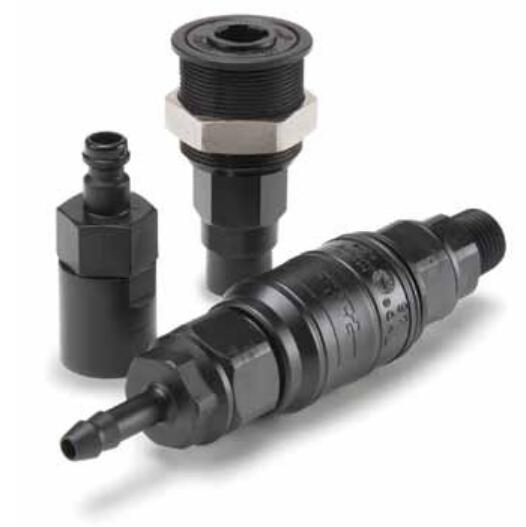

Thermoplastic (Acetal and Stainless) Quick Couplings, NPT / Hose Barb / Panel Mount, up to 145 psi - Spectrum Series Nipples
Spectrum 系列阳接头 - 热塑型(乙缩醛&不锈钢),多种连接形式NPT/软管宝塔式/平板安装,承压可达145 psi
派克热塑型快换阴接头以及阳接头是用于一系列低压应用的选择,能够用于流体或者气体管路快速简单地连接以及断开。
Parker's thermoplastic quick couplers and nipples are ideal for use across a broad range of low pressure applications where fluid or gas lines require fast and easy connection and disconnection.
Spectrum 系列快换阳接头(热塑型)承压可达 145 psi ,能与 Spectrum 系列阴接头配合连接.
Spectrum Series Nipples (thermoplastic) up to 145 psi connect with Spectrum Series Couplers.
派克Spectrum系列是一款低压,推动式连接热塑快换。该系列快换阴接头带阀,阳接头可供带阀以及不带阀形式。快换阴接头以及阳接头重量轻,结构紧凑,流量高,并且化学兼容性好。
Parker's Spectrum Series are low pressure, push-to-connect thermoplastic couplings. Couplers are valved while Nipples are available in both valved and unvalved versions. Couplers and nipples are light weight and compact in size with high flow and chemical compatibility.
Thermoplastic (Acetal and Stainless) Quick Couplings, NPT / Hose Barb / Panel Mount, up to 145 psi - Spectrum Series Nipples
技术特点Technical Characteristics:
- Sizes: 1/8"" & 3/8""
- Materials: Body: Acetal, Spring: 316 Stainless Steel
- Port Ends: Female Pipe, Male Pipe, Hose Barb, Bulkhead Hose Barb
- Seal Options: Nitrile, Fluorocarbon
- Other Nipple Options Include: Keyed Colors (Nipple Bodies), PVDF & PEEK materials (contact us for availability)
- 尺寸范围:1/8" & 3/8"
- 材料:本体,乙缩醛,弹簧,316不锈钢
- 尾端连接:管内螺纹,管外螺纹,软管宝塔接头,软管宝塔隔板接头
- 密封可选:丁腈橡胶,氟橡胶
- 其他阳接头可选包括:颜色 (阳接头本体), PVDF, PEEK材料
市场Markets:
- Chemical Processing
- Food and Beverage
- Industrial
- Semi-conductor industry
- 化工过程
- 食品及饮料
- 工业
- 半导体工业
特点/优势Features/Benefits:
- Acetal body material and stainless springs are compatible with many chemicals
- Valved couplers and can be used with valved or unvalved nipples to be versatile as single or double shut off connections
- Light weight and compact with a variety of end fittings including bulk head and panel mount options
- More cost-effective than metal couplings
- 乙缩醛本体材料以及不锈钢弹簧,能与多种化学介质兼容
- 带阀形式快换阴接头以及带阀或者不带阀阳接头配合连接,组成单截止或者双截止形式
- 重量轻,结构紧凑,多种尾端连接可供选择,包括隔板形式,平板安装选项
- 较之于金属快换接头更加经济
应用Applications:
- Fluid conveyance
- Food and beverage processing and packaging
- Process equipment
- Automation equipment
- Cooling lines
- 流体输送
- 食品及饮料过程及包装
- 过程设备
- 自动化设备
- 冷却回路
Technical Specifications
Body Size: |
1/8, 3/8 inch |
Maximum Operating Pressure: |
145 psi, 10 bar |
Maximum Operating Temperature: |
82 °C, 180 °F |
Materials of Construction: |
Acetal |
Application: |
Fluids and gases, low pressure, Low pressure fluids and gases |
Valve Type: |
Poppet, No Valve, Poppet or unvalved |
Brand: |
Parker |
Vacuum Pressure Rating: |
No |
Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
Flow Rate: |
1.5 to 4.5 Gal/min |
Seal Material: |
Nitrile |
Media: |
Air, fluids and chemicals |
Coupling Half: |
Nipple |
Minimum Operating Temperature: |
0 °F |
Spring Material: |
316 Stainless steel |
Thermoplastic (Acetal and Stainless) Quick Couplings, NPT / Hose Barb / Panel Mount, up to 145 psi - Spectrum Series Nipples 型号
|
