Parker派克流体连接件Parker fluid connectors
Parker派克热塑软管-Polyflex
Parker Polyflex 2245N - 高压软管-SAE 100R9

派克2245N系列软管为匹配高要求的液压或介质输送应用而开发设计,它为客户提供优异的稳定性、多功能性和高度客户定制性,是客户生产环境中理想的产品选择,其工作压力可达 45 MPa. Parker 2245N Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are ideal for production environments. For working pressure up to 45 MPa.





派克 2245N系列软管,适合于高要求的液压应用或介质传输应用。该系列软管的高稳定性、多功能性以及高度的客户定制特性,因此为设计开发工程师提供了 丰富的方案选择,以实现产品更长的服务寿命和易于安装,这些特性就使得该产品成为了当今日益严苛生产环境的选择。另外,可提供长连续长度的特性也大大减少了分配及总成生产过程中的浪费。 Parker 2245N Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are therefore offer the developing engineer a rich choice of solutions, always assured that the long service life and easy installation are ideal for todays demanding production environments. Additionally, long available lengths reduce waste for distribution and assembly production.





Parker Polyflex 2245N - 高压软管-SAE 100R9

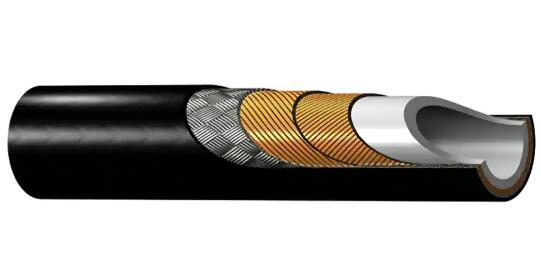

构成材料: -芯管:尼龙
-增强层:两层高强度钢丝缠绕,一层钢丝编织
-外胶层:黑色聚氨酯;-10以上:尼龙
适用介质: -石油基液压油或合成液压油
温度范围: -石油基和合成液压流体温度范围-40°C ~ +100°C(短时可至+120°C)
适用接头: --08采用9X系列接头,其余尺寸采用NX系列接头,具体连接形式请咨询派克公司
性能: -超过SAE
应用: -由于尼龙芯管可兼容于广泛的流体应用,因此可适用于普通工业和工程机械液压系统中的高压应用,当然也包含气体应用。
优势与优点 - 径也具有较高的工作压力
- 尼龙芯管具有优异的化学兼容性





型号
软管内径
软管外径
工作压力
min.弯曲半径
DN inch size mm mm Mpa psi mm
2245N-04V00 6 1/4 -4 6.3 12.5 45 6525 70
2245N-05V00 8 5/16 -5 8.2 14.3 40 5800 100
2245N-06V00 10 3/8 -6 9.7 17.0 38 5435 120
2245N-08V00 12 1/2 -8 12.8 20.7 35 5075 165
2245N-10V30 16 5/8 -10 16.0 24.5 33 4785 200
2245N-12V30 20 3/4 -12 19.6 28.5 30 4350 240
2245N-16V30 25 1 -16 25.0 34.0 28 3985 280





市场Markets:
- Industrial Hydraulics
- Mobile
- 工业液压
- 工程机械



特点/优势Features/Benefits:
- High working pressures for large sizes
- Excellent chemical resistance due to polyamide core tube
- 大尺寸规格产品的工作压力也很高
- 由于尼龙芯管使得该产品具有优异的耐化学品腐蚀的能力



应用Applications:
- High pressure service for general industrial and mobile hydraulic applications as well as with gases.
- Usable for a wide variety of fluids due to the polyamide core tube.
- For working pressure up to 45 MPa (6.525 psi)
- 一般工业和工程机械液压和气压应用中高压场合。
- 由于尼龙材料的芯管使得该产品广泛地适用于各种流体介质。
- 工作压力可达45 MPa (6,525 psi)



技术参数Technical Specifications:
- Core tube: Polyamide
- Pressure reinforcement: Two spiral layers of high tensile steel wire, one braided layer of steel wire
- Cover: Polyurethane; -10 and above: polyamide
- Colour: black
- Temperature range: -40°C up to +100°C (short term +120°C) for petroleum or synthetic hydraulic fluids.
- 芯管:尼龙
- 增强层:高强度钢丝两层螺旋,一层钢丝编织的结构
- 外胶层:聚氨酯; -10及以上: 尼龙
- 颜色: 黑色
- 温度范围:对于石油基或合成液压流体从-40°C 到 +100°C (短暂可达 +125°C) 。



备注Notes:
- For pinpricked hose please add “-P”, e.g. 2245N-04V00-P.
- 对于针刺软管,型号后面请加上“-P”,例如2245N-04V00-P.



Parker Polyflex 2245N - 高压软管-SAE 100R9 型号:



Part Maximum Working Pressure (MPa)
2245N-04V00 45
2245N-05V00 40
2245N-06V00 37.5
2245N-08V00 35
2245N-10V30 33
2245N-12V30 30
2245N-16V30 27.5
