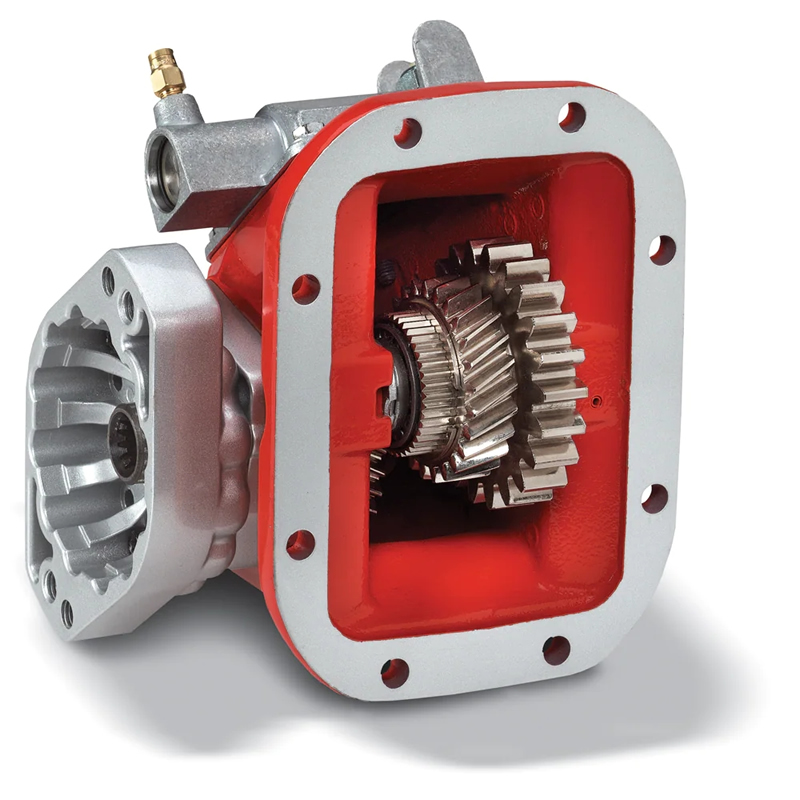

Chelsea 489系列PTO取力器适用于大多数手动变速箱，带有8螺栓安装孔。Cheksea489系列动力装置（PTO）是取力器的设计是为了减少安装时间。它采用了一体式铸铁的PTO壳体，用螺栓固定在8螺栓传动装置的开口上，但提供与442系列相同的扭矩能力。这意味着用户可以少买一个部件，减少了一个表面泄漏的地方，而且安装更快。489具有强的圆锥轴承，替代了滚针轴承，以承受更大的承载能力。该系列有三十六个输出选项包括Chelsea的常用的360°旋转法兰。还包括十一个内速比、十个换档选项加上一个自润滑选项，此润滑解决了通向PTO润滑困难的问题，因此此系列具有通用性。秉承超过65年的ChekseaPTO技术来提高了性能和降低了成本。
|

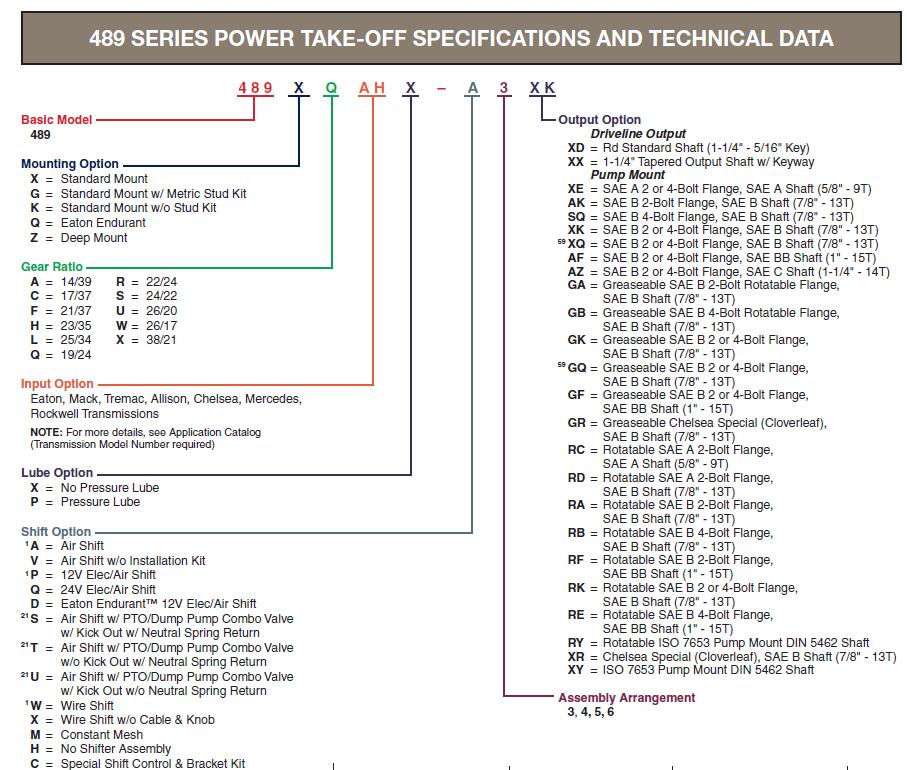

安装方案 |
齿轮比 |
Input Gear Designator |
转变类型 |
组装 |
Output Option |
| 489CRAHX-P3XD |
C = Caterpillar |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
XX = Tapered Output Shaft |
| 489ERLDX-V4XK |
E = Eaton FTS |
R = 0.941:1 |
LD |
V = Air Shift Less Installation Kit |
4 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ESLDX-A4XK |
E = Eaton FTS |
S = 1.205:1 |
LD |
A = Air Shift |
4 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GAAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
A = 0.391:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GAAHX-A3XQ |
G = Standard Mount With Metric Stud Kit |
A = 0.391:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GAAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
A = 0.391:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GCAHX-A3RA |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GCAHX-A3RF |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489GCAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GCAHX-A3XQ |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GCAHX-A5RA |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GCAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GCAHX-A5XQ |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GCAHX-V3XD |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GCAHX-V3XQ |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GCAHX-V5XD |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GCITX-V3XD |
G = Standard Mount With Metric Stud Kit |
C = 0.489:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GFAHX-A3AF |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GFAHX-A3AZ |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489GFAHX-A3RB |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GFAHX-A3RK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GFAHX-A3XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-A3XQ |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-A3XR |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XR = Chelsea Special 7/8" 13T |
| 489GFAHX-A5AF |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GFAHX-A5RB |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GFAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GFAHX-A5XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-H3XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
H = Less Wire Shift Cover |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-H3XY |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
H = Less Wire Shift Cover |
3 |
XY = DIN 5462 8T |
| 489GFAHX-M5RF |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
M = Constant Mesh |
5 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489GFAHX-P3RB |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GFAHX-P3RK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-P3XD |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GFAHX-P3XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-U5XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
U = Air Shift w/PTO/Dump Pump Combo Valve w/ Kick Out w/o Neurtal Spring Return |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-V3RB |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GFAHX-V3XD |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GFAHX-V3XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-V3XQ |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-V3XY |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XY = DIN 5462 8T |
| 489GFAHX-V5XD |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GFAHX-V5XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-V5XQ |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFAHX-X3RB |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
AH |
X = Wire Shift w/o Cable & Knob (Minus) |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GFITX-A3AF |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GFITX-A3XD |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GFITX-A3XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFITX-A5XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GFITX-V3RA |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GFITX-V3XK |
G = Standard Mount With Metric Stud Kit |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-A3AF |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GHAHX-A3AZ |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489GHAHX-A3GK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-A3RA |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GHAHX-A3RB |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GHAHX-A3RK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GHAHX-A3XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-A3XQ |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-A5AF |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GHAHX-A5GK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-A5GZ |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
GZ = Greaseable SAE "B" 4 Bolt 1-1/4" 14T |
| 489GHAHX-A5RB |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GHAHX-A5RF |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489GHAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GHAHX-A5XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-P5XD |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
P = 12 Volt Electric Over Air |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GHAHX-S3XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-U5XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
U = Air Shift w/PTO/Dump Pump Combo Valve w/ Kick Out w/o Neurtal Spring Return |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-V3GY |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GY = Greaseable DIN 5462 8T |
| 489GHAHX-V3RA |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GHAHX-V3XD |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GHAHX-V3XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-V3XQ |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-V3XR |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XR = Chelsea Special 7/8" 13T |
| 489GHAHX-V5GB |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GB = Greaseable Rotatable "B" 4 Bolt Rotatable Flange 7/8" - 13T |
| 489GHAHX-V5GK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-V5XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-V5XQ |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-W3XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
W = Cable Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-W5XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
W = Cable Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHAHX-X3XQ |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
AH |
X = Wire Shift w/o Cable & Knob (Minus) |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHITX-A3XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHITX-A5XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHITX-V3RA |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GHITX-V3XD |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GHITX-V3XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GHITX-V5RB |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GHITX-V5XK |
G = Standard Mount With Metric Stud Kit |
H = 0.716:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-A3AF |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GLAHX-A3GK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-A3RB |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GLAHX-A3RK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GLAHX-A3XK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-A3XQ |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-A5AF |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GLAHX-A5GK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| |
安装方案 |
齿轮比 |
Input Gear Designator |
转变类型 |
组装 |
Output Option |
| 489GLAHX-A5RA |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GLAHX-A5RB |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GLAHX-A5RK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GLAHX-A5XK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-P3RE |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
RE = Rotatable SAE "BB" 4 Bolt 1" 15T |
| 489GLAHX-P5RF |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
P = 12 Volt Electric Over Air |
5 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489GLAHX-V3AF |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GLAHX-V3AZ |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489GLAHX-V3XD |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GLAHX-V3XK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-V3XQ |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-V5AF |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GLAHX-V5AZ |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489GLAHX-V5GK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLAHX-V5GY |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GY = Greaseable DIN 5462 8T |
| 489GLAHX-V5XD |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GLAHX-V5XK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLITX-A3XD |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GLITX-A3XK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLITX-A5AZ |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489GLITX-A5RB |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489GLITX-A5XD |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GLITX-A5XK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLITX-V3XK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GLITX-V5XK |
G = Standard Mount With Metric Stud Kit |
L = 0.691:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQAHX-A3RK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GQAHX-A3XK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQAHX-A3XQ |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQAHX-A5AF |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GQAHX-A5RF |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489GQAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GQAHX-A5XK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQAHX-V3XD |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GQAHX-V3XK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQAHX-V5GK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQAHX-V5XK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQAHX-W3XD |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
AH |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GQITX-A3XD |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GQITX-A3XK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQITX-A5XK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GQITX-V5XK |
G = Standard Mount With Metric Stud Kit |
Q = 0.865:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRAHX-A3AF |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GRAHX-A3GH |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489GRAHX-A3RA |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GRAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GRAHX-A3XK |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRAHX-A5AF |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GRAHX-A5GK |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRAHX-A5RA |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489GRAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GRAHX-A5XK |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRAHX-A5XQ |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRAHX-H3XD |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
H = Less Wire Shift Cover |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GRAHX-P3GH |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489GRAHX-V3GA |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GA = Greaseable Rotatable "B" 2 Bolt 7/8" 13T |
| 489GRAHX-V3GH |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489GRAHX-V3GY |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GY = Greaseable DIN 5462 8T |
| 489GRAHX-V3XD |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GRAHX-V3XK |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRAHX-V5XK |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRAHX-W5XD |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
AH |
W = Cable Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GRITX-A3XD |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GRITX-A3XK |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRITX-A5XK |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GRITX-V3XD |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GRITX-V5XK |
G = Standard Mount With Metric Stud Kit |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GSAHX-A3AF |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GSAHX-A3GB |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
GB = Greaseable Rotatable "B" 4 Bolt 7/8" 13T |
| 489GSAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GSAHX-A3XK |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GSAHX-A5GK |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GSAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GSAHX-A5XK |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GSAHX-V3AF |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489GSAHX-V3GK |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GSAHX-V3XD |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GSAHX-V3XK |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GSAHX-V5XD |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GSAHX-V5XK |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GSITX-A3XK |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GSITX-V5XK |
G = Standard Mount With Metric Stud Kit |
S = 1.205:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GUAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
U = 1.410:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GUAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
U = 1.410:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GUAHX-A5XK |
G = Standard Mount With Metric Stud Kit |
U = 1.410:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GUAHX-V3XD |
G = Standard Mount With Metric Stud Kit |
U = 1.410:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GUAHX-V5XD |
G = Standard Mount With Metric Stud Kit |
U = 1.410:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GUITX-A3XD |
G = Standard Mount With Metric Stud Kit |
U = 1.410:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GWAHX-A3XD |
G = Standard Mount With Metric Stud Kit |
W = 1.713:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489GWAHX-A5XD |
G = Standard Mount With Metric Stud Kit |
W = 1.713:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489GWITX-V5XK |
G = Standard Mount With Metric Stud Kit |
W = 1.713:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489GXAHX-A5XK |
G = Standard Mount With Metric Stud Kit |
X = 2.000:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489KFAHX-A6XK |
K = Standard Mount w/o Stud Kit |
F = 0.520:1 |
AH |
A = Air Shift |
6 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489KHAHX-A3XK |
K = Standard Mount w/o Stud Kit |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489KLAHX-H3XK |
K = Standard Mount w/o Stud Kit |
L = 0.691:1 |
AH |
H = Less Wire Shift Cover |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489KRAHX-V3XD |
K = Standard Mount w/o Stud Kit |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489KRBGX-W3XD |
K = Standard Mount w/o Stud Kit |
R = 0.941:1 |
BG |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489KSBGX-V3XK |
K = Standard Mount w/o Stud Kit |
S = 1.205:1 |
BG |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489KSBGX-W3XD |
K = Standard Mount w/o Stud Kit |
S = 1.205:1 |
BG |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 部件 |
安装方案 |
齿轮比 |
Input Gear Designator |
转变类型 |
组装 |
Output Option |
| 489KUBGX-A3XK |
K = Standard Mount w/o Stud Kit |
U = 1.410:1 |
BG |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QCLZX-D3RA |
Q = Eaton |
C = 0.489:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489QCLZX-D3RK |
Q = Eaton |
C = 0.489:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QCLZX-D3XD |
Q = Eaton |
C = 0.489:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489QCLZX-D3XQ |
Q = Eaton |
C = 0.489:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QCLZX-D3XY |
Q = Eaton |
C = 0.489:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XY = DIN 5462 8T |
| 489QFLZX-D3AF |
Q = Eaton |
F = 0.520:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489QFLZX-D3RB |
Q = Eaton |
F = 0.520:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489QFLZX-D3RK |
Q = Eaton |
F = 0.520:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QFLZX-D3XD |
Q = Eaton |
F = 0.520:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489QFLZX-D3XK |
Q = Eaton |
F = 0.520:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QFLZX-D3XQ |
Q = Eaton |
F = 0.520:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QFLZX-V3XK |
Q = Eaton |
F = 0.520:1 |
LZ |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QHLZX-D3AF |
Q = Eaton |
H = 0.716:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489QHLZX-D3GK |
Q = Eaton |
H = 0.716:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QHLZX-D3RA |
Q = Eaton |
H = 0.716:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489QHLZX-D3RB |
Q = Eaton |
H = 0.716:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489QHLZX-D3XD |
Q = Eaton |
H = 0.716:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489QHLZX-D3XK |
Q = Eaton |
H = 0.716:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QHLZX-D3XY |
Q = Eaton |
H = 0.716:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XY = DIN 5462 8T |
| 489QHLZX-V3RB |
Q = Eaton |
H = 0.716:1 |
LZ |
V = Air Shift Less Installation Kit |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489QHLZX-V3XK |
Q = Eaton |
H = 0.716:1 |
LZ |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QLLZX-D3RB |
Q = Eaton |
L = 0.691:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489QLLZX-D3XD |
Q = Eaton |
L = 0.691:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489QLLZX-D3XK |
Q = Eaton |
L = 0.691:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QLLZX-V3XD |
Q = Eaton |
L = 0.691:1 |
LZ |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489QQLZX-D3AZ |
Q = Eaton |
Q = 0.865:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489QQLZX-D3XK |
Q = Eaton |
Q = 0.865:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QRLZX-D3XD |
Q = Eaton |
R = 0.941:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489QRLZX-D3XK |
Q = Eaton |
R = 0.941:1 |
LZ |
D = 12V Elec/Air Shift Eaton Endurant |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489QRLZX-V3XD |
Q = Eaton |
R = 0.941:1 |
LZ |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XAAHX-A3RA |
X = Standard Mount |
A = 0.391:1 |
AH |
A = Air Shift |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XAAHX-A3XD |
X = Standard Mount |
A = 0.391:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XAAHX-A3XQ |
X = Standard Mount |
A = 0.391:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XAAHX-A5XD |
X = Standard Mount |
A = 0.391:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XAAHX-V3XD |
X = Standard Mount |
A = 0.391:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XAAHX-V5XD |
X = Standard Mount |
A = 0.391:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XAITX-H3XD |
X = Standard Mount |
A = 0.391:1 |
IT = KIT PTO |
H = Less Wire Shift Cover |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XAITX-V5XD |
X = Standard Mount |
A = 0.391:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XCAHX-A3GQ |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
GQ = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XCAHX-A3RA |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XCAHX-A3RB |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XCAHX-A3RF |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489XCAHX-A3XD |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XCAHX-A3XQ |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XCAHX-A5RA |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XCAHX-A5RB |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XCAHX-A5RE |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
5 |
RE = Rotatable SAE "BB" 4 Bolt 1" 15T |
| 489XCAHX-A5XD |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XCAHX-A5XQ |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XCAHX-A6XQ |
X = Standard Mount |
C = 0.489:1 |
AH |
A = Air Shift |
6 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XCAHX-M3XQ |
X = Standard Mount |
C = 0.489:1 |
AH |
M = Constant Mesh |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XCAHX-P3GB |
X = Standard Mount |
C = 0.489:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
GB = Greaseable Rotatable "B" 4 Bolt Rotatable Flange 7/8" - 13T |
| 489XCAHX-S3XQ |
X = Standard Mount |
C = 0.489:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XCAHX-V3RA |
X = Standard Mount |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XCAHX-V3RB |
X = Standard Mount |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XCAHX-V3XD |
X = Standard Mount |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XCAHX-V5RB |
X = Standard Mount |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XCAHX-V5XD |
X = Standard Mount |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XCAHX-V5XQ |
X = Standard Mount |
C = 0.489:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XCITX-A3XD |
X = Standard Mount |
C = 0.489:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XCITX-A5RA |
X = Standard Mount |
C = 0.489:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XCITX-A5XQ |
X = Standard Mount |
C = 0.489:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XCITX-V3XD |
X = Standard Mount |
C = 0.489:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFABX-A6GF |
X = Standard Mount |
F = 0.520:1 |
AB |
A = Air Shift |
6 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFAHX-A3AF |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFAHX-A3AZ |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XFAHX-A3GF |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFAHX-A3GK |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A3GQ |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
GQ = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A3RB |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-A3RF |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489XFAHX-A3RK |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A3XD |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFAHX-A3XK |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A3XQ |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A3XX |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XX = Tapered Output Shaft |
| 489XFAHX-A3XY |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XY = DIN 5462 8T |
| 489XFAHX-A4XK |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
4 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A5AF |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFAHX-A5AZ |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XFAHX-A5GK |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A5RA |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XFAHX-A5RB |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-A5RK |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A5XD |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFAHX-A5XK |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A5XQ |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-A5XR |
X = Standard Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
XR = Chelsea Special 7/8" 13T |
| 489XFAHX-C3RB |
X = Standard Mount |
F = 0.520:1 |
AH |
C = Heavy Duty Bracket Less Cable |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-C5RB |
X = Standard Mount |
F = 0.520:1 |
AH |
C = Heavy Duty Bracket Less Cable |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-H3AF |
X = Standard Mount |
F = 0.520:1 |
AH |
H = Less Wire Shift Cover |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFAHX-H3XD |
X = Standard Mount |
F = 0.520:1 |
AH |
H = Less Wire Shift Cover |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFAHX-H3XK |
X = Standard Mount |
F = 0.520:1 |
AH |
H = Less Wire Shift Cover |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-M3XK |
X = Standard Mount |
F = 0.520:1 |
AH |
M = Constant Mesh |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-P5RB |
X = Standard Mount |
F = 0.520:1 |
AH |
P = 12 Volt Electric Over Air |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-P5XD |
X = Standard Mount |
F = 0.520:1 |
AH |
P = 12 Volt Electric Over Air |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFAHX-S3XK |
X = Standard Mount |
F = 0.520:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-S5XK |
X = Standard Mount |
F = 0.520:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-T5RB |
X = Standard Mount |
F = 0.520:1 |
AH |
T = PTO & Pump Valve Less Kick Out & Neutral Spring Return |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 部件 |
安装方案 |
齿轮比 |
Input Gear Designator |
转变类型 |
组装 |
Output Option |
| 489XFAHX-T5XQ |
X = Standard Mount |
F = 0.520:1 |
AH |
T = PTO & Pump Valve Less Kick Out & Neutral Spring Return |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-V3AF |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFAHX-V3AZ |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XFAHX-V3GB |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GB = Greaseable Rotatable "B" 4 Bolt 7/8" 13T |
| 489XFAHX-V3GF |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFAHX-V3GR |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GR = Greaseable Chelsea Special 7/8" 13T |
| 489XFAHX-V3RA |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XFAHX-V3RB |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-V3RK |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-V3XD |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFAHX-V3XK |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-V3XQ |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-V3XY |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XY = DIN 5462 8T |
| 489XFAHX-V5AF |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFAHX-V5GB |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GB = Greaseable Rotatable "B" 4 Bolt Rotatable Flange 7/8" - 13T |
| 489XFAHX-V5RB |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-V5RK |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-V5XD |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFAHX-V5XK |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-V5XQ |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-V5XY |
X = Standard Mount |
F = 0.520:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XY = DIN 5462 8T |
| 489XFAHX-W3RB |
X = Standard Mount |
F = 0.520:1 |
AH |
W = Cable Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-W3XD |
X = Standard Mount |
F = 0.520:1 |
AH |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFAHX-W3XK |
X = Standard Mount |
F = 0.520:1 |
AH |
W = Cable Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFAHX-W5RB |
X = Standard Mount |
F = 0.520:1 |
AH |
W = Cable Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFAHX-W5XK |
X = Standard Mount |
F = 0.520:1 |
AH |
W = Cable Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFDAX-A5XK |
X = Standard Mount |
F = 0.520:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFITX-A3GF |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFITX-A3RB |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFITX-A3XD |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFITX-A3XK |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFITX-A3XR |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XR = Chelsea Special 7/8" 13T |
| 489XFITX-A5RB |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFITX-A5XD |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFITX-A5XK |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFITX-A6XK |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
6 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFITX-V3AF |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFITX-V3GF |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XFITX-V3RB |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFITX-V3XD |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XFITX-V3XK |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFITX-V5RB |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XFITX-V5XK |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XFITX-W3XK |
X = Standard Mount |
F = 0.520:1 |
IT = KIT PTO |
W = Cable Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A3AF |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XHAHX-A3GF |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XHAHX-A3GK |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A3RB |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XHAHX-A3RF |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489XHAHX-A3RJ |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
RJ = Rotatable SAE "B" Mount |
| 489XHAHX-A3RK |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A3XD |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHAHX-A3XK |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A3XQ |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A3XY |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
3 |
XY = DIN 5462 8T |
| 489XHAHX-A5AF |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XHAHX-A5AZ |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XHAHX-A5GK |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A5RA |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XHAHX-A5RD |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
RD = Rotatable SAE "A" 2 Bolt 7/8" 13T |
| 489XHAHX-A5RE |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
RE = Rotatable SAE "BB" 4 Bolt 1" 15T |
| 489XHAHX-A5RK |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A5XD |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHAHX-A5XK |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A5XQ |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-A6XD |
X = Standard Mount |
H = 0.716:1 |
AH |
A = Air Shift |
6 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHAHX-H3XD |
X = Standard Mount |
H = 0.716:1 |
AH |
H = Less Wire Shift Cover |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHAHX-P3XD |
X = Standard Mount |
H = 0.716:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHAHX-P3XK |
X = Standard Mount |
H = 0.716:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-S3XK |
X = Standard Mount |
H = 0.716:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-S5XK |
X = Standard Mount |
H = 0.716:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-V3AF |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XHAHX-V3GB |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GB = Greaseable Rotatable "B" 4 Bolt Rotatable Flange 7/8" - 13T |
| 489XHAHX-V3GF |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XHAHX-V3GK |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-V3RA |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XHAHX-V3RB |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XHAHX-V3RK |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-V3XD |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHAHX-V3XK |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-V3XQ |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-V3XY |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XY = DIN 5462 8T |
| 489XHAHX-V5AZ |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XHAHX-V5GB |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GB = Greaseable Rotatable "B" 4 Bolt Rotatable Flange 7/8" - 13T |
| 489XHAHX-V5RB |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XHAHX-V5RE |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RE = Rotatable SAE "BB" 4 Bolt 1" 15T |
| 489XHAHX-V5RK |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-V5XD |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHAHX-V5XK |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHAHX-V5XQ |
X = Standard Mount |
H = 0.716:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHDAX-A5XK |
X = Standard Mount |
H = 0.716:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHDAX-P5AF |
X = Standard Mount |
H = 0.716:1 |
DA |
P = 12 Volt Electric Over Air |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XHITX-A3RK |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHITX-A3XD |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHITX-A3XK |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHITX-A5GF |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
5 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XHITX-A5RB |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XHITX-A5XD |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHITX-A5XK |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHITX-H3XK |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
H = Less Wire Shift Cover |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 部件 |
安装方案 |
齿轮比 |
Input Gear Designator |
转变类型 |
组装 |
Output Option |
| 489XHITX-V3XD |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XHITX-V3XK |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XHITX-V5XK |
X = Standard Mount |
H = 0.716:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A3AF |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XLAHX-A3AZ |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XLAHX-A3GF |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XLAHX-A3GK |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A3RA |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XLAHX-A3RB |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XLAHX-A3RE |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
RE = Rotatable SAE "BB" 4 Bolt 1" 15T |
| 489XLAHX-A3RF |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489XLAHX-A3RJ |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
RJ = Rotatable SAE "B" Mount |
| 489XLAHX-A3RK |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A3XD |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLAHX-A3XK |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A3XP |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XP = Obsolete |
| 489XLAHX-A3XQ |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A3XR |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XR = Chelsea Special 7/8" 13T |
| 489XLAHX-A3XX |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XX = Tapered Output Shaft |
| 489XLAHX-A3XY |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
3 |
XY = DIN 5462 8T |
| 489XLAHX-A5AF |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XLAHX-A5GK |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A5GZ |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
GZ = Greaseable SAE "B" 4 Bolt 1-1/4" 14T |
| 489XLAHX-A5RB |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XLAHX-A5RK |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A5XD |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLAHX-A5XK |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A5XQ |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-A5XY |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
5 |
XY = DIN 5462 8T |
| 489XLAHX-A6RA |
X = Standard Mount |
L = 0.691:1 |
AH |
A = Air Shift |
6 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XLAHX-H3XK |
X = Standard Mount |
L = 0.691:1 |
AH |
H = Less Wire Shift Cover |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-H3XY |
X = Standard Mount |
L = 0.691:1 |
AH |
H = Less Wire Shift Cover |
3 |
XY = DIN 5462 8T |
| 489XLAHX-H5XK |
X = Standard Mount |
L = 0.691:1 |
AH |
H = Less Wire Shift Cover |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-P3XK |
X = Standard Mount |
L = 0.691:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-P5XQ |
X = Standard Mount |
L = 0.691:1 |
AH |
P = 12 Volt Electric Over Air |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-S3XD |
X = Standard Mount |
L = 0.691:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLAHX-S3XK |
X = Standard Mount |
L = 0.691:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-S5XK |
X = Standard Mount |
L = 0.691:1 |
AH |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-U5SQ |
X = Standard Mount |
L = 0.691:1 |
AH |
U = Air Shift w/PTO/Dump Pump Combo Valve w/ Kick Out w/o Neurtal Spring Return |
5 |
SQ = SAE "B" 4 Bolt 7/8" - 13T |
| 489XLAHX-U5XK |
X = Standard Mount |
L = 0.691:1 |
AH |
U = Air Shift w/PTO/Dump Pump Combo Valve w/ Kick Out w/o Neurtal Spring Return |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-U5XQ |
X = Standard Mount |
L = 0.691:1 |
AH |
U = Air Shift w/PTO/Dump Pump Combo Valve w/ Kick Out w/o Neurtal Spring Return |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-V3AF |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XLAHX-V3GF |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XLAHX-V3GH |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489XLAHX-V3GK |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-V3GY |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GY = Greaseable DIN 5462 8T |
| 489XLAHX-V3RB |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XLAHX-V3RK |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-V3XD |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLAHX-V3XK |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-V3XQ |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-V3XY |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XY = DIN 5462 8T |
| 489XLAHX-V5AF |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XLAHX-V5GH |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489XLAHX-V5GZ |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GZ = Greaseable SAE "B" 4 Bolt 1-1/4" 14T |
| 489XLAHX-V5RB |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XLAHX-V5XD |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLAHX-V5XK |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-V5XQ |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-V5XY |
X = Standard Mount |
L = 0.691:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XY = DIN 5462 8T |
| 489XLAHX-W3XD |
X = Standard Mount |
L = 0.691:1 |
AH |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLAHX-W5XK |
X = Standard Mount |
L = 0.691:1 |
AH |
W = Cable Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLAHX-W6XD |
X = Standard Mount |
L = 0.691:1 |
AH |
W = Cable Shift |
6 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLARX-A3XK |
X = Standard Mount |
L = 0.691:1 |
AR |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLDAX-A3XK |
X = Standard Mount |
L = 0.691:1 |
DA |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLEVX-A5XD |
X = Standard Mount |
L = 0.691:1 |
EV |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLITX-A3AZ |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XLITX-A3GF |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XLITX-A3XD |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLITX-A3XK |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLITX-A3XQ |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLITX-A5RB |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XLITX-A5XD |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLITX-A5XK |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLITX-A5XQ |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLITX-H3XD |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
H = Less Wire Shift Cover |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLITX-V3XD |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XLITX-V3XK |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XLITX-V5XK |
X = Standard Mount |
L = 0.691:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-A3AF |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQAHX-A3AZ |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XQAHX-A3GF |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQAHX-A3GH |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489XQAHX-A3GJ |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
GJ = Rotatable SAE "B" 4 Bolt |
| 489XQAHX-A3GK |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-A3RB |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XQAHX-A3RF |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489XQAHX-A3RK |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-A3XD |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQAHX-A3XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-A3XQ |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-A3XR |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
XR = Chelsea Special 7/8" 13T |
| 489XQAHX-A3XX |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
3 |
XX = Tapered Output Shaft |
| 489XQAHX-A5AZ |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XQAHX-A5GK |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-A5RA |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XQAHX-A5RB |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XQAHX-A5RF |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489XQAHX-A5RK |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-A5XD |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 部件 |
安装方案 |
齿轮比 |
Input Gear Designator |
转变类型 |
组装 |
Output Option |
| 489XQAHX-A5XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-A5XQ |
X = Standard Mount |
Q = 0.865:1 |
AH |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-P3GH |
X = Standard Mount |
Q = 0.865:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489XQAHX-P3XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-P5XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
P = 12 Volt Electric Over Air |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-U5SQ |
X = Standard Mount |
Q = 0.865:1 |
AH |
U = Air Shift w/PTO/Dump Pump Combo Valve w/ Kick Out w/o Neurtal Spring Return |
5 |
SQ = SAE "B" 4 Bolt 7/8" - 13T |
| 489XQAHX-V3AF |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQAHX-V3AZ |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XQAHX-V3GF |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQAHX-V3GH |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489XQAHX-V3GK |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-V3GQ |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GQ = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-V3RA |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XQAHX-V3RB |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XQAHX-V3RK |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-V3XD |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQAHX-V3XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-V3XQ |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-V3XR |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XR = Chelsea Special 7/8" 13T |
| 489XQAHX-V3XY |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XY = DIN 5462 8T |
| 489XQAHX-V5AF |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQAHX-V5GF |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQAHX-V5GK |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-V5RB |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XQAHX-V5RE |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RE = Rotatable SAE "BB" 4 Bolt 1" 15T |
| 489XQAHX-V5RY |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RY = Rotatable DIN 5462 8T |
| 489XQAHX-V5XD |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQAHX-V5XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-V5XQ |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-V5XR |
X = Standard Mount |
Q = 0.865:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XR = Chelsea Special 7/8" 13T |
| 489XQAHX-W3XD |
X = Standard Mount |
Q = 0.865:1 |
AH |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQAHX-W3XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
W = Cable Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-W5XD |
X = Standard Mount |
Q = 0.865:1 |
AH |
W = Cable Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQAHX-W5XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
W = Cable Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQAHX-W6XD |
X = Standard Mount |
Q = 0.865:1 |
AH |
W = Cable Shift |
6 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQAHX-X3XK |
X = Standard Mount |
Q = 0.865:1 |
AH |
X = Wire Shift w/o Cable & Knob (Minus) |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQARX-W3XK |
X = Standard Mount |
Q = 0.865:1 |
AR |
W = Cable Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQEVX-A4XK |
X = Standard Mount |
Q = 0.865:1 |
EV |
A = Air Shift |
4 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQITX-A3AF |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQITX-A3GF |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQITX-A3XD |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQITX-A3XK |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQITX-A3XQ |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQITX-A5RB |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XQITX-A5XD |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQITX-A5XK |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQITX-V3GF |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQITX-V3XD |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQITX-V3XK |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQITX-V5AF |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XQITX-V5AZ |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XQITX-V5XD |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQITX-V5XK |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XQITX-W3XD |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XQITX-W3XK |
X = Standard Mount |
Q = 0.865:1 |
IT = KIT PTO |
W = Cable Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-A3AF |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XRAHX-A3AZ |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XRAHX-A3GB |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
GB = Greaseable Rotatable "B" 4 Bolt 7/8" 13T |
| 489XRAHX-A3GF |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XRAHX-A3GH |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489XRAHX-A3GK |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-A3RA |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XRAHX-A3RB |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XRAHX-A3RK |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-A3XD |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRAHX-A3XK |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-A3XQ |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-A3XY |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
3 |
XY = DIN 5462 8T |
| 489XRAHX-A5GA |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
GA = Greaseable Rotatable "B" 2 Bolt 7/8" 13T |
| 489XRAHX-A5GB |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
GB = Greaseable Rotatable "B" 4 Bolt Rotatable Flange 7/8" - 13T |
| 489XRAHX-A5GF |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XRAHX-A5GZ |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
GZ = Greaseable SAE "B" 4 Bolt 1-1/4" 14T |
| 489XRAHX-A5RK |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-A5XD |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRAHX-A5XK |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-A5XQ |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-A6XK |
X = Standard Mount |
R = 0.941:1 |
AH |
A = Air Shift |
6 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-H3XD |
X = Standard Mount |
R = 0.941:1 |
AH |
H = Less Wire Shift Cover |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRAHX-H3XK |
X = Standard Mount |
R = 0.941:1 |
AH |
H = Less Wire Shift Cover |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-P3XK |
X = Standard Mount |
R = 0.941:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-V3AF |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XRAHX-V3AZ |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XRAHX-V3GK |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-V3RA |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XRAHX-V3RF |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489XRAHX-V3RK |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-V3XD |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRAHX-V3XK |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-V3XQ |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRAHX-V5RA |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XRAHX-V5RE |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
RE = Rotatable SAE "BB" 4 Bolt 1" 15T |
| 489XRAHX-V5XD |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRAHX-V5XK |
X = Standard Mount |
R = 0.941:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XREVX-A3XD |
X = Standard Mount |
R = 0.941:1 |
EV |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XREVX-W5XK |
X = Standard Mount |
R = 0.941:1 |
EV |
W = Cable Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRITX-A3AF |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XRITX-A3AZ |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XRITX-A3GF |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XRITX-A3XD |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRITX-A3XK |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 部件 |
安装方案 |
齿轮比 |
Input Gear Designator |
转变类型 |
组装 |
Output Option |
| 489XRITX-A4XK |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
4 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRITX-A5XD |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRITX-A5XK |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRITX-V3AZ |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XRITX-V3GF |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XRITX-V3XD |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRITX-V3XK |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRITX-V3XQ |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XRITX-V5AF |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XRITX-V5XD |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XRITX-V5XK |
X = Standard Mount |
R = 0.941:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHP-P5RK |
X = Standard Mount |
S = 1.205:1 |
AH |
P = 12 Volt Electric Over Air |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-A3AF |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XSAHX-A3AZ |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489XSAHX-A3GF |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XSAHX-A3GK |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-A3RB |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XSAHX-A3RK |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-A3XD |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSAHX-A3XK |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-A3XQ |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-A5AF |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XSAHX-A5GF |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XSAHX-A5GH |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489XSAHX-A5GK |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-A5RA |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XSAHX-A5RB |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XSAHX-A5RK |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-A5XD |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSAHX-A5XK |
X = Standard Mount |
S = 1.205:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-P3GH |
X = Standard Mount |
S = 1.205:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
GH = Greaseable Rot. SAE "BB" 2 Bolt 1" 15T |
| 489XSAHX-P5XD |
X = Standard Mount |
S = 1.205:1 |
AH |
P = 12 Volt Electric Over Air |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSAHX-V3AF |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XSAHX-V3GK |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-V3RF |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RF = Rotatable SAE "BB" 2 Bolt 1" 15T |
| 489XSAHX-V3RK |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-V3XD |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSAHX-V3XK |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-V3XQ |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-V3XR |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XR = Chelsea Special 7/8" 13T |
| 489XSAHX-V5XD |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSAHX-V5XK |
X = Standard Mount |
S = 1.205:1 |
AH |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSAHX-W3RA |
X = Standard Mount |
S = 1.205:1 |
AH |
W = Cable Shift |
3 |
RA = Rotatable SAE "B" 2 Bolt 7/8" 13T |
| 489XSAHX-W3XD |
X = Standard Mount |
S = 1.205:1 |
AH |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSAHX-W5XD |
X = Standard Mount |
S = 1.205:1 |
AH |
W = Cable Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSEVX-A5XK |
X = Standard Mount |
S = 1.205:1 |
EV |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSEVX-V5RB |
X = Standard Mount |
S = 1.205:1 |
EV |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489XSITX-A3XD |
X = Standard Mount |
S = 1.205:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSITX-A3XK |
X = Standard Mount |
S = 1.205:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSITX-A5XD |
X = Standard Mount |
S = 1.205:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XSITX-A5XK |
X = Standard Mount |
S = 1.205:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSITX-H3XQ |
X = Standard Mount |
S = 1.205:1 |
IT = KIT PTO |
H = Less Wire Shift Cover |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSITX-V3XK |
X = Standard Mount |
S = 1.205:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSITX-V5XK |
X = Standard Mount |
S = 1.205:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XSITX-W5XD |
X = Standard Mount |
S = 1.205:1 |
IT = KIT PTO |
W = Cable Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XUAHX-A3XD |
X = Standard Mount |
U = 1.410:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XUAHX-A3XK |
X = Standard Mount |
U = 1.410:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUAHX-A5XD |
X = Standard Mount |
U = 1.410:1 |
AH |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XUAHX-A5XK |
X = Standard Mount |
U = 1.410:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUAHX-A5XL |
X = Standard Mount |
U = 1.410:1 |
AH |
A = Air Shift |
5 |
XL = Obsolete |
| 489XUAHX-P3XD |
X = Standard Mount |
U = 1.410:1 |
AH |
P = 12 Volt Electric Over Air |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XUEVX-A3XD |
X = Standard Mount |
U = 1.410:1 |
EV |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XUEVX-A5XK |
X = Standard Mount |
U = 1.410:1 |
EV |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUEVX-A5XQ |
X = Standard Mount |
U = 1.410:1 |
EV |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUEVX-V5GK |
X = Standard Mount |
U = 1.410:1 |
EV |
V = Air Shift Less Installation Kit |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUEVX-V5XK |
X = Standard Mount |
U = 1.410:1 |
EV |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUITX-A3XD |
X = Standard Mount |
U = 1.410:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XUITX-A3XK |
X = Standard Mount |
U = 1.410:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUITX-A5XD |
X = Standard Mount |
U = 1.410:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XUITX-A5XK |
X = Standard Mount |
U = 1.410:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUITX-H3XQ |
X = Standard Mount |
U = 1.410:1 |
IT = KIT PTO |
H = Less Wire Shift Cover |
3 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XUITX-V3XD |
X = Standard Mount |
U = 1.410:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XUITX-V3XK |
X = Standard Mount |
U = 1.410:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XWAHX-A3XD |
X = Standard Mount |
W = 1.713:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XWAHX-A4XK |
X = Standard Mount |
W = 1.713:1 |
AH |
A = Air Shift |
4 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XWAHX-V3GF |
X = Standard Mount |
W = 1.713:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489XWAHX-V3XK |
X = Standard Mount |
W = 1.713:1 |
AH |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XWEVX-A3XD |
X = Standard Mount |
W = 1.713:1 |
EV |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XWEVX-A3XK |
X = Standard Mount |
W = 1.713:1 |
EV |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XWEVX-A5XD |
X = Standard Mount |
W = 1.713:1 |
EV |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XWITX-A3XD |
X = Standard Mount |
W = 1.713:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XWITX-H3XD |
X = Standard Mount |
W = 1.713:1 |
IT = KIT PTO |
H = Less Wire Shift Cover |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XXAHX-A5XK |
X = Standard Mount |
X = 2.000:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489XXBGX-W3XD |
X = Standard Mount |
X = 2.000:1 |
BG |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489XXEVX-A5XD |
X = Standard Mount |
X = 2.000:1 |
EV |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489XXITX-H3XD |
X = Standard Mount |
X = 2.000:1 |
IT = KIT PTO |
H = Less Wire Shift Cover |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZADAX-A5XD |
Z = Deep Mount |
A = 0.391:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZCDAX-A5XD |
Z = Deep Mount |
C = 0.489:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZCDAX-P5XD |
Z = Deep Mount |
C = 0.489:1 |
DA |
P = 12 Volt Electric Over Air |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZFAHX-A3XD |
Z = Deep Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZFAHX-A3XK |
Z = Deep Mount |
F = 0.520:1 |
AH |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFAHX-A5XK |
Z = Deep Mount |
F = 0.520:1 |
AH |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFDAX-A5GK |
Z = Deep Mount |
F = 0.520:1 |
DA |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFDAX-A5RB |
Z = Deep Mount |
F = 0.520:1 |
DA |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZFDAX-A5RK |
Z = Deep Mount |
F = 0.520:1 |
DA |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFDAX-A5XD |
Z = Deep Mount |
F = 0.520:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZFDAX-A5XK |
Z = Deep Mount |
F = 0.520:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFDAX-A5XQ |
Z = Deep Mount |
F = 0.520:1 |
DA |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFDAX-C5RB |
Z = Deep Mount |
F = 0.520:1 |
DA |
C = Heavy Duty Bracket Less Cable |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZFDAX-C5XK |
Z = Deep Mount |
F = 0.520:1 |
DA |
C = Heavy Duty Bracket Less Cable |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 部件 |
安装方案 |
齿轮比 |
Input Gear Designator |
转变类型 |
组装 |
Output Option |
| 489ZFDAX-C6RB |
Z = Deep Mount |
F = 0.520:1 |
DA |
C = Heavy Duty Bracket Less Cable |
6 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZFDAX-P5XK |
Z = Deep Mount |
F = 0.520:1 |
DA |
P = 12 Volt Electric Over Air |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFDAX-S5XK |
Z = Deep Mount |
F = 0.520:1 |
DA |
S = Air Shift w/ PTO/Dump Pump Combo Valve w/ Kick Out w/ Neutral Spring Return |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFDAX-V5RB |
Z = Deep Mount |
F = 0.520:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZFDAX-V5XK |
Z = Deep Mount |
F = 0.520:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFDAX-V5XQ |
Z = Deep Mount |
F = 0.520:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFITX-A5XD |
Z = Deep Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZFITX-A5XK |
Z = Deep Mount |
F = 0.520:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZFITX-V5XD |
Z = Deep Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZFITX-V5XK |
Z = Deep Mount |
F = 0.520:1 |
IT = KIT PTO |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZHDAX-A5AF |
Z = Deep Mount |
H = 0.716:1 |
DA |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489ZHDAX-A5GA |
Z = Deep Mount |
H = 0.716:1 |
DA |
A = Air Shift |
5 |
GA = Greaseable Rotatable "B" 2 Bolt 7/8" 13T |
| 489ZHDAX-A5RB |
Z = Deep Mount |
H = 0.716:1 |
DA |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZHDAX-A5XD |
Z = Deep Mount |
H = 0.716:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZHDAX-A5XK |
Z = Deep Mount |
H = 0.716:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZHDAX-A6XD |
Z = Deep Mount |
H = 0.716:1 |
DA |
A = Air Shift |
6 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZHDAX-V5RB |
Z = Deep Mount |
H = 0.716:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZHDAX-V5XK |
Z = Deep Mount |
H = 0.716:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZHITX-A5XD |
Z = Deep Mount |
H = 0.716:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZLDAX-A3XK |
Z = Deep Mount |
L = 0.691:1 |
DA |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZLDAX-A5AF |
Z = Deep Mount |
L = 0.691:1 |
DA |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489ZLDAX-A5GF |
Z = Deep Mount |
L = 0.691:1 |
DA |
A = Air Shift |
5 |
GF = Greaseable SAE "BB" 2 or 4 Bolt 1" 15T |
| 489ZLDAX-A5GK |
Z = Deep Mount |
L = 0.691:1 |
DA |
A = Air Shift |
5 |
GK = Greaseable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZLDAX-A5RB |
Z = Deep Mount |
L = 0.691:1 |
DA |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZLDAX-A5RK |
Z = Deep Mount |
L = 0.691:1 |
DA |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZLDAX-A5XD |
Z = Deep Mount |
L = 0.691:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZLDAX-A5XK |
Z = Deep Mount |
L = 0.691:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZLDAX-V3XK |
Z = Deep Mount |
L = 0.691:1 |
DA |
V = Air Shift Less Installation Kit |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZLDAX-V5XD |
Z = Deep Mount |
L = 0.691:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZLDAX-V5XQ |
Z = Deep Mount |
L = 0.691:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZLDAX-V5XY |
Z = Deep Mount |
L = 0.691:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XY = DIN 5462 8T |
| 489ZLDAX-W5XD |
Z = Deep Mount |
L = 0.691:1 |
DA |
W = Cable Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZLITX-A3XD |
Z = Deep Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZLITX-A5RK |
Z = Deep Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZLITX-A5XK |
Z = Deep Mount |
L = 0.691:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQDAX-A3XD |
Z = Deep Mount |
Q = 0.865:1 |
DA |
A = Air Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZQDAX-A3XK |
Z = Deep Mount |
Q = 0.865:1 |
DA |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQDAX-A5RB |
Z = Deep Mount |
Q = 0.865:1 |
DA |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZQDAX-A5RK |
Z = Deep Mount |
Q = 0.865:1 |
DA |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQDAX-A5XD |
Z = Deep Mount |
Q = 0.865:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZQDAX-A5XK |
Z = Deep Mount |
Q = 0.865:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQDAX-A5XQ |
Z = Deep Mount |
Q = 0.865:1 |
DA |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQDAX-P5XD |
Z = Deep Mount |
Q = 0.865:1 |
DA |
P = 12 Volt Electric Over Air |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZQDAX-V5RK |
Z = Deep Mount |
Q = 0.865:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQDAX-V5XK |
Z = Deep Mount |
Q = 0.865:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQDAX-V5XQ |
Z = Deep Mount |
Q = 0.865:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQITX-A3XK |
Z = Deep Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
3 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQITX-A5RB |
Z = Deep Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZQITX-A5RK |
Z = Deep Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZQITX-A5XD |
Z = Deep Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZQITX-A5XK |
Z = Deep Mount |
Q = 0.865:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZRDAX-A5AF |
Z = Deep Mount |
R = 0.941:1 |
DA |
A = Air Shift |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489ZRDAX-A5RB |
Z = Deep Mount |
R = 0.941:1 |
DA |
A = Air Shift |
5 |
RB = Rotatable SAE "B" 4 Bolt 7/8" 13T |
| 489ZRDAX-A5RK |
Z = Deep Mount |
R = 0.941:1 |
DA |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZRDAX-A5XD |
Z = Deep Mount |
R = 0.941:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZRDAX-A5XK |
Z = Deep Mount |
R = 0.941:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZRDAX-A5XQ |
Z = Deep Mount |
R = 0.941:1 |
DA |
A = Air Shift |
5 |
XQ = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZRDAX-V5XD |
Z = Deep Mount |
R = 0.941:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZRITX-A5AZ |
Z = Deep Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
5 |
AZ = SAE "B" 4 Bolt 1-1/4" 14T |
| 489ZRITX-A5XD |
Z = Deep Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZRITX-A5XK |
Z = Deep Mount |
R = 0.941:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZSDAX-A5RK |
Z = Deep Mount |
S = 1.205:1 |
DA |
A = Air Shift |
5 |
RK = Rotatable SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZSDAX-A5XD |
Z = Deep Mount |
S = 1.205:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZSDAX-A5XK |
Z = Deep Mount |
S = 1.205:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZSDAX-V5AF |
Z = Deep Mount |
S = 1.205:1 |
DA |
V = Air Shift Less Installation Kit |
5 |
AF = SAE "BB" 2 or 4 Bolt 1" 15T |
| 489ZSITX-A5XK |
Z = Deep Mount |
S = 1.205:1 |
IT = KIT PTO |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZUDAX-A5XD |
Z = Deep Mount |
U = 1.410:1 |
DA |
A = Air Shift |
5 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZUDAX-A5XK |
Z = Deep Mount |
U = 1.410:1 |
DA |
A = Air Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
| 489ZUITX-W3XD |
Z = Deep Mount |
U = 1.410:1 |
IT = KIT PTO |
W = Cable Shift |
3 |
XD = 1-1/4" Rd Standard Shaft |
| 489ZUITX-W5XK |
Z = Deep Mount |
U = 1.410:1 |
IT = KIT PTO |
W = Cable Shift |
5 |
XK = SAE "B" 2 or 4 Bolt 7/8" 13T |
fcg.cnmec@parkerdistribution.com.cn
