Parker派克流体连接件Parker fluid connectors
派克乐可利Legris气枪
Parker Legris Blowgun Kits

即用,操作简单,符合人体工程学,派克乐可利气枪套件仍然是设备在工业环境中任何吹或喷涂操作的必备产品。 Ready for use, simple and ergonomic, the Parker Legris blowgun kit remains an essential item of equipment for any blowing or spraying operation in the industrial environment.





即用,操作简单,符合人体工程学,派克乐可利气枪套件仍然是设备在工业环境中吹或喷涂操作的必备产品。Ready for use, simple and ergonomic, the Parker Legris blowgun kit remains an essential item of equipment for any blowing or spraying operation in the industrial environment.











0659标准气枪 型号 C

带喷嘴BSPP

0659 00 13 G1/4





0654安全气枪 型号 C

带喷嘴BSPP

0654 00 13 G1/4





0652可换喷嘴气枪 型号 C

下端连接,BSPP

0652 66 13 G1/4

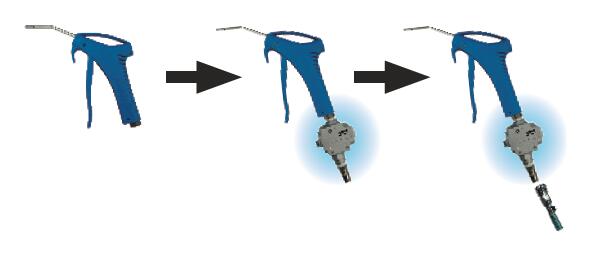

如何将节能阀连接到气枪

0690标准喷嘴 型号 直径D C



0690 01 00 2.5 M12 x 1.25





0690长直管喷嘴 型号 直径D C



0690 03 00 2.5 M12 x 1.25







0690气幕喷嘴 型号 直径D C



0690 09 00 2 M12 x 1.25





0623按压式手柄气枪 型号 直径D C



0623 10 35 2 G1/4





0690长角度喷嘴 型号 直径D C



0690 05 00 2.5 M12 x 1.25





0690低噪音喷嘴 型号 C

0690 08 00 M12 x 1.25





0 型号 直径D C

0690 10 00 2.5 M12 x 1.25







特点/优势Features/Benefits:

> Ready for Use

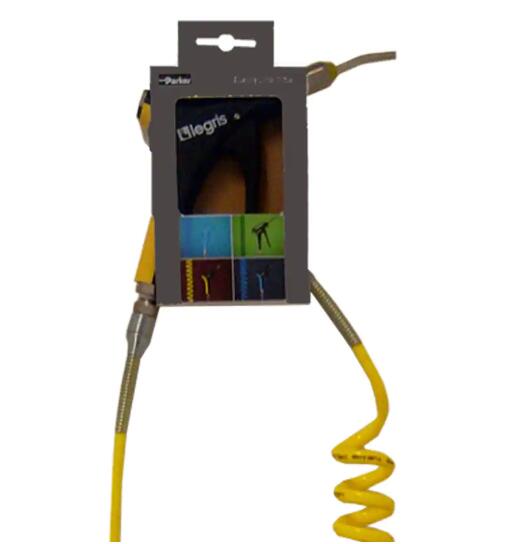

- Kit contents:
one blowgun
a 4 metre recoil tube
one R1/4 threaded fitting, external diameter 8 mm
- Easy to install and comfortable to use
- Wide range of models and nozzles for optimum flow
- Lower or upper connection
- Labelling and colours can be customised
- Packaging designed to facilitate self-service sales

> 准备使用

- 套件包内容:
一把气枪
一根4米的螺旋管
一个R1/4螺纹接头,连外径8 mm管子
- 易于安装和使用舒适
- 多种型号和喷嘴可实现理想流量
- 下连接或上连接
- 标签和颜色可以定制
- 包装设计,方便自助销售

> Safety & Performance

- Safe operation with the Safety or OSHA models
- Durable, shock-resistant materials
- 100% leak and flow-tested in production
- Date coding to guarantee quality and traceability
- Minimum pressure drop
- Optimisation of your energy consumption with the Energy-Saving model

> 安全性能

- 使用安全型或OSHA型号以获得操作安全
- 耐用,抗冲击材料
- 泄漏和流量测试生产
- 日期编码提供质量和可追溯性
- 更小压降
- 使用节能模型优化您的能耗



市场Markets:

- Factory Automation
- Miscellaneous manufacturing
- Packaging
- Vehicle Assembly Facilities
- 工厂自动化
- 其他制造业
- 打包机
- 车辆装配设施



应用Applications:

- Manufacturing Workshops
- Cleaning
- Cooling
- Blowing
- Mixing
- Ejection
- 制造车间
- 清洁
- 冷却
- 气枪
- 混合
- 注塑机



技术Technologies:

- Safety blow gun
- Standard nozzle
- Angled nozzle
- Air nozzle
- Air tool kit
- Compressed air nozzle
- Air blow gun
- 安全吹枪
- 标准喷嘴
- 倾斜喷嘴
- 空气喷嘴
- 气动工具包
- 压缩空气喷嘴
- 吹风枪



技术特点Technical Characteristics:

- Fluids: Compressed air, other fluids: contact us
- Materials: nickel-plated brass, aluminium, technical polymer, recoil polyurethane, silicone free
- Pressure: 0 to 10 bar
- Temperature:
Air: -15°C to +50°C
Dry air: -20°C to +80°C
- 介质:压缩空气,其他介质:请咨询我们
- 材料:镀镍黄铜,铝,工程塑料,螺旋聚氨酯,无硅成分。
- 压力:0至10公斤
- 温度:
空气:-15°C 至+ 50°C
干燥空气:-20°C 至+ 80°C



法规Regulations:

Compliance for all blowguns:
- DI: 97/23/EC (PED)
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 1907/2006 (REACH)
Protection of design:
All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 22
Compliance for specific blowguns:
- DI: 1910.242 (b) [OSHA]
The static pressure must be less than 30 psi in case the nozzle becomes blocked.
- DI: 1910.95 (b) [OSHA]
The noise level must be less than 90 dBA over 8 hours' exposure.
- DI: 2003/10/EC
Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87dBA.
不同气枪的符合:
- DI: 97/23/EC (PED)
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 1907/2006 (REACH)
设计保护:
派克乐可利风枪的设计和模型已经注册了以下数字:13 224 / 13 225 / 13 22
特定气枪的符合:
- DI: 1910.242 (b) [OSHA]
在喷嘴堵塞的情况下,静压力需要小于30 psi。
- DI: 1910.95 (b) [OSHA]
在8小时的暴露下,噪声级需要小于90 dBA。
- DI: 2003/10/EC
关于暴露于噪声的规定,特别是关于听觉风险的规定。噪声水平需要小于87dBA。



产品类型Product Types:

- Blowgun Kit, Lower Connection, Male BSPT Thread
- Safety Blowgun Kit, Lower Connection, Male BSPT Thread
- Energy Saving Blowgun Kit with Angled Nozzle, Male BSPT Thread
- Blowgun Kit, Lower/Upper Connection with Standard Nozzle, Male BSPT Thread
- Blowgun Kit, Lower Connection with Short Angled Nozzle, Male BSPT Thread
- Blowgun Kit, Lower/Upper Connection with Interchangeable Nozzle, Male BSPT Thread
- Energy Saving Blowgun Kit, Lower Connection, Interchangeable Nozzle, Male BSPT Thread
- 气枪套件,底部连接,BSPT外螺纹<
- 安全气枪套件,底部连接,BSPT外螺纹
- 节能气枪套件带斜角喷嘴,BSPT外螺纹
- 气枪套件,底部连接/上部连接带标准喷嘴,BSPT外螺纹
- 气枪套件,底部连接带短斜角喷嘴,BSPT外螺纹
- 气枪套件,底部/上部连接带可互换喷嘴,BSPT外螺纹
- 节能气枪套件,底部连接,可互换喷嘴,BSPT外螺纹



Parker Legris Blowgun Kits型号





部件号 形状 颜色
0631 00 01 Safety blowgun kit lower connection male YELLOW
0631 00 02 Blowgun kit upper connection standard nozzle male BLUE
0631 00 03 Blowgun kit lower connection standard nozzle male BLUE
0631 00 04 Blowgun kit upper connection short angled nozzle male BLUE
0631 00 05 Blowgun kit lower connection short angled nozzle male BLUE
0631 00 07 Blowgun kit lower connection interchangeable nozzle male BLUE
0631 00 09 Standard lowgun kit lower connection male BLUE
0631 00 23 Energy saving blowgun kit angled nozzle male GREEN
