Parker派克流体连接件Parker fluid connectors
派克乐可利黄铜压缩式接头
Parker Legris Brass Compression Fittings

这些“通用”接头为用户提供了与各种管材多种连接形式,从而不需要钢管上提供螺纹或者使用焊接形式。该范围保证了长期的密封性和性能表现。 These "universal" fittings provide users with numerous connection options for a wide variety of tube materials without the need for tube threading or soldering.
This range guarantees excellent long-term sealing and performance.





这些“通用”接头为用户提供了与不同管材的多种连接形式,从而不需要钢管上提供螺纹或者使用焊接形式。 These "universal" fittings provide users with numerous connection options for a wide variety of tube materials without the need for tube threading or soldering.

该范围可实现长期的密封性和性能表现。 This range guarantees excellent long-term sealing and performance.

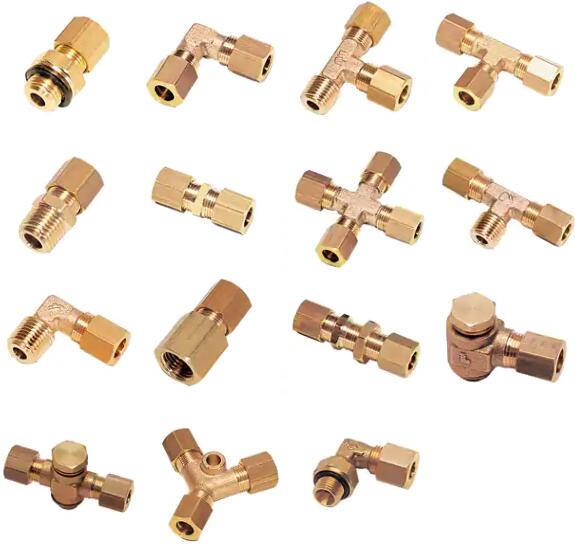

派克乐可利黄铜压缩式接头Brass Compression Fittings





Legris铜卡套接头

0105直接头BSPT 型号 直径D C

0105 06 10 6 R1/8
0105 06 13 6 R1/4
0105 08 10 8 R1/8
0105 08 13 8 R1/4
0105 08 17 8 R3/8
0105 10 13 10 R1/4
0105 10 17 10 R3/8
0105 12 17 12 R3/8
0105 12 21 12 R1/2
0105 16 13 16 R1/4
0105 18 21 18 R1/2
0105 08 11 8 NPT 1/8





0109直角接头BSPT 型号 直径D C

0109 06 10 6 R1/8
0109 06 13 6 R1/4
0109 08 10 8 R1/8
0109 08 13 8 R1/4
0109 10 13 10 R1/4
0109 10 17 10 R3/8
0109 12 13 12 R1/4
0109 12 21 12 R1/2
0109 16 21 16 R1/4
0109 12 17 12 R3/8





0101直接头BSPP 型号 直径D C

0101 06 10 6 G1/8
0101 06 13 6 G1/4
0101 08 10 8 G1/8
0101 08 13 8 G1/4
0101 10 13 10 G1/4
0101 10 17 10 G3/8
0101 12 17 12 G3/8
0101 16 21 16 G1/2





0104等径T型接头 型号 直径D C

0104 04 00 4 0
0104 06 00 6 0
0104 08 00 8 0
0104 10 00 10 0
0104 12 00 12 0
0104 14 00 14 0
0104 15 00 15 0
0104 16 00 16 0
0104 18 00 18 0
0104 22 00 22 0





特点/优势Features/Benefits:

- Simple to Install and Use

- Suitable for pneumatic and medium pressure hydraulic applications
- Compatible with many industrial fluids
- Large product range: 22 configurations
- Excellent sealing due to the tightening of the olive onto the tube
- Metallic sealing guarantees maximum service life
- High strength brass for increased mechanical reliability

- 易于安装和使用

- 适用于气动和中压液压应用
- 与许多工业流体兼容
- 广泛的产品范围:22种形式
- 使用卡箍紧紧地连接到钢管,以获得优异的密封性能
- 金属密封可获得更长的使用寿命
- 高强度黄铜,提高机械稳定性

- Wide Variety of Tubing

- Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
- Multiple tube diameters can be connected using the Parker Legris reducer assembly system
- No insert required for rigid and semi-rigid polyamide tubing below 14 mm

- 广泛的管子选择

- 可与不同类型的硬管和软管相连:金属管,聚合物管,钢管,橡胶管等
- 使用派克乐可利减径接头连接系统可与不同管径的多种管子相连
- 14mm以下的刚性和半刚性尼龙管不需要管子支撑环



市场Markets:

- Packaging
- Miscellaneous Manufacturing
- Vehicle Assembly Facilities
- Machine Tools
- 包装
- 零件制造业
- 车辆装配设施
- 机床



应用Applications:

- Pneumatic Machinery Equipment at Medium and High Pressure
- Lubrication Systems
- Cooling Systems
- Welding Robots
- Suitable for Vacuum Applications
- 中高压气动机械设备
- 润滑系统
- 冷却系统
- 焊接机器人
- 适用于真空应用



技术Technologies:

- Brass compression fittings
- Compression fittings
- Universal fittings
- Pneumatic fittings
- Pneumatic applications
- Hydraulic applications
- Connects to Copper tube
- Connects to Brass tube
- Connects to Steel tube
- Connects to Polyamide tube
- 黄铜压缩接头
- 压缩接头
- 通用接头
- 气动接头
- 气动应用
- 液压应用
- 可与紫铜管连接
- 可与黄铜管连接
- 可与连接钢管连接
- 可与尼龙管连接



技术特点Technical Characteristics:

- Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
- Materials: steel, polymer, brass
- Pressure: Vacuum to 550 bar
- Temperature: -40°C to +250°C
- 液体:水,加工油,燃料,液压油,压缩空气,化学液,消毒剂
- 材质:碳钢,聚合物,黄铜
- 压力:真空至550bar
- 温度范围:-40°C至+ 250°C



法规Regulations:

- CNOMO: E07.21.115N (for robotic equipment in the automotive industry)
- DI: 97/23/EC (PED)
- RG: 1907/2006 (REACH)
- DI: 2002/95/EC (RoHS)
- DI: 94/9/EC (ATEX)
- CNOMO:E07.21.115N (用于汽车行业的机器人设备)
- DI:97/23/EC (PED)
- RG:1907/2006 (REACH)
- DI:2002/95/EC (RoHS)
- DI:94/9/EC (ATEX)





产品类型Product Types:

- Stud Fitting, Male BSPT Thread
- Stud Fitting, Male NPT Thread
- Stud Fitting with Captive Sealing Washer, Male BSPP and Metric Thread
- Stud Fitting, with Bi-Material Seal, Male BSPP
- Stud Fitting, Male Metric Thread
- Stud Fitting, Female BSPP Thread
- Stud Elbow, Male BSPT Thread
- Stud Elbow, Male NPT Thread
- Stud Orientable Elbow, Male BSPP Thread
- Stud Branch Tee, Male BSPT Thread
- Stud Run Tee, Male BSPT Thread
- Single Banjo, with Captive Sealing Washer, Male BSPP Thread
- Single Banjo with Bi-Material Seal, Male BSPP Thread
- Double Banjo with Captive Sealing Washer, Male BSPP Thread
- Double Banjo with Bi-Material Seal, Male BSPP Thread
- Equal Tube-to-Tube Connector
- Equal Tube-to-Tube Connector with Mounting Boss
- Equal Bulkhead Connector
- Equal Elbow
- Equal Tee
- Equal Y Piece with Mounting Boss
- Equal Cross
- 油口接头,BSPT外螺纹
- 油口接头,NPT外螺纹
- 油口接头,带密封垫圈,BSPP外螺纹和公制螺纹
- 油口接头,带双密封材料, BSPP外螺纹
- 油口接头,公制外螺纹
- 油口接头,BSPP内螺纹
- 油口弯头,BSPT外螺纹
- 油口弯头,NPT外螺纹
- 可调向油口弯头,BSPP外螺纹
- 支管三通油口接头,BSPT外螺纹
- 直管三通油口接头, BSPT外螺纹
- 铰接接头,带密封垫圈, BSPP外螺纹
- 铰接接头,带双密封, BSPP外螺纹
- 双铰接接头带密封垫圈,BSPP外螺纹
- 双铰接接头带双密封, BSPP外螺纹
- 等径管到管连接
- 等径管到管连接,带连接螺栓
- 等径隔板连接
- 等径弯头
- 等径三通
- 等径Y型接头,带安装螺栓
- 等径十字接头



Technical Specifications

Application: Pneumatics, Cooling, Automotive Process, Packaging, Manufacturing Equipment, Compressed Air/Inert Gas, Vaccum
Minimum Operating Temperature: -76 °F, -60 °C
Maximum Operating Pressure: 55 MPa, 550 bar, 7977 psi
Maximum Operating Temperature: 212 °F, 100 °C
Tube Outside Diameter: 4 to 28 mm
Materials of Construction: Brass, Steel Zinc Plated, Technical Polymer
Connection Type: Compression/Thread
Specifications Met: DI: 97/23/EC (PED) - RG: 1907/2006 (REACH) - DI: 2002/95/EC (RoHs) - DI: 94/09/EC (ATEX)- CNOMO: E07,21,115N, CNOMO: E07.21.115N (for robotic equipment in the automotive industry), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX)
Shape: Straight, Banjo, 90°, Tee, Y, Cross
Nut Material: BRASS
Sleeve Material: BRASS
Quantity per Box: 1 to 10
Weight: 0,07 to 0,306 kg
Media: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants



Brass Compression Fittings型号

Part Shape O-Ring Material Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 2 Tube O.D. (mm)
0101 04 10 Male stud fitting thread na BSPP G1/8 4
0101 04 10 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/8 4
0101 04 19 Male stud fitting thread na Metric M5x0,8 4
0101 04 55 Male stud fitting thread na Metric M7x1 4
0101 04 56 Male stud fitting thread na Metric M8x1 4
0101 05 10 Male stud fitting thread na BSPP G1/8 5
0101 05 10 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/8 5
0101 05 56 Male stud fitting thread na Metric M8x1 5
0101 05 60 Male stud fitting thread na Metric M10x1 5
0101 06 10 Male stud fitting thread na BSPP G1/8 6
0101 06 10 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/8 6
0101 06 13 Male stud fitting thread na BSPP G1/4 6
0101 06 13 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/4 6
0101 06 60 Male stud fitting thread na Metric M10x1 6
0101 06 62 Male stud fitting thread na Metric M10x1,5 6
0101 08 10 Male stud fitting thread na BSPP G1/8 8
0101 08 10 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/8 8
0101 08 13 Male stud fitting thread na BSPP G1/4 8
0101 08 13 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/4 8
0101 08 17 Male stud fitting thread na BSPP G3/8 8
0101 08 17 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/8 8
0101 08 65 Male stud fitting thread na Metric M12x1 8
0101 08 66 Male stud fitting thread na Metric M12x1,25 8
0101 08 68 Male stud fitting thread na Metric M13x1,25 8
0101 10 13 Male stud fitting thread na BSPP G1/4 10
0101 10 13 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/4 10
0101 10 17 Male stud fitting thread na BSPP G3/8 10
0101 10 17 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/8 10
0101 10 70 Male stud fitting thread na Metric M14x1,25 10
0101 10 71 Male stud fitting thread na Metric M14x1,5 10
0101 10 74 Male stud fitting thread na Metric M16x1,25 10
0101 10 75 Male stud fitting thread na Metric M16x1,5 10
0101 10 78 Male stud fitting thread na Metric M18x1,5 10
0101 12 13 Male stud fitting thread na BSPP G1/4 12
0101 12 13 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/4 12
0101 12 17 Male stud fitting thread na BSPP G3/8 12
0101 12 17 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/8 12
0101 12 21 Male stud fitting thread na BSPP G1/2 12
0101 12 21 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/2 12
0101 12 74 Male stud fitting thread na Metric M16x1,25 12
0101 12 75 Male stud fitting thread na Metric M16x1,5 12
0101 12 78 Male stud fitting thread na Metric M18x1,5 12
0101 14 17 Male stud fitting thread na BSPP G3/8 14
0101 14 17 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/8 14
0101 14 21 Male stud fitting thread na BSPP G1/2 14
0101 14 21 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/2 14
0101 14 78 Male stud fitting thread na Metric M18x1,5 14
0101 14 80 Male stud fitting thread na Metric M20x1,5 14
0101 15 17 Male stud fitting thread na BSPP G3/8 15
0101 15 17 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/8 15
0101 15 21 Male stud fitting thread na BSPP G1/2 15
0101 15 21 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/2 15
0101 15 78 Male stud fitting thread na Metric M18x1,5 15
0101 16 17 Male stud fitting thread na BSPP G3/8 16
0101 16 17 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/8 16
0101 16 21 Male stud fitting thread na BSPP G1/2 16
0101 16 21 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/2 16
0101 16 80 Male stud fitting thread na Metric M20x1,5 16
0101 16 82 Male stud fitting thread na Metric M22x1,5 16
0101 18 21 Male stud fitting thread na BSPP G1/2 18
0101 18 21 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1/2 18
0101 18 27 Male stud fitting thread na BSPP G3/4 18
0101 18 27 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/4 18
0101 18 82 Male stud fitting thread na Metric M22x1,5 18
0101 18 83 Male stud fitting thread na Metric M24x1,5 18
0101 20 27 Male stud fitting thread na BSPP G3/4 20
0101 20 27 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/4 20
0101 22 27 Male stud fitting thread na BSPP G3/4 22
0101 22 27 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G3/4 22
0101 22 34 Male stud fitting thread na BSPP G1 22
0101 22 34 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1 22
0101 25 34 Male stud fitting thread na BSPP G1 25
0101 25 34 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1 25
0101 28 34 Male stud fitting thread na BSPP G1 28
0101 28 34 39 Male stud fitting thread ZINC PLATED STEEL WITH NBR SEAL BSPP G1 28
0102 04 00 Elbow 90° tube / tube na na na 4
0102 05 00 Elbow 90° tube / tube na na na 5
0102 06 00 Elbow 90° tube / tube na na na 6
0102 08 00 Elbow 90° tube / tube na na na 8
0102 10 00 Elbow 90° tube / tube na na na 10
0102 12 00 Elbow 90° tube / tube na na na 12
0102 14 00 Elbow 90° tube / tube na na na 14
0102 15 00 Elbow 90° tube / tube na na na 15
0102 16 00 Elbow 90° tube / tube na na na 16
0102 18 00 Elbow 90° tube / tube na na na 18
0102 20 00 Elbow 90° tube / tube na na na 20
0102 22 00 Elbow 90° tube / tube na na na 22
0102 25 00 Elbow 90° tube / tube na na na 25
0102 28 00 Elbow 90° tube / tube na na na 28
0103 04 10 Male stud run tee fixed thread na BSPT R1/8 4
0103 05 10 Male stud run tee fixed thread na BSPT R1/8 5
0103 06 10 Male stud run tee fixed thread na BSPT R1/8 6
0103 06 13 Male stud run tee fixed thread na BSPT R1/4 6
0103 08 13 Male stud run tee fixed thread na BSPT R1/4 8
0103 08 17 Male stud run tee fixed thread na BSPT R3/8 8
0103 10 13 Male stud run tee fixed thread na BSPT R1/4 10
0103 12 13 Male stud run tee fixed thread na BSPT R1/4 12
0103 14 17 Male stud run tee fixed thread na BSPT R3/8 14
0103 14 21 Male stud run tee fixed thread na BSPT R1/2 14
0103 15 21 Male stud run tee fixed thread na BSPT R1/2 15
0103 16 17 Male stud run tee fixed thread na BSPT R3/8 16
0103 16 21 Male stud run tee fixed thread na BSPT R1/2 16
0103 18 21 Male stud run tee fixed thread na BSPT R1/2 18
0103 18 27 Male stud run tee fixed thread na BSPT R3/4 18
0103 22 27 Male stud run tee fixed thread na BSPT R3/4 22
0104 04 00 Tee tube / tube na na na 4
0104 05 00 Tee tube / tube na na na 5
0104 06 00 Tee tube / tube na na na 6
0104 08 00 Tee tube / tube na na na 8
0104 10 00 Tee tube / tube na na na 10
0104 12 00 Tee tube / tube na na na 12
0104 14 00 Tee tube / tube na na na 14
0104 15 00 Tee tube / tube na na na 15
0104 16 00 Tee tube / tube na na na 16
0104 18 00 Tee tube / tube na na na 18
0104 20 00 Tee tube / tube na na na 20
0104 22 00 Tee tube / tube na na na 22
0104 25 00 Tee tube / tube na na na 25
0104 28 00 Tee tube / tube na na na 28
0105 04 10 Male stud fitting thread na BSPT R1/8 4
0105 05 10 Male stud fitting thread na BSPT R1/8 5
0105 05 13 Male stud fitting thread na BSPT R1/4 5
0105 06 10 Male stud fitting thread na BSPT R1/8 6
0105 06 11 Male stud fitting thread na NPT NPT1/8 6
0105 06 13 Male stud fitting thread na BSPT R1/4 6
0105 06 14 Male stud fitting thread na NPT NPT1/4 6
0105 06 17 Male stud fitting thread na BSPT R3/8 6
0105 08 10 Male stud fitting thread na BSPT R1/8 8
0105 08 11 Male stud fitting thread na NPT NPT1/8 8
0105 08 13 Male stud fitting thread na BSPT R1/4 8
0105 08 14 Male stud fitting thread na NPT NPT1/4 8
0105 08 17 Male stud fitting thread na BSPT R3/8 8
0105 10 10 Male stud fitting thread na BSPT R1/8 10
0105 10 13 Male stud fitting thread na BSPT R1/4 10
0105 10 14 Male stud fitting thread na NPT NPT1/4 10
0105 10 17 Male stud fitting thread na BSPT R3/8 10
0105 10 18 Male stud fitting thread na NPT NPT3/8 10
0105 10 21 Male stud fitting thread na BSPT R1/2 10
0105 10 22 Male stud fitting thread na NPT NPT1/2 10
0105 12 13 Male stud fitting thread na BSPT R1/4 12
0105 12 17 Male stud fitting thread na BSPT R3/8 12
0105 12 21 Male stud fitting thread na BSPT R1/2 12
0105 14 13 Male stud fitting thread na BSPT R1/4 14
0105 14 17 Male stud fitting thread na BSPT R3/8 14
0105 14 21 Male stud fitting thread na BSPT R1/2 14
0105 14 27 Male stud fitting thread na BSPT R3/4 14
0105 15 17 Male stud fitting thread na BSPT R3/8 15
0105 15 21 Male stud fitting thread na BSPT R1/2 15
0105 16 13 Male stud fitting thread na BSPT R1/4 16
0105 16 17 Male stud fitting thread na BSPT R3/8 16
0105 16 21 Male stud fitting thread na BSPT R1/2 16
0105 16 27 Male stud fitting thread na BSPT R3/4 16
0105 18 21 Male stud fitting thread na BSPT R1/2 18
0105 18 27 Male stud fitting thread na BSPT R3/4 18
0105 20 21 Male stud fitting thread na BSPT R1/2 20
0105 20 27 Male stud fitting thread na BSPT R3/4 20
0105 22 21 Male stud fitting thread na BSPT R1/2 22
0105 22 27 Male stud fitting thread na BSPT R3/4 22
0105 22 34 Male stud fitting thread na BSPT R1 22
0105 25 27 Male stud fitting thread na BSPT R3/4 25
0105 25 34 Male stud fitting thread na BSPT R1 25
0105 28 27 Male stud fitting thread na BSPT R3/4 28
0105 28 34 Male stud fitting thread na BSPT R1 28
0106 04 00 Tube / tube connector na na na 4
0106 05 00 Tube / tube connector na na na 5
0106 06 00 Tube / tube connector na na na 6
0106 08 00 Tube / tube connector na na na 8
0106 10 00 Tube / tube connector na na na 10
0106 12 00 Tube / tube connector na na na 12
0106 14 00 Tube / tube connector na na na 14
0106 15 00 Tube / tube connector na na na 15
0106 16 00 Tube / tube connector na na na 16
0106 18 00 Tube / tube connector na na na 18
0106 20 00 Tube / tube connector na na na 20
0106 22 00 Tube / tube connector na na na 22
0106 25 00 Tube / tube connector na na na 25
0106 28 00 Tube / tube connector na na na 28
0107 04 00 Cross tube / tube na na na 4
0107 06 00 Cross tube / tube na na na 6
0107 08 00 Cross tube / tube na na na 8
0107 10 00 Cross tube / tube na na na 10
0107 12 00 Cross tube / tube na na na 12
0107 14 00 Cross tube / tube na na na 14
0107 15 00 Cross tube / tube na na na 15
0107 16 00 Cross tube / tube na na na 16
0107 18 00 Cross tube / tube na na na 18
0107 20 00 Cross tube / tube na na na 20
0107 22 00 Cross tube / tube na na na 22
0108 04 10 Male stud branch tee fixed thread na BSPT R1/8 4
0108 05 10 Male stud branch tee fixed thread na BSPT R1/8 5
0108 06 10 Male stud branch tee fixed thread na BSPT R1/8 6
0108 06 13 Male stud branch tee fixed thread na BSPT R1/4 6
0108 08 10 Male stud branch tee fixed thread na BSPT R1/8 8
0108 08 13 Male stud branch tee fixed thread na BSPT R1/4 8
0108 08 17 Male stud branch tee fixed thread na BSPT R3/8 8
0108 10 13 Male stud branch tee fixed thread na BSPT R1/4 10
0108 10 17 Male stud branch tee fixed thread na BSPT R3/8 10
0108 12 13 Male stud branch tee fixed thread na BSPT R1/4 12
0108 12 17 Male stud branch tee fixed thread na BSPT R3/8 12
0108 14 17 Male stud branch tee fixed thread na BSPT R3/8 14
0108 14 21 Male stud branch tee fixed thread na BSPT R1/2 14
0108 15 17 Male stud branch tee fixed thread na BSPT R3/8 15
0108 15 21 Male stud branch tee fixed thread na BSPT R1/2 15
0108 16 17 Male stud branch tee fixed thread na BSPT R3/8 16
0108 16 21 Male stud branch tee fixed thread na BSPT R1/2 16
0108 18 21 Male stud branch tee fixed thread na BSPT R1/2 18
0108 18 27 Male stud branch tee fixed thread na BSPT R3/4 18
0108 20 27 Male stud branch tee fixed thread na BSPT R3/4 20
0108 22 27 Male stud branch tee fixed thread na BSPT R3/4 22
0108 22 34 Male stud branch tee fixed thread na BSPT R1 22
0109 04 10 Male stud elbow fixed 90° thread na BSPT R1/8 4
0109 04 13 Male stud elbow fixed 90° thread na BSPT R1/4 4
0109 05 10 Male stud elbow fixed 90° thread na BSPT R1/8 5
0109 05 13 Male stud elbow fixed 90° thread na BSPT R1/4 5
0109 06 10 Male stud elbow fixed 90° thread na BSPT R1/8 6
0109 06 11 Male stud elbow fixed 90° thread na NPT NPT1/8 6
0109 06 13 Male stud elbow fixed 90° thread na BSPT R1/4 6
0109 06 14 Male stud elbow fixed 90° thread na NPT NPT1/4 6
0109 08 10 Male stud elbow fixed 90° thread na BSPT R1/8 8
0109 08 11 Male stud elbow fixed 90° thread na NPT NPT1/8 8
0109 08 13 Male stud elbow fixed 90° thread na BSPT R1/4 8
0109 08 14 Male stud elbow fixed 90° thread na NPT NPT1/4 8
0109 08 17 Male stud elbow fixed 90° thread na BSPT R3/8 8
0109 10 13 Male stud elbow fixed 90° thread na BSPT R1/4 10
0109 10 14 Male stud elbow fixed 90° thread na NPT NPT1/4 10
0109 10 17 Male stud elbow fixed 90° thread na BSPT R3/8 10
0109 10 21 Male stud elbow fixed 90° thread na BSPT R1/2 10
0109 12 13 Male stud elbow fixed 90° thread na BSPT R1/4 12
0109 12 17 Male stud elbow fixed 90° thread na BSPT R3/8 12
0109 12 21 Male stud elbow fixed 90° thread na BSPT R1/2 12
0109 14 17 Male stud elbow fixed 90° thread na BSPT R3/8 14
0109 14 21 Male stud elbow fixed 90° thread na BSPT R1/2 14
0109 15 17 Male stud elbow fixed 90° thread na BSPT R3/8 15
0109 15 21 Male stud elbow fixed 90° thread na BSPT R1/2 15
0109 16 17 Male stud elbow fixed 90° thread na BSPT R3/8 16
0109 16 21 Male stud elbow fixed 90° thread na BSPT R1/2 16
0109 16 27 Male stud elbow fixed 90° thread na BSPT R3/4 16
0109 18 21 Male stud elbow fixed 90° thread na BSPT R1/2 18
0109 18 27 Male stud elbow fixed 90° thread na BSPT R3/4 18
0109 20 21 Male stud elbow fixed 90° thread na BSPT R1/2 20
0109 20 27 Male stud elbow fixed 90° thread na BSPT R3/4 20
0109 22 27 Male stud elbow fixed 90° thread na BSPT R3/4 22
0109 22 34 Male stud elbow fixed 90° thread na BSPT R1 22
0109 25 27 Male stud elbow fixed 90° thread na BSPT R3/4 25
0109 25 34 Male stud elbow fixed 90° thread na BSPT R1 25
0109 28 27 Male stud elbow fixed 90° thread na BSPT R3/4 28
0109 28 34 Male stud elbow fixed 90° thread na BSPT R1 28
0114 04 10 Female stud fitting thread na BSPP G1/8 4
0114 04 13 Female stud fitting thread na BSPP G1/4 4
0114 05 10 Female stud fitting thread na BSPP G1/8 5
0114 05 13 Female stud fitting thread na BSPP G1/4 5
0114 06 10 Female stud fitting thread na BSPP G1/8 6
0114 06 13 Female stud fitting thread na BSPP G1/4 6
0114 06 17 Female stud fitting thread na BSPP G3/8 6
0114 08 10 Female stud fitting thread na BSPP G1/8 8
0114 08 13 Female stud fitting thread na BSPP G1/4 8
0114 08 17 Female stud fitting thread na BSPP G3/8 8
0114 10 13 Female stud fitting thread na BSPP G1/4 10
0114 10 17 Female stud fitting thread na BSPP G3/8 10
0114 10 21 Female stud fitting thread na BSPP G1/2 10
0114 12 13 Female stud fitting thread na BSPP G1/4 12
0114 12 17 Female stud fitting thread na BSPP G3/8 12
0114 12 21 Female stud fitting thread na BSPP G1/2 12
0114 14 13 Female stud fitting thread na BSPP G1/4 14
0114 14 17 Female stud fitting thread na BSPP G3/8 14
0114 14 21 Female stud fitting thread na BSPP G1/2 14
0114 15 17 Female stud fitting thread na BSPP G3/8 15
0114 15 21 Female stud fitting thread na BSPP G1/2 15
0114 16 13 Female stud fitting thread na BSPP G1/4 16
0114 16 17 Female stud fitting thread na BSPP G3/8 16
0114 16 21 Female stud fitting thread na BSPP G1/2 16
0114 18 17 Female stud fitting thread na BSPP G3/8 18
0114 18 21 Female stud fitting thread na BSPP G1/2 18
0114 18 27 Female stud fitting thread na BSPP G3/4 18
0114 20 17 Female stud fitting thread na BSPP G3/8 20
0114 20 21 Female stud fitting thread na BSPP G1/2 20
0114 20 27 Female stud fitting thread na BSPP G3/4 20
0114 22 27 Female stud fitting thread na BSPP G3/4 22
0114 25 27 Female stud fitting thread na BSPP G3/4 25
0116 04 00 Bulkhead connector tube / tube na na na 4
0116 05 00 Bulkhead connector tube / tube na na na 5
0116 06 00 Bulkhead connector tube / tube na na na 6
0116 08 00 Bulkhead connector tube / tube na na na 8
0116 10 00 Bulkhead connector tube / tube na na na 10
0116 12 00 Bulkhead connector tube / tube na na na 12
0116 14 00 Bulkhead connector tube / tube na na na 14
0116 15 00 Bulkhead connector tube / tube na na na 15
0116 16 00 Bulkhead connector tube / tube na na na 16
0116 18 00 Bulkhead connector tube / tube na na na 18
0116 20 00 Bulkhead connector tube / tube na na na 20
0116 22 00 Bulkhead connector tube / tube na na na 22
0118 04 10 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/8 4
0118 05 10 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/8 5
0118 06 10 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/8 6
0118 06 13 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/4 6
0118 08 10 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/8 8
0118 08 13 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/4 8
0118 08 17 39 Male stud single banjo thread with Bi-Material Seal na BSPP G3/8 8
0118 10 13 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/4 10
0118 10 17 39 Male stud single banjo thread with Bi-Material Seal na BSPP G3/8 10
0118 12 13 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/4 12
0118 12 17 39 Male stud single banjo thread with Bi-Material Seal na BSPP G3/8 12
0118 14 13 Male stud single banjo thread with Captive Sealing Washer na BSPP G1/4 14
0118 14 13 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/4 14
0118 14 17 39 Male stud single banjo thread with Bi-Material Seal na BSPP G3/8 14
0118 14 21 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/2 14
0118 15 17 Male stud single banjo thread with Captive Sealing Washer na BSPP G3/8 15
0118 15 21 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/2 15
0118 16 21 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/2 16
0118 18 21 39 Male stud single banjo thread with Bi-Material Seal na BSPP G1/2 18
0118 20 27 Male stud single banjo thread with Captive Sealing Washer na BSPP G3/4 20
0118 20 27 39 Male stud single banjo thread with Bi-Material Seal na BSPP G3/4 20
0118 22 27 39 Male stud single banjo thread with Bi-Material Seal na BSPP G3/4 22
0119 04 10 39 Male stud double banjo thread with Bi-Material Seal na BSPP G1/8 4
0119 06 10 39 Male stud double banjo thread with Bi-Material Seal na BSPP G1/8 6
0119 08 10 39 Male stud double banjo thread with Bi-Material Seal na BSPP G1/8 8
0119 08 13 Male stud double banjo thread with Captive Sealing Washer na BSPP G1/4 8
0119 08 13 39 Male stud double banjo thread with Bi-Material Seal na BSPP G1/4 8
0119 08 17 Male stud double banjo thread with Captive Sealing Washer na BSPP G3/8 8
0119 10 13 39 Male stud double banjo thread with Bi-Material Seal na BSPP G1/4 10
0119 12 13 39 Male stud double banjo thread with Bi-Material Seal na BSPP G1/4 12
0119 14 17 39 Male stud double banjo thread with Bi-Material Seal na BSPP G3/8 14
0119 14 21 39 Male stud double banjo thread with Bi-Material Seal na BSPP G1/2 14
0119 18 21 39 Male stud double banjo thread with Bi-Material Seal na BSPP G1/2 18
0119 22 27 39 Male stud double banjo thread with Bi-Material Seal na BSPP G3/4 22
0142 04 00 Tube / tube Y with mounting boss na na na 4
0142 06 00 Tube / tube Y with mounting boss na na na 6
0142 08 00 Tube / tube Y with mounting boss na na na 8
0142 10 00 Tube / tube Y with mounting boss na na na 10
0142 12 00 Tube / tube Y with mounting boss na na na 12
0142 14 00 Tube / tube Y with mounting boss na na na 14
0199 04 10 Male stud elbow adjustable 90° thread NBR BSPP G1/8 4
0199 04 13 Male stud elbow adjustable 90° thread NBR BSPP G1/4 4
0199 06 10 Male stud elbow adjustable 90° thread NBR BSPP G1/8 6
0199 06 13 Male stud elbow adjustable 90° thread NBR BSPP G1/4 6
0199 08 10 Male stud elbow adjustable 90° thread NBR BSPP G1/8 8
0199 08 13 Male stud elbow adjustable 90° thread NBR BSPP G1/4 8
0199 08 17 Male stud elbow adjustable 90° thread NBR BSPP G3/8 8
0199 10 13 Male stud elbow adjustable 90° thread NBR BSPP G1/4 10
0199 10 17 Male stud elbow adjustable 90° thread NBR BSPP G3/8 10
0199 10 21 Male stud elbow adjustable 90° thread NBR BSPP G1/2 10
0199 14 17 Male stud elbow adjustable 90° thread NBR BSPP G3/8 14
0199 14 21 Male stud elbow adjustable 90° thread NBR BSPP G1/2 14
0199 18 21 Male stud elbow adjustable 90° thread NBR BSPP G1/2 18
0199 18 27 Male stud elbow adjustable 90° thread NBR BSPP G3/4 18
0199 22 27 Male stud elbow adjustable 90° thread NBR BSPP G3/4 22
0199 22 34 Male stud elbow adjustable 90° thread NBR BSPP G1 22
0199 28 34 Male stud elbow adjustable 90° thread NBR BSPP G1 28









美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
