Parker Fittings接头
Parker派克流体连接件Parker fluid connectors

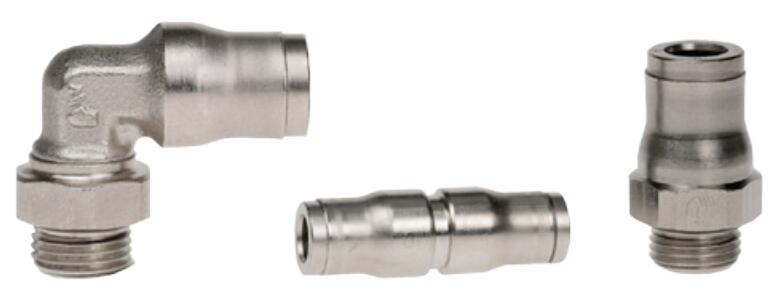

派克 LF 3600 系列铜镀镍快插式接头
Parker Legris LF 3600 Chemical Nickel-Plated Brass Push-In Fittings

为了满足您的技术和环境要求，派克乐可利设计了该系列的金属快插式接头，在大多数苛刻环境下能够为工业流体提供稳定、可靠和耐用的连接方案。 In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.







为了达到您的技术和环境要求，派克乐可利设计了该系列的金属快插式接头，在大多数苛刻环境下能够为工业流体提供稳定、值得信赖和耐用的连接方案。 In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.







LF 3600 Chemical Nickel-Plated Brass Push-In Fittings





Legris铜镀镍快速接头

3601直接头 型号 直径 D C
BSPP&M5 3601 06 10 6 G1/8

3601 06 13 6 G1/4
3601 08 10 8 G1/8
3601 08 13 8 G1/4
3601 08 17 8 G3/8
3601 10 13 10 G1/4
3601 10 17 10 G3/8
3601 10 21 10 G1/2
3601 12 13 12 G1/4
3601 12 17 12 G3/8
3601 12 21 12 G1/2





3639穿板直角接头 型号 直径 D

3639 04 00 4
3639 06 00 6
3639 08 00 8
3639 10 00 10
3639 12 00 12
3639 14 00 14





3609直角接头 型号 直径 D C
BSPT 3609 04 10 4 R1/8

3609 04 13 4 R1/4
3609 06 10 6 R1/8
3609 06 13 6 R1/4
3609 08 10 8 R1/8
3609 08 13 8 R1/4
3609 08 17 8 R3/8
3609 10 13 10 R1/4
3609 10 17 10 R3/8
3609 12 13 12 R1/4
3609 12 17 12 R3/8
3609 12 21 12 R1/2
3609 14 17 14 R3/8
3609 14 21 14 R1/2





3699直角接头 型号 直径 D C
BSPP&M5 3699 04 10 4 G1/8

3699 04 13 4 G1/4
3699 06 10 6 G1/8
3699 06 13 6 G1/4
3699 08 10 8 G1/8
3699 08 13 8 G1/4
3699 08 17 8 G3/8
3699 10 13 10 G1/4
3699 10 17 10 G3/8
3699 12 13 12 G1/4
3699 12 17 12 G3/8
3699 12 21 12 G1/2
3699 14 17 14 G3/8
3699 14 21 14 G1/2
3699 04 52 4 M6 X1





3616管对管穿板直接头 型号 直径 D

3616 04 00 4
3616 06 00 6
3616 08 00 8
3616 10 00 10
3616 12 00 12
3616 14 00 14





3636内螺纹穿板直接头 型号 直径 D C
BSPP 3636 04 10 4 G1/8

3636 06 10 6 G1/8
3636 06 13 6 G1/4
3636 08 10 8 G1/8
3636 08 13 8 G1/4
3636 10 17 10 G3/8






- Resistant up to +150°C at 30 bar
- Excellent mechanical performance
- Long threads to resist shock and vibration
- Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
- Full flow, minimal pressure drop
> 性能出色
- 能够耐受30 bar压力，+150?C的环境
- 突出的机械性能
- 防冲击和振动的加长型螺纹
- 由于采用高磷化学镀镍，因此具备突出的耐磨损和防腐蚀性能
- 全流量，压降小

> Versatility
- Materials conform to FDA standards
- Spring collet gripping system suitable for both metal(grooved) and polymer tubing
- Excellent resistance to high pressure and vacuum
- Excellent chemical compatibility
- More than 250 part numbers
- One ?tting for numerous applications: stock optimisation
- Manual connection and disconnection
- Compact and ergonomic
> 多功能性
- 材质符合美国食品和药物管理局标准
- 弹簧卡爪可用于连接金属管（槽型）和塑料软管
- 卓越的高压和真空能力
- 出色的化学相容性
- 超过250个产品型号
- 一款接头可适用于多种应用：库存优化
- 手动快速连接和拆卸
- 紧凑、美观、符合人体工程学的设计

> Reliability
- High performance brass for increased lifespan
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
> 稳定性
- 高性能铜材质可提高使用寿命
- 生产环节防泄漏全检
- 可质量追踪的可追溯性日期代码



产品类型PRODUCT TYPES:

- Stud Fittings
- Stud Standpipe
- Cartridge
- Stud Elbow
- Extended Stud Elbow
- Compact Elbow
- Stud Branch Tee
- Stud Run Tee
- Single Banjo
- Tube-To-Tube Fittings
- Equal Tube-To-Tube Connector
- Equal Elbow
- Equal Tee
- Bulkhead Connector Fittings
- Equal Bulkhead Connector
- Bulkhead Connector
- Equal Bulkhead Elbow
- Plug-In Reducer
- Plug-In Adaptor
- Plug-In Increaser
- Plug-In Barb Connector
- Stem Connector
- Blanking Plug
- Disconnection Tool
- Release Button Covers
- 油口接头
- 带尾管的油口接头
- 埋入式
- 油口弯头
- 加长型油口弯头
- 紧凑型弯头
- 支管油口三通
- 直管油口三通
- 铰接接头
- 管对管接头
- 管对管弯通连接件
- 等径弯头
- 等径三通
- 隔板连接接头
- 等径隔板连接接头
- 隔板接头
- 等径隔板弯头
- 减径插杆接头
- 插杆过渡接头
- 插杆膨胀接头
- 插杆宝塔连接接头
- 插杆连接件
- 堵头
- 断开工具
- 释放钮盖



应用APPLICATIONS:

- Food Process
- Coffee Machines
- In-Plant Automotive
- Medical Equipment
- Printing
- Misting
- Welding Robots
- 食品加工
- 咖啡机
- 汽车生产
- 医用器材
- 印刷
- 雾化
- 焊接机器人



技术特点TECHNICAL CHARACTERISTICS:

- Fluids: Compressed Air, Grease, Lubricant, Water
- Materials: Chemical nickel-plated brass, FKM
- Pressure: Vacuum to 30 bar
- Temperature: -20°C to +150°C
- 直径 metric: 4-14 mm
- 流体：压缩空气，润滑脂，润滑剂，水
- 材料：化学镀镍黄铜，FKM
- 压力：真空至30bar
- 温度：-20°C至+ 150°C
- 直径 公制：4-14 mm



法规REGULATIONS:

>Industrial
- ISO 14743: pneumatic transmissions, push-in ?ttings for thermoplastic tubing
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- RG: 1907/2006 (REACH)
- DI: 94/9/EC (ATEX )
- UL94 V-0: please consult us
>Food
- RG: 21CFR (FDA)
- RG: 1935/2004/EC (minimum ? ow 0.02 l/h)
- USDA NSF H1: grease
- ASTM B733-04: autocatalytic (electroless) nickel-phosphorus coatings
>工业
- ISO 14743: 气动传动装置，用于热塑性管材的快插接头
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- RG:1907/2006 (REACH)
- DI:94/9/EC (ATEX )
- UL94 V-0: 请咨询我们
>食品
- RG:21CFR (FDA)
- RG:1935/2004/EC (低流量可达0.02 l/h)
- USDA NSF H1: 油脂
- ASTM B733-04: 自催化（无电解）镍磷涂层



技术Technologies:

- Stud Fittings
- Tube-to-Tube Fittings
- Bulkhead Connectors
- Push-In Fittings
- Nickel-Plated Brass Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings
- 油口接头
- 管对管接头
- 隔板连接件
- 快插接头
- 铜镀镍快插接头
- 快插接头
- 气动接头
- 即时接头
- 快速接头
- 连接件
- 旋转接头



Technical Specifications

Application: Food & Beverage, Pneumatics, Automotive Process, Medical/Pharmaceutical, Compressed Air/Inert Gas, Vacuum
Minimum Operating Temperature: -25 °C, -13 °F
Maximum Operating Pressure: 3 MPa, 30 bar, 435 psi
Maximum Operating Temperature: 302 °F, 150 °C
Tube Outside Diameter: 4 to 14 mm
Connection Type: Compression, Compression/thread, Plug-in
Specifications Met: Industrial : ISO 14743 - DI: 97/23/EC (PED) - RG: 1907/2006 (REACH) - DI: 2002/95/EC (RoHs), 2011/65/EC - DI: 94/09/EC (ATEX) - Food : RG: 21CFR (FDA) - RG: 1935/2004/EC - USDA NSF H1: Grease - ASTM B733-04: autocatalytic (electroless) nickel-phosphorus coatings, Industrial - ISO 14743: pneumatic transmissions, push-in fittings for thermoplastic tubing, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, RG: 1907/2006 (REACH), DI: 94/9/EC (ATEX ), UL94 V-0: please consult us -- Food - RG: 21CFR (FDA), RG: 193
Materials of Construction: Nickel Plated Brass, Rubber
Shape: Straight, Banjo, 90°, Tee
Vacuum Pressure Rating: 755 mm-Hg
Quantity per Box: 5 to 100
Weight: 0,01 to 0,322 kg
Media: Compressed air, grease, lubricant, water





LF 3600 Chemical Nickel-Plated Brass Push-In Fittings 型号



部件号 产品类型 形状 阀体材料 O 型圈材料 颜色 连接1螺纹形式 连接1螺纹尺寸（公制） 连接2管件外径（英寸） 连接2管件外径（毫米） 连接3管件外径（毫米） 连接4管件外径（英寸） 连接4管件外径（毫米）
3601 04 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3601 04 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 4 na na na
3601 04 19 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3601 04 20 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na UNF 10-32 5/32 na na na na
3601 04 52 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M6x1 na 4 na na na
3601 04 56 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M8x1 na 4 na na na
3601 06 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3601 06 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3601 06 19 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 6 na na na
3601 06 60 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M10x1 na 6 na na na
3601 08 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3601 08 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3601 08 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 8 na na na
3601 10 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3601 10 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3601 10 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 10 na na na
3601 12 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 12 na na na
3601 12 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3601 12 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3601 14 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 14 na na na
3601 14 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3601 56 20 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na UNF 10-32 1/4 na na na na
3602 04 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3602 06 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3602 08 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3602 10 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3602 12 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3602 14 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3602 56 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 1/4 na na na na
3602 60 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 3/8 na na na na
3602 62 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 1/2 na na na na
3603 04 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3603 04 11 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 5/32 na na na na
3603 06 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3603 06 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3603 08 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3603 08 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3603 10 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3603 10 17 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 10 na na na
3603 12 17 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 12 na na na
3603 14 21 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 14 na na na
3603 56 14 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 1/4 na na na na
3603 60 22 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 3/8 na na na na
3603 62 18 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/2 na na na na
3603 62 22 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 1/2 na na na na
3604 04 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3604 06 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3604 08 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3604 10 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3604 12 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3604 14 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3606 04 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3606 06 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3606 08 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3606 10 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3606 12 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3606 14 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3608 04 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3608 04 11 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 5/32 na na na na
3608 06 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3608 06 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3608 08 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3608 08 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3608 10 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3608 10 17 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 10 na na na
3608 12 17 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 12 na na na
3608 14 21 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 14 na na na
3608 62 18 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/2 na na na na
3609 04 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3609 04 11 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 5/32 na na na na
3609 04 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 4 na na na
3609 04 14 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 5/32 na na na na
3609 06 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3609 06 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3609 08 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3609 08 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3609 08 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 8 na na na
3609 10 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3609 10 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 10 na na na
3609 12 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 12 na na na
3609 12 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 12 na na na
3609 12 21 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 12 na na na
3609 14 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 14 na na na
3609 14 21 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 14 na na na
3609 56 11 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 1/4 na na na na
3609 56 14 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 1/4 na na na na
3609 56 18 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/4 na na na na
3609 60 14 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 3/8 na na na na
3609 60 18 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 3/8 na na na na
3609 60 22 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 3/8 na na na na
3609 62 18 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/2 na na na na
3609 62 22 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 1/2 na na na na
3610 06 00 Accessories Release button covers ANODIZED ALUMINIUM na NATURAL na na na 6 na na na
3610 06 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 6 na na na
3610 08 00 Accessories Release button covers ANODIZED ALUMINIUM na NATURAL na na na 8 na na na
3610 08 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 8 na na na
3610 10 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 10 na na na
3610 12 00 Accessories Release button covers ANODIZED ALUMINIUM na NATURAL na na na 12 na na na
3610 12 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 12 na na na
3610 14 00 Accessories Release button covers ANODIZED ALUMINIUM na NATURAL na na na 14 na na na
3610 14 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 14 na na na
3614 04 10 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3614 04 13 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 4 na na na
3614 04 19 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3614 06 10 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3614 06 13 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3614 08 10 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3614 08 13 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3614 10 17 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3614 12 17 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3614 12 21 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3616 04 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3616 06 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3616 08 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3616 10 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3616 12 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3616 14 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3616 56 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 1/4 na na na na
3616 60 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 3/8 na na na na
3616 62 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 1/2 na na na na
3618 04 10 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3618 04 19 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3618 06 10 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3618 06 13 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3618 06 19 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 6 na na na
3618 08 10 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3618 08 13 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3618 10 17 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3620 04 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 4 na na na
3620 06 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 6 na na na
3620 08 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 8 na na na
3620 10 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 10 na na na
3620 12 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 12 na na na
3620 14 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 14 na na na
3621 04 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/8 na 4 na na na
3621 06 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/8 na 6 na na na
3621 06 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/4 na 6 na na na
3621 08 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/8 na 8 na na na
3621 08 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/4 na 8 na na na
3621 10 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/4 na 10 na na na
3621 10 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R3/8 na 10 na na na
3621 12 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R3/8 na 12 na na na
3621 12 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/2 na 12 na na na
3621 14 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/2 na 14 na na na
3622 04 05 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 4 na 5
3622 04 53 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 4 na 3,2
3622 06 05 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 6 na 5
3622 08 08 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 8 na 8
3622 08 56 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 8 na 6,3
3622 10 08 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 10 na 8
3622 10 56 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 10 na 6,3
3622 12 08 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 12 na 8
3622 12 10 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 12 na 10
3622 12 62 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 12 na 12,5
3622 14 14 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 14 na 14
3622 14 62 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 14 na 12,5
3626 04 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 4 na na na
3626 06 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 6 na na na
3626 08 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 8 na na na
3626 10 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 10 na na na
3626 12 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 12 na na na
3626 14 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 14 na na na
3629 04 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3629 06 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3629 06 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3629 08 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3629 08 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3629 10 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3631 04 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3631 04 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 4 na na na
3631 04 19 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3631 06 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3631 06 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3631 08 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3631 08 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3631 08 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 8 na na na
3631 10 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3631 10 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3631 10 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 10 na na na
3631 12 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3631 12 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3631 14 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3636 04 10 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3636 06 10 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3636 06 13 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3636 08 10 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3636 08 13 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3636 10 17 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3636 12 17 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3636 12 21 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3639 04 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3639 06 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3639 08 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3639 10 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3639 12 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3639 14 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3666 04 06 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 4 na 6
3666 04 08 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 4 na 8
3666 06 08 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 6 na 8
3666 06 10 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 6 na 10
3666 08 10 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 8 na 10
3666 08 12 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 8 na 12
3666 10 12 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 10 na 12
3666 12 14 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 12 na 14
3667 06 56 Plug-In Accessories Adaptor metric / imperial with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 6 1/4 na
3667 10 60 Plug-In Accessories Adaptor metric / imperial with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 10 3/8 na
3667 12 62 Plug-In Accessories Adaptor metric / imperial with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 12 1/2 na
3668 06 04 Plug-In Accessories Increase with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 6 na 4
3669 04 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3669 04 19 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3669 06 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3669 06 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3669 08 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3669 08 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3669 10 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3669 10 17 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3669 12 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 12 na na na
3669 12 17 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3669 14 21 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3675 04 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3675 04 11 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 5/32 na na na na
3675 04 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 4 na na na
3675 04 14 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 5/32 na na na na
3675 06 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3675 06 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3675 08 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3675 08 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3675 08 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 8 na na na
3675 10 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3675 10 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 10 na na na
3675 10 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 10 na na na
3675 12 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 12 na na na
3675 12 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 12 na na na
3675 12 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 12 na na na
3675 14 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 14 na na na
3675 14 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 14 na na na
3675 56 18 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/4 na na na na
3675 60 22 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 3/8 na na na na
3675 62 22 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 1/2 na na na na
3681 04 19 Stud Fittings Male stud fitting thread with internal hexagon FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3693 04 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3693 04 19 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3693 04 20 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na UNF 10-32 5/32 na na na na
3693 06 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3693 06 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3693 08 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3693 08 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3693 10 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3693 12 17 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3693 14 21 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3698 04 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3698 04 19 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3698 06 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3698 06 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3698 08 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3698 08 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3698 10 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3698 12 17 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3698 14 21 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3699 04 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3699 04 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 4 na na na
3699 04 19 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3699 04 20 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na UNF 10-32 5/32 na na na na
3699 04 52 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M6x1 na 4 na na na
3699 04 56 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M8x1 na 4 na na na
3699 06 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3699 06 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3699 06 60 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M10x1 na 6 na na na
3699 08 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3699 08 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3699 08 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 8 na na na
3699 10 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3699 10 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3699 12 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 12 na na na
3699 12 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3699 12 21 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3699 14 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 14 na na na
3699 14 21 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na










美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
