Parker派克流体连接件Parker fluid connectors

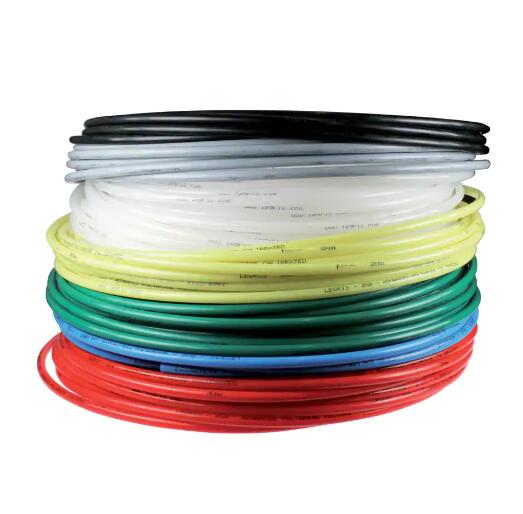

派克 软质尼龙(PA)管
Parker Polyamide (PA) Flexible Tubing

经试验证明,对于工业或车辆行业,由于尼龙管有长期稳定的机械特性,可以保证优秀的 耐用性。派克乐可利半硬质尼龙管根据我们的生态设计原理制造而成,可实现更高的技术性能。 Tried-and-tested for industrial or vehicle applications, PA tubing guarantees excellent durability due to its stable long-term mechanical properties.
Special grade of semi-rigid polyamide manufactured according to our Eco-Design approach.





经试验证明,对于工业或车辆行业,由于尼龙管具有长期稳定的机械特性,可以获得优越的耐用性。Tried-and-tested for industrial or vehicle applications, PA tubing guarantees excellent durability due to its stable long-term mechanical properties.

派克乐可利特种级别的半硬质尼龙管根据我们的生态设计原理制造而成,可实现更高的技术性能。Parker Legris' special grade of semi-rigid polyamide is manufactured according to our Eco-Design approach for higher performance.



Parker 软质尼龙(PA)管Polyamide (PA) Flexible Tubing 技术资料



Legris精密尼龙管

1025P精密尼龙管 型号 外径mm 内径mm 常温下min.弯曲半径mm 颜色
25米/卷 1025P04 00 27 4 2.7 30

1025P04 01 27 4 2.7 30
1025P04 04 27 4 2.7 30
1025P04 05 27 4 2.7 30
1025P06 00 6 4 35
1025P06 01 6 4 35
1025P06 04 6 4 35
1025P06 05 6 4 35
1025P08 00 8 6 55
1025P08 01 8 6 55
1025P08 04 8 6 55
1025P08 05 8 6 55
1025P10 00 75 10 7.5 75
1025P10 01 75 10 7.5 75
1025P10 04 75 10 7.5 75
1025P12 00 09 12 9 75
1025P12 01 09 12 9 75
1025P12 04 09 12 9 75
1025P14 00 11 14 11 100
1025P14 01 11 14 11 100
1025P14 04 11 14 11 100





1100P精密尼龙管 型号 外径mm 内径mm 常温下min.弯曲半径mm 颜色
100米/卷 1100P04 00 27 4 2.7 30

1100P04 01 27 4 2.7 30
1100P04 04 27 4 2.7 30
1100P04 05 27 4 2.7 30
1100P06 00 6 4 35
1100P06 01 6 4 35
1100P06 04 6 4 35
1100P06 05 6 4 35
1100P08 00 8 6 55
1100P08 01 8 6 55
1100P08 04 8 6 55
1100P08 05 8 6 55
1100P10 00 75 10 7.5 75
1100P10 01 75 10 7.5 75
1100P10 04 75 10 7.5 75
1100P12 00 09 12 9 75
1100P12 01 09 12 9 75
1100P12 04 09 12 9 75
1100P14 00 14 12 100
1100P14 01 14 12 100
1100P14 04 14 12 100
1100P10 00 10 8 100
1100P10 01 10 8 100
1100P10 04 10 8 100
1100P12 01 12 10 100
1100P12 04 12 10 100
1100P16 01 13 16 13 100





特点/优势Features/Benefits:

> Tried-&-Tested Material

- Good chemical and humidity resistance
- Excellent material stability (mechanical and chemical)
- Continuous calibration during production for excellent reliability
- Two material grades: rigid and semi-rigid
- Bio-based semi-rigid material

> 经过试验证明的材料

- 良好的耐化学性和防水性
- 优越的材料稳定性(机械和化学)
- 生产过程中的连续尺寸校准,非常高的稳定性
- 两种级别的材料:硬质和半硬质
- 环保半硬质材料

> Versatility & Performance

- Wide range of working pressure and temperature
- Good vibration absorption
- Abrasion-resistant
- Remaining length marking
- Large choice of colours to facilitate circuit identification
- Silicone-free

> 应用广泛和性能卓越

- 工作压力和工作温度适用范围广
- 良好的抗振性
- 耐磨性能佳
- 剩余长度标记
- 大量颜色可供选择,便于回路识别
- 不含硅



市场Markets:

- Factory Automation
- Miscellaneous Manufacturing
- Packaging
- Machine Tools
- 工厂自动化
- 其他制造业
- 包装
- 机床



应用Applications:

- Standard Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vacuum Applications
- Applications Subjected to Mechanical Stress (Rigid PA)
- 标准气动机械设备
- 低压压缩空气输送
- 适用于真空应用
- 适合于有机械应力的应用(刚性PA管)



技术Technologies:

- PA Tubing
- Polyamide Tubing
- Flexible Tubing
- Flexible Tube
- Semi Rigid Tubing
- Industrial Tubing
- PA管
- 尼龙管
- 柔性管
- 半刚性管
- 工业管



技术特点Technical Characteristics:

Fluids:
- Semi-Rigid PA: Compressed air, other fluids
- Rigid PA: Compressed air, lubricants, other fluids
Materials:
- Semi-Rigid PA: Bio-based polyamide (68 shore D)
- Rigid PA: Polyamide (65 shore D)
流体:
- 半刚性PA:压缩空气,其他流体
- 刚性PA:压缩空气,润滑剂,其他流体
材料:
- 半刚性PA:生物基尼龙(邵氏硬度D68)
- 刚性PA:尼龙(邵氏硬度D65)

Pressure:
- Semi-Rigid PA: Vacuum to 50 bar
- Rigid PA: Vacuum to 60 bar
压力:
- 半刚性PA:真空至50bar
- 刚性PA:真空至60bar

Temperature:
- Semi-Rigid PA: -40°C to +100°C
- Rigid PA: -40°C to +80°C
温度:
- 半刚性PA:-40°C至+ 100°C
- 刚性PA:-40°C至+ 80°C



Regulations:

Industrial
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
- RG: 1907/2006 (REACH)

Transportation
- Chemical performance and resistance tested according to
DIN 74324 -1 / DIN 73378 / ISO 7628
交通运输
- 根据化学性能和电阻测试DIN 74324-1 / DIN 73378 / ISO 7628



产品类型Product Types:

- Semi-rigid PA Tubing
- Rigid PA Tubing
- 半刚性PA管
- 刚性PA管



Parker Polyamide (PA) Flexible Tubing型号

部件号 管件材料 管件外径(毫米) 管件的内径(毫米) 颜色 长度(米)
1025L04 01 25 PA - 65 SHORE D 4 2,5 BLACK 25
1025L06 01 PA - 65 SHORE D 6 4 BLACK 25
1025L08 01 PA - 65 SHORE D 8 6 BLACK 25
1025L08 01 05 PA - 65 SHORE D 8 5 BLACK 25
1025L10 01 06 PA - 65 SHORE D 10 6 BLACK 25
1025P03 00 18 PA 3 1,8 NATURAL 25
1025P03 04 18 PA 3 1,8 BLUE 25
1025P04 00 PA 4 2 NATURAL 25
1025P04 00 27 PA 4 2,7 NATURAL 25
1025P04 01 PA 4 2 BLACK 25
1025P04 01 27 PA 4 2,7 BLACK 25
1025P04 02 PA 4 2 GREEN 25
1025P04 02 27 PA 4 2,7 GREEN 25
1025P04 03 PA 4 2 RED 25
1025P04 03 27 PA 4 2,7 RED 25
1025P04 04 PA 4 2 BLUE 25
1025P04 04 27 PA 4 2,7 BLUE 25
1025P04 05 PA 4 2 YELLOW 25
1025P04 05 27 PA 4 2,7 YELLOW 25
1025P04 06 27 PA 4 2,7 GREY 25
1025P05 00 33 PA 5 3,3 NATURAL 25
1025P05 01 33 PA 5 3,3 BLACK 25
1025P05 04 33 PA 5 3,3 BLUE 25
1025P06 00 PA 6 4 NATURAL 25
1025P06 01 PA 6 4 BLACK 25
1025P06 02 PA 6 4 GREEN 25
1025P06 03 PA 6 4 RED 25
1025P06 04 PA 6 4 BLUE 25
1025P06 05 PA 6 4 YELLOW 25
1025P06 06 PA 6 4 GREY 25
1025P08 00 PA 8 6 NATURAL 25
1025P08 01 PA 8 6 BLACK 25
1025P08 02 PA 8 6 GREEN 25
1025P08 03 PA 8 6 RED 25
1025P08 04 PA 8 6 BLUE 25
1025P08 05 PA 8 6 YELLOW 25
1025P08 06 PA 8 6 GREY 25
1025P10 00 PA 10 8 NATURAL 25
1025P10 00 75 PA 10 7,5 NATURAL 25
1025P10 01 PA 10 8 BLACK 25
1025P10 01 75 PA 10 7,5 BLACK 25
1025P10 02 PA 10 8 GREEN 25
1025P10 03 PA 10 8 RED 25
1025P10 04 PA 10 8 BLUE 25
1025P10 04 75 PA 10 7,5 BLUE 25
1025P10 05 PA 10 8 YELLOW 25
1025P10 06 PA 10 8 GREY 25
1025P12 00 PA 12 10 NATURAL 25
1025P12 00 09 PA 12 9 NATURAL 25
1025P12 01 PA 12 10 BLACK 25
1025P12 01 09 PA 12 9 BLACK 25
1025P12 04 PA 12 10 BLUE 25
1025P12 04 09 PA 12 9 BLUE 25
1025P12 05 PA 12 10 YELLOW 25
1025P14 00 PA 14 12 NATURAL 25
1025P14 00 11 PA 14 11 NATURAL 25
1025P14 01 PA 14 12 BLACK 25
1025P14 01 11 PA 14 11 BLACK 25
1025P14 04 PA 14 12 BLUE 25
1025P14 04 11 PA 14 11 BLUE 25
1025P16 00 13 PA 16 13 NATURAL 25
1025P16 01 13 PA 16 13 BLACK 25
1025P16 02 13 PA 16 13 GREEN 25
1025P16 03 13 PA 16 13 RED 25
1025P16 04 13 PA 16 13 BLUE 25
1100P04 00 PA 4 2 NATURAL 100
1100P04 00 27 PA 4 2,7 NATURAL 100
1100P04 01 PA 4 2 BLACK 100
1100P04 01 27 PA 4 2,7 BLACK 100
1100P04 02 PA 4 2 GREEN 100
1100P04 02 27 PA 4 2,7 GREEN 100
1100P04 03 PA 4 2 RED 100
1100P04 03 27 PA 4 2,7 RED 100
1100P04 04 PA 4 2 BLUE 100
1100P04 04 27 PA 4 2,7 BLUE 100
1100P04 05 PA 4 2 YELLOW 100
1100P04 05 27 PA 4 2,7 YELLOW 100
1100P04 06 PA 4 2 GREY 100
1100P04 06 27 PA 4 2,7 GREY 100
1100P05 00 33 PA 5 3,3 NATURAL 100
1100P05 04 33 PA 5 3,3 BLUE 100
1100P06 00 PA 6 4 NATURAL 100
1100P06 01 PA 6 4 BLACK 100
1100P06 02 PA 6 4 GREEN 100
1100P06 03 PA 6 4 RED 100
1100P06 04 PA 6 4 BLUE 100
1100P06 05 PA 6 4 YELLOW 100
1100P06 06 PA 6 4 GREY 100
1100P08 00 PA 8 6 NATURAL 100
1100P08 01 PA 8 6 BLACK 100
1100P08 02 PA 8 6 GREEN 100
1100P08 03 PA 8 6 RED 100
1100P08 04 PA 8 6 BLUE 100
1100P08 05 PA 8 6 YELLOW 100
1100P08 06 PA 8 6 GREY 100
1100P10 00 PA 10 8 NATURAL 100
1100P10 00 75 PA 10 7,5 NATURAL 100
1100P10 01 PA 10 8 BLACK 100
1100P10 01 75 PA 10 7,5 BLACK 100
1100P10 02 PA 10 8 GREEN 100
1100P10 03 PA 10 8 RED 100
1100P10 04 PA 10 8 BLUE 100
1100P10 04 75 PA 10 7,5 BLUE 100
1100P10 05 PA 10 8 YELLOW 100
1100P12 00 PA 12 10 NATURAL 100
1100P12 00 09 PA 12 9 NATURAL 100
1100P12 01 PA 12 10 BLACK 100
1100P12 01 09 PA 12 9 BLACK 100
1100P12 04 PA 12 10 BLUE 100
1100P12 04 09 PA 12 9 BLUE 100
1100P12 06 PA 12 10 GREY 100
1100P14 00 PA 14 12 NATURAL 100
1100P14 00 11 PA 14 11 NATURAL 100
1100P14 01 PA 14 12 BLACK 100
1100P14 01 11 PA 14 11 BLACK 100
1100P14 04 PA 14 12 BLUE 100
1100P14 04 11 PA 14 11 BLUE 100
1100P16 00 13 PA 16 13 NATURAL 100
1100P16 01 13 PA 16 13 BLACK 100
1100P16 02 13 PA 16 13 GREEN 100
1100P16 03 13 PA 16 13 RED 100
1100P16 04 13 PA 16 13 BLUE 100
2005P08 00 PA 8 6 NATURAL 500
2005P08 01 PA 8 6 BLACK 500
2005P08 02 PA 8 6 GREEN 500
2005P08 03 PA 8 6 RED 500
2005P08 04 PA 8 6 BLUE 500
2005P08 05 PA 8 6 YELLOW 500
2005P10 00 PA 10 8 NATURAL 500
2005P10 01 PA 10 8 BLACK 500
2005P10 02 PA 10 8 GREEN 500
2005P10 03 PA 10 8 RED 500
2005P10 04 PA 10 8 BLUE 500
2005P10 05 PA 10 8 YELLOW 500
2010P04 00 27 PA 4 2,7 NATURAL 1000
2010P04 01 27 PA 4 2,7 BLACK 1000
2010P04 02 27 PA 4 2,7 GREEN 1000
2010P04 03 27 PA 4 2,7 RED 1000
2010P04 04 27 PA 4 2,7 BLUE 1000
2010P04 05 27 PA 4 2,7 YELLOW 1000
2010P06 00 PA 6 4 NATURAL 1000
2010P06 01 PA 6 4 BLACK 1000
2010P06 02 PA 6 4 GREEN 1000
2010P06 03 PA 6 4 RED 1000
2010P06 04 PA 6 4 BLUE 1000
2010P06 05 PA 6 4 YELLOW 1000
2010P06 06 PA 6 4 GREY 1000
