Parker派克流体连接件Parker fluid connectors
派克乐可利 Legris聚氨酯气管

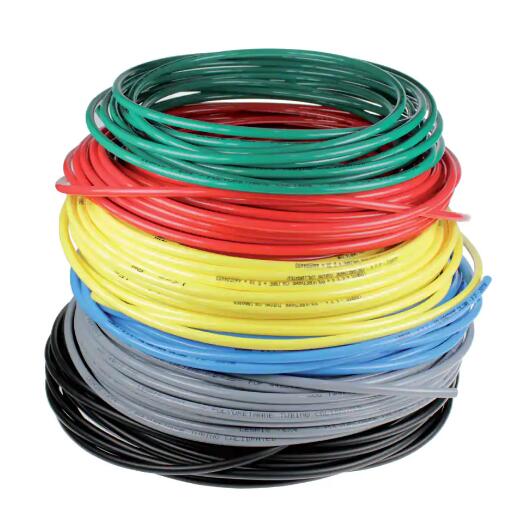

Parker Legris Polyurethane PU Tubing

3种材质的PU管——聚醚、聚酯和食品级“聚醚透明”管——材质柔软、性能出色、用途广泛，与标准尼龙管相比，可以节省大约50%的安装空间。 Polyurethane's 3 specific materials - ether, ester and food-grade "crystal" - offer excellent flexibility and outstanding use in a wide range of applications, allowing for up to 50% space reduction when compared to semi-rigid PA tubing.

3种材质的PU管-聚醚、聚酯和食品级“聚醚透明”管-材质柔软、性能出色、用途广泛，与标准尼龙管相比，可以节省大约50%的安装空间。Polyurethane's 3 specific materials - ether, ester and food-grade "crystal" - offer excellent flexibility and outstanding use in a wide range of applications, allowing for up to 50% space reduction when compared to semi-rigid PA tubing.

派克乐可利 Legris聚氨酯气管Parker Legris Polyurethane PU Tubing 资料下载

Legris聚氨酯气管

特点/优势Features/Benefits:

> Excellent Mechanical Properties

- Consistent tensile strength for optimum longevity
- Optimal bend radius
- Good vibration absorption
- Unsurpassed abrasion resistance for a single layer tubing
- UV-resistant
- Superior vacuum capability due to surface hardness
- Remaining length marking
- Silicone-free

> 良好的机械性能

- 均匀的抗拉伸性可实现理想的使用寿命
- 更佳的弯曲半径
- 良好的抗振性
- 单层管耐磨性能好
- 防紫外线
- 良好的真空性能
- 剩余长度标识
- 不含硅

> 3 Material Grades

- PU ester: perfect for pneumatic applications
- PU ether: no water absorption; superior chemical resistance to PU ester
- PU ether food-grade "crystal":
identification of fluids and circuits
chemical resistance superior to PU ether
improved longevity

> 3种级别材质

- 聚酯类PU管：非常适合气动回路应用
- 聚醚类PU管：耐水性好；比聚酯PU具有更好的耐化学性
- 聚醚类食品级 “透明”PU管：
识别流体和不同回路
比聚酯PU具有更好的耐化学性
使用寿命长

市场Markets:

- Food and Beverage
- Miscellaneous Manufacturing
- Factory Automation
- Vehicle Assembly Facilities
- 食物与饮料
- 其他制造业
- 工厂自动化
- 汽车装配设施

应用Applications:

- Compressed Air and Industrial Fluids Conveying
- Standard Pneumatic Applications Requiring Rapid Cycles
- Applications Subjected to Water and High Humidity (PU ether)
- Suitable for Vacuum Applications
- 压缩空气和工业液体输送
- 需要快速循环的标准气动应用
- 应用于水和高湿度环境（PU醚）
- 适用于真空应用

技术Technologies:

- PU Tubing
- Polyurethane Tubing
- Industrial Tubing
- PU管
- 聚氨酯管
- 工业管

技术特点Technical Characteristics:

- Fluids: Compressed air, industrial fluids (depending on the material type)
- Materials: Polyurethane ester, Polyurethane ether, Polyurethane ether food-grade "crystal"
- Pressure: Vacuum to 12 bar
- Temperature: -20°C to +70°C
- 流体：压缩空气，工业液体（取决于材料类型）
- 材料：聚氨酯，聚醚，食品聚醚，“透明”
- 压力：真空至12 bar
- 温度：-20°C至+70°C

符合法规Regulations:

Industrial
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
- RG: 1907/2006 (REACH)
Food (PU ether food-grade "crystal")
- FDA: 21 CFR 177.2600, 178.3297, 176.170, 178.2010
- RG: 1935/2004 EC

产品类型Product Types:

- Polyurethane Ester Tubing
- Polyurethane Ether Tubing
- 聚氨酯管
- 聚醚管

Parker Legris Polyurethane PU Tubing型号
