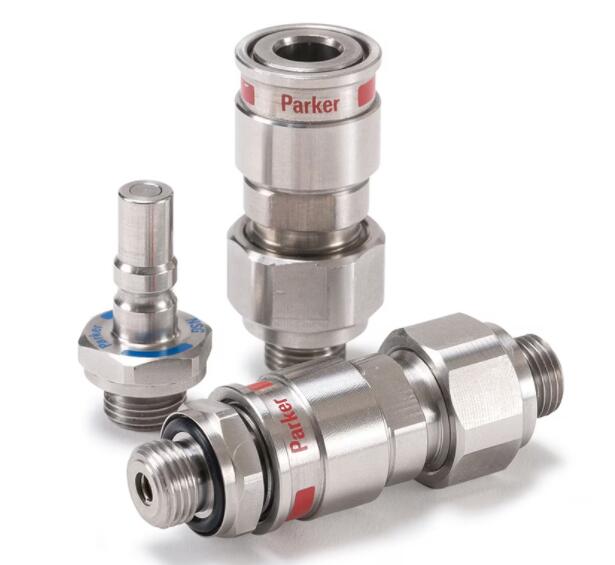

无溢流、液体冷却快换接头 - NSG系列
Flat Face Hydraulic, Liquid Cooling Quick Connect Couplings - NSG Series

无溢流的快换接头，适用于电子、服务器和超级计算机的液体冷却和热管理应用。NSG系列是带平齐端面阀芯的干式快换接头。紧凑的设计使其适合于狭小空间。双手操作，即连接/断开时需要双手操作。Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers.NSG Couplings are dry-break couplings with flat face valves. The compact design makes them suitable for reduced spaces. Coupling system with two-hand operation, i.e. both hands are required when connect/disconnect.

市场：

- 信息技术
- 电子产品
- 数据中心
- 超级计算机

特点/优势：

- 平齐端面阀芯可免于液体损失，并对电气元件进行优化保护
- 减少压降，以实现卓越的能源效率和系统性能
- 抗振动和旋转性能高
- 可兼容各种温度和流体的密封材料可供选择
- 清洁的制造工艺
- 全球制造和服务能力

应用：

- 液体冷却
- 热管理
- 数据中心
- 超级计算机
- 电子产品
- 服务器
- 机架式服务器系统

技术规格

应用: Hydraulics, Liquid Cooling, Thermal Management
半联轴器: Female Coupler
最大运行压力: 150 psi
连接类型: Male BSPP
连接螺纹尺寸: G 1/8
产品类型: Push to Connect
软管内径: N/A
最高运行温度: 158 °F
阀门类型: Flat Face
最低运行温度: -40 °F
主体尺寸: 3 mm
流速: 1.1 Gal/min
六角螺母尺寸: 0.69 inch
阀体材料: Stainless Steel
密封材料: EPDM

Technical Specifications

Application: Hydraulics, Liquid Cooling, Thermal Management
Coupling Half: Female Coupler
Connection Type: Male BSPP
Maximum Operating Pressure: 150 psi
Product Type: Push to Connect
Connection Thread Size: G 1/8
Hose I.D.: N/A
Maximum Operating Temperature: 158 °F
Valve Type: Flat Face
Minimum Operating Temperature: -40 °F
Body Size: 3 mm
Flow Rate: 1.1 Gal/min
Hex Size: 0.69 inch
Body Material: Stainless Steel
Seal Material: EPDM

Markets:

- Information Technology
- Electronics
- Data Centers
- Supercomputers

Features/Benefits:

- Flush-face valve design prevents any fluid loss and optimum protection of electrical components
- Reduced pressure drop for superior energy efficiency and system performance
- High resistance to vibrations and rotation
- Broad selection of sealing materials compatible with temperature and fluids
- Manufacturing process that eliminates contamination
- Global manufacturing and service capabilities

Applications:

- Liquid cooling
- Thermal Management
- Data Centers
- Supercomputers
- Electronics
- Servers
- Rackable Server Systems
