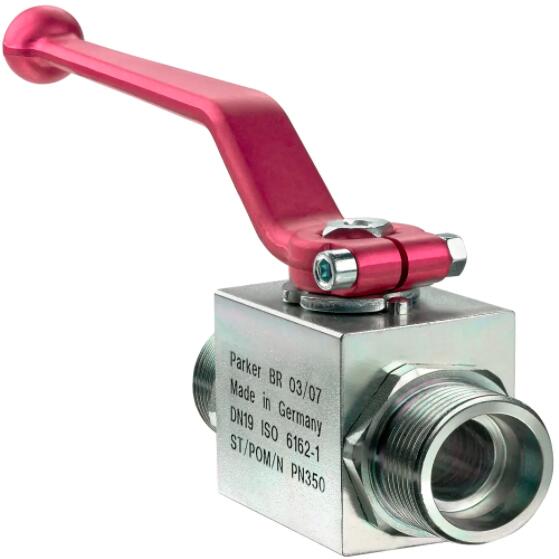

Parker 派克2位2通球阀 派克EO KH系列两通球阀
Parker 2-way ball valves Parker 派克二通球阀

派克2位2通球阀可关断或重新开启系统介质流动。可选配手柄锁定装置，免于意外打开或关闭，以更好地保证整个液压系统的安全性。2/2-way ball valves interrupt or facilitate the medium flow. These valves, available worldwide, can be optionally equipped with a locking device to avoid unauthorized opening and shut-off; they support the safety of the entire system.

Parker 派克2位2通球阀 派克EO KH系列两通球阀
Parker 派克二通球阀

派克2位2通球阀可关断或重新开启系统介质流动。这类球阀广泛通用，可选配手柄锁定装置，使其不被意外打开或关闭，以更好地提升整个液压系统的安全性。带机械定位或紧固孔等功能的球阀也在开发之中。

市场：

- 农用机械
- 行走机械
- 空气/气体压缩机
- 海工和造船
- 建筑机械
- 铁路工业
- 卡车
- 天然气

应用：
- 适用于通用液压系统。

特征/优势：

- 出色的密封性能和易操作系统使得整个液压系统的安全性得以提升。
- 派克2位2通球阀质量稳定，可有效提升整个液压单元的安全性。
- 供货范围：2位2通球阀本体可选碳钢和不锈钢两种材料，其密封材料也多种多样，如NBR和POM等。这些材料的组合使得该球阀系列可更大程度地符合客户的需求。
- 碳钢2位2通球阀表面处理采用无六价铬镀锌，无污染，对环境非常无害，且具有很高的防腐蚀性能。此特性使得该产品拥有更长的使用寿命。

性能特点：

介质：Hydraulic Fluids
直径：Nominal: 4.0 to 50 mm
连接尺寸：G 1/8 至 G 11/2; 1/8-27 NPT 至 1 1/2-11.5 NPT
连接 2 尺寸：G 1/8 至 G 11/2; 1/8-27 NPT 至 1 1/2-11.5 NPT
24°锥尾端，BSPP内螺纹(ISO 1179-1)，NPT内螺纹(SAE 476)
连接 1 管道外径：06 至 42 mm
连接 2 管道外径：06 至 42 mm
形状：二通球阀，二通BSPP球阀，二通NPT球阀
连接 1 尺寸：24°锥尾端，BSPP内螺纹(ISO 1179-1)，NPT内螺纹(SAE 476)
可选配件：无，预先装配螺母和EO-PSR卡套，预先装配EO-2功能螺母，预先装配螺母和EO-DPR不锈钢卡套
结构材料：碳钢DIN 50938-FE//A/T4，碳钢DIN 50938-FE//A/T5，碳钢DIN 50938-FE//A/T6，碳钢带无六价铬镀锌，不锈钢
管道外径：6-42 mm
MAX.运行温度：+250 Steel, +400 Stainless Steel °C，+482 Steel, +752 Stainless Steel °F
MAX.运行压力：31.5-47.6 MPa，315-500 bar，4569-7252 psi
MIN.运行温度：-40 (Steel); -60 (Stainless Steel) °C，-40 Steel, -76 Stainless Steel °F
应用：Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
连接类型：Bite Type, Soft Seal Bite Type
符合规格：DIN ISO 8434

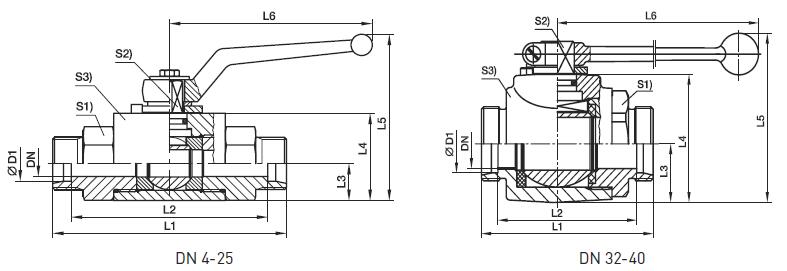

KH 2位2通碳钢球阀 - EO24°锥 / EO24°锥

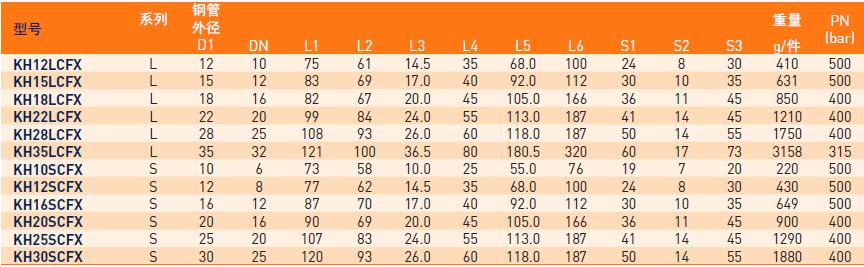

- Parker 派克2位2通球阀 派克EO KH系列两通球阀订货型号代码

订货示例：碳钢，无六价铬镀锌：KH12LCFX
注：型号不含螺母卡套

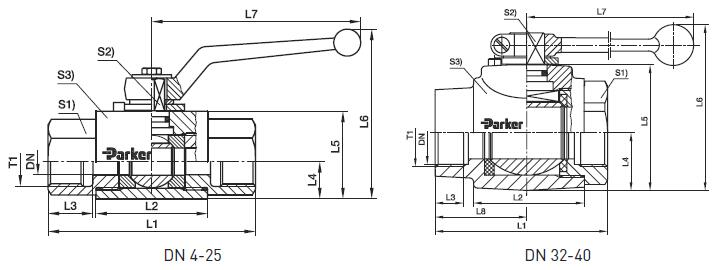

KH 2位2通BSPP 碳钢球阀 - BSPP内螺纹 (ISO 1179-1 / BSPP内螺纹 (ISO 1179-1)

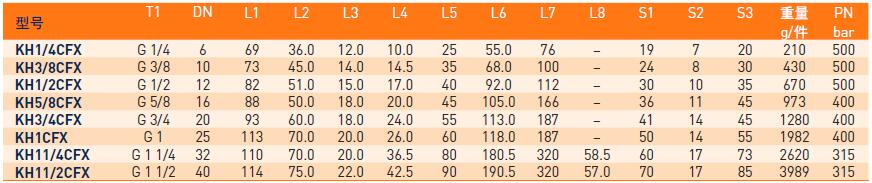

订货示例：碳钢，无六价铬镀锌：KH3/8CFX
注：型号不含螺母卡套

Parker 2-way ball valves 型号

Part Shape Series Connection 1 Style Connection 2 Style Connection 1 Tube O.D. (mm) Connection 2 Tube O.D. (mm) Connection Size Connection Size 2 Diameter Nominal (DN) Material Pre-Installed Optional Accessories
KH06L 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH06L71 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH06L71X 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Stainless steel na
KH06LCF 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH06LCFX 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Steel, zinc plated, Cr(VI)-free na
KH06LX 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Steel DIN 50938-FE//A/T4 na
KH06ZL 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH06ZL71 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Stainless steel Pre-assembled with EO-2 functional nut
KH06ZLCF 2-way ball valve Light 24° cone end 24° cone end 6 6 na na 4 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH08L 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH08L71 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH08L71X 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Stainless steel na
KH08LCF 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH08LCFX 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Steel, zinc plated, Cr(VI)-free na
KH08LX 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Steel DIN 50938-FE//A/T4 na
KH08S 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH08S71 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH08S71X 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Stainless steel na
KH08SCF 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH08SCFX 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Steel, zinc plated, Cr(VI)-free na
KH08SX 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Steel DIN 50938-FE//A/T4 na
KH08ZL 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH08ZL71 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Stainless steel Pre-assembled with EO-2 functional nut
KH08ZLCF 2-way ball valve Light 24° cone end 24° cone end 8 8 na na 6 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH08ZS 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH08ZS71 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Stainless steel Pre-assembled with EO-2 functional nut
KH08ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 8 8 na na 4 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH1/271X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/2 G 1/2 12 Stainless steel na
KH1/2CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/2 G 1/2 12 Steel, zinc plated, Cr(VI)-free na
KH1/2NPT71X 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/2-14 NPT 1/2-14 NPT 12 Stainless steel na
KH1/2NPTCFX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/2-14 NPT 1/2-14 NPT 12 Steel, zinc plated, Cr(VI)-free na
KH1/2NPTX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/2-14 NPT 1/2-14 NPT 12 Steel DIN 50938-FE//A/T4 na
KH1/2X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/2 G 1/2 12 Steel DIN 50938-FE//A/T4 na
KH1/471X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/4 G 1/4 6 Stainless steel na
KH1/4CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/4 G 1/4 6 Steel, zinc plated, Cr(VI)-free na
KH1/4NPT71X 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/4-18 NPT 1/4-18 NPT 6 Stainless steel na
KH1/4NPTCFX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/4-18 NPT 1/4-18 NPT 6 Steel, zinc plated, Cr(VI)-free na
KH1/4NPTX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/4-18 NPT 1/4-18 NPT 6 Steel DIN 50938-FE//A/T4 na
KH1/4X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/4 G 1/4 6 Steel DIN 50938-FE//A/T4 na
KH1/871X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/8 G 1/8 4 Stainless steel na
KH1/8CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/8 G 1/8 4 Steel, zinc plated, Cr(VI)-free na
KH1/8NPT71X 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/8.27NPT 1/8.27NPT 4 Stainless steel na
KH1/8NPTCFX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/8-27 NPT 1/8-27 NPT 4 Steel, zinc plated, Cr(VI)-free na
KH1/8NPTX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1/8-27 NPT 1/8-27 NPT 4 Steel DIN 50938-FE//A/T4 na
KH1/8X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G1/8 G 1/8 4 Steel DIN 50938-FE//A/T4 na
KH10L 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH10L71 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH10L71X 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Stainless steel na
KH10LCF 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH10LCFX 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Steel, zinc plated, Cr(VI)-free na
KH10LX 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Steel DIN 50938-FE//A/T4 na
KH10S 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH10S71 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH10S71X 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Stainless steel na
KH10SCF 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH10SCFX 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Steel, zinc plated, Cr(VI)-free na
KH10SX 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Steel DIN 50938-FE//A/T4 na
KH10ZL 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH10ZL71 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Stainless steel Pre-assembled with EO-2 functional nut
KH10ZLCF 2-way ball valve Light 24° cone end 24° cone end 10 10 na na 8 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH10ZS 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH10ZS71 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Stainless steel Pre-assembled with EO-2 functional nut
KH10ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 10 10 na na 6 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH11/271X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/2 G 1 1/2 40 Stainless steel na
KH11/2CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/2 G 1 1/2 40 Steel, zinc plated, Cr(VI)-free na
KH11/2DN25CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/2 G 1 1/2 25 Steel, zinc plated, Cr(VI)-free na
KH11/2DN25X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/2 G 1 1/2 25 Steel DIN 50938-FE//A/T4 na
KH11/2NPT71X 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1 1/2-11.5 NPT 1 1/2-11.5 NPT 40 Stainless steel na
KH11/2NPTCFX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1 1/2-11.5 NPT 1 1/2-11.5 NPT 40 Steel, zinc plated, Cr(VI)-free na
KH11/2NPTX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1 1/2-11.5 NPT 1 1/2-11.5 NPT 40 Steel DIN 50938-FE//A/T4 na
KH11/2X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/2 G 1 1/2 40 Steel DIN 50938-FE//A/T4 na
KH11/471X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/4 G 1 1/4 32 Stainless steel na
KH11/4CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/4 G 1 1/4 32 Steel, zinc plated, Cr(VI)-free na
KH11/4DN25CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/4 G 1 1/4 25 Steel, zinc plated, Cr(VI)-free na
KH11/4DN25X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/4 G 1 1/4 25 Steel DIN 50938-FE//A/T4 na
KH11/4NPT71X 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1 1/4-11.5 NPT 1 1/4-11.5 NPT 32 Stainless steel na
KH11/4NPTCFX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1 1/4-11.5 NPT 1 1/4-11.5 NPT 32 Steel, zinc plated, Cr(VI)-free na
KH11/4NPTX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1 1/4-11.5 NPT 1 1/4-11.5 NPT 32 Steel DIN 50938-FE//A/T4 na
KH11/4X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/4 G 1 1/4 32 Steel DIN 50938-FE//A/T4 na
KH12L 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH12L71 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH12L71X 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Stainless steel na
KH12LCF 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH12LCFX 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Steel, zinc plated, Cr(VI)-free na
KH12LX 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Steel DIN 50938-FE//A/T4 na
KH12S 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH12S71 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH12S71X 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Stainless steel na
KH12SCF 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH12SCFX 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Steel, zinc plated, Cr(VI)-free na
KH12SX 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Steel DIN 50938-FE//A/T4 na
KH12ZL 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH12ZL71 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Stainless steel Pre-assembled with EO-2 functional nut
KH12ZLCF 2-way ball valve Light 24° cone end 24° cone end 12 12 na na 10 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH12ZS 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH12ZS71 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Stainless steel Pre-assembled with EO-2 functional nut
KH12ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 12 12 na na 8 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH14S 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH14S71 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH14S71X 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Stainless steel na
KH14SCF 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH14SCFX 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Steel, zinc plated, Cr(VI)-free na
KH14SX 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Steel DIN 50938-FE//A/T4 na
KH14ZS 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH14ZS71 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Stainless steel Pre-assembled with EO-2 functional nut
KH14ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 14 14 na na 10 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH15L 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH15L71 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH15L71X 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Stainless steel na
KH15LCF 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH15LCFX 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Steel, zinc plated, Cr(VI)-free na
KH15LX 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Steel DIN 50938-FE//A/T4 na
KH15ZL 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH15ZL71 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Stainless steel Pre-assembled with EO-2 functional nut
KH15ZLCF 2-way ball valve Light 24° cone end 24° cone end 15 15 na na 12 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH16S 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH16S71 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH16S71X 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Stainless steel na
KH16SCF 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH16SCFX 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Steel, zinc plated, Cr(VI)-free na
KH16SX 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Steel DIN 50938-FE//A/T4 na
KH16ZS 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH16ZS71 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Stainless steel Pre-assembled with EO-2 functional nut
KH16ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 16 16 na na 12 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH171X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 G 1 25 Stainless steel na
KH18L 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH18L71 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16/12 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH18L71X 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16/12 Stainless steel na
KH18LCF 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH18LCFX 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16 Steel, zinc plated, Cr(VI)-free na
KH18LX 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16 Steel DIN 50938-FE//A/T4 na
KH18ZL 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH18ZL71 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16/12 Stainless steel Pre-assembled with EO-2 functional nut
KH18ZLCF 2-way ball valve Light 24° cone end 24° cone end 18 18 na na 16 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH1CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 G 1 25 Steel, zinc plated, Cr(VI)-free na
KH1NPT71X 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1-11.5 NPT 1-11.5 NPT 25 Stainless steel na
KH1NPTCFX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1-11.5 NPT 1-11.5 NPT 25 Steel, zinc plated, Cr(VI)-free na
KH1NPTX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 1-11.5 NPT 1-11.5 NPT 25 Steel DIN 50938-FE//A/T4 na
KH1X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 G 1 25 Steel DIN 50938-FE//A/T4 na
KH20S 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH20S71 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16/12 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH20S71X 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16/12 Stainless steel na
KH20SCF 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH20SCFX 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16 Steel, zinc plated, Cr(VI)-free na
KH20SX 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16 Steel DIN 50938-FE//A/T4 na
KH20ZS 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH20ZS71 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16/12 Stainless steel Pre-assembled with EO-2 functional nut
KH20ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 20 20 na na 16 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH22L 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH22L71 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH22L71X 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Stainless steel na
KH22LCF 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH22LCFX 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Steel, zinc plated, Cr(VI)-free na
KH22LX 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Steel DIN 50938-FE//A/T4 na
KH22ZL 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH22ZL71 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Stainless steel Pre-assembled with EO-2 functional nut
KH22ZLCF 2-way ball valve Light 24° cone end 24° cone end 22 22 na na 20 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH25S 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH25S71 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH25S71X 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Stainless steel na
KH25SCF 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH25SCFX 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Steel, zinc plated, Cr(VI)-free na
KH25SX 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Steel DIN 50938-FE//A/T4 na
KH25ZS 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH25ZS71 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Stainless steel Pre-assembled with EO-2 functional nut
KH25ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 25 25 na na 20 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH271X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 2 G 2 50 Stainless steel na
KH28L 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH28L71 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH28L71X 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Stainless steel na
KH28LCF 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH28LCFX 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Steel, zinc plated, Cr(VI)-free na
KH28LX 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Steel DIN 50938-FE//A/T4 na
KH28ZL 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH28ZL71 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Stainless steel Pre-assembled with EO-2 functional nut
KH28ZLCF 2-way ball valve Light 24° cone end 24° cone end 28 28 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH2CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 2 G 2 50 Steel, zinc plated, Cr(VI)-free na
KH2X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 2 G 2 50 Steel DIN 50938-FE//A/T4 na
KH3/471X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/4 G 3/4 20 Stainless steel na
KH3/4CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/4 G 3/4 20 Steel, zinc plated, Cr(VI)-free na
KH3/4NPT71X 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 3/4-14 NPT 3/4-14 NPT 20 Stainless steel na
KH3/4NPTCFX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 3/4-14 NPT 3/4-14 NPT 20 Steel, zinc plated, Cr(VI)-free na
KH3/4NPTX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 3/4-14 NPT 3/4-14 NPT 20 Steel DIN 50938-FE//A/T4 na
KH3/4X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/4 G 3/4 20 Steel DIN 50938-FE//A/T4 na
KH3/871X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/8 G 3/8 10 Stainless steel na
KH3/8CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/8 G 3/8 10 Steel, zinc plated, Cr(VI)-free na
KH3/8NPT71X 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 3/8-18 NPT 3/8-18 NPT 10 Stainless steel na
KH3/8NPTCFX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 3/8-18 NPT 3/8-18 NPT 10 Steel, zinc plated, Cr(VI)-free na
KH3/8NPTX 2-way NPT ball valve na Female NPT thread (SAE 476) Female NPT thread (SAE 476) na na 3/8-18 NPT 3/8-18 NPT 10 Steel DIN 50938-FE//A/T4 na
KH3/8X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/8 G 3/8 10 Steel DIN 50938-FE//A/T4 na
KH30S 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH30S71 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH30S71X 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Stainless steel na
KH30SCF 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH30SCFX 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Steel, zinc plated, Cr(VI)-free na
KH30SX 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Steel DIN 50938-FE//A/T4 na
KH30ZS 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH30ZS71 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Stainless steel Pre-assembled with EO-2 functional nut
KH30ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 30 30 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH35L 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH35L71 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH35L71X 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Stainless steel na
KH35LCF 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH35LCFDN25 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH35LCFX 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Steel, zinc plated, Cr(VI)-free na
KH35LCFXDN25 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 25 Steel, zinc plated, Cr(VI)-free na
KH35LDN25 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 25 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH35LX 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Steel DIN 50938-FE//A/T4 na
KH35LXDN25 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 25 Steel DIN 50938-FE//A/T4 na
KH35ZL 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH35ZL71 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Stainless steel Pre-assembled with EO-2 functional nut
KH35ZLCF 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 32 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH35ZLCFDN25 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH35ZLDN25 2-way ball valve Light 24° cone end 24° cone end 35 35 na na 25 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH38S 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH38S71 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH38S71X 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Stainless steel na
KH38SCF 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH38SCFDN25 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH38SCFX 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Steel, zinc plated, Cr(VI)-free na
KH38SCFXDN25 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 25 Steel, zinc plated, Cr(VI)-free na
KH38SDN25 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 25 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH38SX 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Steel DIN 50938-FE//A/T4 na
KH38SXDN25 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 25 Steel DIN 50938-FE//A/T4 na
KH38ZS 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH38ZS71 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Stainless steel Pre-assembled with EO-2 functional nut
KH38ZSCF 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 32 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH38ZSCFDN25 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH38ZSDN25 2-way ball valve Heavy 24° cone end 24° cone end 38 38 na na 25 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH42L 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH42L71 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Stainless steel Pre-assembled with nut and EO-DPR cutting ring
KH42L71X 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Stainless steel na
KH42LCF 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH42LCFDN25 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with nut and EO-PSR cutting ring
KH42LCFX 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Steel, zinc plated, Cr(VI)-free na
KH42LCFXDN25 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 25 Steel, zinc plated, Cr(VI)-free na
KH42LDN25 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 25 Steel DIN 50938-FE//A/T5 Pre-assembled with nut and EO-PSR cutting ring
KH42LX 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Steel DIN 50938-FE//A/T4 na
KH42LXDN25 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 25 Steel DIN 50938-FE//A/T4 na
KH42ZL 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH42ZL71 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Stainless steel Pre-assembled with EO-2 functional nut
KH42ZLCF 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 40 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH42ZLCFDN25 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 25 Steel, zinc plated, Cr(VI)-free Pre-assembled with EO-2 functional nut
KH42ZLDN25 2-way ball valve Light 24° cone end 24° cone end 42 42 na na 25 Steel DIN 50938-FE//A/T6 Pre-assembled with EO-2 functional nut
KH5/8CFX 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 5/8 G 5/8 16 Steel, zinc plated, Cr(VI)-free na
KH5/8X 2-way BSPP ball valve na Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 5/8 G 5/8 16 Steel DIN 50938-FE//A/T4 na
