Parker派克流体连接件Parker fluid connectors

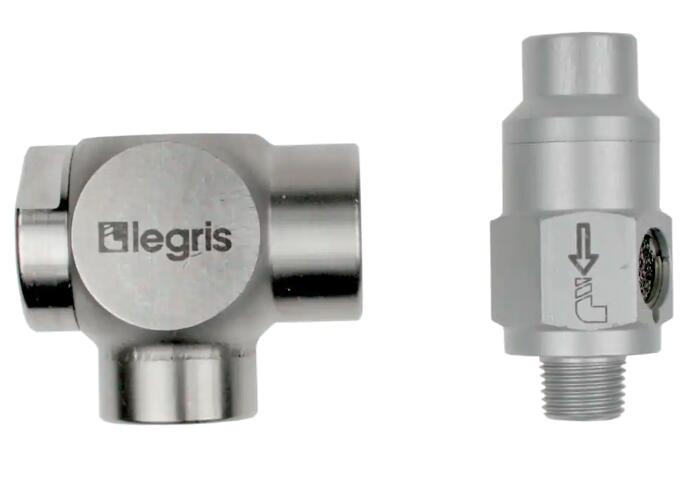

派克金属气动快速排气阀
Parker Pneumatic Metal Quick Exhaust Valves

该系列金属快速排气阀有铜镀镍、铝和不锈钢三种材质型式。这些快速排气阀适用于几乎任何环境,可以将系统残压快速排出,从而提高气缸的复位速度。 This range of metal quick exhaust valves is offered in nickel-plated brass, aluminium and stainless steel.These valves, suitable for any environment, increase the return speed of the cylinder rod by allowing the exhaust to pass directly to atmosphere.





该系列金属快速排气阀有铜镀镍、铝和不锈钢三种材质型式。 This range of metal quick exhaust valves is offered in nickel-plated brass, aluminium and stainless steel.

这些快速排气阀适用于几乎任何环境,可以将系统残压快速排出,从而提高气缸的复位速度。 These valves, which are suitable for any environment, increase the return speed of the cylinder rod by allowing the exhaust to pass directly to atmosphere.



7970快速排气阀 型号 C
直角BSPP 79701919 M5

79701010 G1/8
79701313 G1/4
79701717 G3/8
79702121 G1/2
79702727 G3/4
79703434 G1





特征/优势Features/Benefits:

- Time Saving & Compact

- Reduction in cycle times: return speed improved
- Dimensions optimised for space reduction
- Exhaust silencer incorporated on some models
- Excellent exhaust capacity
- Robust

- Nickel-Plated Brass or Stainless Steel

- Ideal for applications in restrictive environments
- Orientation as required
- Many installation options and choice of silencer
- Designed without retention areas to optimise frequent cleaning operations (stainless steel)

- Aluminium

- Protection of individuals through low noise emissions
- Lightweight and robust
- Silencer integrated for greater compactness

- 省时与体积紧凑

- 缩短周期:提高气缸复位速度
- 优化尺寸,减少占用空间
- 一些型式集成了消音器功能
- 出色的排气能力
- 性能稳定

- 铜镀镍或不锈钢

- 非常适合有限制使用的环境
- 根据需要可定向安装
- 多种安装选择和可自带消音器功能
- 产品设计不留死角,便于频繁的清洁(不锈钢)

- 铝

- 低噪音值,保护工作人员
- 重量轻、性能稳定
- 集成消音器,更加紧凑



市场Markets:

- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging
- 工厂自动化
- 纺织机械
- 半导体
- 包装



应用Application:

- Increases the Return Speed of Pneumatic Cylinders
- 提高气缸的复位速度



产品类型Product Types:

- Elbow Quick Exhaust Valve, Female BSPP and Metric Thread
- Elbow Quick Exhaust Valve, Male BSPT/Female BSPP Thread
- Quick Exhaust Valve, Female BSPP Thread
- 直角型快速排气阀,BSPP和公制内螺纹
- 快速排气阀, BSPT外螺纹/ BSPP内螺纹
- 快速排气阀, BSPT外螺纹/ BSPP内螺纹



技术参数Technical Characteristics:

- Fluids: Compressed air
- Materials: nickel-plated brass, anodised aluminium, stainless steel, polyurethane elastomer, FKM, polyurethane, silicone free
- Pressure:
Model 7970: 0.7 to 10 bar
Models 7971 and 7899: 2 to 10 bar
- Temperature:
Model 7970: -20°C to +70°C
Model 7971: -10°C to +70°C
Model 7899: -10°C to +180°C
- 流体: 压缩空气
- 材料:铜镀镍,钝化铝, 不锈钢,聚氨酯弹性体,氟橡胶, 聚氨酯, 不含硅成分
- 压力范围:
- 970系列: 0.7至10 bar
- 971及7899系列: 2至10 bar
- 温度范围:
7970系列: -20°C 至 +70°C
7971系列: -10°C 至 +70°C
7899系列: -10°C 至 +180°C



符合规范Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)



技术Technologies:

- Function fitting
- Quick exhaust valve
- Pneumatic systems
- 功能接头
- 快速排气阀
- 气动系统





Technical Specifications

Maximum Operating Temperature: 80 °C, 176 °F
Application: Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various
Minimum Operating Temperature: -20 °C, -4 °F
Maximum Operating Pressure: 1 MPa, 10 bar, 145 psi
Specifications Met: DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED)
Materials of Construction: Nickel Plated Brass, Aluminium, 316 Stainless Steel
Shape: Straight, 90°
Connection Type: Thread
Quantity per Box: 1 to 10
Weight: 0,013 to 0,531 kg
Media: Compressed air





Pneumatic Metal Quick Exhaust Valves 型号

Part Shape Body Material Diameter Nominal (DN) Connection 1 Thread Style Connection 1 Thread Size (metric)
7899 00 10 Straight stainless steel quick exhaust valve female STAINLESS STEEL 316L 7 BSPP G1/8
7899 00 13 Straight stainless steel quick exhaust valve female STAINLESS STEEL 316L 7 BSPP G1/4
7899 00 17 Straight stainless steel quick exhaust valve female STAINLESS STEEL 316L 9 BSPP G3/8
7899 00 21 Straight stainless steel quick exhaust valve female STAINLESS STEEL 316L 12 BSPP G1/2
7899 00 27 Straight stainless steel quick exhaust valve female STAINLESS STEEL 316L 18 BSPP G3/4
7899 00 34 Straight stainless steel quick exhaust valve female STAINLESS STEEL 316L 18 BSPP G1
7970 10 10 Elbow quick exhaust valve female NICKEL PLATED BRASS na BSPP G1/8
7970 13 13 Elbow quick exhaust valve female NICKEL PLATED BRASS na BSPP G1/4
7970 17 17 Elbow quick exhaust valve female NICKEL PLATED BRASS na BSPP G3/8
7970 19 19 Elbow quick exhaust valve female NICKEL PLATED BRASS na Metric M5x0,8
7970 21 21 Elbow quick exhaust valve female NICKEL PLATED BRASS na BSPP G1/2
7970 27 27 Elbow quick exhaust valve female NICKEL PLATED BRASS na BSPP G3/4
7970 34 34 Elbow quick exhaust valve female NICKEL PLATED BRASS na BSPP G1
7971 10 10 Straight metal quick exhaust valve female TREATED ALUMINIUM na BSPP G1/8
7971 13 13 Straight metal quick exhaust valve female TREATED ALUMINIUM na BSPP G1/4
7971 17 17 Straight metal quick exhaust valve female TREATED ALUMINIUM na BSPP G3/8
7971 21 21 Straight metal quick exhaust valve female TREATED ALUMINIUM na BSPP G1/2
