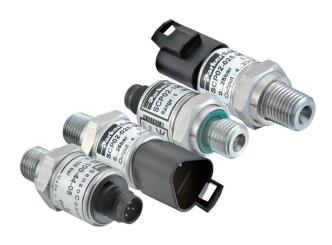

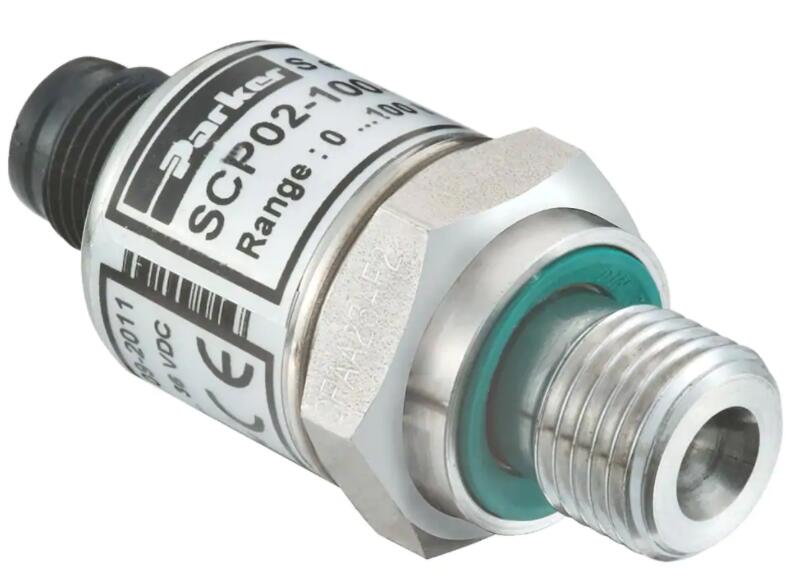

Parker派克压力传感器SensoControl SCP02专为在移动工作机中使用而设计。SCP02已获得e1批准，并根据ISO / TS 16949采用最先进的生产方法制造。压力传感器SensoControl SCP02专为在移动工作机中使用而设计。SCP02已通过e1认证，并按照ISO / TS 16949的最新生产方法进行制造。抗冲击和振动，EMC特性，电源以及扩展的温度范围均针对该应用类型而设计。 SCP02具有快速的响应速度，因此适用于快速控制解决方案。带有塑料连接器的紧凑型不锈钢外壳允许在恶劣的环境条件下使用，例如在移动液压系统中。与该物质接触的组件由不锈钢（1.4548）制成。此功能与焊接的薄层测量池相结合，可确保与物质的兼容性。添加了EDM孔，以便您进行精确，无干扰的压力测量。这样可以最大程度地减少空气和污垢的气穴现象，从而防止测量单元受到压力波动和压力峰值的影响。The pressure sensor SensoControl SCP02 is designed especifically for the use in mobile working machines. The SCP02 has e1-approval and is manufactured with state of the art production methods according to ISO/TS 16949.
| 部件号 |
工作压力 |
输出类型 |
数量/箱 |
电气连接 |
端口类型 |
端口尺寸 |
| SCP02-010-24-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-24-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-25-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-25-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-26-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-26-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-27-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-28-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-28-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-34-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-34-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-35-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-35-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-36-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-36-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-37-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-38-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-38-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-44-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-44-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-45-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-45-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-46-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-46-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-47-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-48-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-48-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A4-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-A4-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-A5-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A5-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-A6-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A6-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A7-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-A8-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-A8-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B4-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-B4-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-B5-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B5-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-B6-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B6-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B7-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-B8-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-B8-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-K4-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-K4-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-K5-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-K5-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-K6-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-K6-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-K7-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-K7-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-K8-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-K8-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R4-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-R4-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-010-R5-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R5-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-010-R6-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R6-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R7-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-010-R8-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-010-R8-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-24-00 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-00Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-05 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-05Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-0A |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-0AQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-0D |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-0DQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-0E |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-24-0EQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-25-00 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-00Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-05 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-05Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-0A |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-0AQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-0D |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-0DQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-0E |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-25-0EQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-26-00 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-00Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-05 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-05Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-0A |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-0AQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-0D |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-0DQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-0E |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-26-0EQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-00 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-00Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-05 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-05Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-0A |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-0AQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-0D |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-0DQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-0E |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-27-0EQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-28-00 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-00Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-05 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-05Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-0A |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-0AQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-0D |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-0DQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-0E |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-28-0EQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-34-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-34-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-35-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-35-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-36-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-36-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-37-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-38-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-38-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-44-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-44-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-45-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-45-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-46-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-46-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-47-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-48-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-48-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A4-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-A4-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-A5-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A5-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-A6-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A6-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A7-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-A8-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-A8-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B4-00 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-00Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-05 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-05Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-0A |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-0AQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-0D |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-0DQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-0E |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-B4-0EQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-B5-00 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-00Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-05 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-05Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-0A |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-0AQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-0D |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-0DQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-0E |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B5-0EQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-B6-00 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-00Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-05 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-05Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-0A |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-0AQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-0D |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-0DQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-0E |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B6-0EQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-00 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-00Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-05 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-05Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-0A |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-0AQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-0D |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-0DQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-0E |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B7-0EQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-B8-00 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-00Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-05 |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-05Q9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-0A |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-0AQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-0D |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-0DQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-0E |
0 … 025 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-B8-0EQ9 |
0 … 025 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-K4-05 |
0 … 025 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-K4-05Q9 |
0 … 025 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-K5-05 |
0 … 025 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-K5-05Q9 |
0 … 025 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-K6-05 |
0 … 025 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-K6-05Q9 |
0 … 025 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-K7-05 |
0 … 025 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-K7-05Q9 |
0 … 025 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-K8-05 |
0 … 025 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-K8-05Q9 |
0 … 025 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R4-00 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-00Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-05 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-05Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-0A |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-0AQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-0D |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-0DQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-0E |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-R4-0EQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-025-R5-00 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-00Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-05 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-05Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-0A |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-0AQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-0D |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-0DQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-0E |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R5-0EQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-025-R6-00 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-00Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-05 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-05Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-0A |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-0AQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-0D |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-0DQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-0E |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R6-0EQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-00 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-00Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-05 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-05Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-0A |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-0AQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-0D |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-0DQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-0E |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R7-0EQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-025-R8-00 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-00Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-05 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-05Q9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-0A |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-0AQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-0D |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-0DQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-0E |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-025-R8-0EQ9 |
0 … 025 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-24-00 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-00Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-05 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-05Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-0A |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-0AQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-0D |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-0DQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-0E |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-24-0EQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-25-00 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-00Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-05 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-05Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-0A |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-0AQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-0D |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-0DQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-0E |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-25-0EQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-26-00 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-00Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-05 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-05Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-0A |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-0AQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-0D |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-0DQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-0E |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-26-0EQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-00 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-00Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-05 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-05Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-0A |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-0AQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-0D |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-0DQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-0E |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-27-0EQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-28-00 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-00Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-05 |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-05Q9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-0A |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-0AQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-0D |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-0DQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-0E |
0 … 040 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-28-0EQ9 |
0 … 040 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-34-00 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-00Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-05 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-05Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-0A |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-0AQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-0D |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-0DQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-0E |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-34-0EQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-35-00 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-00Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-05 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-05Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-0A |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-0AQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-0D |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-0DQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-0E |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-35-0EQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-36-00 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-00Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-05 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-05Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-0A |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-0AQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-0D |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-0DQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-0E |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-36-0EQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-00 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-00Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-05 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-05Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-0A |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-0AQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-0D |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-0DQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-0E |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-37-0EQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-38-00 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-00Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-05 |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-05Q9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-0A |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-0AQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-0D |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-0DQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-0E |
0 … 040 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-38-0EQ9 |
0 … 040 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-44-00 |
0 … 040 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-00Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-05 |
0 … 040 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-05Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-0A |
0 … 040 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-0AQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-0D |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-0DQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-0E |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-44-0EQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-45-00 |
0 … 040 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-00Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-05 |
0 … 040 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-05Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-0A |
0 … 040 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-0AQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-0D |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-0DQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-0E |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-45-0EQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-46-00 |
0 … 040 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-00Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-05 |
0 … 040 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-05Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-0A |
0 … 040 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-0AQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-0D |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-0DQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-0E |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-46-0EQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-00 |
0 … 040 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-00Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-05 |
0 … 040 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-05Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-0A |
0 … 040 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-0AQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-0D |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-0DQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-0E |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-47-0EQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-48-00 |
0 … 040 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-00Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-05 |
0 … 040 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-05Q9 |
0 … 040 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-0A |
0 … 040 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-0AQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-0D |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-0DQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-0E |
0 … 040 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-48-0EQ9 |
0 … 040 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A4-00 |
0 … 040 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-00Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-05 |
0 … 040 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-05Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-0A |
0 … 040 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-0AQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-0D |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-0DQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-0E |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-A4-0EQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-A5-00 |
0 … 040 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-00Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-05 |
0 … 040 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-05Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-0A |
0 … 040 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-0AQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-0D |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-0DQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-0E |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A5-0EQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-A6-00 |
0 … 040 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-00Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-05 |
0 … 040 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-05Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-0A |
0 … 040 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-0AQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-0D |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-0DQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-0E |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A6-0EQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-00 |
0 … 040 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-00Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-05 |
0 … 040 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-05Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-0A |
0 … 040 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-0AQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-0D |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-0DQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-0E |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A7-0EQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-A8-00 |
0 … 040 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-00Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-05 |
0 … 040 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-05Q9 |
0 … 040 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-0A |
0 … 040 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-0AQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-0D |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-0DQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-0E |
0 … 040 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-A8-0EQ9 |
0 … 040 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B4-00 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-00Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-05 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-05Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-0A |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-0AQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-0D |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-0DQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-0E |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-B4-0EQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-B5-00 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-00Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-05 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-05Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-0A |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-0AQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-0D |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-0DQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-0E |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B5-0EQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-B6-00 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-00Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-05 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-05Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-0A |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-0AQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-0D |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-0DQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-0E |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B6-0EQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-00 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-00Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-05 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-05Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-0A |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-0AQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-0D |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-0DQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-0E |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B7-0EQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-B8-00 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-00Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-05 |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-05Q9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-0A |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-0AQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-0D |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-0DQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-0E |
0 … 040 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-B8-0EQ9 |
0 … 040 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-K4-05 |
0 … 040 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-K5-05 |
0 … 040 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-K6-05 |
0 … 040 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-K7-05 |
0 … 040 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-K8-05 |
0 … 040 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-R4-00 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-00Q9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-05 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-05Q9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-0A |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-0AQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-0D |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-0DQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-0E |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-R4-0EQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-040-R5-00 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-00Q9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-05 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-05Q9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-0A |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-0AQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-0D |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-0DQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-0E |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R5-0EQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-040-R6-00 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-00Q9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-05 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-05Q9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-0A |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-0AQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-0D |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-0DQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-0E |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R6-0EQ9 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-040-R7-00 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-R7-05 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-R7-0A |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-R7-0D |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-R7-0E |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-040-R8-00 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-R8-05 |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-R8-0A |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-R8-0D |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-040-R8-0E |
0 … 040 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-24-00 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-060-24-05 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-24-0A |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-060-24-0D |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-24-0E |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-25-00 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-25-05 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-25-0A |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-25-0D |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-25-0E |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-26-00 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-26-05 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-26-0A |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-26-0D |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-26-0E |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-27-00 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-27-05 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-27-0A |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-27-0D |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-27-0E |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-28-00 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-28-05 |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-28-0A |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-28-0D |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-28-0E |
0 … 060 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-34-00 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-060-34-05 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-34-0A |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-060-34-0D |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-34-0E |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-35-00 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-35-05 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-35-0A |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-35-0D |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-35-0E |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-36-00 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-36-05 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-36-0A |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-36-0D |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-36-0E |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-37-00 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-37-05 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-37-0A |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-37-0D |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-37-0E |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-38-00 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-38-05 |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-38-0A |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-38-0D |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-38-0E |
0 … 060 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-44-00 |
0 … 060 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-060-44-05 |
0 … 060 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-44-0A |
0 … 060 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-060-44-0D |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-44-0E |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-45-00 |
0 … 060 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-45-05 |
0 … 060 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-45-0A |
0 … 060 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-45-0D |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-45-0E |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-46-00 |
0 … 060 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-46-05 |
0 … 060 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-46-0A |
0 … 060 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-46-0D |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-46-0E |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-47-00 |
0 … 060 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-47-05 |
0 … 060 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-47-0A |
0 … 060 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-47-0D |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-47-0E |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-48-00 |
0 … 060 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-48-05 |
0 … 060 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-48-0A |
0 … 060 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-48-0D |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-48-0E |
0 … 060 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-A4-00 |
0 … 060 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-060-A4-05 |
0 … 060 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-A4-0A |
0 … 060 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-060-A4-0D |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-A4-0E |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-A5-00 |
0 … 060 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-A5-05 |
0 … 060 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-A5-0A |
0 … 060 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-A5-0D |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-A5-0E |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-A6-00 |
0 … 060 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-A6-05 |
0 … 060 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-A6-0A |
0 … 060 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-A6-0D |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-A6-0E |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-A7-00 |
0 … 060 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-A7-05 |
0 … 060 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-A7-0A |
0 … 060 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-A7-0D |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-A7-0E |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-A8-00 |
0 … 060 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-A8-05 |
0 … 060 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-A8-0A |
0 … 060 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-A8-0D |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-A8-0E |
0 … 060 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-B4-00 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-060-B4-05 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-B4-0A |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-060-B4-0D |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-B4-0E |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-B5-00 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-B5-05 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-B5-0A |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-B5-0D |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-B5-0E |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-B6-00 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-B6-05 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-B6-0A |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-B6-0D |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-B6-0E |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-B7-00 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-B7-05 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-B7-0A |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-B7-0D |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-B7-0E |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-B8-00 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-B8-05 |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-B8-0A |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-B8-0D |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-B8-0E |
0 … 060 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-K4-05 |
0 … 060 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-K5-05 |
0 … 060 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-K6-05 |
0 … 060 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-K7-05 |
0 … 060 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-K8-05 |
0 … 060 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-R4-00 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-060-R4-05 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-R4-0A |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-060-R4-0D |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-R4-0E |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-060-R5-00 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-R5-05 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-R5-0A |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-R5-0D |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-R5-0E |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-060-R6-00 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-R6-05 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-R6-0A |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-R6-0D |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-R6-0E |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-060-R7-00 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-R7-05 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-R7-0A |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-R7-0D |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-R7-0E |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-060-R8-00 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-R8-05 |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-R8-0A |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-R8-0D |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-060-R8-0E |
0 … 060 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-24-00 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-100-24-05 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-24-0A |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-100-24-0D |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-24-0E |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-25-00 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-25-05 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-25-0A |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-25-0D |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-25-0E |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-26-00 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-26-05 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-26-0A |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-26-0D |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-26-0E |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-27-00 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-27-05 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-27-0A |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-27-0D |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-27-0E |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-28-00 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-28-05 |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-28-0A |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-28-0D |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-28-0E |
0 … 100 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-34-00 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-100-34-05 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-34-0A |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-100-34-0D |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-34-0E |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-35-00 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-35-05 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-35-0A |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-35-0D |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-35-0E |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-36-00 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-36-05 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-36-0A |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-36-0D |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-36-0E |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-37-00 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-37-05 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-37-0A |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-37-0D |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-37-0E |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-38-00 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-38-05 |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-38-0A |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-38-0D |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-38-0E |
0 … 100 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-44-00 |
0 … 100 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-100-44-05 |
0 … 100 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-44-0A |
0 … 100 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-100-44-0D |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-44-0E |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-45-00 |
0 … 100 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-45-05 |
0 … 100 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-45-0A |
0 … 100 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-45-0D |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-45-0E |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-46-00 |
0 … 100 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-46-05 |
0 … 100 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-46-0A |
0 … 100 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-46-0D |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-46-0E |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-47-00 |
0 … 100 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-47-05 |
0 … 100 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-47-0A |
0 … 100 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-47-0D |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-47-0E |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-48-00 |
0 … 100 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-48-05 |
0 … 100 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-48-0A |
0 … 100 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-48-0D |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-48-0E |
0 … 100 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-A4-00 |
0 … 100 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-100-A4-05 |
0 … 100 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-A4-0A |
0 … 100 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-100-A4-0D |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-A4-0E |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-A5-00 |
0 … 100 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-A5-05 |
0 … 100 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-A5-0A |
0 … 100 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-A5-0D |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-A5-0E |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-A6-00 |
0 … 100 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-A6-05 |
0 … 100 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-A6-0A |
0 … 100 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-A6-0D |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-A6-0E |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-A7-00 |
0 … 100 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-A7-05 |
0 … 100 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-A7-0A |
0 … 100 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-A7-0D |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-A7-0E |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-A8-00 |
0 … 100 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-A8-05 |
0 … 100 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-A8-0A |
0 … 100 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-A8-0D |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-A8-0E |
0 … 100 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-B4-00 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-100-B4-05 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-B4-0A |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-100-B4-0D |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-B4-0E |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-B5-00 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-B5-05 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-B5-0A |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-B5-0D |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-B5-0E |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-B6-00 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-B6-05 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-B6-0A |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-B6-0D |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-B6-0E |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-B7-00 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-B7-05 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-B7-0A |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-B7-0D |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-B7-0E |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-B8-00 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-B8-05 |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-B8-0A |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-B8-0D |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-B8-0E |
0 … 100 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-K4-05 |
0 … 100 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-K5-05 |
0 … 100 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-K6-05 |
0 … 100 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-K7-05 |
0 … 100 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-K8-05 |
0 … 100 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-R4-00 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-100-R4-05 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-R4-0A |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-100-R4-0D |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-R4-0E |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-100-R5-00 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-R5-05 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-R5-0A |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-R5-0D |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-R5-0E |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-100-R6-00 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-R6-05 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-R6-0A |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-R6-0D |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-R6-0E |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-100-R7-00 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-R7-05 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-R7-0A |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-R7-0D |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-R7-0E |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-100-R8-00 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-R8-05 |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-R8-0A |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-R8-0D |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-100-R8-0E |
0 … 100 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-24-00 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-1000-24-05 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-24-0A |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-1000-24-0D |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-24-0E |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-25-00 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-25-05 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-25-0A |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-25-0D |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-25-0E |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-26-00 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-26-05 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-26-0A |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-26-0D |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-26-0E |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-27-00 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-27-05 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-27-0A |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-27-0D |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-27-0E |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-28-00 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-28-05 |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-28-0A |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-28-0D |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-28-0E |
0 … 1000 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-34-00 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-1000-34-05 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-34-0A |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-1000-34-0D |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-34-0E |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-35-00 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-35-05 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-35-0A |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-35-0D |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-35-0E |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-36-00 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-36-05 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-36-0A |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-36-0D |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-36-0E |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-37-00 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-37-05 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-37-0A |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-37-0D |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-37-0E |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-38-00 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-38-05 |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-38-0A |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-38-0D |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-38-0E |
0 … 1000 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-44-00 |
0 … 1000 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-1000-44-05 |
0 … 1000 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-44-0A |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-1000-44-0D |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-44-0E |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-45-00 |
0 … 1000 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-45-05 |
0 … 1000 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-45-0A |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-45-0D |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-45-0E |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-46-00 |
0 … 1000 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-46-05 |
0 … 1000 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-46-0A |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-46-0D |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-46-0E |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-47-00 |
0 … 1000 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-47-05 |
0 … 1000 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-47-0A |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-47-0D |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-47-0E |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-48-00 |
0 … 1000 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-48-05 |
0 … 1000 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-48-0A |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-48-0D |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-48-0E |
0 … 1000 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-A4-00 |
0 … 1000 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-1000-A4-05 |
0 … 1000 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-A4-0A |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-1000-A4-0D |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-A4-0E |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-A5-00 |
0 … 1000 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-A5-05 |
0 … 1000 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-A5-0A |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-A5-0D |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-A5-0E |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-A6-00 |
0 … 1000 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A6-05 |
0 … 1000 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A6-0A |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A6-0D |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A6-0E |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A7-00 |
0 … 1000 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A7-05 |
0 … 1000 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A7-0A |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A7-0D |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A7-0E |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-A8-00 |
0 … 1000 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-A8-05 |
0 … 1000 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-A8-0A |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-A8-0D |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-A8-0E |
0 … 1000 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-B4-00 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-1000-B4-05 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-B4-0A |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-1000-B4-0D |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-B4-0E |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-B5-00 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-B5-05 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-B5-0A |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-B5-0D |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-B5-0E |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-B6-00 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B6-05 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B6-0A |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B6-0D |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B6-0E |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B7-00 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B7-05 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B7-0A |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B7-0D |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B7-0E |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-B8-00 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-B8-05 |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-B8-0A |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-B8-0D |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-B8-0E |
0 … 1000 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-K4-05 |
0 … 1000 bar |
CAN Open |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-1000-K5-05 |
0 … 1000 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-K6-05 |
0 … 1000 bar |
CAN Open |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-K7-05 |
0 … 1000 bar |
CAN Open |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-K8-05 |
0 … 1000 bar |
CAN Open |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-R4-00 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-1000-R4-05 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-R4-0A |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-1000-R4-0D |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-R4-0E |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-1000-R5-00 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-R5-05 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-R5-0A |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-R5-0D |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-R5-0E |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-1000-R6-00 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R6-05 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R6-0A |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R6-0D |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R6-0E |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R7-00 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R7-05 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R7-0A |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R7-0D |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R7-0E |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-1000-R8-00 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-R8-05 |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-R8-0A |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-R8-0D |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-1000-R8-0E |
0 … 1000 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-24-00 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-160-24-05 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-24-0A |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-160-24-0D |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-24-0E |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-25-00 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-25-05 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-25-0A |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-25-0D |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-25-0E |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-26-00 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-26-05 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-26-0A |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-26-0D |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-26-0E |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-27-00 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-27-05 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-27-0A |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-27-0D |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-27-0E |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-28-00 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-28-05 |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-28-0A |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-28-0D |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-28-0E |
0 … 160 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-34-00 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-160-34-05 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-34-0A |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-160-34-0D |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-34-0E |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-35-00 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-35-05 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-35-0A |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-35-0D |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-35-0E |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-36-00 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-36-05 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-36-0A |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-36-0D |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-36-0E |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-37-00 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-37-05 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-37-0A |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-37-0D |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-37-0E |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-38-00 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-38-05 |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-38-0A |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-38-0D |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-38-0E |
0 … 160 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-44-00 |
0 … 160 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-160-44-05 |
0 … 160 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-44-0A |
0 … 160 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-160-44-0D |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-44-0E |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-45-00 |
0 … 160 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-45-05 |
0 … 160 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-45-0A |
0 … 160 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-45-0D |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-45-0E |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-46-00 |
0 … 160 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-46-05 |
0 … 160 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-46-0A |
0 … 160 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-46-0D |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-46-0E |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-47-00 |
0 … 160 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-47-05 |
0 … 160 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-47-0A |
0 … 160 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-47-0D |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-47-0E |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-48-00 |
0 … 160 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-48-05 |
0 … 160 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-48-0A |
0 … 160 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-48-0D |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-48-0E |
0 … 160 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-A4-00 |
0 … 160 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-160-A4-05 |
0 … 160 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-A4-0A |
0 … 160 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-160-A4-0D |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-A4-0E |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-A5-00 |
0 … 160 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-A5-05 |
0 … 160 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-A5-0A |
0 … 160 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-A5-0D |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-A5-0E |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-A6-00 |
0 … 160 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-A6-05 |
0 … 160 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-A6-0A |
0 … 160 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-A6-0D |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-A6-0E |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-A7-00 |
0 … 160 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-A7-05 |
0 … 160 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-A7-0A |
0 … 160 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-A7-0D |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-A7-0E |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-A8-00 |
0 … 160 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-A8-05 |
0 … 160 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-A8-0A |
0 … 160 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-A8-0D |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-A8-0E |
0 … 160 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-B4-00 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-160-B4-05 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-B4-0A |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-160-B4-0D |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-B4-0E |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-B5-00 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-B5-05 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-B5-0A |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-B5-0D |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-B5-0E |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-B6-00 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-B6-05 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-B6-0A |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-B6-0D |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-B6-0E |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-B7-00 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-B7-05 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-B7-0A |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-B7-0D |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-B7-0E |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-B8-00 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-B8-05 |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-B8-0A |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-B8-0D |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-B8-0E |
0 … 160 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-K4-05 |
0 … 160 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-K5-05 |
0 … 160 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-K6-05 |
0 … 160 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-K7-05 |
0 … 160 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-K8-05 |
0 … 160 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-R4-00 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-160-R4-05 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-R4-0A |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-160-R4-0D |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-R4-0E |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-160-R5-00 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-R5-05 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-R5-0A |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-R5-0D |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-R5-0E |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-160-R6-00 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-R6-05 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-R6-0A |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-R6-0D |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-R6-0E |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-160-R7-00 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-R7-05 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-R7-0A |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-R7-0D |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-R7-0E |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-160-R8-00 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-R8-05 |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-R8-0A |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-R8-0D |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-160-R8-0E |
0 … 160 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-24-00 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-250-24-05 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-24-0A |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-250-24-0D |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-24-0E |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-25-00 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-25-05 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-25-0A |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-25-0D |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-25-0E |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-26-00 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-26-05 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-26-0A |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-26-0D |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-26-0E |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-27-00 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-27-05 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-27-0A |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-27-0D |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-27-0E |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-28-00 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-28-05 |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-28-0A |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-28-0D |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-28-0E |
0 … 250 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-34-00 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-250-34-05 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-34-0A |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-250-34-0D |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-34-0E |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-35-00 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-35-05 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-35-0A |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-35-0D |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-35-0E |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-36-00 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-36-05 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-36-0A |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-36-0D |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-36-0E |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-37-00 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-37-05 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-37-0A |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-37-0D |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-37-0E |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-38-00 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-38-05 |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-38-0A |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-38-0D |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-38-0E |
0 … 250 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-44-00 |
0 … 250 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-250-44-05 |
0 … 250 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-44-0A |
0 … 250 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-250-44-0D |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-44-0E |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-45-00 |
0 … 250 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-45-05 |
0 … 250 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-45-0A |
0 … 250 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-45-0D |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-45-0E |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-46-00 |
0 … 250 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-46-05 |
0 … 250 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-46-0A |
0 … 250 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-46-0D |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-46-0E |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-47-00 |
0 … 250 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-47-05 |
0 … 250 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-47-0A |
0 … 250 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-47-0D |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-47-0E |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-48-00 |
0 … 250 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-48-05 |
0 … 250 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-48-0A |
0 … 250 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-48-0D |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-48-0E |
0 … 250 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-A4-00 |
0 … 250 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-250-A4-05 |
0 … 250 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-A4-0A |
0 … 250 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-250-A4-0D |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-A4-0E |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-A5-00 |
0 … 250 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-A5-05 |
0 … 250 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-A5-0A |
0 … 250 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-A5-0D |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-A5-0E |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-A6-00 |
0 … 250 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-A6-05 |
0 … 250 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-A6-0A |
0 … 250 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-A6-0D |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-A6-0E |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-A7-00 |
0 … 250 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-A7-05 |
0 … 250 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-A7-0A |
0 … 250 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-A7-0D |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-A7-0E |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-A8-00 |
0 … 250 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-A8-05 |
0 … 250 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-A8-0A |
0 … 250 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-A8-0D |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-A8-0E |
0 … 250 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-B4-00 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-250-B4-05 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-B4-0A |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-250-B4-0D |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-B4-0E |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-B5-00 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-B5-05 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-B5-0A |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-B5-0D |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-B5-0E |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-B6-00 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-B6-05 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-B6-0A |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-B6-0D |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-B6-0E |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-B7-00 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-B7-05 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-B7-0A |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-B7-0D |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-B7-0E |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-B8-00 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-B8-05 |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-B8-0A |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-B8-0D |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-B8-0E |
0 … 250 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-K4-05 |
0 … 250 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-K5-05 |
0 … 250 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-K6-05 |
0 … 250 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-K7-05 |
0 … 250 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-K8-05 |
0 … 250 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-R4-00 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-250-R4-05 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-R4-0A |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-250-R4-0D |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-R4-0E |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-250-R5-00 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-R5-05 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-R5-0A |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-R5-0D |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-R5-0E |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-250-R6-00 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-R6-05 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-R6-0A |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-R6-0D |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-R6-0E |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-250-R7-00 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-R7-05 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-R7-0A |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-R7-0D |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-R7-0E |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-250-R8-00 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-R8-05 |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-R8-0A |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-R8-0D |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-250-R8-0E |
0 … 250 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-24-00 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-400-24-05 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-24-0A |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-400-24-0D |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-24-0E |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-25-00 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-25-05 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-25-0A |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-25-0D |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-25-0E |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-26-00 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-26-05 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-26-0A |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-26-0D |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-26-0E |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-27-00 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-27-05 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-27-0A |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-27-0D |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-27-0E |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-28-00 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-28-05 |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-28-0A |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-28-0D |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-28-0E |
0 … 400 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-34-00 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-400-34-05 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-34-0A |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-400-34-0D |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-34-0E |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-35-00 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-35-05 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-35-0A |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-35-0D |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-35-0E |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-36-00 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-36-05 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-36-0A |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-36-0D |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-36-0E |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-37-00 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-37-05 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-37-0A |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-37-0D |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-37-0E |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-38-00 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-38-05 |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-38-0A |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-38-0D |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-38-0E |
0 … 400 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-44-00 |
0 … 400 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-400-44-05 |
0 … 400 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-44-0A |
0 … 400 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-400-44-0D |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-44-0E |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-45-00 |
0 … 400 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-45-05 |
0 … 400 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-45-0A |
0 … 400 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-45-0D |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-45-0E |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-46-00 |
0 … 400 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-46-05 |
0 … 400 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-46-0A |
0 … 400 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-46-0D |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-46-0E |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-47-00 |
0 … 400 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-47-05 |
0 … 400 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-47-0A |
0 … 400 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-47-0D |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-47-0E |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-48-00 |
0 … 400 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-48-05 |
0 … 400 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-48-0A |
0 … 400 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-48-0D |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-48-0E |
0 … 400 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-A4-00 |
0 … 400 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-400-A4-05 |
0 … 400 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-A4-0A |
0 … 400 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-400-A4-0D |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-A4-0E |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-A5-00 |
0 … 400 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-A5-05 |
0 … 400 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-A5-0A |
0 … 400 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-A5-0D |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-A5-0E |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-A6-00 |
0 … 400 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-A6-05 |
0 … 400 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-A6-0A |
0 … 400 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-A6-0D |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-A6-0E |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-A7-00 |
0 … 400 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-A7-05 |
0 … 400 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-A7-0A |
0 … 400 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-A7-0D |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-A7-0E |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-A8-00 |
0 … 400 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-A8-05 |
0 … 400 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-A8-0A |
0 … 400 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-A8-0D |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-A8-0E |
0 … 400 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-B4-00 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-400-B4-05 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-B4-0A |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-400-B4-0D |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-B4-0E |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-B5-00 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-B5-05 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-B5-0A |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-B5-0D |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-B5-0E |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-B6-00 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-B6-05 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-B6-0A |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-B6-0D |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-B6-0E |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-B7-00 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-B7-05 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-B7-0A |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-B7-0D |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-B7-0E |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-B8-00 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-B8-05 |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-B8-0A |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-B8-0D |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-B8-0E |
0 … 400 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-K4-05 |
0 … 400 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-K5-05 |
0 … 400 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-K6-05 |
0 … 400 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-K7-05 |
0 … 400 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-K8-05 |
0 … 400 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-R4-00 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-400-R4-05 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-R4-0A |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-400-R4-0D |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-R4-0E |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-400-R5-00 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-R5-05 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-R5-0A |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-R5-0D |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-R5-0E |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-400-R6-00 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-R6-05 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-R6-0A |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-R6-0D |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-R6-0E |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-400-R7-00 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-R7-05 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-R7-0A |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-R7-0D |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-R7-0E |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-400-R8-00 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-R8-05 |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-R8-0A |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-R8-0D |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-400-R8-0E |
0 … 400 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-24-00 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-600-24-05 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-24-0A |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-600-24-0D |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-24-0E |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-25-00 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-25-05 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-25-0A |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-25-0D |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-25-0E |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-26-00 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-26-05 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-26-0A |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-26-0D |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-26-0E |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-27-00 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-27-05 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-27-0A |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-27-0D |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-27-0E |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-28-00 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-28-05 |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-28-0A |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-28-0D |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-28-0E |
0 … 600 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-34-00 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-600-34-05 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-34-0A |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-600-34-0D |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-34-0E |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-35-00 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-35-05 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-35-0A |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-35-0D |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-35-0E |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-36-00 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-36-05 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-36-0A |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-36-0D |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-36-0E |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-37-00 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-37-05 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-37-0A |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-37-0D |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-37-0E |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-38-00 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-38-05 |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-38-0A |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-38-0D |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-38-0E |
0 … 600 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-44-00 |
0 … 600 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-600-44-05 |
0 … 600 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-44-0A |
0 … 600 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-600-44-0D |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-44-0E |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-45-00 |
0 … 600 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-45-05 |
0 … 600 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-45-0A |
0 … 600 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-45-0D |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-45-0E |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-46-00 |
0 … 600 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-46-05 |
0 … 600 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-46-0A |
0 … 600 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-46-0D |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-46-0E |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-47-00 |
0 … 600 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-47-05 |
0 … 600 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-47-0A |
0 … 600 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-47-0D |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-47-0E |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-48-00 |
0 … 600 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-48-05 |
0 … 600 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-48-0A |
0 … 600 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-48-0D |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-48-0E |
0 … 600 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-A4-00 |
0 … 600 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-600-A4-05 |
0 … 600 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-A4-0A |
0 … 600 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-600-A4-0D |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-A4-0E |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-A5-00 |
0 … 600 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-A5-05 |
0 … 600 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-A5-0A |
0 … 600 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-A5-0D |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-A5-0E |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-A6-00 |
0 … 600 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-A6-05 |
0 … 600 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-A6-0A |
0 … 600 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-A6-0D |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-A6-0E |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-A7-00 |
0 … 600 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-A7-05 |
0 … 600 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-A7-0A |
0 … 600 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-A7-0D |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-A7-0E |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-A8-00 |
0 … 600 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-A8-05 |
0 … 600 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-A8-0A |
0 … 600 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-A8-0D |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-A8-0E |
0 … 600 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-B4-00 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-600-B4-05 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-B4-0A |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-600-B4-0D |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-B4-0E |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-B5-00 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-B5-05 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-B5-0A |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-B5-0D |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-B5-0E |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-B6-00 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-B6-05 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-B6-0A |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-B6-0D |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-B6-0E |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-B7-00 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-B7-05 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-B7-0A |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-B7-0D |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-B7-0E |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-B8-00 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-B8-05 |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-B8-0A |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-B8-0D |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-B8-0E |
0 … 600 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-K4-05 |
0 … 600 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-K5-05 |
0 … 600 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-K6-05 |
0 … 600 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-K7-05 |
0 … 600 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-K8-05 |
0 … 600 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-R4-00 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
| SCP02-600-R4-05 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-R4-0A |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
| SCP02-600-R4-0D |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-R4-0E |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
| SCP02-600-R5-00 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-R5-05 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-R5-0A |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-R5-0D |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-R5-0E |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
| SCP02-600-R6-00 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-R6-05 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-R6-0A |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-R6-0D |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-R6-0E |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
| SCP02-600-R7-00 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-R7-05 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-R7-0A |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-R7-0D |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-R7-0E |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
| SCP02-600-R8-00 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-R8-05 |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-R8-0A |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-R8-0D |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
| SCP02-600-R8-0E |
0 … 600 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
fcg.cnmec@parkerdistribution.com.cn
