Parker Mold Coolant Quick Couplings, Angled Hose Barb Ends (water, oil, coolant) up to 200 psi - Moldmate Series Couplers
Parker派克MOLDMATE系列快换阴接头-模具冷却用,尾端连接为带角度的宝塔软管接头,承压(水,油,冷却液) 200 PSI
Parker派克流体连接件Parker fluid connectors
派克的模具冷却液快速接头和管嘴经过专门设计,可在更换模具时提供快速简便的方式来连接和断开低压流体管线。Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

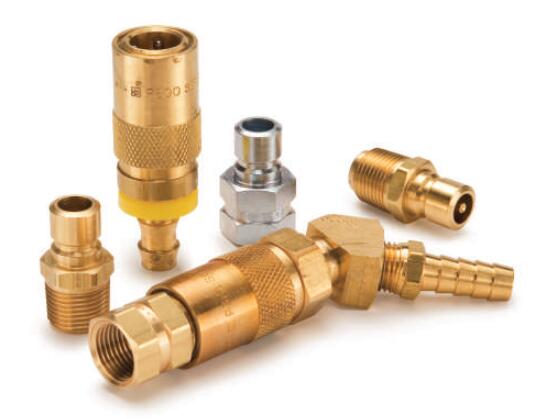

Parker派克MOLDMATE系列快换阴接头-模具冷却用
派克的模具冷却液快速接头和管嘴经过专门设计,可在更换模具时提供快速简便的方式来连接和断开低压流体管线。Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.
Moldmate 系列快换阴接头,承压(水,油,冷却液)可达 200 psi ,能与 Moldmate 系列阳接头配合连接。
派克 Moldmate 系列,使用带阀或者不带阀形式,设计用于将低压冷却液管路连接到注塑机械的模具和压铸设备上。阴接头的设计上,使用氟橡胶与锥阀进行密封,可以用于带阀或者不带阀的阳接头进行连接。阴接头以及阳接头有多种,尺寸,材料,以及连接形式可选,可与模具系统相连接。
技术特点:
- 尺寸范围:1/4”, 3/8", 1/2”
- 材料:黄铜
- 尾端连接:Push-Lok 宝塔软管接头,标准宝塔软管接头
- 接口密封选项:硅树脂,碳氟化合物
- 其他阴接头选项包括:直通,45度,90度软管宝塔
市场:
- 工业压铸
- 注塑
特点/优点:
- 带阀的阴接头使用银色套筒,便于目视识别
- 氟橡胶连接密封,可用于石油基液体
- 标准及Push-Lok软管接头,目前可供直通,45°,90° 形状
- 带阀的阴接头目前可与带阀或者不带阀阳接头配合连接
应用:
- 模具冷却回路
- 压铸机
性能特点:
主体尺寸:1/4, 3/8, 1/2 inch
MAX.运行压力:200 psi,14 bar
应用:Mold coolant
品牌:Parker
配件连接类型:Female Thread, Male Thread, Hose Barb
结构材料:Brass
MAX.运行温度:204 °C,400 °F
真空额定压力:No
阀门类型:Poppet, No Valve
流速:3 至 12 Gal/min
介质:液压,低压
半联轴器:阴接头
MIN.运行温度:-20 至 -15 °F
密封材料:硅胶,硅胶 - 碳氟化合物
镀层类型:套筒使用三价铬镀锌
套管类型:操作手册
锁具类型:锁止钢球
模具冷却 , 模具快换接头 , 模具接头全系列 , 模具冷却水快速接头 , 模具冷却水管接头 , 模具水管 , 铸造模具用冷却接头 , 橡胶软管及接头 , 特氟龙软管 , 特富龙软管 , 模具冷却用软管 , 模具冷却用特氟龙软管 , 模具冷却用聚氨酯软管 , 模具水管快速接头 , 快速软管接头 , 软管接头弯管模具 , PVC塑料软管模具 , 接头及附件 , 水冷和温度控制回路 , 压缩空气 , 泄油管路 , 油口和快速接头 , 完整的产品系列,包括附件 , 高质量的产品,竞争力价格 , Safe Safe -Lock 安全型母头 , 行业产品兼容性 , 模具水嘴接头冷却棒 , 模具水路快速接头 , 模具冷却水管接头 , 冷却水用快速接头 , 模具快速接头, 模具水嘴接头 , 模具标准件冷却棒 , 模具冷却水管 , 塑胶模具流道节流阀 , 气路旋转接头 , 气管快速接头 , 气动快速接头 , 模具冷却针 , 气嘴接头 , 高温水和磷酸酯液压油软管 , 高性能聚氨酯软管 , 模具水嘴接头冷却棒 , 模具水路快速接头 , 模具冷却水管接头 , 冷却水用快速接头 , 模具快速接头, 模具水嘴接头 , 模具标准件冷却棒 , 模具冷却水管 , 塑胶模具流道节流阀 , 气路旋转接头 , 气管快速接头 , 气动快速接头 , 模具冷却针 , 气嘴接头 , Mold Coolant Couplings , Rectus Mold Couplings Quick connect couplings for tempering and cooling , The entire world of mold cooling , Parker mold cooling system couplers , Mold Coolant Quick Couplings
PC系列 - 液压快换接头-模具冷却

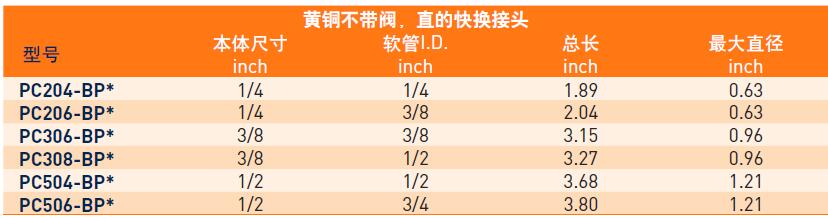

黄铜不带阀,直的快换接头 |
型号 |
本体尺寸
inch |
软管I.D.
inch |
总长 L
inch |
MAX.直径
inch |
PC204-BP* |
1/4 |
1/4 |
1.89 |
0.63 |
PC206-BP* |
1/4 |
3/8 |
2.04 |
0.63 |
PC306-BP* |
3/8 |
3/8 |
3.15 |
0.96 |
PC308-BP* |
3/8 |
1/2 |
3.27 |
0.96 |
PC504-BP* |
1/2 |
1/2 |
3.68 |
1.21 |
PC506-BP* |
1/2 |
3/4 |
3.80 |
1.21 |
* 后缀BP代表Push-LOK插管连接形式,没有代表标准插管的连接形式。

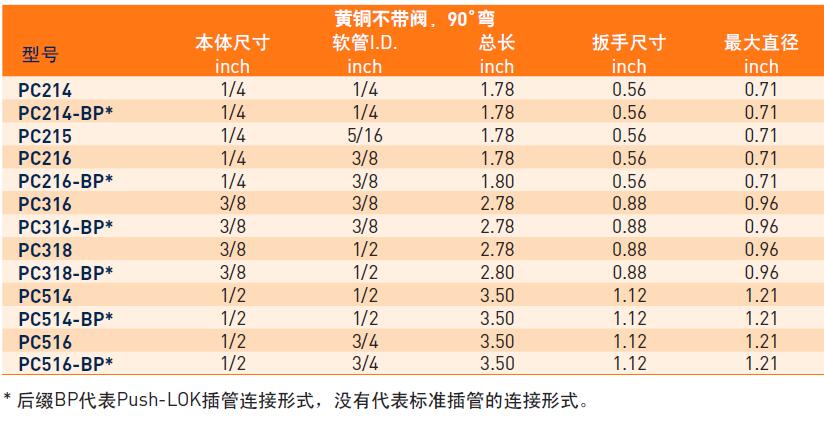

黄铜不带阀,90°弯 |
型号 |
本体尺寸
inch |
软管I.D.
inch |
总长 L
inch |
扳手尺寸
inch |
MAX.直径
inch |
PC214 |
1/4 |
1/4 |
1.78 |
0.56 |
0.71 |
PC214-BP* |
1/4 |
1/4 |
1.78 |
0.56 |
0.71 |
PC215 |
1/4 |
5/16 |
1.78 |
0.56 |
0.71 |
PC216 |
1/4 |
3/8 |
1.78 |
0.56 |
0.71 |
PC216-BP* |
1/4 |
3/8 |
1.80 |
0.56 |
0.71 |
PC316 |
3/8 |
3/8 |
2.78 |
0.88 |
0.96 |
PC316-BP* |
3/8 |
3/8 |
2.78 |
0.88 |
0.96 |
PC318 |
3/8 |
1/2 |
2.78 |
0.88 |
0.96 |
PC318-BP* |
3/8 |
1/2 |
2.80 |
0.88 |
0.96 |
PC514 |
1/2 |
1/2 |
3.50 |
1.12 |
1.21 |
PC514-BP* |
1/2 |
1/2 |
3.50 |
1.12 |
1.21 |
PC516 |
1/2 |
3/4 |
3.50 |
1.12 |
1.21 |
PC516-BP* |
1/2 |
3/4 |
3.50 |
1.12 |
1.21 |
* 后缀BP代表Push-LOK插管连接形式,没有代表标准插管的连接形式。
Mold Coolant Quick Couplings, Angled Hose Barb Ends (water, oil, coolant) up to 200 psi - Moldmate Series Couplers型号
Part |
Body Size (inch) |
Valve Style |
Connection Hose I.D. (inch) |
Connection Type |
PC204 |
1/4 |
Unvalved |
1/4 |
Hose barb |
PC204-BP |
1/4 |
Unvalved |
1/4 |
Push-Lok hose barb |
PC204AV |
1/4 |
Poppet |
1/4 |
Hose barb |
PC204AV-BP |
1/4 |
Poppet |
1/4 |
Push-Lok hose barb |
PC205 |
1/4 |
Unvalved |
5/16 |
Hose barb |
PC205AV |
1/4 |
Poppet |
5/16 |
Hose barb |
PC206 |
1/4 |
Unvalved |
3/8 |
Hose barb |
PC206-BP |
1/4 |
Unvalved |
3/8 |
Push-Lok hose barb |
PC206AV |
1/4 |
Poppet |
3/8 |
Hose barb |
PC206AV-BP |
1/4 |
Poppet |
3/8 |
Push-Lok hose barb |
PC214 |
1/4 |
Unvalved |
1/4 |
Hose barb, 90 degree |
PC214-BP |
1/4 |
Unvalved |
1/4 |
Push-Lok hose barb, 90 degree |
PC214AV |
1/4 |
Poppet |
1/4 |
Hose barb, 90 degree |
PC214AV-BP |
1/4 |
Poppet |
1/4 |
Push-Lok hose barb, 90 degree |
PC215 |
1/4 |
Unvalved |
5/16 |
Hose barb, 90 degree |
PC215AV |
1/4 |
Poppet |
5/16 |
Hose barb, 90 degree |
PC216 |
1/4 |
Unvalved |
3/8 |
Hose barb, 90 degree |
PC216-BP |
1/4 |
Unvalved |
3/8 |
Push-Lok hose barb, 90 degree |
PC216AV |
1/4 |
Poppet |
3/8 |
Hose barb, 90 degree |
PC216AV-BP |
1/4 |
Poppet |
3/8 |
Push-Lok hose barb, 90 degree |
PC224 |
1/4 |
Unvalved |
1/4 |
Hose barb, 45 degree |
PC224-BP |
1/4 |
Unvalved |
1/4 |
Push-Lok hose barb, 45 degree |
PC224AV |
1/4 |
Poppet |
1/4 |
Hose barb, 45 degree |
PC224AV-BP |
1/4 |
Poppet |
1/4 |
Push-Lok hose barb, 45 degree |
PC226 |
1/4 |
Unvalved |
3/8 |
Hose barb, 45 degree |
PC226-BP |
1/4 |
Unvalved |
3/8 |
Push-Lok hose barb, 45 degree |
PC226AV |
1/4 |
Poppet |
3/8 |
Hose barb, 45 degree |
PC226AV-BP |
1/4 |
Poppet |
3/8 |
Push-Lok hose barb, 45 degree |
PC306 |
3/8 |
Unvalved |
3/8 |
Hose barb |
PC306-BP |
3/8 |
Unvalved |
3/8 |
Push-Lok hose barb |
PC306V |
3/8 |
Poppet |
3/8 |
Hose barb |
PC306V-BP |
3/8 |
Poppet |
3/8 |
Push-Lok hose barb |
PC308 |
3/8 |
Unvalved |
1/2 |
Hose barb |
PC308-BP |
3/8 |
Unvalved |
1/2 |
Push-Lok hose barb |
PC308V |
3/8 |
Poppet |
1/2 |
Hose barb |
PC308V-BP |
3/8 |
Poppet |
1/2 |
Push-Lok hose barb |
PC316 |
3/8 |
Unvalved |
3/8 |
Hose barb, 90 degree |
PC316-BP |
3/8 |
Unvalved |
3/8 |
Push-Lok hose barb, 90 degree |
PC316V |
3/8 |
Poppet |
3/8 |
Hose barb, 90 degree |
PC316V-BP |
3/8 |
Poppet |
3/8 |
Push-Lok hose barb, 90 degree |
PC318 |
3/8 |
Unvalved |
1/2 |
Hose barb, 90 degree |
PC318-BP |
3/8 |
Unvalved |
1/2 |
Push-Lok hose barb, 90 degree |
PC318V |
3/8 |
Poppet |
1/2 |
Hose barb, 90 degree |
PC318V-BP |
3/8 |
Poppet |
1/2 |
Push-Lok hose barb, 90 degree |
PC326 |
3/8 |
Unvalved |
3/8 |
Hose barb, 45 degree |
PC326-BP |
3/8 |
Unvalved |
3/8 |
Push-Lok hose barb, 45 degree |
PC326V |
3/8 |
Poppet |
3/8 |
Hose barb, 45 degree |
PC326V-BP |
3/8 |
Poppet |
3/8 |
Push-Lok hose barb, 45 degree |
PC328 |
3/8 |
Unvalved |
1/2 |
Hose barb, 45 degree |
PC328-BP |
3/8 |
Unvalved |
1/2 |
Push-Lok hose barb, 45 degree |
PC328V |
3/8 |
Poppet |
1/2 |
Hose barb, 45 degree |
PC328V-BP |
3/8 |
Poppet |
1/2 |
Push-Lok hose barb, 45 degree |
PC504 |
1/2 |
Unvalved |
1/2 |
Hose barb |
PC504-BP |
1/2 |
Unvalved |
1/2 |
Push-Lok hose barb |
PC506 |
1/2 |
Unvalved |
3/4 |
Hose barb |
PC506-BP |
1/2 |
Unvalved |
3/4 |
Push-Lok hose barb |
PC514 |
1/2 |
Unvalved |
1/2 |
Hose barb, 90 degree |
PC514-BP |
1/2 |
Unvalved |
1/2 |
Push-Lok hose barb, 90 degree |
PC516 |
1/2 |
Unvalved |
3/4 |
Hose barb, 90 degree |
PC516-BP |
1/2 |
Unvalved |
3/4 |
Push-Lok hose barb, 90 degree |
PC524 |
1/2 |
Unvalved |
1/2 |
Hose barb, 45 degree |
PC524-BP |
1/2 |
Unvalved |
1/2 |
Push-Lok hose barb, 45 degree |
PC526 |
1/2 |
Unvalved |
3/4 |
Hose barb, 45 degree |
PC526-BP |
1/2 |
Unvalved |
3/4 |
Push-Lok hose barb, 45 degree |
|
