Parker 流体连接件-诊断测试设备Diagnostic Testing Equipment
Parker 诊断测试设备Diagnostic Testing Equipment
Parker Diagnostic Testing Equipment
传感控制 ServiceJunior 测量设备

派克传感设备 ServiceJunior 诊断测试套件是数字测量压力和捕获任何液压或气动系统中大范围波动的选择。



Parker 传感控制 ServiceJunior 测量设备 资料下载

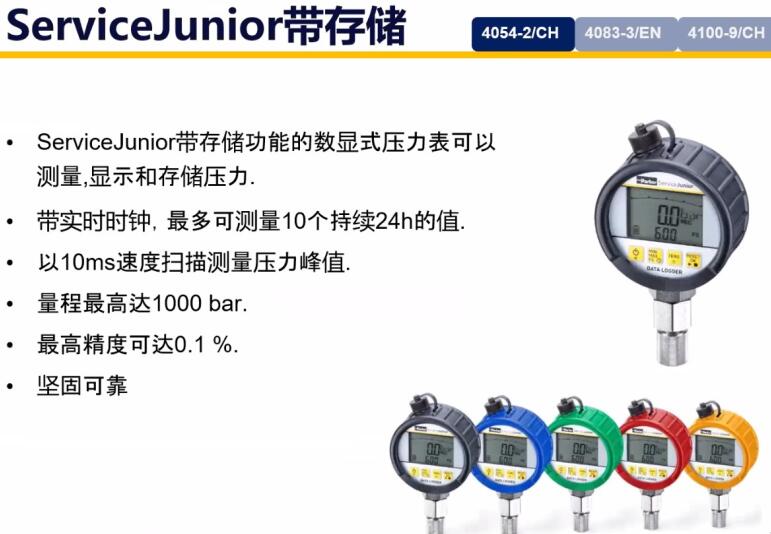

派克传感设备 ServiceJunior 是一款具有min.值/max.值记忆能力和图形显示的数字压力表。扫描速度为10 ms，不同的测量范围可对应不同颜色的彩色外壳，便于识别。

市场：
- 工业
- 建筑
- 注塑
- 测试
- 维护和修理，MRO

特点与优势：

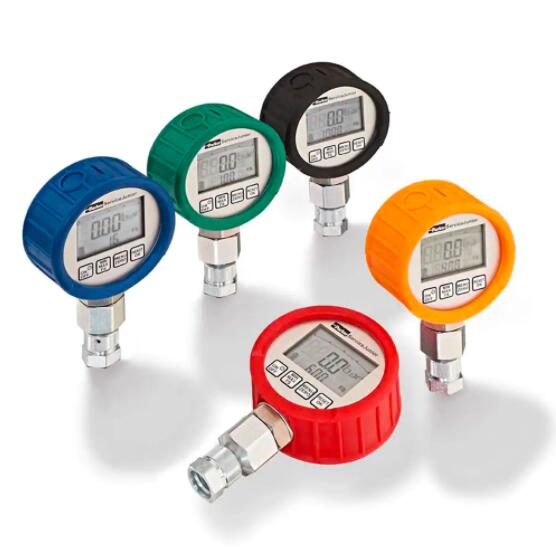

- 不同颜色对应不同压力范围，便于视觉识别
- min.值/max.值储存，可捕获瞬间压力和压力损失
- 易于操作，可调节压力单位
- 适用于测量液压和气压系统的压力
- 长期稳定
- 可旋转

应用：
- 工程机械
- 冷却系统
- 工业液压系统
- 流体或空气系统维护和故障排除





Parker 传感控制 ServiceJunior 测量设备 型号

型号 设备类型 压力测量范围
K-SCJN-016-01 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS -1...016
K-SCJN-016-02 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS -1...016
K-SCJN-016-03 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...016
K-SCJN-016-L1 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS -1...016
K-SCJN-016-L2 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS -1...016
K-SCJN-016-L3 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...016
K-SCJN-100-01 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS 0...100
K-SCJN-100-02 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS 0...100
K-SCJN-100-03 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...100
K-SCJN-100-L1 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS 0...100
K-SCJN-100-L2 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS 0...100
K-SCJN-100-L3 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...100
K-SCJN-1000-01 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS 0...1000
K-SCJN-1000-02 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS 0...1000
K-SCJN-1000-03 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...1000
K-SCJN-1000-L1 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS 0...1000
K-SCJN-1000-L2 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS 0...1000
K-SCJN-1000-L3 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...1000
K-SCJN-400-01 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS 0...400
K-SCJN-400-02 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS 0...400
K-SCJN-400-03 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...400
K-SCJN-400-L1 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS 0...400
K-SCJN-400-L2 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS 0...400
K-SCJN-400-L3 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...400
K-SCJN-600-01 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS 0...600
K-SCJN-600-02 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS 0...600
K-SCJN-600-03 ServiceJunior with calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...600
K-SCJN-600-L1 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.5 % FS 0...600
K-SCJN-600-L2 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.25 % FS 0...600
K-SCJN-600-L3 ServiceJunior with Datalogger and calibration certificate as per ISO 9001 Accuracy ± 0.1 % FS 0...600
K-SCJN-KIT-016 ServiceJunior Kit with calibration certificate as per ISO 9001 -1...016
K-SCJN-KIT-100 ServiceJunior Kit with calibration certificate as per ISO 9001 0...100
K-SCJN-KIT-400 ServiceJunior Kit with calibration certificate as per ISO 9001 0...400
K-SCJN-KIT-600 ServiceJunior Kit with calibration certificate as per ISO 9001 0...600
SCC-120 ServiceJunior Equipment case na
SCJN-016-01 ServiceJunior Accuracy ± 0.5 % FS -1...016
SCJN-016-02 ServiceJunior Accuracy ± 0.25 % FS -1...016
SCJN-016-03 ServiceJunior Accuracy ± 0.1 % FS 0...016
SCJN-016-L1 ServiceJunior with Datalogger, Accuracy ± 0.5 % FS -1...016
SCJN-016-L2 ServiceJunior with Datalogger, Accuracy ± 0.25 % FS -1...016
SCJN-016-L3 ServiceJunior with Datalogger, Accuracy ± 0.1 % FS 0...016
SCJN-100-01 ServiceJunior Accuracy ± 0.5 % FS 0...100
SCJN-100-02 ServiceJunior Accuracy ± 0.25 % FS -1...016
SCJN-100-03 ServiceJunior Accuracy ± 0.1 % FS 0...100
SCJN-100-L1 ServiceJunior with Datalogger, Accuracy ± 0.5 % FS 0...100
SCJN-100-L2 ServiceJunior with Datalogger, Accuracy ± 0.25 % FS -1...016
SCJN-100-L3 ServiceJunior with Datalogger, Accuracy ± 0.1 % FS 0...100
SCJN-1000-01 ServiceJunior Accuracy ± 0.5 % FS 0...1000
SCJN-1000-02 ServiceJunior Accuracy ± 0.25 % FS 0...1000
SCJN-1000-03 ServiceJunior Accuracy ± 0.1 % FS 0...1000
SCJN-1000-L1 ServiceJunior with Datalogger, Accuracy ± 0.5 % FS 0...1000
SCJN-1000-L2 ServiceJunior with Datalogger, Accuracy ± 0.25 % FS 0...1000
SCJN-1000-L3 ServiceJunior with Datalogger, Accuracy ± 0.1 % FS 0...1000
SCJN-400-01 ServiceJunior Accuracy ± 0.5 % FS 0...400
SCJN-400-02 ServiceJunior Accuracy ± 0.25 % FS 0...400
SCJN-400-03 ServiceJunior Accuracy ± 0.1 % FS 0...400
SCJN-400-L1 ServiceJunior with Datalogger, Accuracy ± 0.5 % FS 0...400
SCJN-400-L2 ServiceJunior with Datalogger, Accuracy ± 0.25 % FS 0...400
SCJN-400-L3 ServiceJunior with Datalogger, Accuracy ± 0.1 % FS 0...400
SCJN-600-01 ServiceJunior Accuracy ± 0.5 % FS 0...600
SCJN-600-02 ServiceJunior Accuracy ± 0.25 % FS 0...600
SCJN-600-03 ServiceJunior Accuracy ± 0.1 % FS 0...600
SCJN-600-L1 ServiceJunior with Datalogger, Accuracy ± 0.5 % FS 0...600
SCJN-600-L2 ServiceJunior with Datalogger, Accuracy ± 0.25 % FS 0...600
SCJN-600-L3 ServiceJunior with Datalogger, Accuracy ± 0.1 % FS 0...600
SCJN-KIT-016 ServiceJunior Kit -1...016
SCJN-KIT-100 ServiceJunior Kit 0...100
SCJN-KIT-400 ServiceJunior Kit 0...400
SCJN-KIT-600 ServiceJunior Kit 0...600
SCJN-RUBBER-BLA Rubber protection Black 0...1000
SCJN-RUBBER-BLU Rubber protection Blue -1...016
SCJN-RUBBER-GRE Rubber protection Green 0...100
SCJN-RUBBER-ORA Rubber protection Orange 0...400
SCJN-RUBBER-RED Rubber protection Red 0...600
