Parker管件在冷却系统的应用-模具冷却应用
Mold Coolant Couplings
Quick Coupling with European Profile, Series 10/11/12

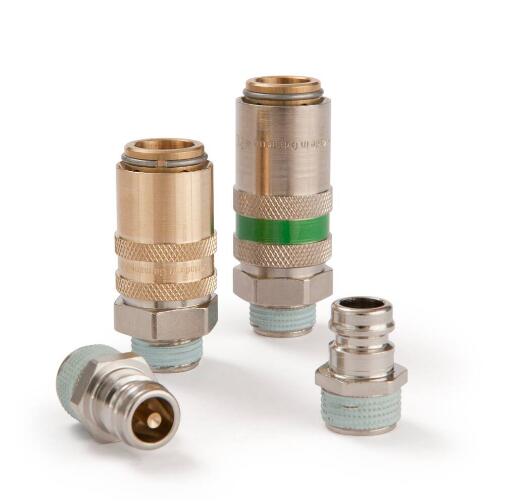

Parker Rectus 10/11/12系列欧洲标准快速接头

标称直径为6/9/13的快速接头系统，用于回火和冷却应用，压力高达15 bar。欧洲标准的接头系统。可用黄铜制成。Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 bar. Coupling system with European profile. Available made of brass.



Parker Rectus 10/11/12系列欧洲标准快速接头 资料下载



派克的快速接头系列10/11/12是专门为连接冷却液管线和注塑模具而开发的。这些系列以其方便，单手操作和可靠的O形圈密封而著称。12/11/12系列在欧洲被广泛使用。Parker's Quick Coupling Series 10/11/12 were especially developed for connecting coolant lines and injection molds. These series stands out for their convenient, single-handed operation and a reliable O-ring seal. Series 10/11/12 is widely used in Europe.

该接头系列有单关断，双关断或直通型供选择，也可提供SAFE-LOCK?技术。直通接头配有镀镍套筒，可快速准确地区分外观。角形连接可防止在软管中形成扭结。This coupling series is available in single shut-off, double shut-off or straight-through versions and is also available with SAFE-LOCK?-technology. The straight-through couplings are equipped with nickel plated sleeves for quick and accurate visual differentiation. The angular connections prevent kinks from forming in the hose.

市场Markets:
- 工业Industrial

功能/优点Features/Benefits:
- 单手操作，轻松快速地连接Single-hand operation for easy and fast connection
- SAFE-LOCK技术可靠地防止了系统在压力下意外脱开SAFE-LOCK-technology reliably prevents accidental uncoupling of the system under pressure

应用Applications:
- 模具冷却Mold cooling
- 冷却和回火线Cooling and tempering lines

工作温度Working Temperature
-15°C up to +200°C (FKM)
取决于介质depending on the medium.

对于低于-15°C和高于+200°C的温度，根据介质的不同，可提供其他密封类型。For temperatures below -15°C and over +200°C and depending on the medium, other seal variants are available.

如有要求，10/11系列还配有特殊的FFKM高温密封件，适用于200°C以下的恒温应用。On request, series 10/11 are also available with a special FFKM high-temperature seal for applications up to constant temperature 200°C.

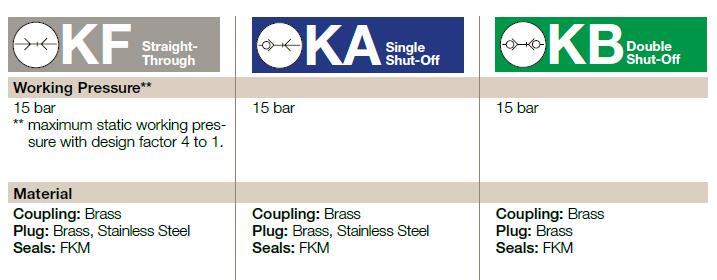

10/11/12 系列 – 欧洲规格

有效通径 6 / 9 / 13 mm
单手操作
加长型套筒
弯头的接
体可有效避免排管时路绞? 直通式，单闭锁双可选
Safe Safe -Lock versions

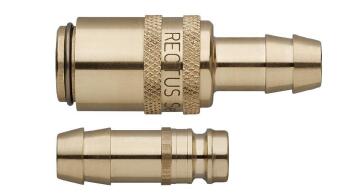

直通式
装配有镀镍的套筒区别于单封闭和双封闭式





模具冷却 ， 模具快换接头 ， 模具接头全系列 ， 模具冷却水快速接头 ， 模具冷却水管接头 ， 模具水管 ， 铸造模具用冷却接头 ， 橡胶软管及接头 ， 特氟龙软管 ， 特富龙软管 ， 模具冷却用软管 ， 模具冷却用特氟龙软管 ， 模具冷却用聚氨酯软管 ， 模具水管快速接头 ， 快速软管接头 ， 软管接头弯管模具 ， PVC塑料软管模具 ， 接头及附件 ， 水冷和温度控制回路 ， 压缩空气 ， 泄油管路 ， 油口和快速接头 ， 完整的产品系列，包括附件 ， 高质量的产品，竞争力价格 ， Safe Safe -Lock 安全型母头 ， 行业产品兼容性 ， 模具水嘴接头冷却棒 ， 模具水路快速接头 ， 模具冷却水管接头 ， 冷却水用快速接头 ， 模具快速接头， 模具水嘴接头 ， 模具标准件冷却棒 ， 模具冷却水管 ， 塑胶模具流道节流阀 ， 气路旋转接头 ， 气管快速接头 ， 气动快速接头 ， 模具冷却针 ， 气嘴接头 ， 高温水和磷酸酯液压油软管 ， 高性能聚氨酯软管 ， 模具水嘴接头冷却棒 ， 模具水路快速接头 ， 模具冷却水管接头 ， 冷却水用快速接头 ， 模具快速接头， 模具水嘴接头 ， 模具标准件冷却棒 ， 模具冷却水管 ， 塑胶模具流道节流阀 ， 气路旋转接头 ， 气管快速接头 ， 气动快速接头 ， 模具冷却针 ， 气嘴接头 ， Mold Coolant Couplings ， Rectus Mold Couplings Quick connect couplings for tempering and cooling ， The entire world of mold cooling ， Parker mold cooling system couplers ， Mold Coolant Quick Couplings









Parker Rectus 10/11/12系列欧洲标准快速接头型号





Part Diameter Nominal (DN) Type Valving Connection Type Connection Thread Size (inch) Connection Thread Size (mm) Hose I.D. Length (mm) Material Special Options
10KBAH13MVX 6 Coupling with Male Thread 45° 1/4 na na 47 Brass na
10KBAH14MVX 6 Coupling with Male Thread 45° na 14x1,5 na 47 Brass na
10KBAM14MVX 6 Coupling with Male Thread na 14x1,5 na 48 Brass na
10KBAM14MVXSL 6 Coupling with Male Thread na 14x1,5 na 52,5 Brass Safe-Lock
10KBAR13MVX 6 Coupling with Male Thread 90° 1/4 na na 47 Brass na
10KBAR14MVX 6 Coupling with Male Thread 90° na 14x1,5 na 47 Brass na
10KBAW13MVX 6 Coupling with Male Thread 1/4 na na 48 Brass na
10KBAW13MVXSL 6 Coupling with Male Thread 1/4 na na 52,5 Brass Safe-Lock
10KBAW17MVX 6 Coupling with Male Thread 3/8 na na 48 Brass na
10KBAW17MVXSL 6 Coupling with Male Thread 3/8 na na 52,5 Brass Safe-Lock
10KBIW13MVX 6 Coupling with Female Thread 1/4 na na 41 Brass na
10KBIW17MVX 6 Coupling with Female Thread 3/8 na na 45 Brass na
10KBTF09MVX 6 Coupling with Hose Barb na na 9 52 Brass na
10KBTF09MVXSL 6 Coupling with Hose Barb na na 9 60 Brass Safe-Lock
10KBTH09MVX 6 Coupling with Hose Barb 45° na na 9 52 Brass na
10KBTH09MVXSL 6 Coupling with Hose Barb 45° na na 9 60 Brass Safe-Lock
10KBTR09MVX 6 Coupling with Hose Barb 90° na na 9 41 Brass na
10KBTR09MVXSL 6 Coupling with Hose Barb 90° na na 9 53,5 Brass Safe-Lock
10KFAH13MVX 6 Coupling without Male Thread 45° 1/4 na na 47 Brass na
10KFAH14MVX 6 Coupling without Male Thread 45° na 14x1,5 na 47 Brass na
10KFAM14MVX 6 Coupling without Male Thread na 14x1,5 na 48 Brass na
10KFAM14MVXSL 6 Coupling without Male Thread na 14x1,5 na 52,5 Brass Safe-Lock
10KFAR13MVX 6 Coupling without Male Thread 90° 1/4 na na 47 Brass na
10KFAR14MVX 6 Coupling without Male Thread 90° na 14x1,5 na 47 Brass na
10KFAW13MVX 6 Coupling without Male Thread 1/4 na na 48 Brass na
10KFAW13MVXSL 6 Coupling without Male Thread 1/4 na na 52,5 Brass Safe-Lock
10KFAW17MVX 6 Coupling without Male Thread 3/8 na na 48 Brass na
10KFAW17MVXSL 6 Coupling without Male Thread 3/8 na na 52,5 Brass Safe-Lock
10KFIW13MVX 6 Coupling without Female Thread 1/4 na na 41 Brass na
10KFIW17MVX 6 Coupling without Female Thread 3/8 na na 45 Brass na
10KFTF09MVX 6 Coupling without Hose Barb na na 9 52 Brass na
10KFTF09MVXSL 6 Coupling without Hose Barb na na 9 60 Brass Safe-Lock
10KFTH09MVX 6 Coupling without Hose Barb 45° na na 9 52 Brass na
10KFTH09MVXSL 6 Coupling without Hose Barb 45° na na 9 60 Brass Safe-Lock
10KFTR09MVX 6 Coupling without Hose Barb 90° na na 9 41 Brass na
10KFTR09MVXSL 6 Coupling without Hose Barb 90° na na 9 53,5 Brass Safe-Lock
10SBAM14MVX 6 Plug with Male Thread na 14x1,5 na 29 Brass na
10SBAW13MVN 6 Plug with Male Thread 1/4 na na 29 Brass nickel plated na
10SFAM08MXX 6 Plug without Male Thread na 8x0,75 na 24 Brass na
10SFAM08RXX 6 Plug without Male Thread na 8x0,75 na 24 Stainless Steel na
10SFAM10MXX 6 Plug without Male Thread na 10x1 na 24 Brass na
10SFAM10RXX 6 Plug without Male Thread na 10x1 na 24 Stainless Steel na
10SFAM12MXX 6 Plug without Male Thread na 12x1,5 na 27 Brass na
10SFAM14MXX 6 Plug without Male Thread na 14x1,5 na 26 Brass na
10SFAR08MXX 6 Plug without Male Thread 90° na 8x0,75 na 27 Brass na
10SFAR10MXN 6 Plug without Male Thread 90° 1/8 na na 27 Brass nickel plated na
10SFAR10MXX 6 Plug without Male Thread 90° na 10x1 na 27 Brass na
10SFAR13MXN 6 Plug without Male Thread 90° 1/4 na na 27 Brass nickel plated na
10SFAW10MXN 6 Plug without Male Thread 1/8 na na 24 Brass nickel plated na
10SFAW10RXX 6 Plug without Male Thread 1/8 na na 24 Stainless Steel na
10SFAW13MXN 6 Plug without MaleThread 1/4 na na 26 Brass nickel plated na
10SFAW13RXX 6 Plug without Male Thread 1/4 na na 26 Stainless Steel na
10SFAW17MXN 6 Plug without Male Thread 3/8 na na 30 Brass nickel plated na
10SFIW10MXN 6 Plug without Female Thread 1/8 na na 24 Brass nickel plated na
10SFIW13MXN 6 Plug without Female Thread 1/4 na na 27 Brass nickel plated na
10SFTF09MXX 6 Plug without Hose Barb na na 9 38 Brass na
10VN1010MXX 6 Plug without continuous Male Thread 1/8 na na 100 Brass na
10VN1310MXX 6 Plug without continuous Male Thread 1/4 na na 100 Brass na
10VNXX063MXX 6 Extension Plug without without Thread na na na 63 Brass na
10VNXX10MXX 6 Extension Plug without without Thread na na na 100 Brass na
10VNXX12MXX 6 Extension Plug without without Thread na na na 120 Brass na
10VNXX24MXX 6 Extension Plug without without Thread na na na 240 Brass na
10VNXX36MXX 6 Extension Plug without without Thread na na na 360 Brass na
11KBAH16MVX 9 Coupling with Male Thread 45° na 16x1,5 na 53,5 Brass na
11KBAM16MVX 9 Coupling with Male Thread na 16x1,5 na 51,5 Brass na
11KBAM16MVXSL 9 Coupling with Male Thread na 16x1,5 na 62 Brass Safe-Lock
11KBAR16MVX 9 Coupling with Male Thread 90° na 16x1,5 na 53,5 Brass na
11KBAW13MVX 9 Coupling with Male Thread 1/4 na na 51,5 Brass na
11KBAW13MVXSL 9 Coupling with Male Thread 1/4 na na 62 Brass Safe-Lock
11KBAW17MVX 9 Coupling with Male Thread 3/8 na na 51,5 Brass na
11KBAW17MVXSL 9 Coupling with Male Thread 3/8 na na 62 Brass Safe-Lock
11KBAW21MVX 9 Coupling with Male Thread 1/2 na na 51,5 Brass na
11KBAW21MVXSL 9 Coupling with Male Thread 1/2 na na 65 Brass Safe-Lock
11KBIM16MVX 9 Coupling with Female Thread na 16x1,5 na 46,5 Brass na
11KBIW13MVX 9 Coupling with Female Thread 1/4 na na 46,5 Brass na
11KBIW17MVX 9 Coupling with Female Thread 3/8 na na 46,5 Brass na
11KBTF13MVX 9 Coupling with Hose Barb na na 13 61,5 Brass na
11KBTF13MVXSL 9 Coupling with Hose Barb na na 13 71 Brass Safe-Lock
11KBTH13MVX 9 Coupling with Hose Barb 45° na na 13 51 Brass na
11KBTH13MVXSL 9 Coupling with Hose Barb 45° na na 13 60,5 Brass Safe-Lock
11KBTR13MVX 9 Coupling with Hose Barb 90° na na 13 51 Brass na
11KBTR13MVXSL 9 Coupling with Hose Barb 90° na na 13 63,5 Brass Safe-Lock
11KFAH16MVX 9 Coupling without Male Thread 45° na 16x1,5 na 53,5 Brass na
11KFAM16MVX 9 Coupling without Male Thread na 16x1,5 na 51,5 Brass na
11KFAM16MVXSL 9 Coupling without Male Thread na 16x1,5 na 62 Brass Safe-Lock
11KFAR16MVX 9 Coupling without Male Thread 90° na 16x1,5 na 53,5 Brass na
11KFAW13MVX 9 Coupling without Male Thread 1/4 na na 51,5 Brass na
11KFAW13MVXSL 9 Coupling without Male Thread 1/4 na na 62 Brass Safe-Lock
11KFAW17MVX 9 Coupling without Male Thread 3/8 na na 51,5 Brass na
11KFAW17MVXSL 9 Coupling without Male Thread 3/8 na na 62 Brass Safe-Lock
11KFAW21MVX 9 Coupling without Male Thread 1/2 na na 51,5 Brass na
11KFAW21MVXSL 9 Coupling without Male Thread 1/2 na na 65 Brass Safe-Lock
11KFIM16MVX 9 Coupling without Female Thread na 16x1,5 na 46,5 Brass na
11KFIW13MVX 9 Coupling without Female Thread 1/4 na na 46,5 Brass na
11KFIW17MVX 9 Coupling without Female Thread 3/8 na na 46,5 Brass na
11KFTF13MVX 9 Coupling without Hose Barb na na 13 61,5 Brass na
11KFTF13MVXSL 9 Coupling without Hose Barb na na 13 71 Brass Safe-Lock
11KFTH13MVX 9 Coupling without Hose Barb 45° na na 13 51 Brass na
11KFTH13MVXSL 9 Coupling without Hose Barb 45° na na 13 60,5 Brass Safe-Lock
11KFTR13MVX 9 Coupling without Hose Barb 90° na na 13 51 Brass na
11KFTR13MVXSL 9 Coupling without Hose Barb 90° na na 13 63,5 Brass Safe-Lock
11SBAM16MVX 9 Plug with Male Thread na 16x1,5 na 30 Brass na
11SBAW13MVN 9 Plug with Male Thread 1/4 na na 31 Brass nickel plated na
11SBAW17MVN 9 Plug with Male Thread 3/8 na na 30 Brass nickel plated na
11SFAM14MXX 9 Plug without Male Thread na 14x1,5 na 26 Brass na
11SFAM16MXX 9 Plug without Male Thread na 16x1,5 na 26 Brass na
11SFAR13MXN 9 Plug without Male Thread 90° 1/4 na na 34 Brass nickel plated na
11SFAR14MXX 9 Plug without Male Thread 90° na 14x1,5 na 34 Brass na
11SFAR17MXN 9 Plug without Male Thread 90° 3/8 na na 34 Brass nickel plated na
11SFAW10MXN 9 Plug without Male Thread 1/8 na na 25 Brass nickel plated na
11SFAW13MXN 9 Plug without Male Thread 1/4 na na 26 Brass nickel plated na
11SFAW13RXX 9 Plug without Male Thread 1/4 na na 26 Stainless Steel na
11SFAW17MXN 9 Plug without Male Thread 3/8 na na 26 Brass nickel plated na
11SFAW17RXX 9 Plug without Male Thread 3/8 na na 26 Stainless Steel na
11SFIW13MXN 9 Plug without Female Thread 1/4 na na 33 Brass nickel plated na
11SFTF09MXX 9 Plug without Hose Barb na na 9 41 Brass na
11SFTF13MXX 9 Plug without Hose Barb na na 13 41 Brass na
11VN1310MXX 9 Plug without continuous Male Thread 1/4 na na 100 Brass na
11VN1710MXX 9 Plug without continuous Male Thread 3/8 na na 100 Brass na
11VNXX15MXX 9 Extension Plug without without Thread na na na 150 Brass na
11VNXX30MXX 9 Extension Plug without without Thread na na na 300 Brass na
11VNXX45MXX 9 Extension Plug without without Thread na na na 450 Brass na
12KBAH24MVX 13 Coupling with Male Thread 45° na 24x1,5 na 80 Brass na
12KBAM24MVX 13 Coupling with Male Thread na 24x1,5 na 78 Brass na
12KBAR24MVX 13 Coupling with Male Thread 90° na 24x1,5 na 80 Brass na
12KBAW21MVX 13 Coupling with Male Thread 1/2 na na 74 Brass na
12KBAW26MVX 13 Coupling with Male Thread 3/4 na na 78 Brass na
12KBTF19MVX 13 Coupling with Hose Barb na na 19 90 Brass na
12KBTH19MVX 13 Coupling with Hose Barb 45° na na 19 78 Brass na
12KBTR19MVX 13 Coupling with Hose Barb 90° na na 19 78 Brass na
12KFAH24MVX 13 Coupling without Male Thread 45° na 24x1,5 na 80 Brass na
12KFAM24MVX 13 Coupling without Male Thread na 24x1,5 na 78 Brass na
12KFAR24MVX 13 Coupling without Male Thread 90° na 24x1,5 na 80 Brass na
12KFAW21MVX 13 Coupling without Male Thread 1/2 na na 74 Brass na
12KFAW26MVX 13 Coupling without Male Thread 3/4 na na 78 Brass na
12KFTF19MVX 13 Coupling without Hose Barb na na 19 90 Brass na
12KFTH19MVX 13 Coupling without Hose Barb 45° na na 19 78 Brass na
12KFTR19MVX 13 Coupling without Hose Barb 90° na na 19 78 Brass na
12SBAM24MVX 13 Plug with Male Thread na 24x1,5 na 51 Brass na
12SBAW26MVN 13 Plug with Male Thread 3/4 na na 51 Brass nickel plated na
12SFAM24MXX 13 Plug without Male Thread na 24x1,5 na 51 Brass na
12SFAR21MXN 13 Plug without Male Thread 90° 1/2 na na 47 Brass nickel plated na
12SFAR24MXX 13 Plug without Male Thread 90° na 24x1,5 na 47 Brass na
12SFAW21MXN 13 Plug without Male Thread 1/2 na na 47 Brass nickel plated na
12SFAW26MXN 13 Plug without Male Thread 3/4 na na 51 Brass nickel plated na
12SFTF13MXX 13 Plug without Hose Barb na na 13 61 Brass na
12SFTF19MXX 13 Plug without Hose Barb na na 19 61 Brass na
12VNXX50MXX 13 Extension Plug without without Thread na na na 500 Brass na
12VNXX80MXX 13 Extension Plug without without Thread na na na 800 Brass na






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
