Parker派克流体连接件Parker fluid connectors
热能和冷却的流体处理解决方案Fluid Handling Solutions for Tempering & Cooling

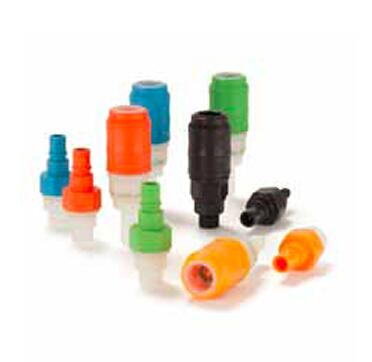

Quick Coupling made of Thermoplastic with Parker Profile, Series 48
Parker48系列热塑性塑料快速接头

标称直径7的快速连接系统，适用于高达10 bar的气动和流体处理应用。带有Parker轮廓的耦合系统。可用热塑性塑料制成-POM，PVDF或PVDF，带有窥视弹簧。Quick coupling system with nominal diameter 7 for pneumatic and fluid handling applications up to 10 bar. Coupling system with Parker profile. Available made of thermoplastic - POM, PVDF or PVDF with peek spring.

Parker48系列热塑性塑料快速接头 资料下载

由POM和PVDF制成的Parker快速接头系列48已开发用于医疗，化学，食品处理，制药和实验室技术行业。该系统还可以采用实心塑料设计（RectuChem +）。在这里，金属弹簧被PEEK制成，这是一种非常耐久的合成材料。Parker's Quick Coupling Series 48 made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The system is also available in a solid plastic design (RectuChem+). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material.
联轴器系统专为单手操作而开发。联轴器和插头的颜色编码为避免联轴器之间介质混淆提供了保证。联轴器也可不带用于直通系统的阀。The coupling system is developed for single-hand operation. The color coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available with no valve for a straight-through system.

市场Markets：
-机械制造Machinery Construction
-汽车Automotive
-流程Process
-生命科学Life Science
-工业Industrial

Features/Benefits功能/优点：
-防溅设计-打开阀之前，塞子已密封。Splash proof design - Plug is sealing prior to opening the valve.
-仅提供完整的热塑性联轴器（带PEEK弹簧）Only provider of a complete thermoplastic coupling (with PEEK spring)
-联轴器和插头的颜色编码不会在介质之间造成混淆No mix-ups between media due to the color coding of coupling and plug
-单手操作可轻松快速地连接Single-hand operation for easy and fast connection

Applications应用：
-食品和化学加工Food and chemical processing
-生物流体传输 Bio fluid transfer

Working Temperature工作温度
-20°C up to +80°C (POM)
-20°C up to +120°C (PVDF)取决于介质depending on the medium.

可根据要求提供其他密封件（FKM、EPDM、FFKM）Other seal variants are available on request(FKM, EPDM, FFKM).
