Parker管件在冷却系统的应用-模具冷却应用
Mold Coolant Couplings
Quick Coupling with International Profile, Series 86/87/88

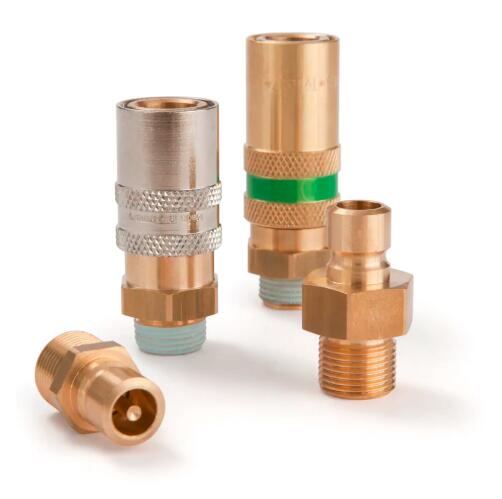

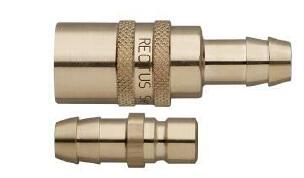

Parker Rectus Series 86/87/88系列国际标准快速接头

标称直径为6/9/13的快速接头系统，用于冷却应用，压力高达15 bar。具有国际特征的耦合系统。可用黄铜制成。Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 bar. Coupling system with International profile. Available made of brass.



Parker Rectus Series 86/87/88系列国际标准快速接头 资料下载



派克的快速接头系列86/87/88是专门为连接冷却液管线和注塑模具而开发的。由于套筒延长，沉头插头可轻松连接和断开。角形连接可防止在软管中形成扭结。Parker's Quick Coupling Series 86/87/88 were especially developed for connecting coolant lines and injection molds. The countersunk plugs can easily be connected and disconnected because of the extended sleeve. The angular connections prevent kinks from forming in the hose.

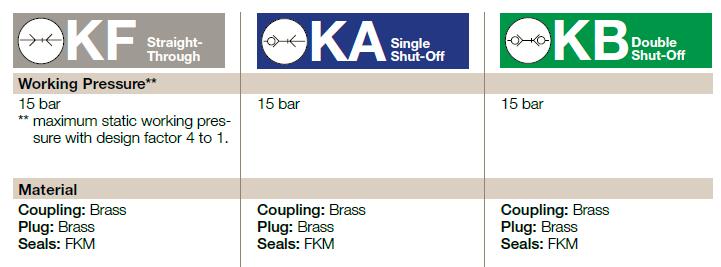

该接头系列有单截止，双截止，直通型供选择，也可提供SAFE-LOCK技术。截止接头（带阀）配有镀镍套，可快速准确地区分外观。This coupling series is available in single shut-off, double shut-off, straight-through versions and is also available with SAFE-LOCK?-technology. The shut-off couplings (with valve) are equipped with nickel plated sleeves for quick and accurate visual differentiation.

市场Markets:
- 工业Industrial

功能/优点Features/Benefits:
- SAFE-LOCK技术可靠地防止了系统在压力下意外脱开SAFE-LOCK-technology reliably prevents accidental uncoupling of the system under pressure
- 截止接头配有镀镍套筒，可快速准确Shut-off couplings are equipped with nickel plated sleeve for quick and accurate visual differentiation

应用领域Application Area:
- 模具冷却Mold cooling
- 冷却和回火线Cooling and tempering lines

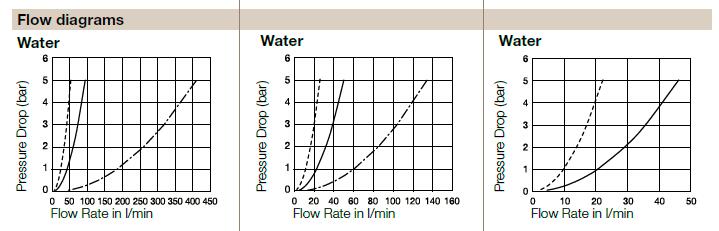

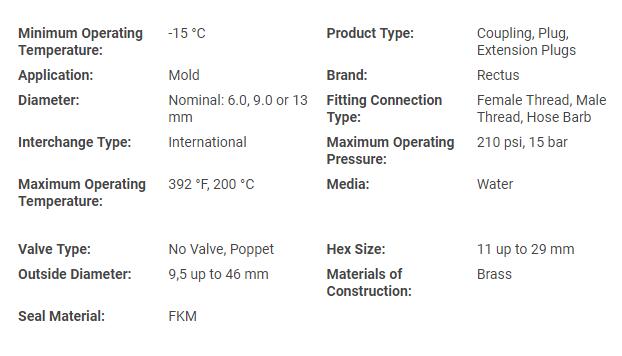

工作温度Working Temperature
-15°C up to +200°C (FKM)
取决于介质depending on the medium.

对于低于-15°C和高于+200°C的温度，根据介质的不同，可提供其他密封类型。For temperatures below -15°C and over +200°C and depending on the medium, other seal variants are available.



86/87/88 系列 – 国际规格

有效通径 6 / 9 13 mm
双手操作
加长型套筒
弯头的接
体可有效避免排管时路绞?
直通式，单闭锁双可选
Safe -Lock
带阀的母头装配有镀镍的套筒，便于区分?





模具冷却 ， 模具快换接头 ， 模具接头全系列 ， 模具冷却水快速接头 ， 模具冷却水管接头 ， 模具水管 ， 铸造模具用冷却接头 ， 橡胶软管及接头 ， 特氟龙软管 ， 特富龙软管 ， 模具冷却用软管 ， 模具冷却用特氟龙软管 ， 模具冷却用聚氨酯软管 ， 模具水管快速接头 ， 快速软管接头 ， 软管接头弯管模具 ， PVC塑料软管模具 ， 接头及附件 ， 水冷和温度控制回路 ， 压缩空气 ， 泄油管路 ， 油口和快速接头 ， 完整的产品系列，包括附件 ， 高质量的产品，竞争力价格 ， Safe Safe -Lock 安全型母头 ， 行业产品兼容性 ， 模具水嘴接头冷却棒 ， 模具水路快速接头 ， 模具冷却水管接头 ， 冷却水用快速接头 ， 模具快速接头， 模具水嘴接头 ， 模具标准件冷却棒 ， 模具冷却水管 ， 塑胶模具流道节流阀 ， 气路旋转接头 ， 气管快速接头 ， 气动快速接头 ， 模具冷却针 ， 气嘴接头 ， 高温水和磷酸酯液压油软管 ， 高性能聚氨酯软管 ， 模具水嘴接头冷却棒 ， 模具水路快速接头 ， 模具冷却水管接头 ， 冷却水用快速接头 ， 模具快速接头， 模具水嘴接头 ， 模具标准件冷却棒 ， 模具冷却水管 ， 塑胶模具流道节流阀 ， 气路旋转接头 ， 气管快速接头 ， 气动快速接头 ， 模具冷却针 ， 气嘴接头 ， Mold Coolant Couplings ， Rectus Mold Couplings Quick connect couplings for tempering and cooling ， The entire world of mold cooling ， Parker mold cooling system couplers ， Mold Coolant Quick Couplings













Quick Coupling with International Profile, Series 86/87/88型号





Part Diameter Nominal (DN) Valving Connection Type Connection Thread Size (inch) Hose I.D. Length (mm) Special Options
86KBAW13MVX 6 Yes Male Thread - parallel 1/4 na 47 na
86KBAW13MVXSL 6 Yes Male Thread - parallel 1/4 na 51,5 Safe-Lock
86KBAW17MVX 6 Yes Male Thread - parallel 3/8 na 47 na
86KBAW17MVXSL 6 Yes Male Thread - parallel 3/8 na 51,5 Safe-Lock
86KBIW10MVX 6 Yes Female Thread - parallel 1/8 na 40 na
86KBIW13MVX 6 Yes Female Thread - parallel 1/4 na 40 na
86KBTF06MVX 6 Yes Hose Barb na 6 46 na
86KBTF06MVXSL 6 Yes Hose Barb na 6 54 Safe-Lock
86KBTF09MVX 6 Yes Hose Barb na 9 51 na
86KBTF09MVXSL 6 Yes Hose Barb na 9 59 Safe-Lock
86KBTH06MVX 6 Yes Hose Barb 45° na 6 40 na
86KBTH09MVX 6 Yes Hose Barb 45° na 9 40 na
86KBTH09MVXSL 6 Yes Hose Barb 45° na 9 51,5 Safe-Lock
86KBTR06MVX 6 Yes Hose Barb 90° na 6 40 na
86KBTR09MVX 6 Yes Hose Barb 90° na 9 40 na
86KBTR09MVXSL 6 Yes Hose Barb 90° na 9 52,5 Safe-Lock
86KFAW13MVX 6 No Male Thread - parallel 1/4 na 47 na
86KFAW13MVXSL 6 No Male Thread - parallel 1/4 na 51,5 Safe-Lock
86KFAW17MVX 6 No Male Thread - parallel 3/8 na 47 na
86KFAW17MVXSL 6 No Male Thread - parallel 3/8 na 51,5 Safe-Lock
86KFIW10MVX 6 No Female Thread - parallel 1/8 na 40 na
86KFIW13MVX 6 No Female Thread - parallel 1/4 na 40 na
86KFTF06MVX 6 No Hose Barb na 6 46 na
86KFTF06MVXSL 6 No Hose Barb na 6 54 Safe-Lock
86KFTF09MVX 6 No Hose Barb na 9 51 na
86KFTF09MVXSL 6 No Hose Barb na 9 59 Safe-Lock
86KFTH06MVX 6 No Hose Barb 45° na 6 40 na
86KFTH09MVX 6 No Hose Barb 45° na 9 40 na
86KFTH09MVXSL 6 No Hose Barb 45° na 9 51,5 Safe-Lock
86KFTR06MVX 6 No Hose Barb 90° na 6 40 na
86KFTR09MVX 6 No Hose Barb 90° na 9 40 na
86KFTR09MVXSL 6 No Hose Barb 90° na 9 52,5 Safe-Lock
86SBAK13MVX 6 Yes Male Thread - tapered 1/4 na 29 na
86SFAK10MXX 6 No Male Thread - tapered 1/8 na 24 na
86SFAK13MXX 6 No Male Thread - tapered 1/4 na 29 na
86SFAK17MXX 6 No Male Thread - tapered 3/8 na 30 na
86SFAM10MXX 6 No Male Thread - metric 10x1 na 23 na
86SFAR10MXX 6 No Male Thread 90° 1/4 na 34 na
86SFAR10MXX_03 6 No Male Thread 90° 10x1 na 27 na
86SFAR13MXX 6 No Male Thread 90° 1/8 na 27 na
86SFIW10MXX 6 No Female Thread - parallel 1/8 na 28 na
86SFIW13MXX 6 No Female Thread - parallel 1/4 na 32 na
86SFIW17MXX 6 No Female Thread - parallel 3/8 na 34 na
86SFTF09MXX 6 No Hose Barb na 9 39 na
86VN1010MXX 6 No Male Thread 1/8 na 100 na
86VN1010MXXS_01 6 No continuous Male Thread 1/8 na 100 na
86VN1015MXXS_01 6 No Male Thread 1/4 na 150 na
86VN1025MXX 6 No Male Thread 1/8 na 250 na
86VN1310MXX 6 No continuous Male Thread 1/4 na 100 na
86VNXX05MXX 6 No without Thread na 10 50 na
86VNXX10MXX 6 No without Thread na 10 150 na
86VNXX15MXX 6 No without Thread na 10 100 na
86VNXX20MXX 6 No without Thread na 10 200 na
87KBAW13MVX 9 Yes Male Thread - parallel 1/4 na 56,5 na
87KBAW13MVXSL 9 Yes Male Thread - parallel 1/4 na 67 Safe-Lock
87KBAW17MVX 9 Yes Male Thread - parallel 3/8 na 56,5 na
87KBAW17MVXSL 9 Yes Male Thread - parallel 3/8 na 67 Safe-Lock
87KBAW21MVX 9 Yes Male Thread - parallel 1/2 na 59,5 na
87KBAW21MVXSL 9 Yes Male Thread - parallel 1/2 na 70 Safe-Lock
87KBIW13MVX 9 Yes Female Thread - parallel 1/4 na 51,5 na
87KBIW17MVX 9 Yes Female Thread - parallel 3/8 na 51,5 na
87KBTF09MVX 9 Yes Hose Barb na 9 64 na
87KBTF09MVXSL 9 Yes Hose Barb na 9 73 Safe-Lock
87KBTF13MVX 9 Yes Hose Barb na 13 66,5 na
87KBTF13MVXSL 9 Yes Hose Barb na 13 76 Safe-Lock
87KBTH09MVX 9 Yes Hose Barb 45° na 9 56 na
87KBTH09MVXSL 9 Yes Hose Barb 45° na 9 65,5 Safe-Lock
87KBTH13MVX 9 Yes Hose Barb 45° na 13 56 na
87KBTH13MVXSL 9 Yes Hose Barb 45° na 13 65,5 Safe-Lock
87KBTR09MVX 9 Yes Hose Barb 90° na 9 56 na
87KBTR09MVXSL 9 Yes Hose Barb 90° na 9 68,5 Safe-Lock
87KBTR13MVX 9 Yes Hose Barb 90° na 13 56 na
87KBTR13MVXSL 9 Yes Hose Barb 90° na 13 68,5 Safe-Lock
87KFAW13MVX 9 No Male Thread - parallel 1/4 na 56,5 na
87KFAW13MVXSL 9 No Male Thread - parallel 1/4 na 67 Safe-Lock
87KFAW17MVX 9 No Male Thread - parallel 3/8 na 56,5 na
87KFAW17MVXSL 9 No Male Thread - parallel 3/8 na 67 Safe-Lock
87KFAW21MVX 9 No Male Thread - parallel 1/2 na 59,5 na
87KFAW21MVXSL 9 No Male Thread - parallel 1/2 na 70 Safe-Lock
87KFIW13MVX 9 No Female Thread - parallel 1/4 na 51,5 na
87KFIW17MVX 9 No Female Thread - parallel 3/8 na 51,5 na
87KFTF09MVX 9 No Hose Barb na 9 64 na
87KFTF09MVXSL 9 No Hose Barb na 9 73 Safe-Lock
87KFTF13MVX 9 No Hose Barb na 13 66,5 na
87KFTF13MVXSL 9 No Hose Barb na 13 76 Safe-Lock
87KFTH09MVX 9 No Hose Barb 45° na 9 56 na
87KFTH09MVXSL 9 No Hose Barb 45° na 9 65,5 Safe-Lock
87KFTH13MVX 9 No Hose Barb 45° na 13 56 na
87KFTH13MVXSL 9 No Hose Barb 45° na 13 65,5 Safe-Lock
87KFTR09MVX 9 No Hose Barb 90° na 9 56 na
87KFTR09MVXSL 9 No Hose Barb 90° na 9 68,5 Safe-Lock
87KFTR13MVX 9 No Hose Barb 90° na 13 56 na
87KFTR13MVXSL 9 No Hose Barb 90° na 13 68,5 Safe-Lock
87SBAK13MVX 6 Yes Male Thread - tapered 1/4 na 34 na
87SBAK17MVX 9 Yes Male Thread - tapered 3/8 na 34 na
87SFAK13MXX 6 No Male Thread - tapered 1/4 na 34 na
87SFAK17MXX 9 No Male Thread - tapered 3/8 na 34 na
87SFAK21MXX 9 No Male Thread - tapered 1/2 na 39 na
87SFAR13MXX 9 No Male Thread 90° 1/4 na 27 na
87SFAR17MXX 9 No Male Thread 90° 3/8 na 37 na
87SFIW13MXX 9 No Female Thread - parallel 1/4 na 37 na
87SFIW17MXX 9 No Female Thread - parallel 3/8 na 39 na
87SFTF13MXX 9 No Hose Barb na 13 41 na
87VN1310MXX 9 No continuous Male Thread 1/4 na 100 na
87VN1315MXX 9 No Male Thread 1/4 na 150 na
87VN1325MXX 9 No Male Thread 1/8 na 250 na
87VN1710MXX 9 No continuous Male Thread 3/8 na 100 na
87VNXX10MXX 9 No without Thread na 14 100 na
87VNXX15MXX 9 No without Thread na 14 200 na
87VNXX20MXX 9 No without Thread na 14 150 na
87VNXX25MXX 9 No without Thread na 14 250 na
88KATF19MVX 13 Yes Hose Barb na 19 89 na
88KATR19MVX 13 Yes Hose Barb 90° na 19 77 na
88KFTF19MVX 13 No Hose Barb na 19 89 na
88KFTR19MVX 13 No Hose Barb 90° na 19 77 na
88SFAK21MXX 13 No Male Thread - tapered 1/2 na 44 na
88SFAK26MXX 13 No Male Thread - tapered 3/4 na 45 na
88SFTF19MXX 13 No Hose Barb na 19 91 na
