Parker派克快换接头Parker Quick Couplings
Parker Hydraulic Quick Coupling with Parker Profile, Series T
Parker派克 T系列液压快速接头
Parker派克流体连接件Parker fluid connectors

液压快速接头系统，阀体尺寸为1/8“至2”，适用于压力高达450 bar的中压应用。Hydraulic quick coupling system with body size 1/8" up to 2" for medium pressure applications up to 450 bar.



Parker派克 T系列液压快速接头



密封材料及温度范围：
 丁腈橡胶：碳钢的标准密封材料，-30°C ~ +100°C
本体材料：
 碳钢（阴接头标准本体材料为铜镀镍，某些尺寸可提供碳钢材料）
优势与优点：
 - 符合TEMA标准要求
- 可选碳钢及316不锈钢材料
- 标配双层O形圈
- 标配套筒锁
- 阴阳接头均可选背压释放器设计，可在高达工作压力的背压下连接快换



Parker's Hydraulic Quick Coupling Series T is characterised by a low pressure drop and maximum flow capacity. The coupling system is available as a double shut-off or straight through version. The 2500 can be used also as a single shut-off version. Due to the pressure eliminator version for coupling and plug connection is possible up to the operating pressure. Special version for high pressure water is also available.派克T系列液压快速接头的特点是低压降和大流量。联轴器系统有双关断或直通形式。2500也可以用作单个关闭版本。由于用于连接和插头连接的压力消除器版本，高可以达到工作压力。还提供高压水的特殊版本。

市场Markets:
- 农业Agriculture
- 汽车Automotive
- 石油和天然气Oil & Gas
- 流程Process
- 发电Power Generation
- 运输Transportation
- 职业与市政Vocational & Municipal
- 国防Defense
- 工业Industrial
- 机床Machine Tooling
- 物料搬运Material Handling
- 建筑Construction

特点/优点Features/Benefits:
- 黄铜制成，可避免腐蚀Coupling made of brass to avoid corrosion
- 配有压力消除器Available with pressure eliminator
- 通过双重O型圈密封实现双重安全Double safety through a double O-ring seal
- 安全锁环可防止意外脱开Safety locking ring to prevent unintentional uncoupling

应用Applications:
在移动和工业应用的液压系统中易于连接/断开Easy connection / disconnection in hydraulic systems, both mobile and industrial applications
- 拖拉机Tractors
- 卡车Trucks
- 轮式装载机Wheel loaders
- 军用车辆Military vehicles
- 压力机Presses



性能特点：

MIN.工作温度：-25，-30°C
连接类型：内螺纹
应用：中压
主体尺寸：1/8-2英寸
品牌：TEMA
接头连接类型：内螺纹
互换类型： Tema Profile
建筑材料：黄铜，不锈钢
max.工作压力：50-450巴/720-6520磅/平方英寸
max.工作温度212，392°F/100，200°C
媒体：化学液，液压油，蒸汽，水
密封材料：NBR，FKM
阀门类型：提升阀
连接螺纹尺寸：1/8至2英寸

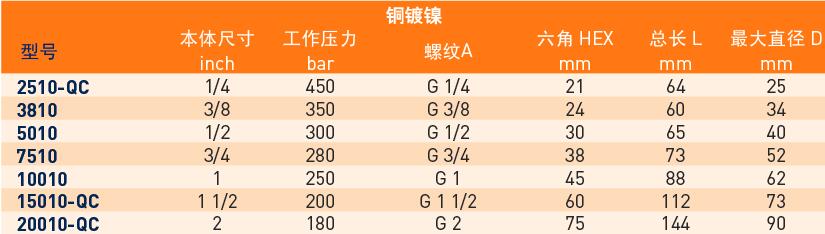

T (TEMA)系列 - 阴接头



铜镀镍
型号 本体尺寸
inch 		工作压力
bar 		螺纹A 六角 HEX
inch 		总长 L
mm 		直径 D
mm
2510-QC 1/4 450 G 1/4 21 64 25
3810 3/8 350 G 3/8 24 60 34
5010 1/2 300 G 1/2 30 65 40
7510 3/4 280 G 3/4 38 73 52
10010 1 250 G 1 45 88 62
15010-QC 1 1/2 200 G 1 1/2 60 112 73
20010-QC 2 180 G 2 75 144 90

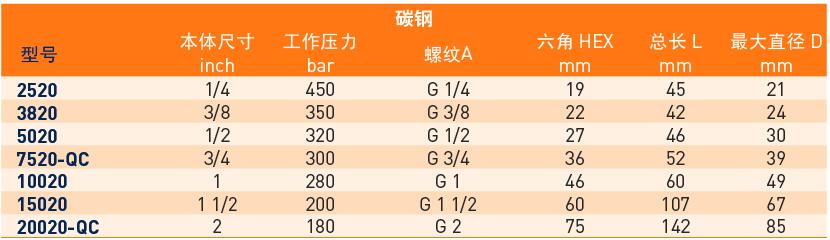

T (TEMA)系列 - 阳接头



碳钢
型号 本体尺寸
inch 		工作压力
bar 		螺纹A 六角 HEX
inch 		总长 L
mm 		直径 D
mm
2510-QC 1/4 450 G 1/4 19 45 21
3810 3/8 350 G 3/8 22 42 24
5010 1/2 320 G 1/2 27 46 30
7510 3/4 300 G 3/4 36 52 39
10010 1 280 G 1 46 60 49
15010-QC 1 1/2 200 G 1 1/2 60 107 67
20010-QC 2 180 G 2 75 142 85



Hydraulic Quick Coupling with Parker Profile, Series T型号

Part Body Size (inch) Type Version Valving Length (mm) External Hex (mm) Outside Diameter (mm) Material Seal Material Working Pressure Connected (bar)
10010 1 Coupling Standard with 88 45 62 Brass / Steel NBR 250
10010 RV 1 Coupling Stainless Steel with 88 45 62 Stainless Steel FKM 250
10010 RVUV 1 Coupling Stainless Steel without 88 45 62 Stainless Steel FKM 250
10010 UV 1 Coupling Standard without 88 45 62 Brass / Steel NBR 250
10010 V 1 Coupling Standard with 88 45 62 Brass / Steel FKM 250
10010 VUV 1 Coupling Standard without 88 45 62 Brass / Steel FKM 250
10011 RFV 1 Coupling Pressure Eliminator with 88 45 62 Stainless Steel, Brass Valve FKM 250
10011 RV 1 Coupling Pressure Eliminator with 88 45 62 Stainless Steel FKM 250
10011 V 1 Coupling Pressure Eliminator with 88 45 62 Brass / Steel FKM 250
10011-QC 1 Coupling Pressure Eliminator with 88 45 62 Brass / Steel NBR 250
10020 1 Plug Standard with 60 46 49 Brass / Steel NBR 280
10020 RUV 1 Plug Stainless Steel without 53 46 49 Stainless Steel na 250
10020 RV 1 Plug Stainless Steel with 60 46 49 Stainless Steel FKM 250
10020 UV 1 Plug Standard without 53 46 49 Brass / Steel na 280
10020 V 1 Plug Standard with 60 46 49 Brass / Steel FKM 280
10021 1 Plug Pressure Eliminator with 61 46 49 Brass / Steel NBR 280
10021 RFV 1 Plug Pressure Eliminator with 61 46 49 Stainless Steel, Brass Valve FKM 250
10021 RV 1 Plug Pressure Eliminator with 61 46 49 Stainless Steel FKM 250
10021 V 1 Plug Pressure Eliminator with 61 46 49 Brass / Steel FKM 280
15010 M 1 1/2 Coupling Brass with 112 60 73 Brass NBR 50
15010 MUV 1 1/2 Coupling Brass without 112 60 73 Brass NBR 50
15010 MV 1 1/2 Coupling Brass with 112 60 73 Brass FKM 50
15010 MVUV 1 1/2 Coupling Brass without 112 60 73 Brass FKM 50
15010 RV 1 1/2 Coupling Stainless Steel with 112 60 73 Stainless Steel FKM 150
15010 RVUV 1 1/2 Coupling Stainless Steel without 112 60 73 Stainless Steel FKM 150
15010 UV 1 1/2 Coupling Standard without 112 60 73 Brass / Steel NBR 200
15010 V 1 1/2 Coupling Standard with 112 60 73 Brass / Steel FKM 200
15010 VUV 1 1/2 Coupling Standard without 112 60 73 Brass / Steel FKM 200
15010-QC 1 1/2 Coupling Standard with 112 60 73 Brass / Steel NBR 200
15011 V 1 1/2 Coupling Pressure Eliminator with 112 60 73 Brass / Steel FKM 200
15011-QC 1 1/2 Coupling Pressure Eliminator with 112 60 73 Brass / Steel NBR 200
15020 1 1/2 Plug Standard with 107 60 67 Brass / Steel NBR 200
15020 M 1 1/2 Plug Brass with 107 60 67 Brass NBR 50
15020 MUV 1 1/2 Plug Brass without 107 60 67 Brass na 50
15020 MV 1 1/2 Plug Brass with 107 60 67 Brass FKM 50
15020 RUV 1 1/2 Plug Stainless Steel without 107 60 67 Stainless Steel na 150
15020 RV 1 1/2 Plug Stainless Steel with 107 60 67 Stainless Steel FKM 150
15020 UV 1 1/2 Plug Standard without 107 60 67 Brass / Steel na 200
15020 V 1 1/2 Plug Standard with 107 60 67 Brass / Steel FKM 200
15021 1 1/2 Plug Pressure Eliminator with 107 60 67 Brass / Steel NBR 200
15021 V 1 1/2 Plug Pressure Eliminator with 107 60 67 Brass / Steel FKM 200
20010 RV 2 Coupling Stainless Steel with 144 75 90 Stainless Steel FKM 120
20010 RVUV 2 Coupling Stainless Steel without 144 75 90 Stainless Steel FKM 120
20010 UV 2 Coupling Standard without 144 75 90 Brass / Steel NBR 180
20010 V 2 Coupling Standard with 144 75 90 Brass / Steel FKM 180
20010 VUV 2 Coupling Standard without 144 75 90 Brass / Steel FKM 180
20010-QC 2 Coupling Standard with 144 75 90 Brass / Steel NBR 180
20020 RUV 2 Plug Stainless Steel without 142 75 85 Stainless Steel na 120
20020 RV 2 Plug Stainless Steel with 142 75 85 Stainless Steel FKM 120
20020 UV 2 Plug Standard without 142 75 85 Brass / Steel na 180
20020 V 2 Plug Standard with 142 75 85 Brass / Steel FKM 180
20020-QC 2 Plug Standard with 142 75 85 Brass / Steel NBR 180
2310 RV 1/8 Coupling Stainless Steel with 38 15 18 Stainless Steel FKM 200
2310 RVUV 1/8 Coupling Stainless Steel without 38 15 18 Stainless Steel FKM 200
2310 UV 1/8 Coupling Standard without 38 15 18 Brass / Steel NBR 200
2310 V 1/8 Coupling Standard with 38 15 18 Brass / Steel FKM 200
2310 VUV 1/8 Coupling Standard without 38 15 18 Brass / Steel FKM 200
2310-QC 1/8 Coupling Standard with 38 15 18 Brass / Steel NBR 200
2320 1/8 Plug Standard with 36 15 17 Brass / Steel NBR 200
2320 RFV 1/8 Plug Stainless Steel with 38 15 17 Stainless Steel, Brass Valve FKM 200
2320 RUV 1/8 Plug Stainless Steel without 36 15 17 Stainless Steel na 200
2320 RV 1/8 Plug Stainless Steel with 36 15 17 Stainless Steel FKM 200
2320 UV 1/8 Plug Standard without 36 15 17 Brass / Steel na 200
2320 V 1/8 Plug Standard with 38 15 17 Brass / Steel FKM 200
2510 RV 1/4 Coupling Stainless Steel with 64 21 25 Stainless Steel FKM 250
2510 RVUV 1/4 Coupling Stainless Steel without 64 21 25 Stainless Steel FKM 250
2510 UV 1/4 Coupling Standard without 64 21 25 Brass / Steel NBR 450
2510 V 1/4 Coupling Standard with 64 21 25 Brass / Steel FKM 450
2510 VUV 1/4 Coupling Standard without 64 21 25 Brass / Steel FKM 450
2510-QC 1/4 Coupling Standard with 64 21 25 Brass / Steel NBR 450
2520 1/4 Plug Standard with 45 19 21 Brass / Steel NBR 450
2520 RFUV2 1/4 Plug Stainless Steel without 45 19 21 Stainless Steel na 170
2520 RFV 1/4 Plug Stainless Steel with 45 19 21 Stainless Steel, Brass Valve FKM 250
2520 RFV2 1/4 Plug High Pressure Water with 45 19 21 Stainless Steel, Brass Valve FKM 170
2520 RHUV 1/4 Plug Stainless Steel without 45 19 21 Stainless Steel na 450
2520 RUV 1/4 Plug Stainless Steel without 45 19 21 Stainless Steel na 250
2520 RV 1/4 Plug Stainless Steel with 45 19 21 Stainless Steel FKM 250
2520 UV 1/4 Plug Standard without 45 19 21 Brass / Steel na 450
2520 V 1/4 Plug Standard with 45 19 21 Brass / Steel FKM 450
3810 3/8 Coupling Standard with 60 24 34 Brass / Steel NBR 350
3810 H 3/8 Coupling High Pressure Water without 60 24 34 Brass, chromated NBR 350
3810 H2 3/8 Coupling High Pressure Water without 60 29 34 Brass, chromated NBR 350
3810 H2EP 3/8 Coupling High Pressure Water without 60 29 34 Brass, chromated EPDM 350
3810 H2V 3/8 Coupling High Pressure Water without 60 29 34 Brass, chromated FKM 350
3810 HEP 3/8 Coupling High Pressure Water without 60 24 34 Brass, chromated EPDM 350
3810 HV 3/8 Coupling High Pressure Water without 60 24 34 Brass, chromated FKM 350
3810 RV 3/8 Coupling Stainless Steel with 60 24 34 Stainless Steel FKM 300
3810 RVUV 3/8 Coupling Stainless Steel without 60 24 34 Stainless Steel FKM 350
3810 UV 3/8 Coupling Standard without 60 24 34 Brass / Steel NBR 350
3810 V 3/8 Coupling Standard with 60 24 34 Brass / Steel FKM 350
3810 VUV 3/8 Coupling Standard without 60 24 34 Brass / Steel FKM 350
3811 3/8 Coupling Pressure Eliminator with 60 24 34 Brass / Steel NBR 350
3811 RFV 3/8 Coupling Pressure Eliminator with 60 24 34 Stainless Steel, Brass Valve FKM 300
3811 RV 3/8 Coupling Pressure Eliminator with 60 24 34 Stainless Steel FKM 300
3811 V 3/8 Coupling Pressure Eliminator with 60 24 34 Brass / Steel FKM 350
3820 3/8 Plug Standard with 42 22 24 Brass / Steel NBR 350
3820 RF 3/8 Plug Stainless Steel with 42 22 24 Stainless Steel, Brass Valve NBR 300
3820 RFUV 3/8 Plug Stainless Steel without 38 22 24 Stainless Steel, Brass Valve na 170
3820 RFV 3/8 Plug Stainless Steel with 42 22 24 Stainless Steel, Brass Valve FKM 300
3820 RUV 3/8 Plug Stainless Steel without 38 22 24 Stainless Steel na 300
3820 RV 3/8 Plug Stainless Steel with 42 22 24 Stainless Steel FKM 300
3820 UV 3/8 Plug Standard without 38 22 24 Brass / Steel na 350
3820 V 3/8 Plug Standard with 42 22 24 Brass / Steel FKM 350
3821 3/8 Plug Pressure Eliminator with 43 22 24 Brass / Steel NBR 350
3821 RFV 3/8 Plug Pressure Eliminator with 43 22 24 Stainless Steel, Brass Valve FKM 350
3821 RV 3/8 Plug Pressure Eliminator with 43 22 24 Stainless Steel FKM 350
3821 V 3/8 Plug Pressure Eliminator with 43 22 24 Brass / Steel FKM 350
5010 1/2 Coupling Standard with 65 30 40 Brass / Steel NBR 300
5010 RV 1/2 Coupling Stainless Steel with 65 30 40 Stainless Steel FKM 300
5010 RVUV 1/2 Coupling Stainless Steel without 65 30 40 Stainless Steel FKM 300
5010 UV 1/2 Coupling Standard without 65 30 40 Brass / Steel NBR 300
5010 V 1/2 Coupling Standard with 65 30 40 Brass / Steel FKM 300
5010 VUV 1/2 Coupling Standard without 65 30 40 Brass / Steel FKM 300
5011 1/2 Coupling Pressure Eliminator with 65 30 40 Brass / Steel NBR 300
5011 RFV 1/2 Coupling Pressure Eliminator with 65 30 40 Stainless Steel, Brass Valve FKM 300
5011 RV 1/2 Coupling Pressure Eliminator with 65 30 40 Stainless Steel FKM 300
5011 V 1/2 Coupling Pressure Eliminator with 65 30 40 Brass / Steel FKM 300
5020 1/2 Plug Standard with 46 27 30 Brass / Steel NBR 320
5020 RUV 1/2 Plug Stainless Steel without 42 27 30 Stainless Steel na 300
5020 RV 1/2 Plug Stainless Steel with 46 27 30 Stainless Steel FKM 300
5020 UV 1/2 Plug Standard without 42 27 30 Brass / Steel na 320
5020 V 1/2 Plug Standard with 46 27 30 Brass / Steel FKM 320
5021 RFV 1/2 Plug Pressure Eliminator with 47 27 30 Stainless Steel, Brass Valve FKM 300
5021 RV 1/2 Plug Pressure Eliminator with 47 27 30 Stainless Steel FKM 300
5021 V 1/2 Plug Pressure Eliminator with 47 27 30 Brass / Steel FKM 320
5021-QC 1/2 Plug Pressure Eliminator with 47 27 30 Brass / Steel NBR 320
7510 3/4 Coupling Standard with 73 38 52 Brass / Steel NBR 280
7510 RV 3/4 Coupling Stainless Steel with 73 38 52 Stainless Steel FKM 250
7510 RVUV 3/4 Coupling Stainless Steel without 73 38 52 Stainless Steel FKM 250
7510 UV 3/4 Coupling Standard without 73 38 52 Brass / Steel NBR 280
7510 V 3/4 Coupling Standard with 73 38 52 Brass / Steel FKM 280
7510 VUV 3/4 Coupling Standard without 73 38 52 Brass / Steel FKM 280
7511 3/4 Coupling Pressure Eliminator with 72 38 52 Brass / Steel NBR 280
7511 RFV 3/4 Coupling Pressure Eliminator with 72 38 52 Stainless Steel, Brass Valve FKM 250
7511 RV 3/4 Coupling Pressure Eliminator with 72 38 52 Stainless Steel FKM 250
7511 V 3/4 Coupling Pressure Eliminator with 72 38 52 Brass / Steel FKM 280
7520 RUV 3/4 Plug Stainless Steel without 47 36 39 Stainless Steel na 250
7520 RV 3/4 Plug Stainless Steel with 52 36 39 Stainless Steel FKM 250
7520 S 3/4 Super Nipple Standard with 52 36 39 Brass / Steel NBR 300
7520 UV 3/4 Plug Standard without 47 36 39 Brass / Steel na 300
7520 V 3/4 Plug Standard with 52 36 39 Brass / Steel FKM 300
7520-QC 3/4 Plug Standard with 52 36 39 Brass / Steel NBR 300
7521 RFV 3/4 Plug Pressure Eliminator with 53 36 39 Stainless Steel, Brass Valve FKM 250
7521 RV 3/4 Plug Pressure Eliminator with 53 36 39 Stainless Steel FKM 250
7521 S 3/4 Super Nipple Pressure Eliminator with 53 36 39 Brass / Steel NBR 300
7521 V 3/4 Plug Pressure Eliminator with 53 36 39 Brass / Steel FKM 300
7521-QC 3/4 Plug Pressure Eliminator with 53 36 39 Brass / Steel NBR 300






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
