Parker 流体连接件-诊断测试设备Diagnostic Testing Equipment
Parker 诊断测试设备Diagnostic Testing Equipment
Parker Diagnostic Testing Equipment

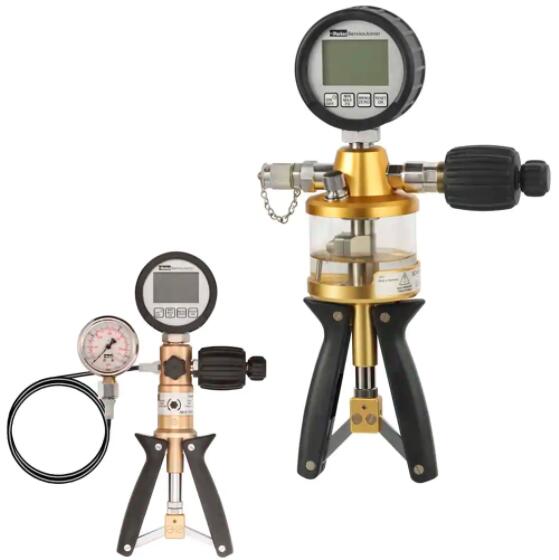

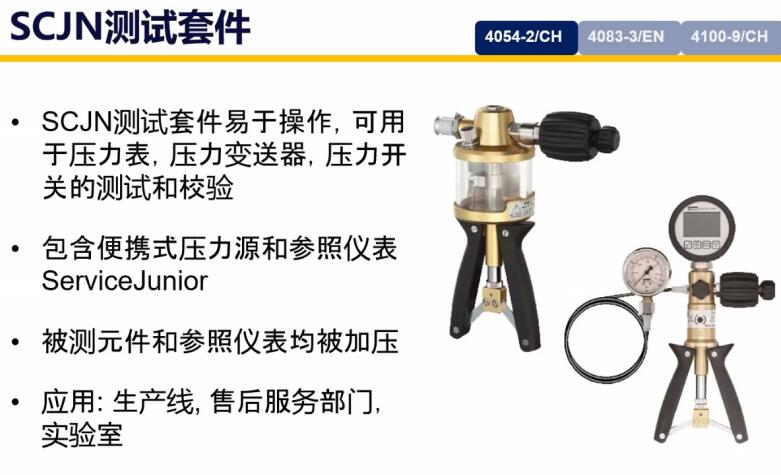

SCJN测试套件ServiceJunior Test-Kit

派克的ServiceJunior诊断测试套件非常适合以数字方式测量压力并捕获任何液压或气动系统中的最小和最大波动。 Parker's ServiceJunior diagnostic test kits are ideal to digitally measure pressure and capture min and max fluctuations in any hydraulic or pneumatic system.



Parker SCJN测试套件ServiceJunior Test-Kit 资料下载





市场Markets:
- Maintenance and Repair, MRO维护和修理,MRO
- Testing测试
- Industrial工业
- Construction结构
- Molding成型

特征/优点Features/Benefits:
- Easy generation of pressures for testing and adjusting of Pressure meters, Pressure sensors, Pressure switches, Safety valves e.g.易于产生压力,用于测试和调节压力计,压力传感器,压力开关,安全阀,
- Also suitable for mobile use还适合移动使用
- Pneumatic version from -0.95 - 60 bar and hydraulic version from 0 - 700 bar气动版本-0.95-60 bar和0至700 bar的液压版本
- No additional power supply necessary无需额外的电源
- Includes large set of adapters包括大量适配器

应用Applications:
- Service and test服务和测试
- Quality assurance质量保证
- Commissioning调试
- Fluid or air system maintenance and troubleshooting流体或空气系统的维护和故障排除





Parker SCJN测试套件ServiceJunior Test-Kit 型号



型号 产品类型 压力测量范围
SCA-HP-KIT-01 Test Kit ServiceJunior Adapter set stainless steel na
SCA-SMA3-1000-1/4MA71 1-m connecting hose Test Kit ServiceJunior Hydraulic version na
SCC-400 Equipment case Test Kit ServiceJunior Pneumatic version na
SCC-410 Equipment case Test Kit ServiceJunior Hydraulic version na
SCHP-KIT-060-02-01 Test Kit ServiceJunior Pneumatic version Accuracy ± 0.1 % of the measuring span -0.95...060
SCHP-KIT-060-03-01 Test Kit ServiceJunior Pneumatic version Accuracy ± 0.25 % of the measuring span -0.95...060
SCHP-KIT-700-02-01 Test Kit ServiceJunior Hydraulic version Accuracy ± 0.1 % of the measuring span 0...700
SCHP-KIT-700-03-01 Test Kit ServiceJunior Hydraulic version Accuracy ± 0.25 % of the measuring span 0...700
SCHP-SEALSET Set of seals flat, plastic seals and O-rings na
SCHP-SPFL-01 Spray bottle Test Kit ServiceJunior Hydraulic version na
SMA1/4MA-1/8M-1000BLCF 1-m connecting hose Test Kit ServiceJunior Pneumatic version na
