Parker派克 Subsea Ball valve, 2-Way, Soft Seat
Parker派克 海底球阀，二通，软阀座

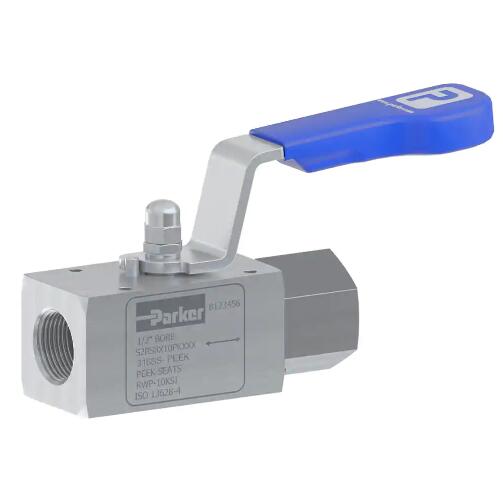

Parker派克 海底球阀，二通，软阀座 Subsea Ball valve, 2-Way, Soft Seat

派克的2通海底球阀具有软阀座和浮球设计，可用于高达10,000 PSI的工作深度和3050m的深度。根据API 17D PSL 3（包括API 6A PR2F）进行设计和测试，以在海底应用中提供安全可靠的性能。Parker's 2-way subsea ball valve featuring soft seat and floating ball design for operations up to 10,000 PSI and depths down to 3050m. Designed and tested to API 17D PSL 3 (including API 6A PR2F) for safe and reliable performance in subsea applications.

Parker派克 海底球阀，二通，软阀座 资料下载

Small bore subsea hook-up applications have evolved. The future of hydrocarbon flow assurance is here, and the all new Parker small bore ball and needle valves are ready to transform your hook-up.

派克的软座直角回转球阀用于流量隔离，专门设计用于在海底应用中提供平稳，低扭矩的性能。利用与标准Parker的Hi-Pro系列球阀相同的设计技术，海底设计结合了必要的设计变更，可为海底行业提供可靠的外部加压阀。Parker's soft seated quarter turn ball valve for flow isolation, designed specifically to deliver smooth, low-torque performance in subsea applications. Utilising the same design technology as the standard Parker's Hi-Pro series ball valve, the subsea design incorporates the necessary design alterations to provide a reliable externally pressurized valve for the subsea industry.

这种海底球阀设计采用PEEK自卸式阀座和PTFE填料，具有附加的O形圈密封，可防止海水进入阀门，这会对阀门的操作产生不利影响并污染工艺液体。Featuring PEEK self-relieving seat and PTFE packing, this subsea ball valve design incorporates additional o-ring seals, which prevent the ingress of sea water into the valve which would adversely affect the operation of the valve as well as contaminate the process liquid.

双向阀提供多种耐腐蚀合金，适用于深度达3,050m的设备。阀门的设计便于手动操作或通过遥控车（ROV）进行操作。The bi-directional valves are available in a range of corrosion-resistant alloys and are suitable for equipment located at depths down to 3,050m. The valves are designed to facilitate operation either manually or by a Remotely Operated Vehicle (ROV).

派克的海底球阀的设计符合或超过API 17D PSL 3的严格资格测试要求。结构完整性和性能已被劳埃德检查员在见证API 17D阀门设计验证协议的情况下确认。这是在316SS模型的基础上进行的，包括API 6A PR2F PSL3双向测试协议以及API 17D高压测试协议。Parker's subsea ball valves have been designed to meet or exceed the rigorous qualification test requirements of API 17D PSL 3. The structural integrity and performance have been confirmed by Lloyds inspectors witnessing the API 17D valve design validation protocol. This was carried out on the base 316SS model and included the API 6A PR2F PSL3 bi-directional testing protocol as well as the API 17D Hyperbaric test protocol.

市场Markets:
- 上游石油和天然气（液体介质）Upstream Oil & Gas (Liquid media)

特性/优点Features/Benefits:
- 两件式浮球式侧面入口结构Two-piece, floating ball style, side-entry construction
- 双向液体流Bi-directional liquid flow
- PEEK阀座具有出色的耐化学性，耐热性和耐磨性PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion
- 畅通的10mm流路Un-obstructed 10mm flow path
- 低摩擦，压力辅助的PTFE轴密封延长循环寿命并降低操作扭矩Low friction, pressure assisted PTFE shaft seal increases cycle life and reduces operating torque
- 额外的密封设计，可防止水和淤泥渗入任何螺纹或旋转的部件Additional seals engineered to prevent water and silt ingress to any threaded or rotating parts
- 设计用于接受多种类型的管和管端连接Designed to accept multiple types of tube and pipe end connections
- 可提供多种耐腐蚀材料Available in a variety of corrosion-resistant materials
- 经过设计和测试API 17D / API 6A标准Designed and tested to API 17D/API 6A standards

应用（液体介质）Applications (liquid media):
- 水下液压歧管Subsea Hydraulic Manifolds
- 水下控制脐带Subsea Control Umbilicals
- 水下井口和控制组件Subsea Wellheads and Control Packages
- 化学注入Chemical injection
- DBB，排放，通风口，测试线。DBB, bleed, vents, test lines.

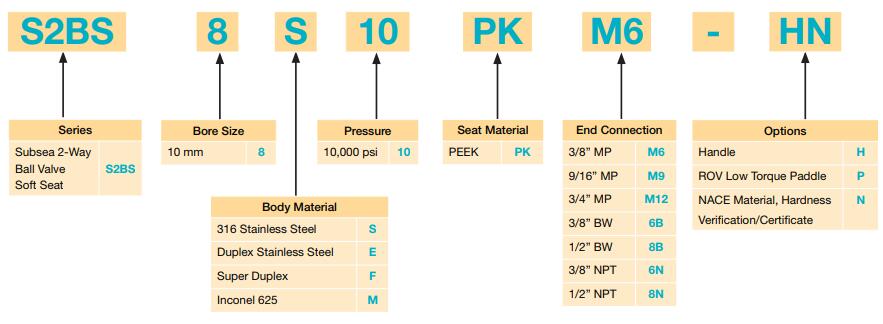

Subsea Ball valve, 2-Way, Soft Seat型号
