Parker派克旋转和旋转接头 Parker Rotary and Swivel Fittings
Parker Inline and 90 Degree Elbow, High Pressure Swivels (hydraulic) up to 5000 psi - PS Series
Parker派克PS系列旋转接头，高压转头（液压），高达5000 psi
Parker派克流体连接件Parker fluid connectors

派克的旋转接头是用来消除因软管扭转或者转动而导致软管永久损坏的情况发生。Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

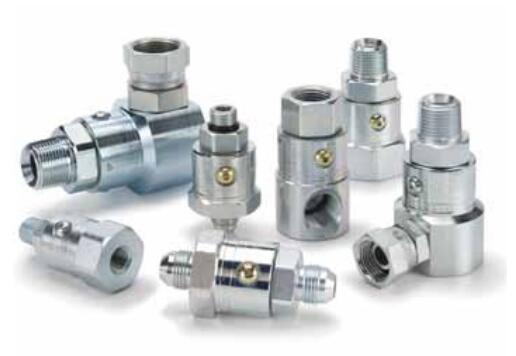

Parker派克PS系列旋转接头

PS系列旋转接头承压（液压）可达5000psi，该系列产品设计用来减少软管因扭曲或者转动而导致软管持久损坏的情况。这些旋转接头是全流量设计，使用密封轴承设计，并且轴承经过硬化处理，能够抵抗侧向载荷以及承受一定的高压。PS系列旋转接头有90°弯头以及直通接头两种设计形式可选，并且有非常多的尾端连接形式可供选择，是一系列动态应用的理想选择。如需了解最大转速以及压力推荐，可参阅产品支持标签下的pdf产品样本。

技术参数：
- 尺寸范围：1/4” – 2”
- 接头材料：碳钢， 303不锈钢， 316 不锈钢
- 轴端尾端连接形式：NPTF外螺纹， NPTF内螺纹，JIC 37°外螺纹，SAE O形圈外螺纹直接头，seal-lok外螺纹，SAE内螺纹直接头
- 体尾端连接形式：NPTF外螺纹（非标），NPTF内螺纹，JIC 37°外螺纹， SAE O形圈外螺纹直接头，seal-lok外螺纹接头，JIC 37°内螺纹接头，NPSM 内螺纹管接头带旋转螺母，SAE 外螺纹直接头
- 密封可选：丁腈橡胶，Aflas，三元乙丙橡胶，氟橡胶，氯丁橡胶
- 可选镀镍表面处理

市场：
- 工业液压
- 建筑机械
- 农机设备

特点/优点：
- 全流量和小压降设计
- 密封轴承免受介质和外部污染物的影响
- 轴承座圈经过淬火处理，可减少磨损，延长使用寿命
- 尺寸范围1-1/4" 到 2"，使用滚针轴承和滚珠轴承，能够抵抗额外的侧向载荷影响。
- 减少了因设备运动而造成的软管扭曲以及扭转的影响

应用：
- 高架作业设备
- 软管卷轴
- 空中升降机设备
- 垃圾车

性能特点：

配置：直通，90°
连接类型：Thread
结构材料：Steel, Zinc Plated
应用：Various
形状：Straight, 90?
连接螺纹尺寸：1/4 through 2-1/2 inch
MIN.运行温度：-40 至 -15 °F
MAX.运行温度：180 至 400 °F
镀层类型：镀锌，白色三价铬钝化

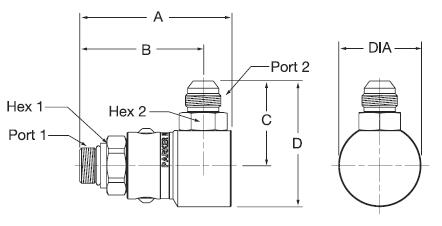

PS系列旋转接头 - SAE O形圈密封外螺纹/ 37°扩口外螺纹

型号	A mm	B mm	C mm	D mm	直径 inch	直径 mm	油口1 UN/UNF	油口2 UN/UNF	扳手尺寸 1 mm	扳手尺寸 2 mm
PS490503-4-4	68.6	58.3	35.2	50.5	1.20	30.5	7/16-20	7/16-20	19.0	14.3

Inline and 90 Degree Elbow, High Pressure Swivels (hydraulic) up to 5000 psi - PS Series型号

Part	Configuration	Maximum Working Pressure (psi)	Body Size (inch)	Seal Material	Shaft Connection Style	Shaft Connection Thread Size (inch)	Housing Connection Style	Housing Connection Thread Size (inch)
PS1210102-12-12	Inline	5000	3/4	Nitrile	Male NPTF	3/4 - 14 NPTF	Female NPTF	3/4 - 14 NPTF
PS1210102-12-12Y	Inline	5000	3/4	Fluorocarbon	Male NPTF	3/4 - 14 NPTF	Female NPTF	3/4 - 14 NPTF
PS1210103-12-12	Inline	5000	3/4	Nitrile	Male NPTF	3/4 - 14 NPTF	Male JIC 37 degree	1 1/16 - 12 UN
PS1210202-12-12	Inline	5000	3/4	Nitrile	Female NPTF	3/4 - 14 NPTF	Female NPTF	3/4 - 14 NPTF
PS1210203-12-12	Inline	5000	3/4	Nitrile	Female NPTF	3/4 - 14 NPTF	Male JIC 37 degree	1 1/16 - 12 UN
PS1210302-12-12	Inline	5000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Female NPTF	3/4 - 14 NPTF
PS1210303-12-12	Inline	5000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Male JIC 37 degree	1 1/16 - 12 UN
PS1210306-12-12	Inline	5000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Female JIC 37 degree	1 1/16 - 12 UN
PS1210306-12-12Y	Inline	5000	3/4	Fluorocarbon	Male JIC 37 degree	1 1/16 - 12 UN	Female JIC 37 degree	1 1/16 - 12 UN
PS1210310-12-12	Inline	5000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Female SAE Straight Thread	1 1/16 - 12 UN
PS1210503-12-12	Inline	5000	3/4	Nitrile	Male SAE O-ring Straight Thread	1 1/16 - 12 UN	Male JIC 37 degree	1 1/16 - 12 UN
PS121JMJM-12-12	Inline	5000	3/4	Nitrile	Male Seal-Lok	1 3/16 - 12 UN	Male Seal-Lok	1 3/16 - 12 UN
PS1290102-12-12	90 degree	5000	3/4	Nitrile	Male NPTF	3/4 - 14 NPTF	Female NPTF	3/4 - 14 NPTF
PS1290103-12-12	90 degree	5000	3/4	Nitrile	Male NPTF	3/4 - 14 NPTF	Male JIC 37 degree	1 1/16 - 12 UN
PS1290103-12-12Y	90 degree	5000	3/4	Fluorocarbon	Male NPTF	3/4 - 14 NPTF	Male JIC 37 degree	1 1/16 - 12 UN
PS1290106-12-12	90 degree	4000	3/4	Nitrile	Male NPTF	3/4 - 14 NPTF	Female JIC 37 degree	1 1/16 - 12 UN
PS1290107-12-12	90 degree	3000	3/4	Nitrile	Male NPTF	3/4 - 14 NPTF	Female NPSM Pipe Swivel	3/4 - 14 NPSM
PS1290202-12-12	90 degree	5000	3/4	Nitrile	Female NPTF	3/4 - 14 NPTF	Female NPTF	3/4 - 14 NPTF
PS1290203-12-12	90 degree	5000	3/4	Nitrile	Female NPTF	3/4 - 14 NPTF	Male JIC 37 degree	1 1/16 - 12 UN
PS1290207-12-12	90 degree	3000	3/4	Nitrile	Female NPTF	3/4 - 14 NPTF	Female NPSM Pipe Swivel	3/4 - 14 NPSM
PS1290302-12-12	90 degree	5000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Female NPTF	3/4 - 14 NPTF
PS1290303-12-12	90 degree	5000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Male JIC 37 degree	1 1/16 - 12 UN
PS1290305-12-12	90 degree	5000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Male SAE O-ring Straight Thread	1 1/16 - 12 UN
PS1290306-12-12	90 degree	4000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Female JIC 37 degree	1 1/16 - 12 UN
PS1290310-12-12	90 degree	5000	3/4	Nitrile	Male JIC 37 degree	1 1/16 - 12 UN	Female SAE Straight Thread	1 1/16 - 12 UN
PS1290502-12-12	90 degree	5000	3/4	Nitrile	Male SAE O-ring Straight Thread	1 1/16 - 12 UN	Female NPTF	3/4 - 14 NPTF
PS1290503-12-12	90 degree	5000	3/4	Nitrile	Male SAE O-ring Straight Thread	1 1/16 - 12 UN	Male JIC 37 degree	1 1/16 - 12 UN
PS1290507-12-12	90 degree	3000	3/4	Nitrile	Male SAE O-ring Straight Thread	1 1/16 - 12 UN	Female NPSM Pipe Swivel	3/4 - 14 NPSM
PS1290510-12-12	90 degree	5000	3/4	Nitrile	Male SAE O-ring Straight Thread	1 1/16 - 12 UN	Female SAE Straight Thread	1 1/16 - 12 UN
PS1290510-12-12Y	90 degree	5000	3/4	Fluorocarbon	Male SAE O-ring Straight Thread	1 1/16 - 12 UN	Female SAE Straight Thread	1 1/16 - 12 UN
PS1610102-16-16	Inline	5000	1	Nitrile	Male NPTF	1 - 11 1/2 NPTF	Female NPTF	1 - 11 1/2 NPTF
PS1610103-16-16	Inline	5000	1	Nitrile	Male NPTF	1 - 11 1/2 NPTF	Male JIC 37 degree	1 5/16 - 12 UN
PS1610202-16-16	Inline	5000	1	Nitrile	Female NPTF	1 - 11 1/2 NPTF	Female NPTF	1 - 11 1/2 NPTF
PS1610302-16-16	Inline	5000	1	Nitrile	Male JIC 37 degree	1 5/16 - 12 UN	Female NPTF	1 - 11 1/2 NPTF
PS1610303-16-16	Inline	5000	1	Nitrile	Male JIC 37 degree	1 5/16 - 12 UN	Male JIC 37 degree	1 5/16 - 12 UN
PS1610306-16-16	Inline	5000	1	Nitrile	Male JIC 37 degree	1 5/16 - 12 UN	Female JIC 37 degree	1 5/16 - 12 UN
PS1610310-16-16	Inline	5000	1	Nitrile	Male JIC 37 degree	1 5/16 - 12 UN	Female SAE Straight Thread	1 5/16 - 12 UN
PS1610503-16-16	Inline	5000	1	Nitrile	Male SAE O-ring Straight Thread	1 5/16 - 12 UN	Male JIC 37 degree	1 5/16 - 12 UN
PS1611010-16-16	Inline	5000	1	Nitrile	Female SAE Straight Thread	1 5/16 - 12 UN	Female SAE Straight Thread	1 5/16 - 12 UN
PS161JMJM-16-16	Inline	5000	1	Nitrile	Male Seal-Lok	1 7/16 - 12 UN	Male Seal-Lok	1 7/16 - 12 UN
PS1690102-16-16	90 degree	5000	1	Nitrile	Male NPTF	1 - 11 1/2 NPTF	Female NPTF	1 - 11 1/2 NPTF
PS1690103-16-16	90 degree	5000	1	Nitrile	Male NPTF	1 - 11 1/2 NPTF	Male JIC 37 degree	1 5/16 - 12 UN
PS1690106-16-16	90 degree	3000	1	Nitrile	Male NPTF	1 - 11 1/2 NPTF	Female JIC 37 degree	1 5/16 - 12 UN
PS1690107-16-16	90 degree	2600	1	Nitrile	Male NPTF	1 - 11 1/2 NPTF	Female NPSM Pipe Swivel	1 - 11 1/2 NPSM
PS1690107-20-20	90 degree	2600	1	Nitrile	Male NPTF	1 1/4 - 11 1/2 NPTF	Female NPSM Pipe Swivel	1 1/4 - 11 1/2 NPSM
PS1690110-16-16	90 degree	5000	1	Nitrile	Male NPTF	1 - 11 1/2 NPTF	Female SAE Straight Thread	1 5/16 - 12 UN
PS1690202-16-16	90 degree	5000	1	Nitrile	Female NPTF	1 - 11 1/2 NPTF	Female NPTF	1 - 11 1/2 NPTF
PS1690202-16-16Y	90 degree	5000	1	Fluorocarbon	Female NPTF	1 - 11 1/2 NPTF	Female NPTF	1 - 11 1/2 NPTF
PS1690203-16-16	90 degree	5000	1	Nitrile	Female NPTF	1 - 11 1/2 NPTF	Male JIC 37 degree	1 5/16 - 12 UN
PS1690207-16-16	90 degree	2600	1	Nitrile	Female NPTF	1 - 11 1/2 NPTF	Female NPSM Pipe Swivel	1 - 11 1/2 NPSM
PS1690302-16-16	90 degree	5000	1	Nitrile	Male JIC 37 degree	1 5/16 - 12 UN	Female NPTF	1 - 11 1/2 NPTF
PS1690303-16-16	90 degree	5000	1	Nitrile	Male JIC 37 degree	1 5/16 - 12 UN	Male JIC 37 degree	1 5/16 - 12 UN
PS1690306-16-16	90 degree	3000	1	Nitrile	Male JIC 37 degree	1 5/16 - 12 UN	Female JIC 37 degree	1 5/16 - 12 UN
PS1690310-16-16	90 degree	5000	1	Nitrile	Male JIC 37 degree	1 5/16 - 12 UN	Female SAE Straight Thread	1 5/16 - 12 UN
PS1690502-16-16	90 degree	5000	1	Nitrile	Male SAE O-ring Straight Thread	1 5/16 - 12 UN	Female NPTF	1 - 11 1/2 NPTF
PS1690503-16-16	90 degree	5000	1	Nitrile	Male SAE O-ring Straight Thread	1 5/16 - 12 UN	Male JIC 37 degree	1 5/16 - 12 UN
PS1690507-16-16	90 degree	2600	1	Nitrile	Male SAE O-ring Straight Thread	1 5/16 - 12 UN	Female NPSM Pipe Swivel	1 - 11 1/2 NPSM
PS1690510-16-16	90 degree	5000	1	Nitrile	Male SAE O-ring Straight Thread	1 5/16 - 12 UN	Female SAE Straight Thread	1 5/16 - 12 UN
PS2410202-20-20	Inline	4000	1 1/2	Polyurethane U-cup	Female NPTF	1 1/4 - 11 1/2 NPTF	Female NPTF	1 1/4 - 11 1/2 NPTF
PS2410202-24-24	Inline	4000	1 1/2	Polyurethane U-cup	Female NPTF	1 1/2 - 11 1/2 NPTF	Female NPTF	1 1/2 - 11 1/2 NPTF
PS2490202-24-24	90 degree	4000	1 1/2	Polyurethane U-cup	Female NPTF	1 1/2 - 11 1/2 NPTF	Female NPTF	1 1/2 - 11 1/2 NPTF
PS2490203-20-20	90 degree	3000	1 1/2	Polyurethane U-cup	Female NPTF	1 1/4 - 11 1/2 NPTF	Male JIC 37 degree	1 5/8 - 12 UN
PS2490303-24-24	90 degree	3000	1 1/2	Polyurethane U-cup	Male JIC 37 degree	1 7/8 - 12 UN	Male JIC 37 degree	1 7/8 - 12 UN
PS410102-4-4	Inline	5000	1/4	Nitrile	Male NPTF	1/4 - 18 NPTF	Female NPTF	1/4 - 18 NPTF
PS410103-4-4	Inline	5000	1/4	Nitrile	Male NPTF	1/4 - 18 NPTF	Male JIC 37 degree	7/16 - 20 UNF
PS410202-4-4	Inline	5000	1/4	Nitrile	Female NPTF	1/4 - 18 NPTF	Female NPTF	1/4 - 18 NPTF
PS410306-4-4	Inline	5000	1/4	Nitrile	Male JIC 37 degree	7/16 - 20 UNF	Female JIC 37 degree	7/16 - 20 UNF
PS410503-4-4	Inline	5000	1/4	Nitrile	Male SAE O-ring Straight Thread	7/16 - 20 UNF	Male JIC 37 degree	7/16 - 20 UNF
PS411010-4-4	Inline	5000	1/4	Nitrile	Female SAE Straight Thread	7/16 - 20 UNF	Female SAE Straight Thread	7/16 - 20 UNF
PS490102-4-4	90 degree	5000	1/4	Nitrile	Male NPTF	1/4 - 18 NPTF	Female NPTF	1/4 - 18 NPTF
PS490103-4-4	90 degree	5000	1/4	Nitrile	Male NPTF	1/4 - 18 NPTF	Male JIC 37 degree	7/16 - 20 UNF
PS490107-4-4	90 degree	5000	1/4	Nitrile	Male NPTF	1/4 - 18 NPTF	Female NPSM Pipe Swivel	1/4 - 18 NPSM
PS490110-4-4	90 degree	5000	1/4	Nitrile	Male NPTF	1/4 - 18 NPTF	Female SAE Straight Thread	7/16 - 20 UNF
PS490202-4-4	90 degree	5000	1/4	Nitrile	Female NPTF	1/4 - 18 NPTF	Female NPTF	1/4 - 18 NPTF
PS490305-4-4	90 degree	5000	1/4	Nitrile	Male JIC 37 degree	7/16 - 20 UNF	Male SAE O-ring Straight Thread	7/16 - 20 UNF
PS490502-4-4	90 degree	5000	1/4	Nitrile	Male SAE O-ring Straight Thread	7/16 - 20 UNF	Female NPTF	1/4 - 18 NPTF
PS490503-4-4	90 degree	5000	1/4	Nitrile	Male SAE O-ring Straight Thread	7/16 - 20 UNF	Male JIC 37 degree	7/16 - 20 UNF
PS490510-4-4	90 degree	5000	1/4	Nitrile	Male SAE O-ring Straight Thread	7/16 - 20 UNF	Female SAE Straight Thread	7/16 - 20 UNF
PS610102-6-6	Inline	5000	3/8	Nitrile	Male NPTF	3/8 - 18 NPTF	Female NPTF	3/8 - 18 NPTF
PS610102-6-6Y	Inline	5000	3/8	Fluorocarbon	Male NPTF	3/8 - 18 NPTF	Female NPTF	3/8 - 18 NPTF
PS610103-6-6	Inline	5000	3/8	Nitrile	Male NPTF	3/8 - 18 NPTF	Male JIC 37 degree	9/16 - 18 UNF
PS610202-6-6	Inline	5000	3/8	Nitrile	Female NPTF	3/8 - 18 NPTF	Female NPTF	3/8 - 18 NPTF
PS610203-6-6	Inline	5000	3/8	Nitrile	Female NPTF	3/8 - 18 NPTF	Male JIC 37 degree	9/16 - 18 UNF
PS610303-6-6	Inline	5000	3/8	Nitrile	Male JIC 37 degree	9/16 - 18 UNF	Male JIC 37 degree	9/16 - 18 UNF
PS610306-6-6	Inline	5000	3/8	Nitrile	Male JIC 37 degree	9/16 - 18 UNF	Female JIC 37 degree	9/16 - 18 UNF
PS610503-6-6	Inline	5000	3/8	Nitrile	Male SAE O-ring Straight Thread	9/16 - 18 UNF	Male JIC 37 degree	9/16 - 18 UNF
PS610510-6-6	Inline	5000	3/8	Nitrile	Male SAE O-ring Straight Thread	9/16 - 18 UNF	Female SAE Straight Thread	9/16 - 18 UNF
PS61JMJM-6-6	Inline	5000	3/8	Nitrile	Male Seal-Lok	11/16 - 16 UN	Male Seal-Lok	11/16 - 16 UN
PS690102-6-6	90 degree	5000	3/8	Nitrile	Male NPTF	3/8 - 18 NPTF	Female NPTF	3/8 - 18 NPTF
PS690103-6-6	90 degree	5000	3/8	Nitrile	Male NPTF	3/8 - 18 NPTF	Male JIC 37 degree	9/16 - 18 UNF
PS690107-6-6	90 degree	5000	3/8	Nitrile	Male NPTF	3/8 - 18 NPTF	Female NPSM Pipe Swivel	3/8 - 18 NPSM
PS690110-6-6	90 degree	5000	3/8	Nitrile	Male NPTF	3/8 - 18 NPTF	Female SAE Straight Thread	9/16 - 18 UNF
PS690202-6-6	90 degree	5000	3/8	Nitrile	Female NPTF	3/8 - 18 NPTF	Female NPTF	3/8 - 18 NPTF
PS690203-6-6	90 degree	5000	3/8	Nitrile	Female NPTF	3/8 - 18 NPTF	Male JIC 37 degree	9/16 - 18 UNF
PS690207-6-6	90 degree	5000	3/8	Nitrile	Female NPTF	3/8 - 18 NPTF	Female NPSM Pipe Swivel	3/8 - 18 NPSM
PS690303-6-6	90 degree	5000	3/8	Nitrile	Male JIC 37 degree	9/16 - 18 UNF	Male JIC 37 degree	9/16 - 18 UNF
PS690306-6-6	90 degree	5000	3/8	Nitrile	Male JIC 37 degree	9/16 - 18 UNF	Female JIC 37 degree	9/16 - 18 UNF
PS690502-6-6	90 degree	5000	3/8	Nitrile	Male SAE O-ring Straight Thread	9/16 - 18 UNF	Female NPTF	3/8 - 18 NPTF
PS690503-6-6	90 degree	5000	3/8	Nitrile	Male SAE O-ring Straight Thread	9/16 - 18 UNF	Male JIC 37 degree	9/16 - 18 UNF
PS690510-6-6	90 degree	5000	3/8	Nitrile	Male SAE O-ring Straight Thread	9/16 - 18 UNF	Female SAE Straight Thread	9/16 - 18 UNF
PS6905JM-6-6	90 degree	5000	3/8	Nitrile	Male SAE O-ring Straight Thread	9/16 - 18 UNF	Male Seal-Lok	11/16 - 16 UN
PS810102-8-8	Inline	5000	1/2	Nitrile	Male NPTF	1/2 - 14 NPTF	Female NPTF	1/2 - 14 NPTF
PS810103-8-8	Inline	5000	1/2	Nitrile	Male NPTF	1/2 - 14 NPTF	Male JIC 37 degree	3/4 - 16 UNF
PS810202-8-8	Inline	5000	1/2	Nitrile	Female NPTF	1/2 - 14 NPTF	Female NPTF	1/2 - 14 NPTF
PS810303-10-10	Inline	5000	1/2	Nitrile	Male JIC 37 degree	7/8 - 14 UNF	Male JIC 37 degree	7/8 - 14 UNF
PS810303-8-8	Inline	5000	1/2	Nitrile	Male JIC 37 degree	3/4 - 16 UNF	Male JIC 37 degree	3/4 - 16 UNF
PS810306-10-10	Inline	5000	1/2	Nitrile	Male JIC 37 degree	7/8 - 14 UNF	Female JIC 37 degree	7/8 - 14 UNF
PS810306-8-8	Inline	5000	1/2	Nitrile	Male JIC 37 degree	3/4 - 16 UNF	Female JIC 37 degree	3/4 - 16 UNF
PS810310-8-8	Inline	5000	1/2	Nitrile	Male JIC 37 degree	3/4 - 16 UNF	Female SAE Straight Thread	3/4 - 16 UNF
PS810503-8-8	Inline	5000	1/2	Nitrile	Male SAE O-ring Straight Thread	3/4 - 16 UNF	Male JIC 37 degree	3/4 - 16 UNF
PS810510-8-8	Inline	5000	1/2	Nitrile	Male SAE O-ring Straight Thread	3/4 - 16 UNF	Female SAE Straight Thread	3/4 - 16 UNF
PS811003-8-8	Inline	5000	1/2	Nitrile	Female SAE Straight Thread	3/4 - 16 UNF	Male JIC 37 degree	3/4 - 16 UNF
PS811010-8-8	Inline	5000	1/2	Nitrile	Female SAE Straight Thread	3/4 - 16 UNF	Female SAE Straight Thread	3/4 - 16 UNF
PS81JMJM-8-8	Inline	5000	1/2	Nitrile	Male Seal-Lok	13/16 - 16 UN	Male Seal-Lok	13/16 - 16 UN
PS890102-8-8	90 degree	5000	1/2	Nitrile	Male NPTF	1/2 - 14 NPTF	Female NPTF	1/2 - 14 NPTF
PS890103-8-8	90 degree	5000	1/2	Nitrile	Male NPTF	1/2 - 14 NPTF	Male JIC 37 degree	3/4 - 16 UNF
PS890106-8-8	90 degree	5000	1/2	Nitrile	Male NPTF	1/2 - 14 NPTF	Female JIC 37 degree	3/4 - 16 UNF
PS890107-8-8	90 degree	4600	1/2	Nitrile	Male NPTF	1/2 - 14 NPTF	Female NPSM Pipe Swivel	1/2 - 14 NPSM
PS890110-8-8	90 degree	5000	1/2	Nitrile	Male NPTF	1/2 - 14 NPTF	Female SAE Straight Thread	3/4 - 16 UNF
PS890202-8-8	90 degree	5000	1/2	Nitrile	Female NPTF	1/2 - 14 NPTF	Female NPTF	1/2 - 14 NPTF
PS890203-8-8	90 degree	5000	1/2	Nitrile	Female NPTF	1/2 - 14 NPTF	Male JIC 37 degree	3/4 - 16 UNF
PS890207-8-8	90 degree	4600	1/2	Nitrile	Female NPTF	1/2 - 14 NPTF	Female NPSM Pipe Swivel	1/2 - 14 NPSM
PS890210-8-8	90 degree	5000	1/2	Nitrile	Female NPTF	1/2 - 14 NPTF	Female SAE Straight Thread	3/4 - 16 UNF
PS890303-8-8	90 degree	5000	1/2	Nitrile	Male JIC 37 degree	3/4 - 16 UNF	Male JIC 37 degree	3/4 - 16 UNF
PS890305-8-8	90 degree	5000	1/2	Nitrile	Male JIC 37 degree	3/4 - 16 UNF	Male SAE O-ring Straight Thread	3/4 - 16 UNF
PS890306-8-8	90 degree	5000	1/2	Nitrile	Male JIC 37 degree	3/4 - 16 UNF	Female JIC 37 degree	3/4 - 16 UNF
PS890503-10-10	90 degree	5000	1/2	Nitrile	Male SAE O-ring Straight Thread	7/8 - 14 UNF	Male JIC 37 degree	7/8 - 14 UNF
PS890503-8-8	90 degree	5000	1/2	Nitrile	Male SAE O-ring Straight Thread	3/4 - 16 UNF	Male JIC 37 degree	3/4 - 16 UNF
PS890510-8-8	90 degree	5000	1/2	Nitrile	Male SAE O-ring Straight Thread	3/4 - 16 UNF	Female SAE Straight Thread	3/4 - 16 UNF
PS891010-8-8	90 degree	5000	1/2	Nitrile	Female SAE Straight Thread	3/4 - 16 UNF	Female SAE Straight Thread	3/4 - 16 UNF
