Parker 流体连接件-诊断测试设备Diagnostic Testing Equipment
Parker 诊断测试设备Diagnostic Testing Equipment
Parker Diagnostic Testing Equipment
Parker 派克 The Parker Service Master CONNECT

Parker Service Master CONNECT是适用于移动和固定应用的通用测量设备。The Parker Service Master CONNECT is a universally appliable measuring device for mobile and stationary applications.



Parker 派克 The Parker Service Master CONNECT 资料下载



Parker Service Master CONNECT是适用于移动和固定应用的通用测量设备。The Parker Service Master CONNECT is a universally appliable measuring device for mobile and stationary applications.
由于硬件和软件中的模块化结构系统以及广泛的传感器,它可以灵活地用于液压应用中。例如,用于服务,调试,研发。Due to the modularly structured system in the hardware and software and the wide range of sensors it can be flexibly used in hydraulic applications. For example, for service, commissioning, research and development.
测量设备可以处理不同的电信号。The measuring device can process different electrical signals.
在CAN总线技术范围内,可以连接以下传感器。In the range of the CAN bus technology the following sensors can be connected.
具有集成传感器识别功能的Parker CAN传感器。插入电源后,就不再需要手动设置测量信号和测量范围了,而与压力,温度,流量或rpm传感器无关。Parker CAN sensors with integrated sensor recognition. After plug in, manual parameterizing of the measurement signal and measuring range is no longer necessary – independent if pressure, temperature, flow or rpm sensors.
连接标准CAN传感器,由测量设备独立提供和处理。Connection of standard CAN sensors, which are supplied and processed independently by the measuring device.
与CAN系统为所谓的“听”,即通信,以显示和进一步处理的测量值,而不直接与总线控制器干扰。Communication with a CAN system for so-called “listening", i. e. to display and further process measurement values without interfering directly with the bus controller.
可选的可以监视辅助安装CAN通道和CAN总线报告的分析的过程中。An optional CAN monitor assists during installation of CAN channels and analysis of CAN bus reports.

市场Markets:
- 农业Agriculture
- 国防Defence
- 移动Mobile
- 运输Transportation
- 建筑Construction
- 工业Industrial
- 汽车Automotive
- 测试Testing
- 维护和修理,MRO Maintenance and Repair, MRO

应用Applications:
- 移动液压Mobile hydraulics
- 运输车辆Transport vehicles
- 输送车辆Conveyor vehicles
- 商用车辆Commercial vehicles
- 汽车技术Automotive technology
- 油压铸模Oil molding
- 测试设备和技术Test equipment and technology

特点/优势Features/ benefits:
- 模块化系统,由于可互换的测量模块Modular system due to individual interchangeable measuring modules
- 可变测量输入:具有传感器识别功能的Parker模拟和CAN传感器,模拟传感器,SAEJ-1939,CANopen,数字和频率Variable measuring inputs: Parker analog and CAN sensors with sensor recognition, analog sensors, SAEJ-1939, CANopen, digital and frequency
- 测量和显示多达100个通道Measure and display up to 100 channels

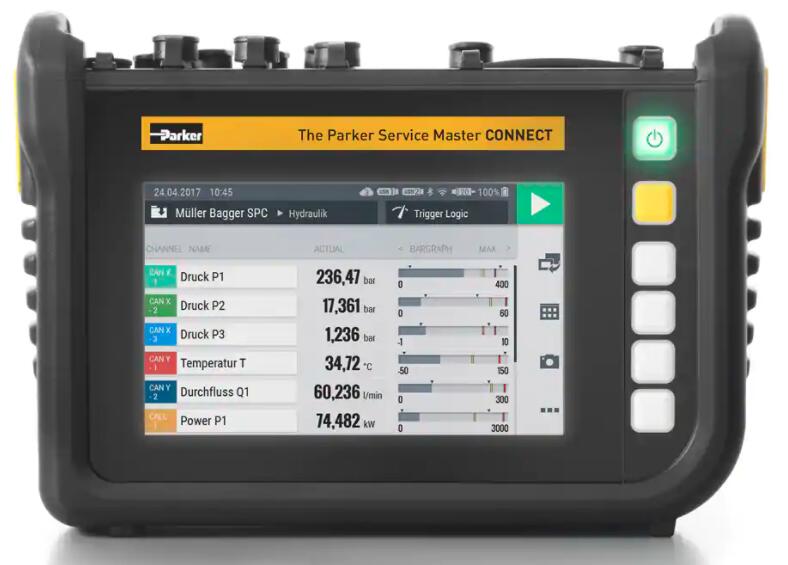

- 使用彩色7英寸触摸屏进行直观操作,适合与手套,坚固的3 mm玻璃,分辨率800 x 480像素一起使用Intuitive operation using the colored 7” touch display, Suitable for use with gloves, robust 3 mm glass, resolution 800 x 480 pixels
- 额外的大型触感键盘,即使在不利条件下也能确保操作Additional large tactile keyboard to ensure operation even in adverse conditions
- 远程控制应用Remote control application
- 坚固,耐油的防护装置,可在恶劣条件下使用并吸收冲击Rugged, oil-resistant protection for use in harsh conditions and for shock absorption
- 计算机分析软件Computer Analysis Software
- 媒体数据(pdf,图片,视频等)Media data (pdf, pictures, videos, ...)
- 用于重复测量的模板的生成和存储Generation and storage of templates for recurring measurements
- 无线连接(WLAN,蓝牙LE)Wireless Connections (WLAN, Bluetooth LE)





The Parker Service Master CONNECT 型号:

Part Part Type Version

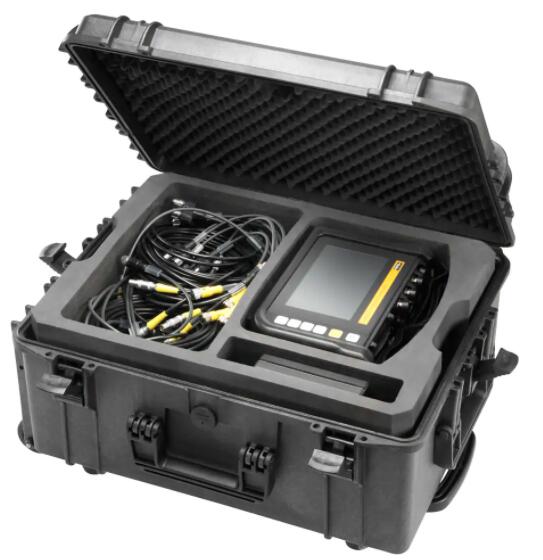

K-SCKIT-600-00 Measuring device in trolley case Kit: Measuring device in base version with calibration certificate according to ISO 9001 and carry strap incl. trolley case, 2x5m CAN cable, 2x 1,5m test hose M16x2 and 2xCAN terminating resistor
K-SCKIT-600-0A Measuring device in trolley case Kit: Measuring device in base version without wireless connectivity with calibration certificate according to ISO 9001 and carry strap incl. trolley case, 2x5m CAN cable, 2x 1,5m test hose M16x2 and 2xCAN terminating resistor
K-SCM-600-00 Mesuring device Base model with calibration certificate according to ISO 9001 , without input modules
K-SCM-600-0A Mesuring device Base model with calibration certificate according to ISO 9001 , without wireless connectivity and without input modules
K-SCMI-600-01 Input module Analogue input module for The Parker Service Master CONNECT incl. calibration certificate according to ISO 9001
K-SCMI-600-03 Input module Analogue input module incl. electrical isolation for The Parker Service Master CONNECT incl. calibration certificate according to ISO 9001
K-SCMSET-600-00-1-0 Measuring device incl. Input modules Base model with calibration certificate according to ISO 9001 and one analogue input module
K-SCMSET-600-00-1-1 Measuring device incl. Input modules Base model with calibration certificate according to ISO 9001 and two analogue input modules
K-SCMSET-600-00-2-0 Measuring device incl. Input modules Base model without wireless connectivity with one CAN input module
K-SCMSET-600-00-2-1 Measuring device incl. Input modules Base model with calibration certificate according to ISO 9001 and with one CAN- and one analogue input module
K-SCMSET-600-00-3-0 Measuring device incl. Input modules Base model without wireless connectivity with one analogue input module incl. electrical isolation
K-SCMSET-600-00-3-1 Measuring device incl. Input modules Base model with calibration certificate according to ISO 9001 and with one analogue input module incl. electrical isolation and one analogue input module
K-SCMSET-600-00-3-3 Measuring device incl. Input modules Base model with calibration certificate according to ISO 9001 and two analogue input modules incl. electrical isolation
K-SCMSET-600-0A-1-0 Measuring device incl. Input modules Base model without wireless connectivity with calibration certificate according to ISO 9001 and one analogue input module
K-SCMSET-600-0A-1-1 Measuring device incl. Input modules Base model without wireless connectivity with calibration certificate according to ISO 9001 and two analogue input modules
K-SCMSET-600-0A-2-0 Measuring device incl. Input modules Base model without wireless connectivity with calibration certificate according to ISO 9001 and one CAN input module
K-SCMSET-600-0A-2-1 Measuring device incl. Input modules Base model without wireless connectivity with calibration certificate according to ISO 9001 and one CAN- and one analogue input module
K-SCMSET-600-0A-3-0 Measuring device incl. Input modules Base model without wireless connectivity with calibration certificate according to ISO 9001 and one analogue input module incl. electrical isolation
K-SCMSET-600-0A-3-1 Measuring device incl. Input modules Base model without wireless connectivity with calibration certificate according to ISO 9001 and with one analogue input module incl. electrical isolation and one analogue input module
K-SCMSET-600-0A-3-3 Measuring device incl. Input modules Base model without wireless connectivity with calibration certificate according to ISO 9001 and two analogue input modules incl. electrical isolation
SC-ACC-02 Optional Accessories Carry strap for The Parker Service Master CONNECT
SCC-600 Optional Accessories Trolley case for The Parker Service Master CONNECT
SCK-315-02-35 Optional Accessories USB Cable
SCK-318-02-37 Optional Accessories LAN Cable
SCK-318-05-21 Optional Accessories KFZ charging cable 12/24VDC
SCK-401-4M Optional Accessories Plug M12x1 for external sensor input
SCKIT-600-00 Measuring device in trolley case Kit: Measuring device in base version with carry strap incl. trolley case, 2x5m CAN cable, 2x 1,5m test hose M16x2 and 2xCAN terminating resistor
SCKIT-600-0A Measuring device in trolley case Kit: Measuring device in base version without wireless connectivity with carry strap incl. trolley case, 2x5m CAN cable, 2x 1,5m test hose M16x2 and 2xCAN terminating resistor
SCM-600-00 Mesuring device Base model without input modules
SCM-600-0A Mesuring device Base model without wireless connectivity and without input modules
SCMI-600-01 Input module Analogue input module for The Parker Service Master CONNECT
SCMI-600-02 Input module CAN input module for The Parker Service Master CONNECT
SCMI-600-03 Input module Analogue input module incl. electrical isolation for The Parker Service Master CONNECT
SCMSET-600-00-1-0 Measuring device incl. Input modules Base model with analogue input module
SCMSET-600-00-1-1 Measuring device incl. Input modules Base model with two analogue input modules
SCMSET-600-00-2-0 Measuring device incl. Input modules Base model with one CAN input module
SCMSET-600-00-2-1 Measuring device incl. Input modules Base model with one CAN- and one analogue input module
SCMSET-600-00-3-0 Measuring device incl. Input modules Base model with one analogue input module incl. electrical isolation
SCMSET-600-00-3-1 Measuring device incl. Input modules Base model with one analogue input module incl. electrical isolation and one analogue input module
SCMSET-600-00-3-3 Measuring device incl. Input modules Base model with two analogue input modules incl. electrical isolation
SCMSET-600-0A-1-0 Measuring device incl. Input modules Base model without wireless connectivity with one analogue input module
SCMSET-600-0A-1-1 Measuring device incl. Input modules Base model without wireless connectivity with two analogue input modules
SCMSET-600-0A-2-0 Measuring device incl. Input modules Base model with calibration certificate according to ISO 9001 and one CAN input module
SCMSET-600-0A-2-1 Measuring device incl. Input modules Base model without wireless connectivity with one CAN- and one analogue input module
SCMSET-600-0A-3-0 Measuring device incl. Input modules Base model with calibration certificate according to ISO 9001 and one analogue input module incl. electrical isolation
SCMSET-600-0A-3-1 Measuring device incl. Input modules Base model without wireless connectivity with one analogue input module incl. electrical isolation and one analogue input module
SCMSET-600-0A-3-3 Measuring device incl. Input modules Base model without wireless connectivity with two analogue input modules incl. electrical isolation
SCNA-SMC-CAR Optional Accessories KFZ charging cable 12VDC
SCSN-470 Optional Accessories Power supply incl. Country adapter EUR, UK, US and AUS
