Parker 流体连接件-诊断测试设备Diagnostic Testing Equipment
Parker 诊断测试设备Diagnostic Testing Equipment
Parker Diagnostic Testing Equipment

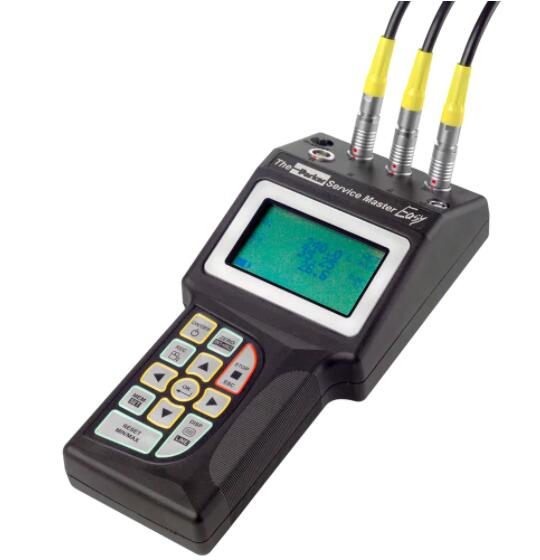

Parker 派克 Service Master Easy 测试设备

派克传感控制 Service Master Easy 诊断测试套件是测量和记录任何液压或气动系统的关键系统数据的选择。





Parker 派克 Service Master Easy 测试设备 资料下载

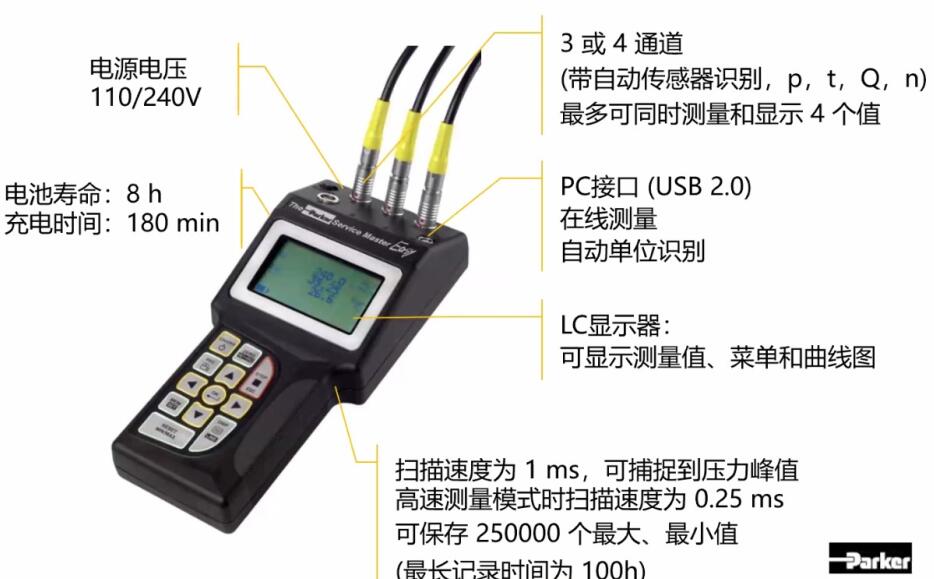

派克传感控制设备Service Master Easy是一款手持式诊断仪,同时兼备数据测量和直观显示操作功能。具有自动传感器识别功能的四个模拟传感器输入提供了同时测量和记录压力,压力差,温度,流量和转速的能力。扫描速率为1ms,派克 Service Master Easy可存储多达100万个测量值。提供各种压力测试套件。

压力测试套件包括:
- 派克Service Master Easy主机
- 储存箱
- 2 个传感器(可选择压力范围和连接形式)
- 2根传感器电缆
- 电源
- SensoWin 软件以及文件
- USB 连接线

派克的Service Master Easy是一款测量和记录除压力以外更多系统参数的有效工具。多种兼容附件可用于测量流量,流体温度,以及转速。对基本测试套件进行扩展的SensoControl附件包括:传感器,流量传感器,温度传感器,转速计,电压适配器,电缆(单独订购)。

市场:
- 工业
- 建筑
- 注塑
- 测试
- 维护和修理,MRO

特点与优势:
- 压力套件可轻松进行附件扩展,从而充分利用派克Service Master Easy测试仪的诊断功能
- 传感器的颜色编码与压力范围对应,便于视觉识别
- SensoWin软件允许在下载到Windows操作系统时进行分析数据
- 操作简单直观
- 适用于测量液压和气压系统的压力

应用:
- 移动设备
- 冷却系统
- 工业液压系统
- 流体或空气系统维护和故障排除
- 系统性能优化
- 系统校验

技术规格:

类型:The Parker Service Master Easy 3-channel kit with calibration certificate as per ISO 9001
产品类型:派克Servcie Master Easy 3通道测试仪,派克Servcie Master Easy 4通道测试仪,带ISO 9001的校准证书的派克Service Master Easy 3通道测试仪,带ISO 9001的校准证书的Parker Service Master Easy 4通道测试仪





Parker 派克 Service Master Easy 测试设备 型号:

型号 类型
K-SCKIT-330-00 The Parker Service Master Easy 3-channel kit with calibration certificate as per ISO 9001
K-SCKIT-340-00 The Parker Service Master Easy 4-channel kit with calibration certificate as per ISO 9001
K-SCKIT-340-PTQ The Parker Service Master Easy 4-channel kit including pressure/temperature sensor and turbine flow meter with calibration certificate as per ISO 9001
K-SCM-330-2-02 The Parker Service Master Easy 3-channel with calibration certificate as per ISO 9001
K-SCM-340-2-02 The Parker Service Master Easy 4-channel with calibration certificate as per ISO 9001
SC-BAT-340 Spare rechargeable battery
SCC-DRV-300 Equipment case
SCK-315-02-34 PC USB Connection cable
SCK-318-05-21 Car cable adapter 12/24 VDC
SCKIT-330-00 The Parker Service Master Easy 3-channel kit
SCKIT-340-00 The Parker Service Master Easy 4-channel kit
SCKIT-340-PTQ The Parker Service Master Easy 4-channel kit including pressure/temperature sensor and turbine flow meter
SCM-330-2-02 The Parker Servcie Master Easy 3-channel
SCM-340-2-02 The Parker Service Master Easy 4-channel
SCSN-450 Power supply 110/230 VAC EUR/UK/US
