Parker派克 仪表级针阀
Parker派克 TN Series Needle Valve
Parker派克 TN系列针阀

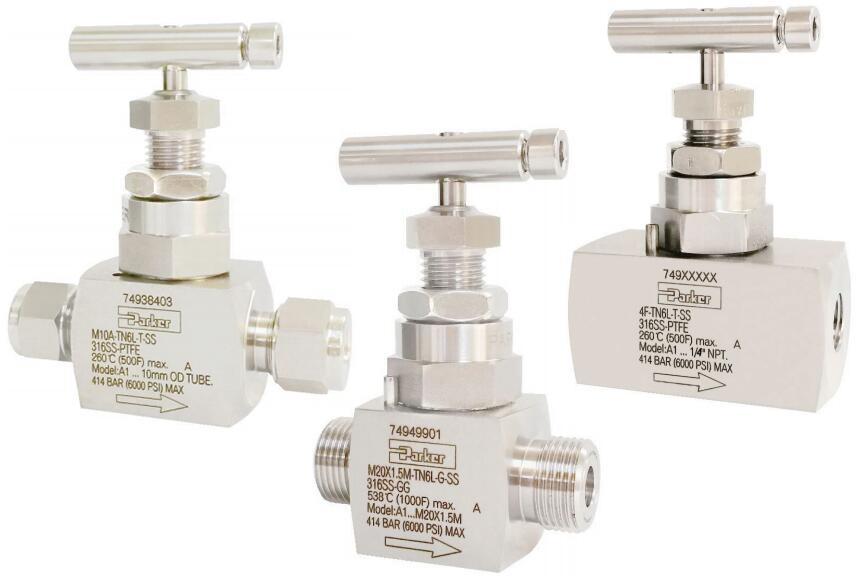

Parker派克 TN系列针阀 TN Series Needle Valve

派克TN系列针型阀具有高性能和各种连接方式，可为用户提供广泛的市场，行业和应用。 可在最高6,000psi（414 bar）的压力和最高1,000°F（538°C）的温度下使用。 Parker TN series needle valve with high performance and various connections available to users for a wide variety of markets, industries and applications. For use at pressure up to 6,000psi (414 bar) and temperature up to 1,000°F (538 °C).

Parker派克 TN Series Needle Valve 资料下载

派克TN系列针型阀具有高性能和各种连接方式，可为用户提供广泛的市场，行业和应用。它被设计用于高达6,000psi（414 bar）的压力和高达1,000°F（538°C）的温度。不旋转的下部阀杆通过消除填料区域的旋转，有助于延长填料寿命。螺纹下方的阀杆填料可将螺纹润滑剂与流体隔离开，从而确保无论使用哪种介质都可进行充分润滑。Parker TN series needle valve with high performance and various connections available to users for a wide variety of markets, industries and applications. It has been engineered for use at pressure up to 6,000psi (414 bar) and temperature as high as 1,000°F (538 °C). A non-rotating lower stem helps to extend packing life by removing rotation from the packing area. Stem packing below the threads isolates the thread lubricant from the flow, ensuring adequate lubrication regardless of the media.

性能特点：

尺寸：标准
max.入口压力等级：6000磅/平方英寸
出口压力等级：6000磅/平方英寸
主体材质：316不锈钢
min.工作温度：-54°摄氏度
max.工作温度：260，538°C

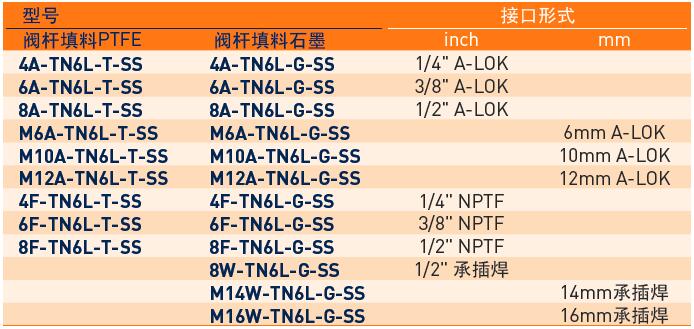

TN Series Needle Valve 型号
