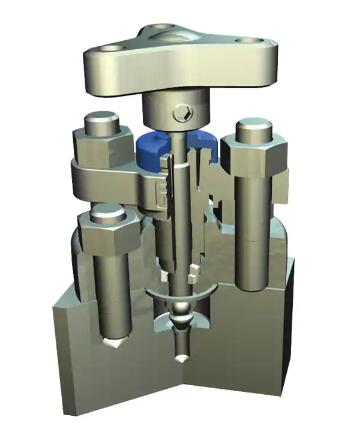

HYNY系列针型阀 Needle Valve (6,000 PSI) - HYNV Series
外螺纹和叉形截止阀针型阀设计用于主绝缘应用,可在高达6,000 psi(414 bar)的压力下运行,可选的10000 psi(689 bar)额定值,适用于石油和天然气加工行业的小口径仪表应用。Outside screw and yoke globe pattern needle valves designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating for small bore instrumentation applications in the oil and gas processing industry
派克的HYNV系列外螺纹和轭式针型阀设计用于主绝缘应用,工作压力高达6000 psi(414 bar),额定值为10000 psi(689 bar)。派克针阀随附完整的标准石墨密封填料,并且自定心的非旋转尖端可提供气泡密封。对于气体应用,可提供软密封的可选阀座。可为所有类型的安装提供各种连接器端,包括多端口根/主隔离服务。还提供符合NACE标准和氧气清洁以及大量材料的清单。Parker's HYNV series outside screw and yoke needle valves are designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating. The Parker needle valve is supplied complete with standard graphite gland packing and the self centering non rotational tip gives bubble tight sealing. For gaseous application soft tipped optional seating is available. A wide variety of connector ends are offered for all types of installations including multi-ported root/primary isolate service. NACE compliance and oxygen clean are also available along with an extensive list of materials.
HYNY系列针型阀 Needle Valve (6,000 PSI) - HYNV Series
外螺纹和 yoke 球型针阀的设计主要用于初级隔离使用,操作压力高达6000 psi(414 bar)并且小孔型仪表在石油和天然气加工工业可选额定压力10000 psi(689 bar).
外螺纹和 yoke 阀门设计用于初级隔离应用,可工作于6000 psi(414bar),另有10000 psi(689 bar)可选额定值.阀门配有标准石墨压盖填料,自定心无旋转末端提供气密密封.对于气体应用,软尖端阀座可选.为各类型安装提供多种连接器端口,包括多端口根/初级隔离服务.也可提供符合欧盟认证、氧气洁净度和广泛的材料清单.符合BS6755 Part2和 API607 标准的石墨填料.
市场Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical
- Power Generation
-海上油气
-海上油气
-石化
-化工
-发电
特点/优势Features/Benefits:
- NACE compliant
- 100% repeatable bubble-tight shut-off
- Heat code traceable
- Firesafe to BS 6755 Part 2 and API 607 standard with graphite packing.
-符合NACE
-100%可重复的气密关闭
-可追溯的热代码
-防火,符合BS 6755 Part 2和API 607标准,并带有石墨填料。
应用Applications:
- Process to instrument interface
- Pressure & Flow measurement
- Lubrication skids
- Water Treatment
- Chemical injection skids
- Hydraulic systems for wellhead control
- Emergency shut down
- Pumping packages
- Gas booster systems
- Test equipment
-仪器接口的过程
-压力和流量测量
-润滑橇
-水处理
-化学注入橇
-用于井口控制的液压系统
-紧急关闭
-泵组
-气体增压系统
-测试设备
Technical Specifications
Inlet Connection Size: |
1/4 NPT, 3/8 NPT, 1/2 NPT, 1/2 NPT , 1/2 pipe, 1/4, 1/2, 6 mm, 12 mm |
Inlet Port Size: |
Female, Male, Socket Weld, Butt Weld, A-LOK, CPI |
Outlet Connection Size: |
1/4 NPT , 3/8 NPT, 1/2 NPT, 3 X 1/2 NPT, 1/2 pipe, 1/4, 1/2, 6 mm, 12 mm |
Outlet Port Type: |
Female, Socket Weld, Butt Weld, A-LOK, CPI |
Materials of Construction: |
Stainless Steel, Monel, Duplex, Super Duplex, Hasteloy, Carbon Steel, 6Mo, Titanium, Incoloy 825, Incoloy 625 |
Additional Options: |
For other options contact factory |
Maximum Operating Pressure: |
414 (345 for Monel) bar, 6,000 (5,000 for Monel) psi |
Flow Coefficient 1: |
0.35 standard Cv |
Minimum Operating Temperature: |
-65 °F, -54 °C |
Maximum Operating Temperature: |
1000 °F, 538 °C |
Seat Material: |
Metal/metal seated |
Packing Material: |
Graphite |
Mounting Option: |
Base mount |
Product Series: |
HYNV |
Needle Valve (6,000 PSI) - HYNV Series 型号
Part |
Inlet Connection |
Inlet Port Connection Type |
Outlet Connection |
Outlet Port Connection Type |
Material |
HYNV6254A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Incoloy 625 |
HYNV6254FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Incoloy 625 |
HYNV6254M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Incoloy 625 |
HYNV6254Z |
1/4 |
CPI |
1/4 |
CPI |
Incoloy 625 |
HYNV6256FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Incoloy 625 |
HYNV6258 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Incoloy 625 |
HYNV6258A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Incoloy 625 |
HYNV6258FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Incoloy 625 |
HYNV6258M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Incoloy 625 |
HYNV6258Z |
1/2 |
CPI |
1/2 |
CPI |
Incoloy 625 |
HYNV625BW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Incoloy 625 |
HYNV625M12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Incoloy 625 |
HYNV625M12Z |
12 mm |
CPI |
12 mm |
CPI |
Incoloy 625 |
HYNV625M6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Incoloy 625 |
HYNV625M6Z |
6 mm |
CPI |
6 mm |
CPI |
Incoloy 625 |
HYNV625SW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Incoloy 625 |
HYNV6MO4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
6Mo |
HYNV6MO4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
6Mo |
HYNV6MO4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
6Mo |
HYNV6MO4Z |
1/4 |
CPI |
1/4 |
CPI |
6Mo |
HYNV6MO6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
6Mo |
HYNV6MO8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
6Mo |
HYNV6MO8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
6Mo |
HYNV6MO8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
6Mo |
HYNV6MO8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
6Mo |
HYNV6MO8Z |
1/2 |
CPI |
1/2 |
CPI |
6Mo |
HYNV6MOBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
6Mo |
HYNV6MOM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
6Mo |
HYNV6MOM12Z |
12 mm |
CPI |
12 mm |
CPI |
6Mo |
HYNV6MOM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
6Mo |
HYNV6MOM6Z |
6 mm |
CPI |
6 mm |
CPI |
6Mo |
HYNV6MOSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
6Mo |
HYNV8254A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Incoloy 825 |
HYNV8254FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Incoloy 825 |
HYNV8254M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Incoloy 825 |
HYNV8254Z |
1/4 |
CPI |
1/4 |
CPI |
Incoloy 825 |
HYNV8256FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Incoloy 825 |
HYNV8258 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Incoloy 825 |
HYNV8258A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Incoloy 825 |
HYNV8258FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Incoloy 825 |
HYNV8258M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Incoloy 825 |
HYNV8258Z |
1/2 |
CPI |
1/2 |
CPI |
Incoloy 825 |
HYNV825BW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Incoloy 825 |
HYNV825M12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Incoloy 825 |
HYNV825M12Z |
12 mm |
CPI |
12 mm |
CPI |
Incoloy 825 |
HYNV825M6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Incoloy 825 |
HYNV825M6Z |
6 mm |
CPI |
6 mm |
CPI |
Incoloy 825 |
HYNV825SW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Incoloy 825 |
HYNVC4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Carbon Steel |
HYNVC4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Carbon Steel |
HYNVC4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Carbon Steel |
HYNVC4Z |
1/4 |
CPI |
1/4 |
CPI |
Carbon Steel |
HYNVC6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Carbon Steel |
HYNVC8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Carbon Steel |
HYNVC8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Carbon Steel |
HYNVC8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Carbon Steel |
HYNVC8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Carbon Steel |
HYNVC8Z |
1/2 |
CPI |
1/2 |
CPI |
Carbon Steel |
HYNVCBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Carbon Steel |
HYNVCM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Carbon Steel |
HYNVCM12Z |
12 mm |
CPI |
12 mm |
CPI |
Carbon Steel |
HYNVCM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Carbon Steel |
HYNVCM6Z |
6 mm |
CPI |
6 mm |
CPI |
Carbon Steel |
HYNVCSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Carbon Steel |
HYNVD14A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Duplex |
HYNVD14FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Duplex |
HYNVD14M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Duplex |
HYNVD14Z |
1/4 |
CPI |
1/4 |
CPI |
Duplex |
HYNVD16FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Duplex |
HYNVD18 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Duplex |
HYNVD18A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Duplex |
HYNVD18FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Duplex |
HYNVD18M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Duplex |
HYNVD18Z |
1/2 |
CPI |
1/2 |
CPI |
Duplex |
HYNVD1BW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Duplex |
HYNVD1M12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Duplex |
HYNVD1M12Z |
12 mm |
CPI |
12 mm |
CPI |
Duplex |
HYNVD1M6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Duplex |
HYNVD1M6Z |
6 mm |
CPI |
6 mm |
CPI |
Duplex |
HYNVD1SW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Duplex |
HYNVD24A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Super Duplex |
HYNVD24FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Super Duplex |
HYNVD24M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Super Duplex |
HYNVD24Z |
1/4 |
CPI |
1/4 |
CPI |
Super Duplex |
HYNVD26FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Super Duplex |
HYNVD28 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Super Duplex |
HYNVD28A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Super Duplex |
HYNVD28FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Super Duplex |
HYNVD28M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Super Duplex |
HYNVD28Z |
1/2 |
CPI |
1/2 |
CPI |
Super Duplex |
HYNVD2BW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Super Duplex |
HYNVD2M12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Super Duplex |
HYNVD2M12Z |
12 mm |
CPI |
12 mm |
CPI |
Super Duplex |
HYNVD2M6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Super Duplex |
HYNVD2M6Z |
6 mm |
CPI |
6 mm |
CPI |
Super Duplex |
HYNVD2SW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Super Duplex |
HYNVHC4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Hasteloy |
HYNVHC4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Hasteloy |
HYNVHC4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Hasteloy |
HYNVHC4Z |
1/4 |
CPI |
1/4 |
CPI |
Hasteloy |
HYNVHC6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Hasteloy |
HYNVHC8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Hasteloy |
HYNVHC8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Hasteloy |
HYNVHC8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Hasteloy |
HYNVHC8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Hasteloy |
HYNVHC8Z |
1/2 |
CPI |
1/2 |
CPI |
Hasteloy |
HYNVHCBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Hasteloy |
HYNVHCM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Hasteloy |
HYNVHCM12Z |
12 mm |
CPI |
12 mm |
CPI |
Hasteloy |
HYNVHCM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Hasteloy |
HYNVHCM6Z |
6 mm |
CPI |
6 mm |
CPI |
Hasteloy |
HYNVHCSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Hasteloy |
HYNVM4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Monel |
HYNVM4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Monel |
HYNVM4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Monel |
HYNVM4Z |
1/4 |
CPI |
1/4 |
CPI |
Monel |
HYNVM6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Monel |
HYNVM8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Monel |
HYNVM8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Monel |
HYNVM8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Monel |
HYNVM8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Monel |
HYNVM8Z |
1/2 |
CPI |
1/2 |
CPI |
Monel |
HYNVMBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Monel |
HYNVMM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Monel |
HYNVMM12Z |
12 mm |
CPI |
12 mm |
CPI |
Monel |
HYNVMM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Monel |
HYNVMM6Z |
6 mm |
CPI |
6 mm |
CPI |
Monel |
HYNVMSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Monel |
HYNVS4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Stainless Steel |
HYNVS4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Stainless Steel |
HYNVS4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Stainless Steel |
HYNVS4Z |
1/4 |
CPI |
1/4 |
CPI |
Stainless Steel |
HYNVS6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Stainless Steel |
HYNVS8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Stainless Steel |
HYNVS8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Stainless Steel |
HYNVS8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Stainless Steel |
HYNVS8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Stainless Steel |
HYNVS8Z |
1/2 |
CPI |
1/2 |
CPI |
Stainless Steel |
HYNVSBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Stainless Steel |
HYNVSM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Stainless Steel |
HYNVSM12Z |
12 mm |
CPI |
12 mm |
CPI |
Stainless Steel |
HYNVSM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Stainless Steel |
HYNVSM6Z |
6 mm |
CPI |
6 mm |
CPI |
Stainless Steel |
HYNVSSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Stainless Steel |
HYNVT4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Titanium |
HYNVT4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Titanium |
HYNVT4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Titanium |
HYNVT4Z |
1/4 |
CPI |
1/4 |
CPI |
Titanium |
HYNVT6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Titanium |
HYNVT8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Titanium |
HYNVT8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Titanium |
HYNVT8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Titanium |
HYNVT8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Titanium |
HYNVT8Z |
1/2 |
CPI |
1/2 |
CPI |
Titanium |
HYNVTBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Titanium |
HYNVTM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Titanium |
HYNVTM12Z |
12 mm |
CPI |
12 mm |
CPI |
Titanium |
HYNVTM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Titanium |
HYNVTM6Z |
6 mm |
CPI |
6 mm |
CPI |
Titanium |
HYNVTSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Titanium |
|
