VM系列高压针阀Needle Valve, High Presssure - VM Series 100,000 PSI
派克 Autoclave 中压及高压系列针阀可达 100,000 PSI,锥螺纹设计应用于油气过程控制行业。

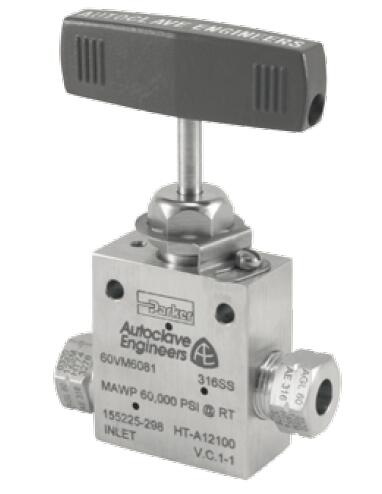

Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, with working pressures to 100,000 psi (6895 bar) with 1/4” to 9/16” ” end connections. These valves are available in 316 Stainless Steel and two body patterns.
派克高压灭菌器的100VM系列针型阀为非旋转式立杆设计，工作压力为100,000 psi（6895 bar）。管道尺寸从1/4”到9/16”。油管连接采用Parker高压釜的锥和螺纹设计。带PTFE填料的标准高压针型阀可在0°F（-17.8°C）至450°F（232°C）和230°F（110°C）的温度范围内使用尼龙皮革填料进行操作。这些高压针阀在螺纹下方具有可调节的填料，以消除介质与动力线的接触，并在致动期间引起磨损。Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, working pressures to 100,000 psi (6895 bar). The tubing sizes range from ?” to 9/16”. Tubing connections utilize the Parker Autoclave cone and thread design. Standard high pressure needle valves with PTFE packing may be operated from 0°F (-17.8°C) to 450°F (232°C) and to 230°F (110°C) with nylon-leather packing. These high pressure needle valves have adjustable packing below the threads to eliminate the media from contacting the power threads, and causing galling during actuation
这些阀具有许多功能，可在各种应用中提供可靠且无故障的服务。Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
VM系列高压针阀 Needle Valve, High Presssure - VM Series 100,000 PSI
市场Markets:
- Oil and Gas
- Petrochemical
-石油和天然气
-石化
特点/优势Features/Benefits:
- Tubing sizes are 1/4 “ to 9/16”.
- Non-rotating stem prevents stem/seat galling.
- Rising stem/barstock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- For dependable stem and body sealing , valves are furnished with PTFE encapsulated packing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Choice of three body patterns
-油管尺寸为1/4“至9/16”。
-不可旋转的阀杆可防止阀杆/阀座磨损。
-阀杆/棒状阀体的上升设计。
-金属对金属阀座实现了气密性关闭，在磨料流中具有更长的阀杆/阀座寿命，在反复的开/关循环中具有更高的耐用性，并具有出色的耐腐蚀性。
-为了可靠地密封阀杆和阀体，阀门配有PTFE密封填料。
-选择了茎套和填料压盖材料，以延长螺纹循环寿命并降低手柄扭矩。
-选择Vee或调节茎尖。
-三种车身样式的选择
应用Applications:
- High Pressure Skid Panels
- High Pressure Fluid Handling Systems
- Research Systems
-高压橇板
-高压流体处理系统
-研究系统
Technical Specifications
| Maximum Operating Pressure: |
2068, 2760, 4137, 6895 bar |
| Tube Outside Diameter: |
1/4, 3/8, 9/16, 5/16 , 3/8 inch |
| Connection Type: |
F250C , F375C, F562C , F250C, F375C , F562C, F562C40, F312C150 |
| Bore Diameter: |
0.094, 0.125, 0.094 , 0.109, 0.062, 0.078 inch, 2.39 , 3.18 , 2.77 , 1.57 , 1.98 mm |
Needle Valve, High Presssure - VM Series 100,000 PSI 型号
| Part |
Maximum Working Pressure (psi) |
Tube O.D. (mm) |
Stem Type |
Valve Type |
| 100VM4071 |
100,000 |
6.35 mm |
VEE |
2-Way Straight |
| 100VM4072 |
100,000 |
6.35 mm |
VEE |
2-Way Angle |
| 100VM4073 |
100,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM4872 |
100,000 |
6.35 mm |
VEE |
2-Way Angle / Replacement Seat |
| 100VM5071 |
100,000 |
7.93 mm |
VEE |
2-Way Straight |
| 100VM5072 |
100,000 |
7.93 mm |
VEE |
2-Way Angle |
| 100VM5073 |
100,000 |
7.93 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM5872 |
100,000 |
7.93 mm |
VEE |
2-Way Angle / Replacement Seat |
| 100VM6071 |
100,000 |
9.53 mm |
VEE |
2-Way Straight |
| 100VM6072 |
100,000 |
9.53 mm |
VEE |
2-Way Angle |
| 100VM6073 |
100,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM6872 |
100,000 |
9.53 mm |
VEE |
2-Way Angle / Replacement Seat |
| 30VM4071 |
30,000 |
6.35 mm |
VEE |
2-Way Straight |
| 30VM4072 |
30,000 |
6.35 mm |
VEE |
2-Way Angle |
| 30VM4073 |
30,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM4074 |
30,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM4075 |
30,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM4081 |
30,000 |
6.35 mm |
REG |
2-Way Straight |
| 30VM4082 |
30,000 |
6.35 mm |
REG |
2-Way Angle |
| 30VM4083 |
30,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
| 30VM4084 |
30,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
| 30VM4085 |
30,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM4872 |
30,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM4882 |
30,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
| 30VM6071 |
30,000 |
9.53 mm |
VEE |
2-Way Straight |
| 30VM6072 |
30,000 |
9.53 mm |
VEE |
2-Way Angle |
| 30VM6073 |
30,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM6074 |
30,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM6075 |
30,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM6081 |
30,000 |
9.53 mm |
REG |
2-Way Straight |
| 30VM6082 |
30,000 |
9.53 mm |
REG |
2-Way Angle |
| 30VM6083 |
30,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
| 30VM6084 |
30,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
| 30VM6085 |
30,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM6872 |
30,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM6882 |
30,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
| 30VM9071 |
30,000 |
14.29 mm |
VEE |
2-Way Straight |
| 30VM9072 |
30,000 |
14.29 mm |
VEE |
2-Way Angle |
| 30VM9073 |
30,000 |
14.29 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM9074 |
30,000 |
14.29 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM9075 |
30,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM9081 |
30,000 |
14.29 mm |
REG |
2-Way Straight |
| 30VM9082 |
30,000 |
14.29 mm |
REG |
2-Way Angle |
| 30VM9083 |
30,000 |
14.29 mm |
REG |
3-Way / 2 on Pressure |
| 30VM9084 |
30,000 |
14.29 mm |
REG |
3-Way / 1 on Pressure |
| 30VM9085 |
30,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM9872 |
30,000 |
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM9882 |
30,000 |
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
| 40VM9071 |
40,000 |
14.29 mm |
VEE |
2-Way Straight |
| 40VM9072 |
40,000 |
14.29 mm |
VEE |
2-Way Angle |
| 40VM9075 |
40,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 40VM9081 |
40,000 |
14.29 mm |
REG |
2-Way Straight |
| 40VM9082 |
40,000 |
14.29 mm |
REG |
2-Way Angle |
| 40VM9085 |
40,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM4071 |
60,000 |
6.35 mm |
VEE |
2-Way Straight |
| 60VM4072 |
60,000 |
6.35 mm |
VEE |
2-Way Angle |
| 60VM4073 |
60,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM4074 |
60,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM4075 |
60,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM4081 |
60,000 |
6.35 mm |
REG |
2-Way Straight |
| 60VM4082 |
60,000 |
6.35 mm |
REG |
2-Way Angle |
| 60VM4083 |
60,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
| 60VM4084 |
60,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
| 60VM4085 |
60,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM4872 |
60,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM4882 |
60,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
| 60VM6071 |
60,000 |
9.53 mm |
VEE |
2-Way Straight |
| 60VM6072 |
60,000 |
9.53 mm |
VEE |
2-Way Angle |
| 60VM6073 |
60,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM6074 |
60,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM6075 |
60,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM6081 |
60,000 |
9.53 mm |
REG |
2-Way Straight |
| 60VM6082 |
60,000 |
9.53 mm |
REG |
2-Way Angle |
| 60VM6083 |
60,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
| 60VM6084 |
60,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
| 60VM6085 |
60,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM6872 |
60,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM6882 |
60,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
| 60VM9071 |
60,000 |
14.29 mm |
VEE |
2-Way Straight |
| 60VM9072 |
60,000 |
14.29 mm |
VEE |
2-Way Angle |
| 60VM9073 |
60,000 |
14.29 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM9074 |
60,000 |
14.29 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM9075 |
60,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM9081 |
60,000 |
14.29 mm |
REG |
2-Way Straight |
| 60VM9082 |
60,000 |
14.29 mm |
REG |
2-Way Angle |
| 60VM9083 |
60,000 |
14.29 mm |
REG |
3-Way / 2 on Pressure |
| 60VM9084 |
60,000 |
14.29 mm |
REG |
3-Way / 1 on Pressure |
| 60VM9085 |
60,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM9872 |
60,000 |
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM9882 |
60,000 |
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
|
