Parker 调节阀
Parker Metering Valves

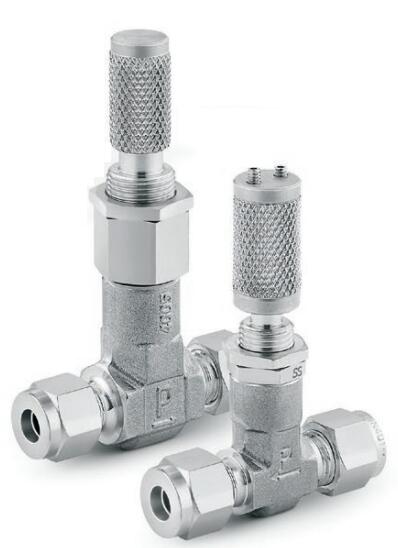

NS系列计量阀 Metering Valve, 2,000 PSI - NS Series
派克NS系列计量阀可实现对流量精确稳定的控制，工作压力可达2,000 PSI (138 BAR).阀门手柄带定位器，避免过度拧紧。
Parker's NS Series Metering Valves provide accurate and stable control of flow rates in various applications up to 2,000 PSI (138 BAR). These metering valves can't be overtightened due to a “positive stop” handle design.
派克NS系列计量阀是一款精密阀门。可实现对流量精确稳定的控制，广泛应用于仪器仪表各种应用场合。阀门手柄带有定位器，以防由于过度拧紧对阀杆造成的损害。
Parker's NS Series of metering valves are precision valves. They are designed to provide accurate and stable control of flow rates in various instrumentation applications. These metering valves can't be overtightened and damaging the stem tip due to a “positive stop” handle design.
阀门拥有广泛多样的接口尺寸、连接方式、密封材料，使阀门可用于多种应用场合。这款紧凑型计量阀在符合密封材料的任何温度下，工作压力恒定可达2,000 PSI (138 BAR)。此外, 阀门有角型和直通型阀体结构，广泛应用于各种复杂管路系统.
A wide variety of end connection sizes, and seal materials provide considerable application versatility. These compact, metering valves work up to 2,000 PSI (138 BAR) at all seal temperature ranges. In addition, these valves are available in angle and inline body patterns to assist installation in complex tubing systems.
NS系列计量阀 Metering Valve, 2,000 PSI - NS Series
市场Markets:
- Chemical
- Research
- Petrochemical
- Universities
- 化工
- 研究机构
- 石化
- 高校
特点/优势Features/ Benefits:
- Precision tapered valve stem accurately controls flow
- Brass or 316 SS forged body construction
- Panel or in-line mounting
- Positive handle stop prevents overtightening
- Angle or in-line patterns
- Valve stem threads not in contact with process fluid
- 100% function tested
- Optional stem seals and handles
- 精密圆锥型阀杆，有效控制流量
- 铜或316不锈钢阀体可选
- 面板安装和在线安装可选
- 手柄带定位器，以防过度拧紧
- 角型或直通型可选
- 阀杆螺纹不接触介质
- 每个产品都经过 工厂测试
- 阀杆密封材料及手柄可选
应用Applications:
- Test Panels
- Monitoring Systems
- 测试盘
- 监控系统
Technical Specifications
| Connection 1 Size: |
1/16" to 1/4", Two Ferrule Compression, Single Ferrule Compression |
| Connection 2 Size: |
1/16" to 1/4", Two Ferrule Compression, Single Ferrule Compression |
| Fitting Type: |
Inline, Angle |
| Body Material: |
316 Stainless Steel, Brass-Nickel Plated |
| Maximum Operating Pressure: |
2,000 psi, 138 bar |
| Maximum Operating Temperature: |
250 °F |
| Minimum Operating Temperature: |
-10 °F |
| Handle Type: |
Knurled |
Metering Valve, 2,000 PSI - NS Series 型号
| 部件号 |
连接 1 尺寸 |
连接 2 尺寸 |
连接器1类型 |
连接器2类型 |
阀体形状 |
阀体材料 |
工作压力（psi) |
工作压力（Bar) |
工作油温（F) |
工作温度（F) |
把手 |
密封材料 |
| 1A-NSA-BN-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 1A-NSA-BN-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 1A-NSA-BN-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 1A-NSA-BN-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 1A-NSA-BN-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 1A-NSA-BN-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 1A-NSA-BN-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 1A-NSA-BN-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 1A-NSA-EPR-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 1A-NSA-EPR-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 1A-NSA-EPR-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 1A-NSA-EPR-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 1A-NSA-EPR-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 1A-NSA-EPR-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 1A-NSA-EPR-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 1A-NSA-EPR-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 1A-NSA-KZ-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 1A-NSA-KZ-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 1A-NSA-KZ-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 1A-NSA-KZ-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 1A-NSA-KZ-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 1A-NSA-KZ-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 1A-NSA-KZ-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 1A-NSA-KZ-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 1A-NSA-V-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 1A-NSA-V-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 1A-NSA-V-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 1A-NSA-V-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 1A-NSA-V-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 1A-NSA-V-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 1A-NSA-V-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 1A-NSA-V-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 1A-NSL-BN-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 1A-NSL-BN-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 1A-NSL-BN-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 1A-NSL-BN-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 1A-NSL-BN-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 1A-NSL-BN-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 1A-NSL-BN-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 1A-NSL-BN-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 1A-NSL-EPR-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 1A-NSL-EPR-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 1A-NSL-EPR-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 1A-NSL-EPR-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 1A-NSL-EPR-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 1A-NSL-EPR-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 1A-NSL-EPR-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 1A-NSL-EPR-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 1A-NSL-KZ-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 1A-NSL-KZ-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 1A-NSL-KZ-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 1A-NSL-KZ-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 1A-NSL-KZ-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 1A-NSL-KZ-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 1A-NSL-KZ-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 1A-NSL-KZ-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 1A-NSL-V-B-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 1A-NSL-V-B-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 1A-NSL-V-B-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 1A-NSL-V-B-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 1A-NSL-V-SS-F |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 1A-NSL-V-SS-K |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 1A-NSL-V-SS-KS |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 1A-NSL-V-SS-V |
1/16" |
1/16" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 1Z-NSA-BN-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 1Z-NSA-BN-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 1Z-NSA-BN-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 1Z-NSA-BN-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 1Z-NSA-BN-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 1Z-NSA-BN-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 1Z-NSA-BN-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 1Z-NSA-BN-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 1Z-NSA-EPR-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 1Z-NSA-EPR-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 1Z-NSA-EPR-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 1Z-NSA-EPR-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 1Z-NSA-EPR-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 1Z-NSA-EPR-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 1Z-NSA-EPR-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 1Z-NSA-EPR-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 1Z-NSA-KZ-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 1Z-NSA-KZ-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 1Z-NSA-KZ-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 1Z-NSA-KZ-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 1Z-NSA-KZ-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 1Z-NSA-KZ-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 1Z-NSA-KZ-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 1Z-NSA-KZ-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 1Z-NSA-V-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 1Z-NSA-V-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 1Z-NSA-V-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 1Z-NSA-V-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 1Z-NSA-V-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 1Z-NSA-V-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 1Z-NSA-V-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 1Z-NSA-V-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 1Z-NSL-BN-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 1Z-NSL-BN-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 1Z-NSL-BN-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 1Z-NSL-BN-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 1Z-NSL-BN-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 1Z-NSL-BN-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 1Z-NSL-BN-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 1Z-NSL-BN-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 1Z-NSL-EPR-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 1Z-NSL-EPR-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 1Z-NSL-EPR-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 1Z-NSL-EPR-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 1Z-NSL-EPR-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 1Z-NSL-EPR-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 1Z-NSL-EPR-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 1Z-NSL-EPR-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 1Z-NSL-KZ-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 1Z-NSL-KZ-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 1Z-NSL-KZ-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 1Z-NSL-KZ-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 1Z-NSL-KZ-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 1Z-NSL-KZ-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 1Z-NSL-KZ-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 1Z-NSL-KZ-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 1Z-NSL-V-B-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 1Z-NSL-V-B-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 1Z-NSL-V-B-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 1Z-NSL-V-B-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 1Z-NSL-V-SS-F |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 1Z-NSL-V-SS-K |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 1Z-NSL-V-SS-KS |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 1Z-NSL-V-SS-V |
1/16" |
1/16" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 2A-NSA-BN-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 2A-NSA-BN-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 2A-NSA-BN-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 2A-NSA-BN-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 2A-NSA-BN-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 2A-NSA-BN-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 2A-NSA-BN-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 2A-NSA-BN-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 2A-NSA-EPR-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 2A-NSA-EPR-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 2A-NSA-EPR-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 2A-NSA-EPR-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 2A-NSA-EPR-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 2A-NSA-EPR-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 2A-NSA-EPR-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 2A-NSA-EPR-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 2A-NSA-KZ-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 2A-NSA-KZ-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 2A-NSA-KZ-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 2A-NSA-KZ-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 2A-NSA-KZ-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 2A-NSA-KZ-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 2A-NSA-KZ-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 2A-NSA-KZ-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 2A-NSA-V-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 2A-NSA-V-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 2A-NSA-V-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 2A-NSA-V-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 2A-NSA-V-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 2A-NSA-V-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 2A-NSA-V-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 2A-NSA-V-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 2A-NSL-BN-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 2A-NSL-BN-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 2A-NSL-BN-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 2A-NSL-BN-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 2A-NSL-BN-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 2A-NSL-BN-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 2A-NSL-BN-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 2A-NSL-BN-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 2A-NSL-EPR-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 2A-NSL-EPR-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 2A-NSL-EPR-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 2A-NSL-EPR-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 2A-NSL-EPR-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 2A-NSL-EPR-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 2A-NSL-EPR-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 2A-NSL-EPR-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 2A-NSL-KZ-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 2A-NSL-KZ-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 2A-NSL-KZ-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 2A-NSL-KZ-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 2A-NSL-KZ-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 2A-NSL-KZ-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 2A-NSL-KZ-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 2A-NSL-KZ-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 2A-NSL-V-B-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 2A-NSL-V-B-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 2A-NSL-V-B-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 2A-NSL-V-B-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 2A-NSL-V-SS-F |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 2A-NSL-V-SS-K |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 2A-NSL-V-SS-KS |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 2A-NSL-V-SS-V |
1/8" |
1/8" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 2Z-NSA-BN-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 2Z-NSA-BN-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 2Z-NSA-BN-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 2Z-NSA-BN-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 2Z-NSA-BN-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 2Z-NSA-BN-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 2Z-NSA-BN-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 2Z-NSA-BN-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 2Z-NSA-EPR-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 2Z-NSA-EPR-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 2Z-NSA-EPR-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 2Z-NSA-EPR-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 2Z-NSA-EPR-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 2Z-NSA-EPR-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 2Z-NSA-EPR-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 2Z-NSA-EPR-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 2Z-NSA-KZ-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 2Z-NSA-KZ-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 2Z-NSA-KZ-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 2Z-NSA-KZ-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 2Z-NSA-KZ-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 2Z-NSA-KZ-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 2Z-NSA-KZ-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 2Z-NSA-KZ-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 2Z-NSA-V-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Neoprene Rubber |
| 2Z-NSA-V-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 2Z-NSA-V-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 2Z-NSA-V-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 2Z-NSA-V-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 2Z-NSA-V-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 2Z-NSA-V-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 2Z-NSA-V-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 2Z-NSL-BN-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 2Z-NSL-BN-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 2Z-NSL-BN-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 2Z-NSL-BN-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 2Z-NSL-BN-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 2Z-NSL-BN-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 2Z-NSL-BN-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 2Z-NSL-BN-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 2Z-NSL-EPR-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 2Z-NSL-EPR-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 2Z-NSL-EPR-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 2Z-NSL-EPR-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 2Z-NSL-EPR-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 2Z-NSL-EPR-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 2Z-NSL-EPR-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 2Z-NSL-EPR-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 2Z-NSL-KZ-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 2Z-NSL-KZ-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 2Z-NSL-KZ-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 2Z-NSL-KZ-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 2Z-NSL-KZ-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 2Z-NSL-KZ-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 2Z-NSL-KZ-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 2Z-NSL-KZ-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 2Z-NSL-V-B-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 2Z-NSL-V-B-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 2Z-NSL-V-B-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 2Z-NSL-V-B-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 2Z-NSL-V-SS-F |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 2Z-NSL-V-SS-K |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 2Z-NSL-V-SS-KS |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 2Z-NSL-V-SS-V |
1/8" |
1/8" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 4A-NSA-BN-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 4A-NSA-BN-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 4A-NSA-BN-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 4A-NSA-BN-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 4A-NSA-BN-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 4A-NSA-BN-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 4A-NSA-BN-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 4A-NSA-BN-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 4A-NSA-EPR-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 4A-NSA-EPR-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 4A-NSA-EPR-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 4A-NSA-EPR-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 4A-NSA-EPR-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 4A-NSA-EPR-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 4A-NSA-EPR-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 4A-NSA-EPR-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 4A-NSA-KZ-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 4A-NSA-KZ-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 4A-NSA-KZ-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 4A-NSA-KZ-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 4A-NSA-KZ-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 4A-NSA-KZ-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 4A-NSA-KZ-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 4A-NSA-KZ-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 4A-NSA-V-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Neoprene Rubber |
| 4A-NSA-V-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 4A-NSA-V-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 4A-NSA-V-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 4A-NSA-V-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 4A-NSA-V-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 4A-NSA-V-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 4A-NSA-V-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 4A-NSL-BN-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 4A-NSL-BN-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 4A-NSL-BN-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 4A-NSL-BN-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 4A-NSL-BN-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 4A-NSL-BN-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 4A-NSL-BN-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 4A-NSL-BN-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 4A-NSL-EPR-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 4A-NSL-EPR-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 4A-NSL-EPR-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 4A-NSL-EPR-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 4A-NSL-EPR-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 4A-NSL-EPR-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 4A-NSL-EPR-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 4A-NSL-EPR-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 4A-NSL-KZ-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 4A-NSL-KZ-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 4A-NSL-KZ-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 4A-NSL-KZ-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 4A-NSL-KZ-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 4A-NSL-KZ-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 4A-NSL-KZ-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 4A-NSL-KZ-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 4A-NSL-V-B-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 4A-NSL-V-B-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 4A-NSL-V-B-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 4A-NSL-V-B-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 4A-NSL-V-SS-F |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 4A-NSL-V-SS-K |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 4A-NSL-V-SS-KS |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 4A-NSL-V-SS-V |
1/4" |
1/4" |
Two Ferrule Compression |
Two Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 4Z-NSA-BN-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 4Z-NSA-BN-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 4Z-NSA-BN-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 4Z-NSA-BN-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 4Z-NSA-BN-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 4Z-NSA-BN-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 4Z-NSA-BN-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 4Z-NSA-BN-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 4Z-NSA-EPR-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 4Z-NSA-EPR-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 4Z-NSA-EPR-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 4Z-NSA-EPR-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 4Z-NSA-EPR-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 4Z-NSA-EPR-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 4Z-NSA-EPR-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 4Z-NSA-EPR-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 4Z-NSA-KZ-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 4Z-NSA-KZ-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 4Z-NSA-KZ-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 4Z-NSA-KZ-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 4Z-NSA-KZ-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 4Z-NSA-KZ-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 4Z-NSA-KZ-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 4Z-NSA-KZ-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 4Z-NSA-V-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Neoprene Rubber |
| 4Z-NSA-V-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 4Z-NSA-V-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 4Z-NSA-V-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 4Z-NSA-V-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 4Z-NSA-V-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 4Z-NSA-V-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 4Z-NSA-V-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Angle |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 4Z-NSL-BN-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 4Z-NSL-BN-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 4Z-NSL-BN-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 4Z-NSL-BN-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 4Z-NSL-BN-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Precision Adjustment |
Nitrile |
| 4Z-NSL-BN-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Nitrile |
| 4Z-NSL-BN-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled with Slot |
Nitrile |
| 4Z-NSL-BN-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Vernier |
Nitrile |
| 4Z-NSL-EPR-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 4Z-NSL-EPR-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 4Z-NSL-EPR-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 4Z-NSL-EPR-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 4Z-NSL-EPR-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Precision Adjustment |
Ethylene Propylene Rubber |
| 4Z-NSL-EPR-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled |
Ethylene Propylene Rubber |
| 4Z-NSL-EPR-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Knurled with Slot |
Ethylene Propylene Rubber |
| 4Z-NSL-EPR-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-40 |
Vernier |
Ethylene Propylene Rubber |
| 4Z-NSL-KZ-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 4Z-NSL-KZ-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 4Z-NSL-KZ-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 4Z-NSL-KZ-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 4Z-NSL-KZ-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Precision Adjustment |
Highly Flourinated Flourocarbon Rubber |
| 4Z-NSL-KZ-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled |
Highly Flourinated Fluorocarbon Rubber |
| 4Z-NSL-KZ-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Knurled with Slot |
Highly Flourinated Flourocarbon Rubber |
| 4Z-NSL-KZ-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
200 |
-25 |
Vernier |
Highly Flourinated Fluorocarbon Rubber |
| 4Z-NSL-V-B-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Precision Adjustment |
Flourocarbon Rubber |
| 4Z-NSL-V-B-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
250 |
-40 |
Knurled |
Fluorocarbon Rubber |
| 4Z-NSL-V-B-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 4Z-NSL-V-B-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
Brass-Nickel Plated |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
| 4Z-NSL-V-SS-F |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-40 |
Precision Adjustment |
Flourocarbon Rubber |
| 4Z-NSL-V-SS-K |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
250 |
-10 |
Knurled |
Fluorocarbon Rubber |
| 4Z-NSL-V-SS-KS |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Knurled with Slot |
Flourocarbon Rubber |
| 4Z-NSL-V-SS-V |
1/4" |
1/4" |
Single Ferrule Compression |
Single Ferrule Compression |
Inline |
316 Stainless Steel |
2,000 |
138 |
400 |
-10 |
Vernier |
Fluorocarbon Rubber |
Part Connection 1 Size Connection 2 Size Connection 1 Style Connection 2 Style Body Shape Body Material Maximum Working Pressure (psi) Maximum Working Pressure (Bar) Maximum Working Temperature (F) Minimum Working Temperature (F) Handle Seal Material
1A-NSA-BN-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
1A-NSA-BN-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
1A-NSA-BN-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
1A-NSA-BN-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
1A-NSA-BN-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
1A-NSA-BN-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
1A-NSA-BN-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
1A-NSA-BN-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
1A-NSA-EPR-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1A-NSA-EPR-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1A-NSA-EPR-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1A-NSA-EPR-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1A-NSA-EPR-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1A-NSA-EPR-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1A-NSA-EPR-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1A-NSA-EPR-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1A-NSA-KZ-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1A-NSA-KZ-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1A-NSA-KZ-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1A-NSA-KZ-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1A-NSA-KZ-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1A-NSA-KZ-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1A-NSA-KZ-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1A-NSA-KZ-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1A-NSA-V-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
1A-NSA-V-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
1A-NSA-V-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1A-NSA-V-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1A-NSA-V-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
1A-NSA-V-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
1A-NSA-V-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1A-NSA-V-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1A-NSL-BN-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
1A-NSL-BN-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
1A-NSL-BN-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
1A-NSL-BN-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
1A-NSL-BN-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
1A-NSL-BN-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
1A-NSL-BN-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
1A-NSL-BN-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
1A-NSL-EPR-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1A-NSL-EPR-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1A-NSL-EPR-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1A-NSL-EPR-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1A-NSL-EPR-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1A-NSL-EPR-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1A-NSL-EPR-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1A-NSL-EPR-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1A-NSL-KZ-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1A-NSL-KZ-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1A-NSL-KZ-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1A-NSL-KZ-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1A-NSL-KZ-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1A-NSL-KZ-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1A-NSL-KZ-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1A-NSL-KZ-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1A-NSL-V-B-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
1A-NSL-V-B-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
1A-NSL-V-B-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1A-NSL-V-B-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1A-NSL-V-SS-F 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
1A-NSL-V-SS-K 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled Fluorocarbon Rubber
1A-NSL-V-SS-KS 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1A-NSL-V-SS-V 1/16" 1/16" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1Z-NSA-BN-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
1Z-NSA-BN-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
1Z-NSA-BN-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
1Z-NSA-BN-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
1Z-NSA-BN-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
1Z-NSA-BN-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
1Z-NSA-BN-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
1Z-NSA-BN-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
1Z-NSA-EPR-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1Z-NSA-EPR-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1Z-NSA-EPR-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1Z-NSA-EPR-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1Z-NSA-EPR-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1Z-NSA-EPR-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1Z-NSA-EPR-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1Z-NSA-EPR-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1Z-NSA-KZ-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1Z-NSA-KZ-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1Z-NSA-KZ-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1Z-NSA-KZ-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1Z-NSA-KZ-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1Z-NSA-KZ-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1Z-NSA-KZ-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1Z-NSA-KZ-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1Z-NSA-V-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
1Z-NSA-V-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
1Z-NSA-V-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1Z-NSA-V-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1Z-NSA-V-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
1Z-NSA-V-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
1Z-NSA-V-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1Z-NSA-V-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1Z-NSL-BN-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
1Z-NSL-BN-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
1Z-NSL-BN-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
1Z-NSL-BN-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
1Z-NSL-BN-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
1Z-NSL-BN-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
1Z-NSL-BN-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
1Z-NSL-BN-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
1Z-NSL-EPR-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1Z-NSL-EPR-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1Z-NSL-EPR-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1Z-NSL-EPR-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1Z-NSL-EPR-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
1Z-NSL-EPR-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
1Z-NSL-EPR-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
1Z-NSL-EPR-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
1Z-NSL-KZ-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1Z-NSL-KZ-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1Z-NSL-KZ-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1Z-NSL-KZ-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1Z-NSL-KZ-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
1Z-NSL-KZ-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
1Z-NSL-KZ-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
1Z-NSL-KZ-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
1Z-NSL-V-B-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
1Z-NSL-V-B-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
1Z-NSL-V-B-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1Z-NSL-V-B-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
1Z-NSL-V-SS-F 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
1Z-NSL-V-SS-K 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled Fluorocarbon Rubber
1Z-NSL-V-SS-KS 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
1Z-NSL-V-SS-V 1/16" 1/16" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2A-NSA-BN-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
2A-NSA-BN-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
2A-NSA-BN-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
2A-NSA-BN-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
2A-NSA-BN-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
2A-NSA-BN-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
2A-NSA-BN-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
2A-NSA-BN-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
2A-NSA-EPR-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2A-NSA-EPR-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2A-NSA-EPR-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2A-NSA-EPR-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2A-NSA-EPR-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2A-NSA-EPR-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2A-NSA-EPR-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2A-NSA-EPR-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2A-NSA-KZ-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2A-NSA-KZ-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2A-NSA-KZ-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2A-NSA-KZ-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2A-NSA-KZ-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2A-NSA-KZ-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2A-NSA-KZ-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2A-NSA-KZ-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2A-NSA-V-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
2A-NSA-V-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
2A-NSA-V-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2A-NSA-V-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2A-NSA-V-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
2A-NSA-V-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
2A-NSA-V-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2A-NSA-V-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2A-NSL-BN-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
2A-NSL-BN-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
2A-NSL-BN-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
2A-NSL-BN-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
2A-NSL-BN-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
2A-NSL-BN-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
2A-NSL-BN-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
2A-NSL-BN-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
2A-NSL-EPR-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2A-NSL-EPR-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2A-NSL-EPR-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2A-NSL-EPR-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2A-NSL-EPR-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2A-NSL-EPR-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2A-NSL-EPR-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2A-NSL-EPR-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2A-NSL-KZ-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2A-NSL-KZ-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2A-NSL-KZ-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2A-NSL-KZ-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2A-NSL-KZ-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2A-NSL-KZ-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2A-NSL-KZ-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2A-NSL-KZ-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2A-NSL-V-B-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
2A-NSL-V-B-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
2A-NSL-V-B-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2A-NSL-V-B-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2A-NSL-V-SS-F 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
2A-NSL-V-SS-K 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
2A-NSL-V-SS-KS 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2A-NSL-V-SS-V 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2Z-NSA-BN-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
2Z-NSA-BN-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
2Z-NSA-BN-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
2Z-NSA-BN-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
2Z-NSA-BN-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
2Z-NSA-BN-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
2Z-NSA-BN-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
2Z-NSA-BN-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
2Z-NSA-EPR-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2Z-NSA-EPR-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2Z-NSA-EPR-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2Z-NSA-EPR-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2Z-NSA-EPR-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2Z-NSA-EPR-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2Z-NSA-EPR-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2Z-NSA-EPR-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2Z-NSA-KZ-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2Z-NSA-KZ-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2Z-NSA-KZ-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2Z-NSA-KZ-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2Z-NSA-KZ-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2Z-NSA-KZ-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2Z-NSA-KZ-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2Z-NSA-KZ-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2Z-NSA-V-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Neoprene Rubber
2Z-NSA-V-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
2Z-NSA-V-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2Z-NSA-V-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2Z-NSA-V-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
2Z-NSA-V-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
2Z-NSA-V-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2Z-NSA-V-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2Z-NSL-BN-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
2Z-NSL-BN-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
2Z-NSL-BN-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
2Z-NSL-BN-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
2Z-NSL-BN-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
2Z-NSL-BN-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
2Z-NSL-BN-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
2Z-NSL-BN-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
2Z-NSL-EPR-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2Z-NSL-EPR-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2Z-NSL-EPR-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2Z-NSL-EPR-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2Z-NSL-EPR-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
2Z-NSL-EPR-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
2Z-NSL-EPR-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
2Z-NSL-EPR-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
2Z-NSL-KZ-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2Z-NSL-KZ-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2Z-NSL-KZ-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2Z-NSL-KZ-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2Z-NSL-KZ-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
2Z-NSL-KZ-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
2Z-NSL-KZ-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
2Z-NSL-KZ-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
2Z-NSL-V-B-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
2Z-NSL-V-B-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
2Z-NSL-V-B-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2Z-NSL-V-B-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
2Z-NSL-V-SS-F 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
2Z-NSL-V-SS-K 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
2Z-NSL-V-SS-KS 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
2Z-NSL-V-SS-V 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4A-NSA-BN-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
4A-NSA-BN-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
4A-NSA-BN-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
4A-NSA-BN-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
4A-NSA-BN-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
4A-NSA-BN-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
4A-NSA-BN-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
4A-NSA-BN-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
4A-NSA-EPR-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4A-NSA-EPR-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4A-NSA-EPR-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4A-NSA-EPR-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4A-NSA-EPR-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4A-NSA-EPR-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4A-NSA-EPR-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4A-NSA-EPR-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4A-NSA-KZ-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4A-NSA-KZ-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4A-NSA-KZ-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4A-NSA-KZ-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4A-NSA-KZ-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4A-NSA-KZ-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4A-NSA-KZ-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4A-NSA-KZ-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4A-NSA-V-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Neoprene Rubber
4A-NSA-V-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
4A-NSA-V-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4A-NSA-V-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4A-NSA-V-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
4A-NSA-V-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
4A-NSA-V-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4A-NSA-V-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4A-NSL-BN-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
4A-NSL-BN-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
4A-NSL-BN-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
4A-NSL-BN-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
4A-NSL-BN-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
4A-NSL-BN-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
4A-NSL-BN-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
4A-NSL-BN-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
4A-NSL-EPR-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4A-NSL-EPR-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4A-NSL-EPR-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4A-NSL-EPR-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4A-NSL-EPR-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4A-NSL-EPR-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4A-NSL-EPR-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4A-NSL-EPR-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4A-NSL-KZ-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4A-NSL-KZ-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4A-NSL-KZ-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4A-NSL-KZ-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4A-NSL-KZ-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4A-NSL-KZ-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4A-NSL-KZ-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4A-NSL-KZ-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4A-NSL-V-B-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
4A-NSL-V-B-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
4A-NSL-V-B-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4A-NSL-V-B-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4A-NSL-V-SS-F 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
4A-NSL-V-SS-K 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
4A-NSL-V-SS-KS 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4A-NSL-V-SS-V 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4Z-NSA-BN-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
4Z-NSA-BN-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
4Z-NSA-BN-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
4Z-NSA-BN-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
4Z-NSA-BN-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
4Z-NSA-BN-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
4Z-NSA-BN-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
4Z-NSA-BN-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
4Z-NSA-EPR-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4Z-NSA-EPR-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4Z-NSA-EPR-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4Z-NSA-EPR-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4Z-NSA-EPR-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4Z-NSA-EPR-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4Z-NSA-EPR-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4Z-NSA-EPR-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4Z-NSA-KZ-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4Z-NSA-KZ-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4Z-NSA-KZ-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4Z-NSA-KZ-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4Z-NSA-KZ-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4Z-NSA-KZ-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4Z-NSA-KZ-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4Z-NSA-KZ-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4Z-NSA-V-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Neoprene Rubber
4Z-NSA-V-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
4Z-NSA-V-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4Z-NSA-V-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4Z-NSA-V-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
4Z-NSA-V-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
4Z-NSA-V-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4Z-NSA-V-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4Z-NSL-BN-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Precision Adjustment Nitrile
4Z-NSL-BN-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled Nitrile
4Z-NSL-BN-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Knurled with Slot Nitrile
4Z-NSL-BN-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -10 Vernier Nitrile
4Z-NSL-BN-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Precision Adjustment Nitrile
4Z-NSL-BN-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Nitrile
4Z-NSL-BN-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled with Slot Nitrile
4Z-NSL-BN-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Vernier Nitrile
4Z-NSL-EPR-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4Z-NSL-EPR-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4Z-NSL-EPR-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4Z-NSL-EPR-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4Z-NSL-EPR-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Precision Adjustment Ethylene Propylene Rubber
4Z-NSL-EPR-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled Ethylene Propylene Rubber
4Z-NSL-EPR-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Knurled with Slot Ethylene Propylene Rubber
4Z-NSL-EPR-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -40 Vernier Ethylene Propylene Rubber
4Z-NSL-KZ-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4Z-NSL-KZ-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4Z-NSL-KZ-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4Z-NSL-KZ-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4Z-NSL-KZ-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Precision Adjustment Highly Flourinated Flourocarbon Rubber
4Z-NSL-KZ-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled Highly Flourinated Fluorocarbon Rubber
4Z-NSL-KZ-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Knurled with Slot Highly Flourinated Flourocarbon Rubber
4Z-NSL-KZ-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 200 -25 Vernier Highly Flourinated Fluorocarbon Rubber
4Z-NSL-V-B-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Precision Adjustment Flourocarbon Rubber
4Z-NSL-V-B-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 250 -40 Knurled Fluorocarbon Rubber
4Z-NSL-V-B-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4Z-NSL-V-B-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline Brass-Nickel Plated 2,000 138 400 -10 Vernier Fluorocarbon Rubber
4Z-NSL-V-SS-F 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -40 Precision Adjustment Flourocarbon Rubber
4Z-NSL-V-SS-K 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 250 -10 Knurled Fluorocarbon Rubber
4Z-NSL-V-SS-KS 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Knurled with Slot Flourocarbon Rubber
4Z-NSL-V-SS-V 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline 316 Stainless Steel 2,000 138 400 -10 Vernier Fluorocarbon Rubber
|
fcg.cnmec@parkerdistribution.com.cn
